JET 708320 JWS-22CS 1/2-Inch and 3/4-Inch Interchangeable Spindle 1-1/2-Horsepower Shaper, 115/230-Volt 1-Phase

by Jet

Product Description

Amazon.com Product Description

Whether you've just outgrown your router or you're looking for more shaping versatility, the Jet 708320 JWS-22CS is an affordable way to expand your repertoire. This compact powerhouse shaper features a 7,000 and 9,000 rpm reversing 1-1/2-horsepower motor, and a large 22-1/4-inch by 18-1/8-inch precision ground cast-iron table for a large and durable work area.

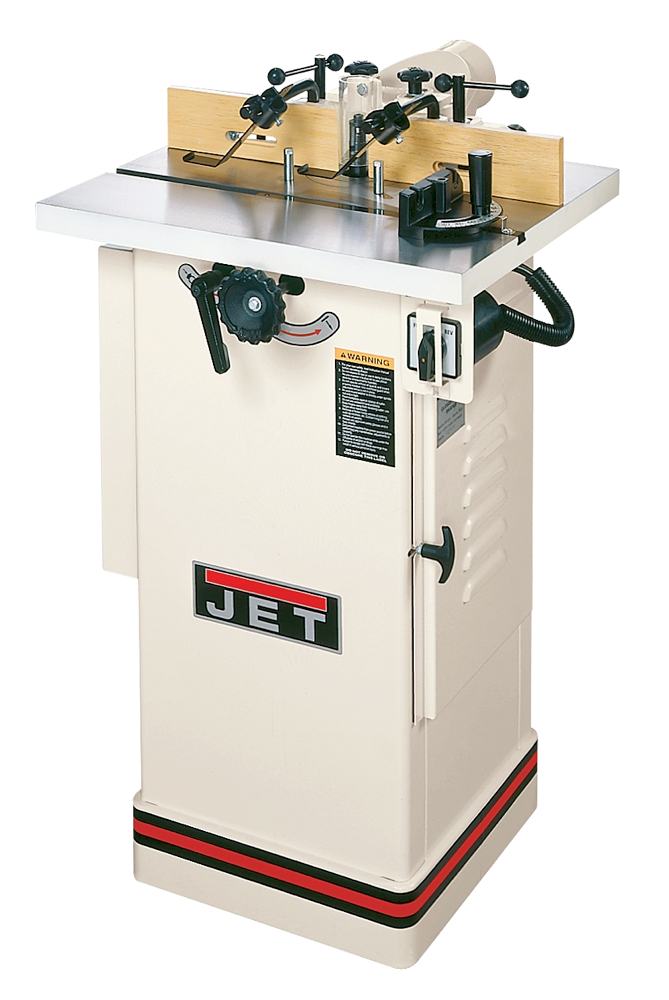

The compact JWS-22CS with 1-1/2-horsepower motor (view larger).



Top view of hold downs and fence assembly (view larger).

708320 JWS-22CS 1-1/2-Horsepower Shaper At a Glance: Powerful 1-1/2-horsepower motor delivers dependable power, even on heavy jobs Safe, accurate spindle height adjustments via hand wheel Extra-large solid cast-iron work surface for additional work space Fully enclosed, heavy-duty steel stand Five-year warranty

Features

Powered by a 1-1/2-horsepower, 1-phase motor, the Jet 708320 JWS-22CS has a two-speed, step-pulley drive with reverse spins at either 7,000 or 9,000 rpm for working with a variety of materials, as well as allowing you to select the best speed and torque for different cutter diameters. With interchangeable 1/2-inch and 3/4-inch spindles, you'll be able to use a greater range of cutters, and the 708320 also offers 1/4-inch and 1/2-inch router collets for using standard shank router bits.

The unit's fully enclosed heavy-duty steel stand keeps the motor clean and has a removable motor cover for easy maintenance. A 22-1/4-inch by 18-1/8-inch solid cast-iron table provides a durable work area. The left and right fences are independent and feature micro adjustment with no-clearance capabilities. And adjustable workpiece hold downs are mounted to the fence. A large hand wheel makes it easy to adjust the spindle up and down without having to step aside. Durable magnetic controls ensure safety in the shop. For quick and easy fence assemblies, the unit is equipped with unique ratcheting-style levers.

Other features include starting pins for irregular shaping, a forward/reverse switch for left- and right-hand operation, and a positive detent spindle lock for safer, easy cutter set-up. Additionally, a 4-inch dust port connects to your collection system to keep your workplace dust- and debris-free. It's backed by a 5-year limited warranty.

What's in the Box

One Jet 708320 JWS-22CS Shaper, 1/2-inch and 3/4-inch interchangeable spindles, 1/2-inch and 1/4-inch router bit collets, two table inserts, two starting pins, work piece hold-downs, mitre gauge, micro-adjustable fence, one-piece heavy-duty closed stand, cutter guard, and 4-inch dust chute.

Specifications Motor: 1-1/2 horsepower, 1 phase, 115/230 volt Spindle speed: 7,000 and 9,000 rpm (reversing) Spindle diameter: 1/2 and 3/4 inches Router bit collet: 1/4-inch and 1/2-inch diameter Spindle travel: 1-7/16 inches Fence size: 10 inches by 3-1/8 inches Table size: 22-1/4 inches by 18-1/8 inches (33-1/2 inches tall from floor) Table T-slot: 3/4 inches by 3/8 inches Dimensions: 23 inches by 25 inches by 40 inches Weight: 211 pounds Warranty: 5 years, limited

Product Description

Includes 1-1/2 HP Woodworking Shaper - 708320, 1/2-in Interchangeable Spindle, 3/4-in Interchangeable Spindle, 1/4-in Router Bit Collet, 1/2-in Router Bit Collet, T-Slot Miter Gauge, Cutter Guard, (2) Starting Pins

See all Product Description

Product Details

• Item Weight: 170 pounds
• Shipping Weight: 211 pounds (View shipping rates and policies)
• Shipping: This item can only be shipped to the 48 contiguous states. We regret it cannot be shipped to APO/FPO, Hawaii, Alaska, or Puerto Rico.
• Shipping Advisory: This item must be shipped separately from other items in your order. Additional shipping charges will not apply.
• ASIN: B00004XOF2
• Item model number: 708320
• Average Customer Review: 3.6 out of 5 stars  See all reviews (11 customer reviews)
• Amazon Best Sellers Rank: #188,618 in Home Improvement (See Top 100 in Home Improvement)
  • #80 in Home Improvement > Power & Hand Tools > Power Tools > Saws > Table Saws

Customer Reviews

Most Helpful Customer Reviews

65 of 68 people found the following review helpful:

5.0 out of 5 stars excellent, March 1, 2003

By

thomas weise (buffalo, n.y.) - See all my reviews

This review is from: JET 708320 JWS-22CS 1/2-Inch and 3/4-Inch Interchangeable Spindle 1-1/2-Horsepower Shaper, 115/230-Volt 1-Phase (Tools & Home Improvement)

I purchased this machine about 6 mos. ago. I have been perfectly pleased with its performance. The price is definitely a plus, it does perform as well as more pricey machines I use at work. The only drawback encountered with this machine is that when taking a larger "bite" out of harder woods, you must take it "gingerly". Common sense, however it is the only limitation I have come across-an all around good machine!!

10 of 10 people found the following review helpful:

4.0 out of 5 stars At a cost of Now over $800 it needs some improvments, April 14, 2006

By

Bobby Stanley (Houston, TX) - See all my reviews
(VINE VOICE)    (REAL NAME)

This review is from: JET 708320 JWS-22CS 1/2-Inch and 3/4-Inch Interchangeable Spindle 1-1/2-Horsepower Shaper, 115/230-Volt 1-Phase (Tools & Home Improvement)

I recently purchased this machine and have immediately ran into some problems. It was slightly damaged during shipment. One of the adjustable fences was smashed. This was due to the shipping company, Eagle, moving it on its side. It comes bolted to a pallet and would be fine if it stayed upright. A couple of minor pieces of plastic hardware were defective and the drawbar and nut were broken when I opened it up. I don't know how that happened. I called Amazon and they are fixing the problems. I will write back and let you know how that all went. (All problems were fixed within two weeks.)

The microadjustment knobs on the fence are nice; however, they are too short for my liking. I wished they were 6-8 inches long rather than an inch long. This would allow you put your hand around the knobs rather than your thumb and forefinger because they would stick out past the table rather than just above it.

I think the spring door latch is king of cheap. I hope it holds up.

It is a beautiful machine. The paint was excellent and the table was almost mirror quality. This is true of every Jet tool that I own. It uses 12 AMPs and is easy to run off a good extension cord if needed. It is super quiet!!! Dust collection works great if you have the fence mounted with the included 4" dust chute.

9 of 9 people found the following review helpful:

4.0 out of 5 stars Jet JWS-22CS / 708320 1-1/2 HP Woodworking Shaper, October 26, 2006

By

Terry L. Blazek (USA) - See all my reviews
(REAL NAME)

This review is from: JET 708320 JWS-22CS 1/2-Inch and 3/4-Inch Interchangeable Spindle 1-1/2-Horsepower Shaper, 115/230-Volt 1-Phase (Tools & Home Improvement)

I have had this machine for 6 months. Each month I have learned how much this machine is capable of. It is a quality heavy duty shaper, not a toy. I have used both shaper and router bits with no trouble. I have made kickboard, crown, and other moldings along with a dozen or more raised panel doors out of oak and maple without a hitch. The finish on the machine is excellent with everything heavy duty except for my one complaint.

The latch for the access door on the side is a spring latch that seems to be not of the quality of the rest of the machine. But other than this, this shaper is everything that I wanted.
