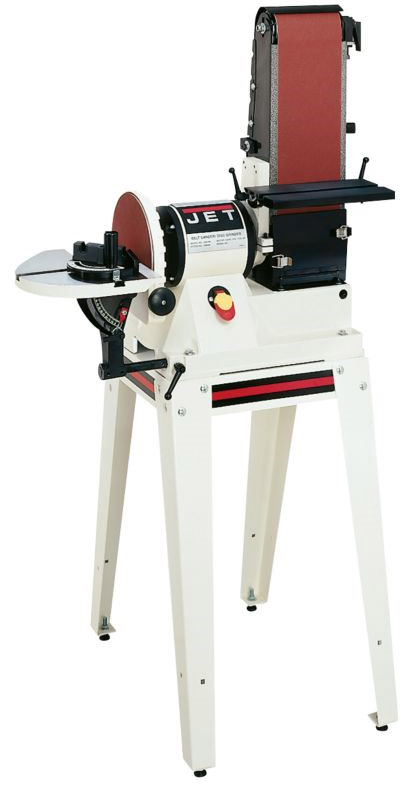

JET 708596K JSG-96OS 6-Inch/9-Inch 3/4-Horsepower Open Stand Belt/Disc Sander, 115-Volt 1-Phase

by Jet

Product Description

Amazon.com Product Description

Complete with built-in handles for easy portability, the JET 708596K JSG-96OS 6-Inch/9-Inch 3/4 HP Open Stand Belt/Disc Sander, 115-Volt 1-Phase is a combination belt/disc sander that comes complete with 3/4 HP motor for plenty of power to both sanders, a heavy-duty open-style stand, and two work tables. This versatile tool makes sanding tasks easier, more accurate, and less time-intensive for higher-quality results.

The JET JSG-96OS 6-Inch/9-Inch Open Stand Belt/Disc Sander offers: A 3/4 HP, 110-volt, TEFC motor for dependability Exclusive dual thumbscrew belt tracking adjustment locks for precision A nine-inch diameter disc that spins at 1,725 RPM A 6 x 48 inch sanding belt that runs at 2,258 SFPM A full-featured miter gauge and versatile fence

The belt can be positioned flat or fully vertical for improved versatility.

The JSG-96OS is a versatile, stable, and powerful snading unit. View larger.

The cast-iron table tilts to 45-degrees.

The specially designed center point (top) fits the miter slot on the cast iron table and makes sanding perfectly round disks safe and easy.

Finger operated latches open doors to make changing belts fast and tool free.

Powerful Mounted Motor for Robust, Stable Performance
The JSG-96OS is powered by a robust 3/4 HP, 110-volt, TEFC (totally enclosed fan cooled) motor mounted in a heavy-duty base. The base also supports the nine-inch diameter disc and belt systems (measuring 6 by 48 inches) to create a solid and very stable unit.

Dual Thumbscrew Adjustment for Precision
The JSG-96OS boasts Jet's exclusive dual thumbscrew belt tracking adjustment locks--an innovative feature that keeps the belt on track during use, which helps ensure precise results.

Sealed Ball Bearings and Steel Platen for Exceptional Durability
Built to last, the JSG-96OS offers exceptional durability for long-term reliability. Sealed, permanently lubricated ball bearings at all major friction points reduce maintenance and help provide an extended, trouble-free life, while the graphite-covered steel platen runs cooler, thereby preventing heat damage.

Single Dust Port Collects From Both Belt and Disc
To help keep your workspace clean, healthy, and dust-free, this tool features an effective dust collection system. This system has a single four-inch dust port on the back of the base that evacuates debris from both the disc and belt through specially designed shrouds that maximize its effectiveness.

Clever and Efficient Disc Section Design
The nine-inch diameter disc spins at 1,725 RPM (no load) and accepts adhesive-backed discs. Additionally, the heavy-duty disc plate is machined flat for super-smooth sanding and resists warping or deflection under all normal sanding conditions. To enhance dust collection and safety, a hinged door covers the lower portion of the sanding disc. Opening the door provides easy access to the complete disc for replacement of the abrasive.

Belt Section Offers Maximum Versatility
Measuring 6 x 48 inches, the sanding belt runs at 2,258 SFPM (surface feet per minute) and offers plenty of surface area to handle the big jobs. Its overall size also allows you to distribute wear over a larger area, which substantially increases the life of the abrasive.

For added convenience, the belt runs on high-quality rollers, mounted in a fully adjustable arm for maximum versatility. A rubber-coated drive drum helps to maintain belt speed.

Cast-Iron Sanding Disc Table for Stability and Flexibility
The cast-iron sanding disc table measures 10 inches wide and 12 inches in length, and has lots of surface area to help support large work pieces. The table also features a unique curved shape that makes it easy to use in a wide range of sanding operations. It's also fully adjustable and tilts up to 45 degrees. For added convenience, a handy scale under the table shows the current amount of tilt and makes setting specific angles fast and easy.

Disc Table Mount for Increased Versatility
To make the belt even more versatile, a mount for the disc table can be used at the belt as well (the belt table must be removed). This is particularly useful when using the center point device or sanding an odd-shaped work piece.

Miter Gauge and Pivoting Fence for User-Friendly Operation
The JSG-96OS comes with a full-featured miter gauge, and a fence measuring 5.5 x 2 inches tall to securely hold stock or attach shop-made jigs. This fence also pivots 60 degrees to the right or left and is locked with the twist of the push handle. Finally, the miter gauge has a steel guide bar fitted with a T-slot follower that prevents lifting or rocking during sanding.

The JSG-96OS is backed by a five-year warranty.

About JET: A History of Sharing New, Feature-Rich Products
Opened in 1958 after the founder of the company, Leslie P. Sussman, took the first Boeing Jet Airplane trip from Seattle, Washington to Japan, JET began as a small dealer that sold air hoists and trolleys out of a single hardware store in Seattle. Over the years, JET has carried everything from snowmobiles, transmitter radios, and forklifts to nylon stockings, but by the early 1970s, metalworking had become the base of their business line. And by the 1980s, JET had expanded into the realm of woodworking. Today, you'll find that JET offers a wide range of popular woodworking tools that are backed with best-in-class features and excellent service.

What's in the Box
One sander, one sanding belt, one sanding disc, two tables, one center point, three handles (one with brass insert), two 5/16-inch flat washers, one miter gauge, owner's manual, and warranty card.

Product Description

Includes 6-in x 48-in Belt / 9-in Disc Combination Sander w/ Open Stand - 708596K, Sanding Belt, Sanding Disc, Miter Gauge, Horizontal Backstop, Circle Jig, Heavy-Duty Open-Style Stand

Product Details

Product Manual [1.17mb PDF]

• Shipping Weight: 140 pounds (View shipping rates and policies)
• Shipping: This item can only be shipped to the 48 contiguous states. We regret it cannot be shipped to APO/FPO, Hawaii, Alaska, or Puerto Rico.
• ASIN: B000063INV
• California residents: Click here for Proposition 65 warning.
• Item model number: 708596K
• Average Customer Review: 4.3 out of 5 stars  See all reviews (35 customer reviews)
• Amazon Best Sellers Rank: #71,540 in Home Improvement (See Top 100 in Home Improvement)
  • #13 in Home Improvement > Power & Hand Tools > Power Tools > Sanders > Combination Disc & Belt Sanders
  • #41 in Home Improvement > Power & Hand Tools > Power Tools > Sanders > Belt Sanders

Customer Reviews

Most Helpful Customer Reviews

94 of 94 people found the following review helpful:

5.0 out of 5 stars Great Sander - Great Value (Update in 2010), March 7, 2002

By

"njaviator" (New Jersey) - See all my reviews

This review is from: JET 708596K JSG-96OS 6-Inch/9-Inch 3/4-Horsepower Open Stand Belt/Disc Sander, 115-Volt 1-Phase (Tools & Home Improvement)

I rec'd the sander a few days ago. It went together easy. It was quite heavy. Unless you've got some muscles, get some help placing the sander body on the stand.

The stand is solid and doesn't take up much floor space. There are pre-drilled carriage-bolt holes in the legs if you want to add your own lower shelf. I plan to do that at a later date but I thought it would be nice if Jet included the horizontal supports for such a shelf with the stand. Not a big negative just a suggestion. The stand comes with rubber-cushioned leveling feet unlike some of the other stands I've purchased in the past. It was a nice touch.

Other than the stand, essentially the only assembly needed is to attach the work tables to the sander body. The instructions are pretty good and they show in some detail how you get the tables lined up square to the sanding surfaces. I had a little trouble getting the belt sander work surface to go on smoothly but after making some adjustments to the 90 degree stops, it seemed to go on more easily.

The unit runs smoothly and with about as much noise as I would expect with a sander, although the graphite belt sander platen seems to make a little more "whooshing" sound when it starts up. The graphite is supposed to make it run cooler. I haven't confirmed that but it makes sense. There aren't any undue vibrations. Not having owned a stationary belt sander before this one (but I have used several) releasing the belt tension was new for me but makes sense. It's recommended so the belt doesn't take on an excessively oval shape or wear out prematurely. It's easy to do but I find that I have to line up the belt on the rollers before I move the tension arm back. Easy to do, just something to remember if you plan to release the tension when the machine is off.

The belt sander will lay flat if you need to do some surface sanding. There's a horizontal stop but no vertical stop. However, eyeball vertical is fine since the work surface moves with the belt assembly and as such stays perpendicular.

The disc sander is great for me. 9 inche diameter is all I need. I've considered 12 inch disc sanders but this machine gets the job done. I build furniture, cabinets and various (larger) craft items and I expect that it will handle my needs.

Adjusting the work surfaces requires some patience but wasn't too difficult. For example, if you want to change the angle on the belt sander work surface, you need to loosen two locking handles and line up the angle that you need while maintaining a gap between the table and the sanding belt. I find that when I tightened the right-side locking handle, it pulls the table toward the belt. I don't use the belt sander at other that 90 degrees too often, so I don't expect this to be a big deal for me. The disc sander work surface on the other hand is a breeze to adjust. There's an angle indicator on the table, so once the index is set to zero for perpendicular, moving to any other angle is a snap....

The 3/4 hp motor has yet to bog down on me. It seems adequately beefy so far.

I think this is a great sander. I've considered spending some money on Jet's larger sander and others in that class and was also considering other brands with lower priced units ... but when Jet re-released this machine, it didn't take long for me to make up my mind. As I use the sander more, I'll add more comments, but I expect to be very happy with my purchase and expect most other woodworkers would be happy as well.

Nice job to Jet on this one. I give it 5 stars for quality and value.

====

Update in 2010 (8 years later):

Just a follow up. The sander is still working great. I do use it fairly often (belt side mostly) so it seems to have held up well. Have not had any wear issues on the table adjustments. I have yet to change the sanding disc but belt changes are easy. I never got around to adding a shelf under the unit. And related to that, the legs are more than stable enough without any lower braces. So I'm pretty happy. I expect to get many more years from the sander.

57 of 57 people found the following review helpful:

5.0 out of 5 stars The Sawdust Maker a/k/a Jet's Combination Sander, March 5, 2003

By

J. A. Rapp (Jamestown, NC , USA) - See all my reviews
(REAL NAME)

This review is from: JET 708596K JSG-96OS 6-Inch/9-Inch 3/4-Horsepower Open Stand Belt/Disc Sander, 115-Volt 1-Phase (Tools & Home Improvement)

I just took delivery...of Jet's #708596K sander with the 9" disc and 6x48" belt and am VERY pleased with the purchase.

Packaging was excellent with everything strapped to a wood pallet. After unpacking, I set up the open stand on a mobile machine base, then simply bolted the sander to the top of the stand. [Be sure and read the directions on stand assembly as this will eliminate trial and error attempts at short cuts]

Installing the belt is quite easy. Adjusting it to track requires careful adjustment of the tracking wheel, but this takes less than one minute. Once the belt is tracking and not drifting left or right, it stays on track until the belt is changed or for 6 hours, whichever comes first. For whatever reason, the belt will get out of allignment just sitting there. It is a good thing that adjustment is a simple quick process.

The work support tables install easly and are excellent. All adjustments are up front and easy to make and once made, hold their position.

The main reason I purchased this unit over others in the market[some a good deal more expensive] is the outstanding dust collection system that is built into the machine. Belt and disc sanders can cover up a shop in sawdust in no time without some sort of dust control and this machine has the best I have seen. At the base of the belt there is a 2"x6" opening for the dust coming off the belt this feeds into collection area at the bottom of the machine. The disc has a 2 1/2" collection hole that also feeds into the base. Both of these openings are controlled be separate blast gates. at the back of the machine, there is a built in 4" exhaust port to connect to your dust system. This is an excellent design that gives you dustless sanding!

You can't go wrong with this machine. Particularly with Amazon's low price, no sales tax, and free shipping.

21 of 21 people found the following review helpful:

5.0 out of 5 stars Exellent belt sander, August 22, 2002

By

B. Hamilton (Phoenix, Arizona, United States) - See all my reviews

This review is from: JET 708596K JSG-96OS 6-Inch/9-Inch 3/4-Horsepower Open Stand Belt/Disc Sander, 115-Volt 1-Phase (Tools & Home Improvement)

I was a little skeptical about this product, because of the relativly low price and the 3/4 h.p. motor. My previous sander had a 1 & 1/2 h.p. motor, and cost ($$$) 15 years ago.
Assembling the unit was straight-forward, and took about 30 minutes. The quality and craftmanship, with no regard concerning the price, is outstanding.
Once I starting using the machine, I became equally impressed with it's function. My last concern, the 3/4 h.p. motor, has never slowed or bogged-down, even while force-feeding it with varions types of walnut, and mesquite.
Everything works the way it is supposed to, and after 3 months of heavy use, I would highly reccommend this product to anyone seeking a heavy-duty home, or light-duty commercial belt sander.
