JET 708598K JSG-6CS 6-Inch/12-Inch 1-1/2 Horsepower Belt/Disc Sander, 115/230-Volt 1 Phase

by Jet

Product Description

From the Manufacturer

Belt operates horizontally, vertically, or at any angle in between. Positive settings at 90 and 45 degrees. Quick- change belt tension lever facilitates fast belt changes. Belt tracking adjustments are easily made with exclusive dual thumb screws. Belt guard is designed to allow full use of the belt length. Two ground cast-iron tilting tables with miter gauge slots. Large 12-1/2-by-7-inch belt table and 16-1/2-by-10-inch disc table. Features 1-1/2 hp, 1-phase 115/230-volt motor, pre-wired 115-volt, produces 2,500 sfpm. Comes standard with back stop for horizontal mode, miter gauge, sanding belt, sanding disc, and 4-inch dust chute.

FEATURES

• Belt sander operates horizontally and vertically and can be locked at any angle in between
• Both sanding tables have positional stops at 90 degrees and 45 degrees for quick reference
• Belt tracking adjustments are easily made with exclusive dual thumb screws
• The belt guard is designed to allow the full usage of the 6" belt width and length
• Two precision ground cast iron tables with mitre gauge slots
• Exclusive design single 4" dust port base which efficiently collects the majority of the dust produced by both sanders before it becomes airborne

STANDARD EQUIPMENT

• Back stop for horizontal mode
• Mitre gauge
• Sanding belt
• Sanding disc
• 4" dust chute

SPECIFICATIONS
Sanding Belt (WxL/in): 6 x 48
Disc (Dia/in): 12
Belt Table Tilt (Down, Up): 45 degrees, 20 degrees
Disc Table Tilt: 45 degrees, 25 degrees
Motor: 1 1/2 HP, 1 Ph 115/230V Prewired 115V
Belt Speed (SFPM): 2,500
Net Weight (lbs): 210

Product Description

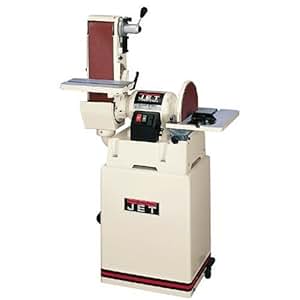

The JET Belt/Disc Sander combines a 12in. disc and a 6in. x 48in. belt to provide industrial 1 1/2 HP sanding power. The exclusive dual thumbscrew belt tracking adjustment locks to keep the belt on track while tackling any tough application. The sander boasts both a quick-release belt tension lever and a quick-lock dust cover for the disc. The built-in handle allows for easy portability around the workshop while the included stand saves room on your workbench. Style: Closed stand belt/disc sander, HP: 1 1/2, Speed (RPM): 1,725 (disc), Table Dimensions W x L (in.): 16 1/2 x 10, Motor Phase(s): 1, Motor Voltage: 115/230 (prewired 115V), Amps: 12/6, Port Size (in.): 4in. O.D. dust port for increased dust collection efficiency, Belt Size (in. x in.): 48in.L x 6in.W, Belt Speed (ft./min.): 2,500 SFPM, Disc Diameter (in.): 12, Drum Material Type: Rubber coated aluminum, Adjustable: Yes, Exclusive dual thumbscrew belt tracking adjustment locks to keep belt on track during use, Handle Type: Built in handles for portability, Material Type: Steel

Product Details

• Product Dimensions: 25.5 x 19 x 57.5 inches
• Shipping Weight: 229 pounds (View shipping rates and policies)
• Shipping: This item can only be shipped to the 48 contiguous states. We regret it cannot be shipped to APO/FPO, Hawaii, Alaska, or Puerto Rico.
• Shipping Advisory: This item must be shipped separately from other items in your order. Additional shipping charges will not apply.
• ASIN: B00005NMRO
• California residents: Click here for Proposition 65 warning.
• Item model number: 708598K
• Average Customer Review: 4.8 out of 5 stars  See all reviews (5 customer reviews)
• Amazon Best Sellers Rank: #175,674 in Home Improvement (See Top 100 in Home Improvement)
  • #89 in Home Improvement > Power & Hand Tools > Power Tools > Sanders > Belt Sanders

Customer Reviews

Most Helpful Customer Reviews

17 of 18 people found the following review helpful:

5.0 out of 5 stars Very Nice, December 20, 2001

By

"kaijustudios" (New England) - See all my reviews

This review is from: JET 708598K JSG-6CS 6-Inch/12-Inch 1-1/2 Horsepower Belt/Disc Sander, 115/230-Volt 1 Phase (Tools & Home Improvement)

I recently recieved this sander. The enclosed base is nice- good storage for the tables and extra discs/betls. Its very nice- lots of power, the spring loaded belt tension arm is a nice touch, although the tracking adjustment requires attention more often than other sanders I've used - it does the job though. The dust collection works pretty well, the miter gauge isn't very accurate, but for normal wood-working it should suffice. Nice machine, my second Jet tool.

4 of 4 people found the following review helpful:

4.0 out of 5 stars Excellent..... but....., November 22, 2005

By

33-truck (UK) - See all my reviews

This review is from: JET 708598K JSG-6CS 6-Inch/12-Inch 1-1/2 Horsepower Belt/Disc Sander, 115/230-Volt 1 Phase (Tools & Home Improvement)

Excellent machine for the price, very sturdy construction, high quality build. However, it is slightly let down by the belt tracking mechanism. As reported by another reviewer, I also find I am constantly adjusting the tracking, and if the tracking lever is knocked it throws it out. Still a very nice machine though.

1 of 1 people found the following review helpful:

5.0 out of 5 stars 4 years with this and still great., April 17, 2008

By

David Jones "David" (Sarasota, Fl. USA) - See all my reviews

Amazon Verified Purchase

This review is from: JET 708598K JSG-6CS 6-Inch/12-Inch 1-1/2 Horsepower Belt/Disc Sander, 115/230-Volt 1 Phase (Tools & Home Improvement)

I bought one in 2004 to help with my metal fabrication shop. It has been great for shaping stainless steel tubing to create motorcycle turbo manifolds. It's heavy and heavy duty and has plenty of power for me. The closed cabinet helps keep the extra belts and discs clean and ready for use. I highly recommend it. David

An addition about the tracking. My unit did need some occasional adjustment on start up but what I noticed was it was mostly after shifting the machine on my uneven floor. I recently ordered some 3M resin bonded abrasive for stainless and once I adjusted the tracking, I have fired it up probably over 300 times without an adjustment as of(10-24-2008). The adjustment is very easy as well. Once adjusted for the first time you can turn the front knob in or out to fine tune it. It hasn't needed more than 1/16 turn either way.

I still give it a 5 star. Thanks, David
