Product Description
From the Manufacturer
The AVF ES250-BT Wall Mounted AV Shelving System
The AVF, Inc ES250B-T is a wall mounted AV component shelving system. It supports components weighing up to 22 lbs per shelf. The ES250B-T not only frees up valuable shelf space and eliminates the need for bulky entertainment centers, but it also provides for a neat and stylish addition to your wall mounted TV.
- Accommodates various components such as:
-Cable Boxes
-Satellite Boxes
-Digital Converters
-DVR's
-Blu-Ray Players
-DVD Players
-VCR Players
-Video Game Consoles
-Routers
-Home Theater Systems - Designed to be used in combination with your wall mounted TV
- Two height-adjustable shelves allows you to adjust the height of the shelves to best accommodate your components
- Its modular design allows you to combine two or more ES250B-T and stack them on top of each other to accommodate more AV components for a seamless appearance
- Easy to install
- Can be used with or without a wall mounted TV
- Weight Capacity: 22 lbs (10 kg) per shelf
- Color: Black with smoked black glass
- Material: Constructed of powder coated aluminum with two tempered smoke-black safety glass shelves
- Glass Measurements: 17" width x 13.5" depth
- Wall Plate Measurement: 2.75" width x 11.875" height
- Mounting type: Single stud application - must be mounted onto wooden stud(s) or solid concrete wall
- Shipping Boxed Dimensions: 18.5 x 14.6 x 3.5"
- Shipping Weight: 10.6 lbs
What's in the Box?
AV Component Shelving System (wall plate and two glass shelves), instruction manual, mounting hardware, warranty information.
About AVF
AVF is a world leading supplier of TV wall mounts and support systems with over 30 years experience supplying worldwide markets. Product development, prototyping, and testing are undertaken by a dedicated innovation and design team at AVF's Global Innovation Center in Telford, UK. AVF's product range offers innovative and attractive solutions for all TV wall mount and support system requirements, with a continually evolving new product development process focusing on customer requirements.
Quality and Safety
Quality and safety are paramount in the design and manufacture of AVF products. Multi-site operations in China manufacture products to AVF's exacting designs and specifications and rigorous internal quality procedures at manufacturing plants are supplemented by independent third party testing leading to quality and safety accreditations.
About Eco-mount Products: Manufacturing and Packaging
AVF's Eco-mount range is a complete range of flat panel TV wall mounts based on one modular family look. Fourteen flat panel mounts offer functionality from flat-to-wall through to multi-position in small, medium, large, and extra large size categories, and are complemented by accessory mounts and cable management products.
Consumer Benefits
An easy-to-understand range of products with attractive and descriptive packaging ensures selecting the correct wall mount is an easy task. Universal compatibility and the modular design of the products with an "Easy-Click" locking mechanism make installation as easy as 1-2-3.

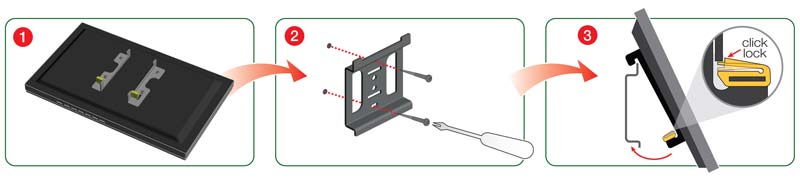

- Attach the TV plate to your TV using the included hardware
- Screw the wall plate to the wall (Wood Stud or Solid Concrete wall only - Do not mount onto Drywall alone)
- Attach the TV and wall plates together and "Easy-Click" into place
Environmental Benefits
An efficient manufacturing process using common modular component parts for the range means Eco-mount uses fewer raw materials, produces less waste and, crucially, products are designed to fit in boxes that are 50% smaller than similar products available in stores. This has led to a reduction in packaging and transportation and, as a consequence, a reduction in CO2 emissions.
Choosing the Right AVF Mount For You
Flat panel TVs are ideally suited to be wall mounted. Wall mounting your TV can create extra space and give a stylish uncluttered look to your room. The slim profile of flat-panel TVs means that they can be discreetly placed flat against a wall or they can be easily repositioned when mounted on a multi-position mount.
VESA Size
A further consideration when choosing a flat panel TV wall mount is whether your TV is VESA compatible, and if so, which VESA standard it is. VESA standards are set distances between threaded screw holes on the back of flat-panel TVs and monitors. All AVF flat panel mounts are VESA compliant and specify the maximum VESA standard they will fit. Many products also fit non-VESA-compliant monitors and TVs.
TV Size
The size of mount to choose is dependent on the screen size of your TV. AVF has flat panel mounts in four categories: Small, Medium, Large, and Extra Large. Overlap exists between size categories as some mounts are compatible with a wide range of screen sizes.
TV Weight
Another important consideration is the weight of your TV. AVF mounts are subject to rigorous weight testing; however, you should not exceed the weight limit indicated on products. Rigorous internal quality procedures at the design and manufacture stages are also supplemented by independent third party testing leading to quality and safety accreditations. AVF products are UL listed after being tested to hold four times the weight recommended for each product.
TV Room Position
The distance between you and your TV and the height you place your TV is usually based on personal preference. If you sit too close, lower-quality signals may appear pixelated, and if you sit too far away you may not see the high quality detail in HD or DVD images. Where you intend to place your TV will also have a direct influence on the type of wall mount best suited to your needs.
Flat to wall: If your aim is to achieve a discreet appearance, a flat to wall mount may be ideal for your room. Flat to wall mounts are designed with a slim profile to enable you to position your TV flush to the wall.
Tilt: Wall mounts with a tilt function enable you to place your TV in a higher position as they provide the opportunity to tilt your screen downwards for optimal viewing. Tilting capabilities can also help remedy situations where light is glaring off your screen.
Multi-position: Multi-position mounts are ideal for positioning your TV into a corner or where you would like a wide range of viewing angles, giving you the ability to view your TV from multiple rooms, such as the living room and kitchen, for example. They are the most flexible mounts available and allow you to fold out your TV on one or more arms and multiple pivot points to give a maximum range of viewing angles. Multi-position mounts also usually have tilting capabilities and can be neatly folded back against the wall.
Wall Type
It is important to consider the type of wall you are mounting your TV on. It is highly recommended to use a stud-finder to find wooden studs and to ensure there are no hidden pipes or wires behind where you intend to drill. Do not mount onto drywall, plasterboard or paneled walls unless all wall plate screws are fixed into a wooden stud behind the drywall, plasterboard, or paneled walls. Use suitable wall plugs and screws when mounting onto a solid concrete wall. It is your responsibility to ensure the wall structure and fixings are capable of supporting the screen and mount in a normal working environment. Check the strength of the installation before installing and if you have any doubts regarding installation please consult a qualified contractor.
Cable Management
Cable management is something you may wish to consider when wall mounting your TV in order to achieve a neat, uncluttered finish. There are different ways of managing your cables and you may need to consider which approach you will take before installing your mount onto the wall.
- Surface coverings: The easiest cable management solution is to cover your wires with cable covers. These are coverings which stick to your wall over your cables. Usually made out of plastic, they are available in varying thicknesses and are typically paintable.
- Concealing in hollow walls: If you are mounting your TV on a stud or partition wall you may choose to run your cables in the hollow space between studs. You can so this by drilling a hole close to where the wall plate of your mount will be and threading your cables through the hollow space to emerge lower down your wall. Depending on the size of the hollow gap however you may have difficulty in threading thicker cables or end connectors. Make sure you check for pipes and wires before drilling, and ensure the screws of the wall plate of your mount are fixed into a wooden stud.
- Concealing in solid walls: If you are mounting your TV on a solid wall you can conceal your cables by cutting or chiseling out a channel within your wall in which to run your cables. Simply plaster over the channel and repaint to achieve a smooth finish.
Product Description
Customer Reviews
|
Share your thoughts with other customers:
|
||||||||||||||||||||||
|
Most Helpful Customer Reviews
29 of 31 people found the following review helpful:
4.0 out of 5 stars
Great Function & Form,
Amazon Verified Purchase(What's this?)
This review is from: AVF ES250B-T Wall Mounted AV Component Shelving System with 2 Adjustable Tempered Glass Shelves (Black) (Electronics)
This was delivered in one day. Good Condition. Picture instructions easy to follow.
Wasn't a wood stud where it needed to be installed. I tried using supplied drywall anchors and screws. The plastic anchors messed up using an electric drill and screws were to large. I had the common problem of creating a rounded out hole to big for the anchors.(stuff happens!) So,I checked my surplus hardware stash and found two metal drywall anchors with the spring loaded wing-nuts that lockup against the inside of the drywall. These are the best for any weight bearing install. I didn't rate the shelf system 5 stars because of the supplied anchors & screws. The shelf system was great and goodlooking. A very sturdy shelf holds the cable box and above on the next shelf is my blu-ray player. Adjusting the shelves was easy. I really liked being able to arrange all cables neatly through cableways on each side of the base and behind the shelf holders. This made a nice clean setup. Very pleased with the final results. I experienced no instability in any of the shelves as I read in some review. This my be because of the use of the supplied anchoring hardware. Before install, go to the hardware store and get better hardware for the drywall. In my opinion, the metal wing-nut toggle bolt type are the best for load bearing shelving.
21 of 24 people found the following review helpful:
5.0 out of 5 stars
Great Accessory to the Flat Screen TV,
By
Amazon Verified Purchase(What's this?)
This review is from: AVF ES250B-T Wall Mounted AV Component Shelving System with 2 Adjustable Tempered Glass Shelves (Black) (Electronics)
I for one am all about aesthetic appeal when it comes to our television setup in each of our rooms in our homes. I am a wire hider, I would rather climb up in a 130F attic and hide wires than see them any day. We purchased this product for my son's setup in his room, we mounted it right next to his 47" TV and he keeps his Playstation and XBox on each shelf, the wires are nearly completely hidden as they're so close to the TV that they simply are running directly behind and plugged in (excess is wound up and zip tied behind the TV). We chose to mount the shelf to the side of the Television because he had a shelf below with his stereo, etc, and the aesthetic appearance worked better off to the side. It would look amazing with one set on each side, but he has no need for two sets. The product was very easily assembled, and the glass and finish gives it a very contemporary look. I would recommend this product all day long.Hope that helps you with your purchasing decision. Thanks for reading!
5 of 6 people found the following review helpful:
2.0 out of 5 stars
Looks nice, but don't bump it,
By
Amazon Verified Purchase(What's this?)
This review is from: AVF ES250B-T Wall Mounted AV Component Shelving System with 2 Adjustable Tempered Glass Shelves (Black) (Electronics)
I was looking for a cheap wall shelf unit, but I wish I would've shopped more. This unit is very visually pleasing; however, lacks stability. The drywall anchors that come with it don't work very well. I eventually made them work, but recommend getting other anchors if you have the choice. I got the anchors tight to the wall, but the shelves will sway side to side way more than I expect if bumped. The shelf looks very nice if you put it up away from contact, but I fear things may fall off them as wobbly as they are.
