Technical Details
- Brand Name: Amped Wireless
- Model: SR300
- Hardware Platform: PC
- Network Data Transfer Rate: 300 Megabits Per Second
- Width: 8.50 inches
Product Details
Would you like to update product info or give feedback on images? |
Product Description
From the Manufacturer

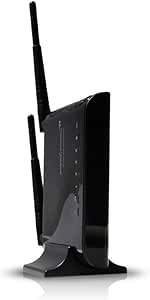

The Amped Wireless High Power Wireless-300N Smart Repeater expands the range of your 802.11b/g/n wireless network by repeating the signal from your home or office wireless router and redistributing it in a new "extended" location. Computers, game consoles, networked Blu-ray players, televisions and other networked devices can then connect to the Smart Repeater using Wi-Fi or a wired connection (up to 5 ports available) to access the extended network.
How the High Power Wireless-300N Smart Repeater works to expand your wireless range. View larger
The SR300 picks up the original signal and retransmits it, doubling the range
The Smart Repeater eliminates wireless dead zones, extends wireless and wired network coverage, and is compatible with most brands of models of 2.4GHz 802.11b/g/n wireless routers.
Increased Wireless Coverage
Expand the range of your existing home or office wireless network by repeating the existing Wi-Fi signal. The High Power Amplifier and Antennas provide the extra boost needed to increase your range by up to 3x your original Wi-Fi coverage.
Optimally tuned and paired with two High Gain 3dBi Wi-Fi antennas for maximum range.
View larger
View larger
Boost your wireless range up to 3x. View larger
Add Additional Wired Connections
Add up to 5 additional wired ports for connecting PCs, AV devices such as Internet enabled Televisions, Blu-ray players, Game Consoles and much more.
Smart Security Features
You're in control. Smart security features allow you to restrict access to specific users, set a daily time schedule for when the network is available and when it is not and control how far your extended wireless network coverage reaches through wireless output power adjustments.
The Smart Repeater also supports secure push button setup for WPS enabled devices.
Simple Setup with Universal Compatibility
The Smart Repeater is universal and works with all 2.4GHz 802.11b/g/n wireless routers and Wi-Fi networks. The Smart Setup Wizard makes setup simple:
|
Great for High Traffic Networks
Wireless-300N speeds provide the bandwidth to stream video, audio and large files easily. The SR300 is great for Wi-Fi networks with high traffic.
Industry leading technical support and customer service
Free Wi-Fi Analytics Tool Android App to help optimize and analyze Wi-Fi networks
Satisfaction guaranteed with the Amped Wireless Range Increase Guarantee
What's in the Box
High Power Wireless-300N Smart Repeater, 2 Detachable High Gain 3dBi Antennas, product stand, Ethernet cable, Quick Installation guide, CD with manual and instructional videos.
Technical Specifications
- Wireless Standard: 802.11n, 802.11b/g
- Frequency Band: 2.4 GHz
- Wireless Speed: 300Mbps (Rx), 300Mbps (Tx)
- Amplifier: Low Noise Amplifier
- Wireless Sensitivity: -93dBm
- Wireless Output Power: Up to 20 dBm
- Wireless Security: WEP, WPA, WPA2, WPA Mixed, WPS
- Wireless Access Scheduling: Specific day and time
- Wireless Coverage Control: 15% - 100% Output Power
- Antennas: 2 x Detachable High Gain 3dBi Antennas, 2 x Reverse SMA Connectors
- Ports: 5 x RJ-45 10/100 LAN ports
Amped Wireless Range Extender Comparison
| Standard Range Extender | SR300 | REC10 | SR10000 | SR20000G | SR600EX | |
|---|---|---|---|---|---|---|
| Speed Standard | Wireless-G | Wireless-N | Wireless-N | Wireless-N | Wireless-600N | Wireless-N |
| Frequency | 2.4GHz 802.11b/g/n | 2.4GHz 802.11b/g/n | 2.4GHz 802.11b/g/n | 2.4GHz 802.11b/g/n | Simultaneous 2.4/5.0GHz 802.11a/b/g/n | 2.4GHz 802.11b/g/n |
| Output Power | 50mW | 100mW | 600mW | 600mW | 600mW Dual Band | 600mW |
| Wireless Range* | Up to 1,000 sq ft | Up to 5,000 sq ft | Up to 6,500 sq ft | Up to 10,000 sq ft | Up to 10,000 sq ft | Up to 1.5 miles Line of Sight, Outdoors |
| Antenna Type | Internal | External, Upgradeable | External, Upgradeable | External, Upgradeable | External, Dual Band | Internal and Optional External |
| Antenna Gain | 0dBi | 2 x High Gain 3dBi Omni-directional | 1 x High Gain 2dBi Antenna | 2 x High Gain 5dBi Omni-directional | 2 x High Gain 5dBi Omni-directional | Professional High Gain Bi-directional |
| Ports | 1 Port | 5 Ports | 1 Port | 5 Ports | 5 Gigabit LAN | 2 Ports |
| Smart Features | ||||||
| Smart Security Features |  | | | | | |
| Supports WPA, WPA2, WPS | | | | | | |
| Guest Wi-Fi Networks | | | | | | |
| Wi-Fi Access Management | | | | | | |
| Universal: Works with all Routers | | | | | | |
| Smart Setup Wizard | | | | | | |
| Adjustable Wi-Fi Coverage | | | | | | |
| Gigabit Ports | | |||||
| Power Processor | | |||||
| Dual Band Interference Free | | |||||
| USB Storage File Sharing | (Local Sharing Only) | |||||
| Other Features | ||||||
| Indoor Stand | Vertical | Vertical | Vertical | Professional Stand | ||
| Mounting Options | Wall, Desktop | Plug-in | Wall, Desktop | Wall, Desktop | Wall, Pole, Desktop | |
| Weatherproof Enclosure | | |||||
| Power over Ethernet (Adapter) | | |||||
| Range Increase Guarantee | | | | | | |
| Included Accessories | Network Cable | Network Cable | Network Cable | 30ft PoE Cable, PoE Adapter | ||
| Free Wi-Fi Analytics Mobile App | | | | | | |
| 1 Year Warranty | | | | | | |
*Range specifications are based on performance test results. Actual performance may vary due to differences in operating environments, building materials and wireless obstructions. Professional Series Products require point to point, line of sight, wireless connections between other Amped Wireless Professional Series products to achieve stated range specifications. Performance may increase or decrease over the stated specifications based on the overall wireless environment and conditions. Wireless coverage claims are used only as a reference and are not guaranteed as each wireless network is uniquely different.
Product Description
The Amped Wireless High Power Wireless-300N Smart Repeater expands the range of your 802.11b/g/n wireless network by repeating the signal from your home or office wireless router and redistributing it in a new "extended" location. Computers, game consoles, networked Blu-ray players, televisions and other networked devices can then connect to the Smart Repeater using Wi-Fi or a wired connection (up to 5 ports available) to access the extended network. The Smart Repeater eliminates wireless dead zones, extends wireless and wired network coverage, and is compatible with most brands of models of 2.4GHz 802.11b/g/n wireless routers.
What Other Items Do Customers Buy After Viewing This Item?
Customer Reviews
Most Helpful Customer Reviews
284 of 289 people found the following review helpful
By Chad
I have a large house with dead spots and I've spent hours doing research online and trying out all the top repeaters i could find. From the HAWKING Repeater (HWREN1), to the NETGEAR (3000 something) and most recently the LINKSYS (RE1000) and ended up returning all three of them (reliability issues - had to reboot the Hawking and Netgear ones constantly and setup/support was horrible). The Linksys one was easier to setup but did not give me the range i needed and i also couldn't tell what network i was connected to. The range wasn't good so i wasn't sure if i was still connected to the repeater or my home router. Either way all three went back. Btw I also talked to the support departments of a few of these companies and it was very hard to understand the techs and they kept on telling me it was my router that was the problem. Absolutely no help and very frustrating!
Finally I tried this Amped repeater and i wish i did so from the start. The set up is far easier than all of those and has MUCH MUCH more range. The fact that it has two external antennas, which the Amped techs told me i could detach and upgrade if i wanted, already gave me the feeling it would do better from the start. As far as setup goes, I just ran through the setup wizard in less than 5 minutes was up and running. Speedtest speeds went from 2mbps to 15mbps and i have coverage throughout my ENTIRE house. love it when a product works as advertised (especially a computer product)
Last thing i want to mention is their support department. Its very refreshing to be able to speak to techs that know their product and also work in america. The tech i talked to (i think his name is Tony) was very helpful and very well versed) He explained how amplifiers work and antennas etc... which is why the range was better on the Amped units. Thank you Amped!
Finally I tried this Amped repeater and i wish i did so from the start. The set up is far easier than all of those and has MUCH MUCH more range. The fact that it has two external antennas, which the Amped techs told me i could detach and upgrade if i wanted, already gave me the feeling it would do better from the start. As far as setup goes, I just ran through the setup wizard in less than 5 minutes was up and running. Speedtest speeds went from 2mbps to 15mbps and i have coverage throughout my ENTIRE house. love it when a product works as advertised (especially a computer product)
Last thing i want to mention is their support department. Its very refreshing to be able to speak to techs that know their product and also work in america. The tech i talked to (i think his name is Tony) was very helpful and very well versed) He explained how amplifiers work and antennas etc... which is why the range was better on the Amped units. Thank you Amped!
91 of 92 people found the following review helpful
By Newton
The speed and range of this repeater is excellent but it takes a lot of time to set it up on some routers. I have a Linksys WRT160N router and the initial setup was easy. However I sensed a big drop in speed after the fast setup. All my experiences are with an 11n client.
Here is how I found the problem:
I put the repeater right next to the router and start to measure the internet speed from both. From router I was getting constant 20 Mbps but from the repeater the speed was around 5 Mbps. The speed was also fluctuating from 1 to 5 Mbps all the time. The interesting part was that if I go 100 m far away from the repeater I get the same speed. This tells me that the range on the repeater is excellent but there is something wrong with the communication between the router and repeater.
Here is what I learned from customer service:
The first thing I did was that I called the customer service. They told me that the channel number and the radio band should be exactly the same in the router and the repeater. They told me that sometimes the radio band on your router is 40 MHz but it is 20 MHz in your repeater and that is why you are loosing half of the speed. Initially I had the channel number and the radio band on "Auto" in my router. This will cause the repeater to set the channel on a specific number and when the router changes the channel automatically the repeater would loose the speed. So I started to fix the channel number in my router to a specific number and fixed the radio band to 40 MHz (because theoretically it gives you higher speed). I did the same thing in the repeater and fixed the numbers to the same exact ones from router. THIS DID NOT IMPROVE THE SPEED. I was getting the same speed from the repeater no matter what channel number I choose.
Here is how I fixed it:
It turns out that although radio band of 40 MHz can theoretically give you higher speed it has lots of issues if it is used in 2.4 GHz frequency. This is because the standards 11b/g is operating in the same exact frequency with 20 MHz of bandwidth. This can cause interference with neighboring routers and hence drops the speed. My other guess is that this repeater can not communicate properly with some routers including Linksys WRT160N with a 40 MHz radio band. So I just simply switched the radio band to 20 MHz in both repeater and router and magically speed was skyrocketing. Before I was getting 5 Mbps and now I am getting 18 Mbps while my router gives me 20 Mbps. This is fantastic.
My recommendation is to first test the speed of your network and make sure that your fast setup did a good job. If not, you need to first check 20 MHz and 40 MHz bands and see the difference. most likely this will fix the problem.
Here is how I found the problem:
I put the repeater right next to the router and start to measure the internet speed from both. From router I was getting constant 20 Mbps but from the repeater the speed was around 5 Mbps. The speed was also fluctuating from 1 to 5 Mbps all the time. The interesting part was that if I go 100 m far away from the repeater I get the same speed. This tells me that the range on the repeater is excellent but there is something wrong with the communication between the router and repeater.
Here is what I learned from customer service:
The first thing I did was that I called the customer service. They told me that the channel number and the radio band should be exactly the same in the router and the repeater. They told me that sometimes the radio band on your router is 40 MHz but it is 20 MHz in your repeater and that is why you are loosing half of the speed. Initially I had the channel number and the radio band on "Auto" in my router. This will cause the repeater to set the channel on a specific number and when the router changes the channel automatically the repeater would loose the speed. So I started to fix the channel number in my router to a specific number and fixed the radio band to 40 MHz (because theoretically it gives you higher speed). I did the same thing in the repeater and fixed the numbers to the same exact ones from router. THIS DID NOT IMPROVE THE SPEED. I was getting the same speed from the repeater no matter what channel number I choose.
Here is how I fixed it:
It turns out that although radio band of 40 MHz can theoretically give you higher speed it has lots of issues if it is used in 2.4 GHz frequency. This is because the standards 11b/g is operating in the same exact frequency with 20 MHz of bandwidth. This can cause interference with neighboring routers and hence drops the speed. My other guess is that this repeater can not communicate properly with some routers including Linksys WRT160N with a 40 MHz radio band. So I just simply switched the radio band to 20 MHz in both repeater and router and magically speed was skyrocketing. Before I was getting 5 Mbps and now I am getting 18 Mbps while my router gives me 20 Mbps. This is fantastic.
My recommendation is to first test the speed of your network and make sure that your fast setup did a good job. If not, you need to first check 20 MHz and 40 MHz bands and see the difference. most likely this will fix the problem.
61 of 63 people found the following review helpful
By Angela Knoll
Amazon Verified Purchase
I was able to connect the repeater without help to my laptop, but had difficulties with the other laptops in my house. I called the service number and was connected with someone right away. I never even waited on hold. Then, my son was having difficulties connecting to his Ipod, so I changed the password several times with no luck. We also couldn't get the PS3 to connect to the repeater, though it could see it as a network. We don't have cable, so I was looking to stream NetFlix. In trying several things to no avail, I ended up messing up the connection on my laptop. So on Sunday evening, I called the service number. No one there, but I was able to leave a message. I did that and someone returned my call Monday at 11 a.m. He walked me through resetting everything up including the PS3. Everything works great and I am so happy! After dealing with an unnamed accounting program customer service last week, this tech support was an amazing experience, and I didn't have to pay $150 a year for it! LOL
My internet service is with FiOs and I only had 8-15% signal in my living room. Now I have 65-85%. No more dead zones.
My internet service is with FiOs and I only had 8-15% signal in my living room. Now I have 65-85%. No more dead zones.
Most Recent Customer Reviews
5.0 out of 5 stars
Excellent support
Patrick, Concierge #131, provided excellent service. He was patient, knowledgeable both about the product and the problem I was having and about a work around. Read more
Published 5 days ago by Milton Strauss
5.0 out of 5 stars
Provides a strong signal.
Does the trick, as we were always defaulting to 3G/4G in the farthest room when we were on the internet. We now get a strong signal throughout the house.
Published 5 days ago by Michael S
1.0 out of 5 stars
Tech Supported Admitted it Does Not Work as Advertised
SR300 Wireless High Power Range Extender/Repeater
I fought with this thing for a day and a half, which was a complete waste of my time. Read more
I fought with this thing for a day and a half, which was a complete waste of my time. Read more
Published 6 days ago by Ryan Huckabay
3.0 out of 5 stars
no what I expected but still works
The description on this product claims it will boost the range of your wireless signal and cover up to 5000 square feet but that's not the case. Read more
Published 8 days ago by Daryl Dulude
5.0 out of 5 stars
A great repeater
We purchased an under $50 repeater on Amazon last year.It probably would have been sufficient for picking up a signal for our laptop but it didn't have the strength to stream... Read more
Published 9 days ago by V. Irminger
3.0 out of 5 stars
works OK, once installed
The installation instructions indicate to connect the device to the computer's cat5 network connection. Of course this network port is already being used by the DSL box. Read more
Published 10 days ago by Arnold D Swanke
1.0 out of 5 stars
Constantly requires a reset in order to work for a few days max
After a month, it stopped working. I re-ran the setup and it worked for another month. Now re-running setup doesn't work. Read more
Published 11 days ago by J. Burke
4.0 out of 5 stars
Non-geeks can set it up!
It works to extend the signal to a small house in my back yard AND I successfully set it up myself. I had to try a few times for my network to find it, but restarting my computer... Read more
Published 11 days ago by Nan Haemer
5.0 out of 5 stars
Great product and does the job great!!!
When I connect the Amped Wireless to my Sony Blu-Ray player and watch Netflix no problems while viewing movies and no stopping and waiting for refreshing.
Published 12 days ago by Derek
5.0 out of 5 stars
It practically setup itself!!!
I've never bought such a product where it does 99% of the work on its own. Setup was a breeze and very straightforward. Read more
Published 12 days ago by Daniel
