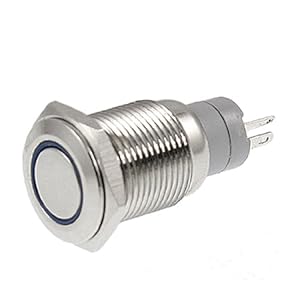

Momentary type, 1NO 1NC or 2NO 2NC contact, ring-illuminated LED, 5 terminals. This Stainless push button switch is suitable for 16mm diameter mounting hole. Used widely for circuits control in electromagnetic starter, contactor, relay and other electric circuits.
I used this to operate a PC inside of a case. The switch is connected to the motherboard just like any power switch, and the LED comes from the power LED pins on the board. It works flawlessly, and the LED on the switch lights to let me know the PC has power. This comes with no wiring instructions, but it's pretty simple to figure out. For those who have trouble, below is the pinout on this switch. There are three terminals along the bottom and two on the top of the switch. The top two are the LED power feeds (12 volts), and the bottom three are the switch terminals. The bottom right feed is common, and the outer are normally open and normally closed.
LED - LED +
| |
| | |
NC NO COM
3 Comments
Was this review helpful to you?
Yes No
Sending feedback...
Thank you for your feedback.
If this review is inappropriate, please let us know.
Sorry, we failed to record your vote. Please try again
It's a nice button, and I'm sure I'll find a use for it somewhere. The button is a little tough to press, while pretty, not well suited for something like a door bell. Great for a replacement in a computer case or other area where you want to be sure not to bump the button.
Comment
Was this review helpful to you?
Yes No
Sending feedback...
Thank you for your feedback.
If this review is inappropriate, please let us know.
Sorry, we failed to record your vote. Please try again
These are great for my 12v DC electronic door bell project. I like the blue glow, and the rating of the switch more than covers the intended use. Only one disappointment is that you have to literally pack the tip of your finger into them to throw the button far enough to activate the switch. I'm sure I'll get a few complaints about that, but I'm using them anyway. Price was acceptable. Waited a few weeks for them.
Comment
Was this review helpful to you?
Yes No
Sending feedback...
Thank you for your feedback.
If this review is inappropriate, please let us know.
Sorry, we failed to record your vote. Please try again
Just installed the three switches I purchased, all work well. The LED's are much brighter than I thought they would be, looks nice. I am very pleased with both the look and feel of this switch.
Comment
Was this review helpful to you?
Yes No
Sending feedback...
Thank you for your feedback.
If this review is inappropriate, please let us know.
Sorry, we failed to record your vote. Please try again
I ordered this switch with high expectations, to use it as a on/off switch for my custom PC cabinet. However, it didn't work. First I plugged it into the motherboard, attached the wires, and no power. I swapped the switch out for a known good switch wired exactly the same way, and it worked, so I know it has to be this switch that isn't functioning. I'm returning it (with free return shipping, thanks to Amazon!), and will try my hand at a different switch.
UPDATE:
After further consideration, I may not have understood how to wire this thing. It didn't come with any kind of wiring diagram or instructions (just in a static pouch all by itself). I'll give more stars assuming that's the case, but I returned the item and am buying one without a LED light. I don't need it anyway. Still, this needs to come with wiring instructions!
