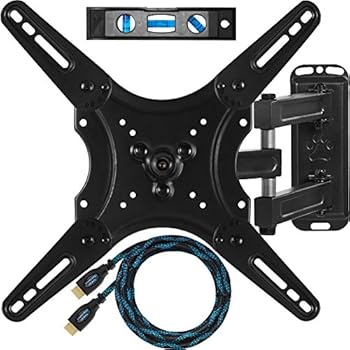

Cheetah Mounts ALAMLB LCD TV Wall Mount Bracket with Full Motion Swing Out Tilt and Swivel Articulating Arm

by Cheetah

Product Details

• Product Dimensions: 14 x 11 x 3 inches ; 4.6 pounds
• Shipping Weight: 9 pounds (View shipping rates and policies)
• Shipping: This item is also available for shipping to select countries outside the U.S.
• ASIN: B001GTT0VO
• Item model number: ALAMLB
• Average Customer Review: 4.4 out of 5 stars  See all reviews (539 customer reviews)
• Amazon Best Sellers Rank:
  • #6 in Electronics > Accessories & Supplies > Audio & Video Accessories > TV Accessories > TV Ceiling & Wall Mounts
  • #7 in Electronics > Accessories & Supplies > Mounts
  • #12 in Electronics > Televisions & Video > Television Accessories

Product Description

From the Manufacturer

Cheetah Mounts ALAMLB VESA 200 Articulating Wall Mount

This mount is made from 10 lbs of 100% steel, holds up to 65 LBS, and includes a TV plate which fits hole patterns up to 200x200mm (approximately 8x8”).  It is our recommended model for displays in the 23-37” size range.  Most LCD arm mounts are made from 2-3lbs of molded composite aluminum material, hold up to 33 LBS, and fit hole patterns of up to 100x100mm (approximately 4x4”).  Many TVs/Displays in the 23-37” size range use the larger 100x200mm or 200x200mm hole patterns.  If you are unsure as to the hole pattern for your display, this mount fits all VESA hole patterns up to VESA 200.  Additionally, regardless of the size of your display or hole pattern, if you would simply like the additional stability and security of a heavier gauge mount, we would recommend this model

This arm collapses to less than 4" from the wall yet extends over 20" allowing you to swivel displays up to 37" a full 180 degrees. The wall plate has center vertical mounting holes for single stud installation and once mounted, the wall plate is concealed by matching cover pieces giving a clean look. At the end of the arm is a VESA 100 plate that comes attached to an included VESA 200 plate.  The tilt mechanism at the end of the arm uses a high friction design typically allowing a single user to smoothly adjust the angle of tilt with one hand and then lock it in place with the other.  The tilt mechanism tilts both forward and back up to 20 degrees.

FREE 10 FT High Quality HDMI Cable

High Quality 10 ft HDMI Cable Included Free

The mount includes a state of art 10 feet long HDMI cable . This high speed HDMI cable supports 1080P and 3D 1080P , Ethernet ready  with Audio return . The cable has 24 K Gold connectors and is double shielded with a designer braided jacket for elegant looks .

---

Features

• VESA 100 and 200 compatibility
• 65lb Weight capacity
• Free State of Art 10 Ft HDMI Cable with 24K Gold Connectors
• 180 Degrees Swivel
• 21.25" of Max. Arm Extension
• Single Stud Installation
• Powder Coat Paint
• Separate TV plate for lift and lock installation
• All Hardware Included
• Installation Manual

Specifications

<

Model	ALAMLB
Supported VESA Patterns	50x50mm (2x2”) 75x75mm (3x3") 100x100mm (4x4") 100x200mm (4x8") 200x200mm (8x8")
Unit Weight	Net: 8LBS Gross: 9 LBS
Shipping Dimensions	12x10x4”
Unit Materials	Arms, Wall Plate and TV Plate: 100% High Grade Steel Arm Covers: Polyurethane
Tilt Range	+/-20°
Swivel Range	Up to 180°
Minimum/Maximum Extension	4.75” up to 21.25”
Profile From Wall	1.9"
Wall Plate Dimensions	10.25”H x 2.25”W (single stud installation)
Holding Weight	65LBS

What's in the Box

• Wall plate with Extending Arms
• Vertical Brackets for TV
• Hardware for Wood Stud Installations
• Hardware for concrete Wall Installations
• Parts list and installation manual

Click here for complete part details

Product Description

This mount fits the majority of displays in the 23-32" size range and some models up to 42". Specifically, it fits VESA 50 - 200 hole patterns and TVs weighing up to 65lbs. If you are unfamiliar with VESA patterns, these are square or rectangular patterns between 2 and 8 inches per side. This mount provides 20" of extension, 180 degrees of rotation, +/- 15 degrees of tilt, 4 degrees of rotation adjustment, and collapses to 2.7" from the wall. The load bearing portions of the mount are constructed from High Grade Steel providing a sturdy and reliable mount and separate cover pieces for the wall plate and pivot joints providing a clean finished look. The package includes the mount, manual, all necessary installation hardware, and a 6" three-axis magnetic bubble level. This mount also includes a 10' High Speed HDMI with Ethernet cable. The HDMI cable allows the use of home entertainment networking, audio return, 3D playback and delivers the sharpest, richest viewing and listening experience possible.

Customer Reviews

Most Helpful Customer Reviews

114 of 122 people found the following review helpful:

5.0 out of 5 stars Good, Less Expensive Mount, January 18, 2010

By

Jason A. Cates - See all my reviews
(REAL NAME)

Amazon Verified Purchase

This review is from: Cheetah Mounts ALAMLB LCD TV Wall Mount Bracket with Full Motion Swing Out Tilt and Swivel Articulating Arm (Electronics)

We have installed (2) of these mounts. (1) on a 26" LCD and (1) on a 32" LCD. Both installations were easy, with the product meeting expectations. The second mount we installed was missing a couple of minor parts so I sent a quick e-mail to Cheetah mounts. An hour later, I had the 2nd day air tracking number for the remaining parts. While it was frustrating to be missing the parts, I was amazed by the quick response.

43 of 45 people found the following review helpful:

5.0 out of 5 stars Excellent Mount, January 4, 2010

By

jjkearney "jjkearney" (Cochranton, PA USA) - See all my reviews

Amazon Verified Purchase

This review is from: Cheetah Mounts ALAMLB LCD TV Wall Mount Bracket with Full Motion Swing Out Tilt and Swivel Articulating Arm (Electronics)

We just mounted a 26" LCD and this mount worked perfectly. Well constructed and super easy to install. Before purchasing I called the company to verify the TV would work with this mount, I was only on hold for a few seconds before speaking with a rep who was more than helpful. I highly recommend, especially at this sale price.

117 of 132 people found the following review helpful:

3.0 out of 5 stars Good Mount, May 22, 2010

By

B. Porterfield (Denver, CO) - See all my reviews
(REAL NAME)

Amazon Verified Purchase

This review is from: Cheetah Mounts ALAMLB LCD TV Wall Mount Bracket with Full Motion Swing Out Tilt and Swivel Articulating Arm (Electronics)

I like this mount. It is strong and holds a 30" TV no problem. The extension is very nice and the tilt helps with the glare from the dome light in the ceiling. It can turn all the way to the side and lets the TV face the kitchen counter. Our TV used the inside holes which are VESA 100 but it has wider holes as well so we could use it for a larger TV in the future. A torpedo shaped level comes with it which is now a nice addition to the tool drawer. Basically really liked it. The only issue is the TV being level. The TV tilts just slightly to the right. Enough to bother me. Only annoyance on an otherwise good product.
Update: I called Cheetah about the TV not being level. It turns out the screw behind the TV which controls the tilt Also allows the TV to twist a little. Now our TV is level!
