Clover Electronics LCD2284DVR All-in-One Security System with 22-Inch TFT LCD, 8-Channel DVR, and 4 Cameras

by Clover

Product Details

User's Guide [8.06mb PDF]

• Product Dimensions: 24.2 x 21 x 16.5 inches ; 34.6 pounds
• Shipping Weight: 40 pounds (View shipping rates and policies)
• Shipping: Currently, item can be shipped only within the U.S.
• ASIN: B0015AB5HQ
• Item model number: LCD2284DVR
• Date first available at Amazon.com: January 21, 2008

Product Description

From the Manufacturer

Boost your neighborhood watch program or office security with the All-In-One System from Clover Electronics. This easy-to-use feature loaded digital video recorder is customizable to fit your needs. It is the most advanced recording device you can buy for your home, business, or industrial use. With some of the best surveillance options available, this plug-and-play unit ensures that day or night, at home or away, the things you own are safe and the people you care about are protected.

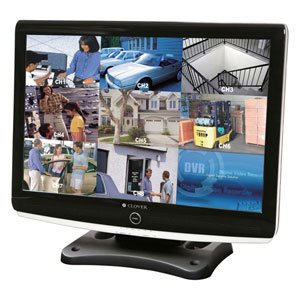

High Resolution LCD Monitor with Built-In DVR

Sleek, Space Saving Monitor

• Space saving, flat panel design can be mounted on wall or desktop.
• 22-inch wide screen.
• View up to 8 cameras at once.
• High resolution TFT-LCD 1,680 x 1,050.



Built-In DVR

500 GB Hard Drive

• The included 500 GB hard drive allows users to record and store data for months at a time before over-writing.
• H.264 Compression decreases the size of the stored files while delivering better quality.
• If needed, the recording capacity can be increased by adding additional hard drives.

Display and Recording Resolution

• The display resolution is 720 x 480.
• Real time display and recording frame rate 240 frames/second.

Four Recording Options

The four recording options allow you to program the system depending on your needs. Program each camera individually to do the following:

• Continuous: the system will record 24 hours a day, 7 days a week.
• Alarm Sensor: the system will begin recording when an alarm is triggered.
• Scheduled Recording: program the cameras to record from 8am – 5pm when employees and customers are present.
• Video Motion Detection: the settings allow you to decide what areas of the screen, or all of the screen, will trigger the system to record once it detects motion. Use motion detection when your business is not open or at home when on vacation. This will not only save hard drive space, but also time spent viewing recordings.

Pentaplex Feature

• The Pentaplex feature allows users to view cameras live, playback recordings, record, copy, and network simultaneously. This can be done from the comfort of your home while viewing the monitor connected to your DVR or from your lap top while on vacation or a business trip.
• Up to 10 authorized remote users can access the system at the same time.

Multiple Back-Up Options

• Easily back-up recordings using a USB, external hard drive, stick memory, or through the network.

4 Day and Night Viewing Cameras

• Distinguish facial features and numbers on a license plate with 450 TV lines of resolution.
• The camera has 18 infrared LEDs and a CDS Sensor. The Infrared LEDs act as a flash light for the camera to produce up to 40 feet of night vision.
• Rugged aluminum construction, built-in sun visor, and waterproof microphone enable you to see and hear in all conditions.
• Receive e-mail alerts on your mobile phone when the camera detects motion.
• Each camera includes a mounting bracket, AC power supply, and 60 foot cable for installation.

Online Access to Cameras

PC

• Supports multiple platforms: Internet Explorer, Firefox, Safari and Google Chrome.
• Install the software provided for online access of your security cameras.
• View your at home security cameras from a lap top while on vacation or your office while waiting to board a flight.

Smartphone

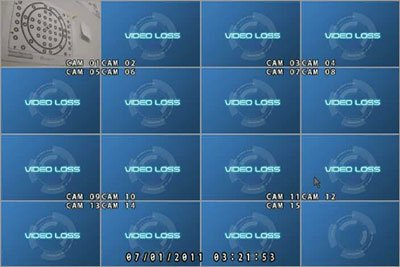

• Download "iDvrMaster" for free from the App Store to view up to 8 cameras on your iPhone.
• Download "aDvrMaster" for free from the Market to view up to 8 cameras on your Android phone.
• Use the web browser on your smartphone to view your cameras from anywhere in the world.

Easy Set Up

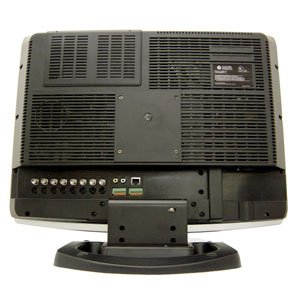

This system is extremely user friendly and will eliminate the headache of hiring a professional installer. The camera connections are on the back the monitor. Click on the link below the image for a larger view of the labeled connections.

• Connect the monitor to a wall outlet.
• Install the cameras and connect to the back of the monitor.
• To network the system, connect the blue Ethernet cable to the router.

Free Lifetime Technical Support

Clover Electronics is based in Los Angeles County, CA. Our in-house technical support is available Monday-Friday, 8am to 5pm PST to answer your questions.

• Toll Free: 877.327.5000
• E-mail: [e-mail]

What’s In the Box

• 1 - 22-Inch TFT LCD Monitor with Built-In 8 Channel DVR
• 4 - Indoor/Outdoor Cameras
• 4 - 60 ft 6pin Din Cables
• 4 - Adjustable Mounting Brackets
• 1 - A/C Power Cable
• 1 - Software for Remote Set-Up
• 1 - Instruction Manual
• 1 - Quick Set-Up Guide
• 1 - Warranty Registration Card
• 1 - Remote Control
• 1 - RJ-45 Cable
• 1 - PS2/USB Mouse

Product Description

8 channel Combo - 22 Tft Lcd Dvr System With 4 Cameras (All-In One) Ip Addressable, Monitoring Via Tcp/Ip, Real Time Display, Recording 240 F/S, Ddns Support, 2Way Audio, Desk / Wall Mountable, 2 Indoor Cameras W/C-Mount Lens & 2 Night Vision Outdoor Cameras (Rugged Steel Construction), 4Pcs Of 60Ft Cables - Hdd:500Gb
