Cooler Master HAF 932 Advanced Full Tower Case with SuperSpeed USB 3.0 (RC-932-KKN5-GP)

by Cooler Master

Product Details

• Product Dimensions: 22.7 x 9 x 21.5 inches ; 29.1 pounds
• Shipping Weight: 33.2 pounds (View shipping rates and policies)
• Shipping: Currently, item can be shipped only within the U.S.
• ASIN: B001EPUQAE
• Item model number: RC-932-KKN5-GP
• Average Customer Review: 4.8 out of 5 stars  See all reviews (166 customer reviews)
• Amazon Best Sellers Rank:
  • #6 in Electronics > Computers & Add-Ons > Computer Components > Computer Cases
• Date first available at Amazon.com: July 7, 2004

Product Description

From the Manufacturer

More Cool Products from Cooler Master
Cooler Master CM 690 II Advanced	Cooler Master HAF 922	Cooler Master Centurion 5	Cooler Master Elite 310
Cooler Master eXtreme Power Plus 700W	Cooler Master Silent Pro Gold 800W	Cooler Master V6 GT	Cooler Master Hyper 212 Plus

---

Cooler Master HAF 932 Advanced Full Tower with USB 3.0

Introduction

The award winning HAF Series of cases brought about the aesthetics of battle-hardened military vehicles. Its cases each offered the user an unprecedented amount of access to customizing their airflow and rearranging their internal system layout. Together, these features were realized for the first time within the HAF 932 and now they will begin again in the new HAF 932 Advanced.

The HAF 932 Advanced comes equipped with the very features that made the original HAF 932 world renowned. It notably included native liquid cooling support such as the ability to install a double or triple 120 millimeter radiator, a convenient coolant refill port, and liquid cooling grommets to easily route tubing to an externally mounted radiator.

Push button locks on the 5.25 inch bays, expansion card mounting via thumbscrews or a push lock, and quick hard drive mounting via removable drive trays all contributed to an elegantly simple system build.

Features

Liquid cooling

Easy access to liquid coolant fill port.

Radiator mounting

120mm x 2 OR x 3 radiator can be mounted inside the top of the case (radiator is optional).

Retaining holes

Retaining holes in the rear is perfect for liquid cooling kit.

Passive cooling

Meshed back slot provides passive cooling.

Fans mounting

Three 120 x 25mm fans can be mounted on the top for excellent air exhaust (fans are optional).

Independent air intake

Independent air intake designed for bottom-mounted PSU or installation of two 120mm fans.

Removable HDD racks

Removable HDD racks with anti-vibration pads for easy assembly and reduced noise.

Patented button design

Patented button design for easy maintenance of 5.25" drive devices.

Tool-free clips

Tool-free clips for add-on card installation.

CPU retaining hole

Retaining hole for easy installation of CPU cooler.

Acrylic side window

Grid-shape transparent acrylic side window gives great view of the case's interior.

Top platform

Top platform allowing users to place personal stuff on.

Chassis wheel

Chassis wheel for portability.

Specifications

Model	RC-932-KKN5-GP
Color	Black

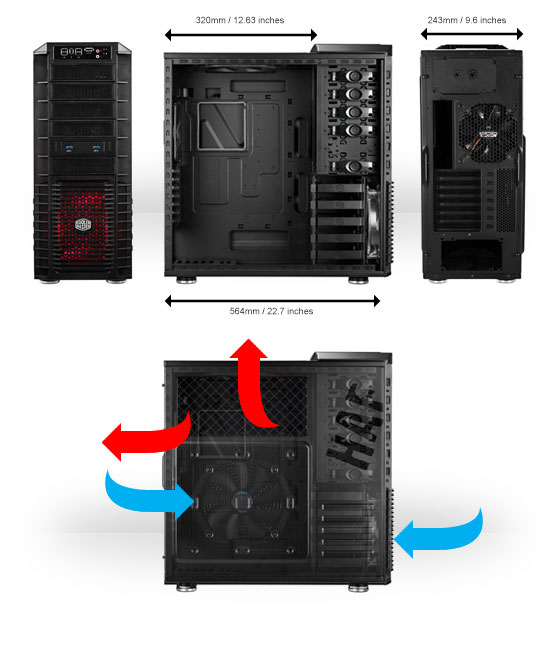

Dimension	(W)243 x (H)560 x (D) 564 mm (W)9.6" x (H)22.0" x (D)22.2"
Weight	13.4 kg / 29.5lbs
Motherboards	Micro - ATX / ATX / E-ATX
Expansion Slots	7
5.25" Drive Bay	5 (without the use of exposed 3.5" drive bay)
3.5" Drive Bay	5 Hidden 1 Exposed (converted from one 5.25" drive bay)
2.5" Drive Bay	4 (converted from two 3.5" drive bay)
Cooling System	Front: 230 x 30mm Red LED Fan x 1, 700 RPM, 19 dBA Side: 230 x 30mm Standard Fan x 1, 700 RPM, 19 dBA (support 120 x 25 Fan x 4) Top: 230 x 30mm Standard Fan x 1, 700 RPM, 19 dBA (support 120mm Fan x 3 or 120mm x 1 + 230 x 30mm x 1) Rear: 140 x 25mm Standard Fan x 1, 1200 RPM, 17 dBA (support 120 x 25mm Fan x 1)
I/O Panel	USB 3.0 x 2 USB 2.0 x 4, IEEE1394a x 1, Mic x 1, Audio x 1
Power Supply	Standard ATX PS2 / EPS 12V (optional)
Warranty	2 years
UPC Code	884102002229

Product Description

High Air flow full tower chassis, tool free design, removable hdd and cable management

Customer Reviews

Most Helpful Customer Reviews

77 of 78 people found the following review helpful:

5.0 out of 5 stars It's a refrigerator???? No, it's a Full Tower Case!!, May 6, 2009

By

Mike "Movie Buff" (Long Island, NY) - See all my reviews
(VINE VOICE)

This review is from: Cooler Master HAF 932 Advanced Full Tower Case with SuperSpeed USB 3.0 (RC-932-KKN5-GP) (Personal Computers)

This is best case that I've ever had. I wish it had a pull out motherboard tray but given the size of the case, it wasn't a necessity. The instruction manual has detailed diagrams (would of been nice if there was more wording but the diagrams give you enough insight on what to do).

This is a full tower case. It can handle Micro ATX to extended ATX. It's made of steel which makes this case heavy. There are no handles to grip the case but it's sturdy enough that you can lift it from any part. It's not the prettiest of cases, but it certainly gets the job done.

The case comes with 4 fans already mounted. There is no fan controller but the fans have the sockets that you can add a controller, connect it directly to the power supply unit, or connect it directly to the motherboard (if the motherboard's instructions allow it). I strongly recommend connecting the fans directly to the power supply unit. Above the large fan on your left sight (looking at the picture with the red fan facing you), there is a small clear window. It would of been nice if the window went all the way down. On the top of the case, there are connections for the USB, e-sata, power switch, reset, microphone, and speaker. You also have the option of adding wheels to the bottom of the case. I installed them and, they have a lock on them to prevent your case from moving (if the case is too heavy for the desk lol).

The box that the case came in, was huge! It's the size of a suitcase. The case, seems like the size of a small suitcase. You get the speaker wire, the manual, a lot of screws, the IO panel, plastic ties, and a map that shows where to put the motherboard and all the wires go out of. For instance, if you have a ATX motherboard, the map says to place the motherboard screws in A,B,C,D,F.G,H (just an example). If you put the map on the motherboard tray, you will see what screw is what letter. The wire management system in this case is amazing.

I have the EVGA SLI socket 1366 (i7) motherboard and I must say that there was so much room left in the case. Putting the motherboard in, was a snap. Laying out the wires to connect to the motherboard was easy and if you ever need to change the layout, there is enough room to work in within the case. I changed my wiring a few times until I thought it was good enough. When you turn on your system, it's not as loud as you would expect. In fact, it's quieter than my midtower that has my Core2Duo which I gave to my wife. Even when I'm playing FSX (all options set to Ultra High), it's still very quiet.

I must say, the case keeps my system freezing. I left my cup of tea near my case and within minutes, I had iced tea. The readings on my motherboard and on the BIOS screen show the CPU temperature at 19-21 degrees Celsius. While playing a game for several hours, the temperature stays to 20-21 degrees. Amazing. Feeling the side of the case and it feels like a refrigerator. Great case for an great price. Yes, it could be prettier, but it does it's job!

Concerning how loud this case is (if it is). I would definitely consider it not a loud case at all. With 4 huge fans; it's not an issue where you would have to turn up your speaker volume. The side vents towards the front, do a nice job "emptying" the heat coming from my hard drives, and my video card does a nice job isolating the heat generated from it and pushing it out the back. I would of chosen either this case or the Thermaltake Armor Plus case. After researching for a few weeks, everyone always pointed to this one. Yes, the Armor plus is prettier (the password for today lol) but you cannot go wrong with the CM HAF932. A great investment.

Wish List for this Tower:
- I wish it was aluminum
- Clear window on the whole side panel (it's like a bathroom window presently- If you can see from the picture, the see-through window stops at where the fan begins)
- Pull out moutherboard tray

If you have any qualms or questions, feel free to ask me in the comment section.

My system specs quick summary:
EVGA x58 (A1)
i7 920
GSKILL 1600 ddr3-1600 (6GB kit)
Sapphire ATI 4890 (overclocked)
LG DVD-RW 22x
WD 1TB SATA II 3.0
WD 300GB Velociraptor
Vista SP1 64bit Home Premium
Logitech G15 gaming keyboard and G5 game mouse (the orange one)
Logitech Z5500 digital speakers
Auzentech Forte 7.1 (X-FI) soundcard
Xigmatek Dark Knight S1283 Heatsink
HAF 932 Full tower

33 of 34 people found the following review helpful:

5.0 out of 5 stars Best Enthusiast Case to date..., February 10, 2009

By

Jason Hilton "Stay Ahead of The Power Curve!" (Clearwater, FL USA) - See all my reviews
(REAL NAME)

Amazon Verified Purchase

This review is from: Cooler Master HAF 932 Advanced Full Tower Case with SuperSpeed USB 3.0 (RC-932-KKN5-GP) (Personal Computers)

Normally when one is looking for a high end computer case to support all the latest hardware and cooling solutions, one expects to spend $200 or more, that's not the "case" with the HAF!

This case has pre-drilled holes for a 3x120mm radiator on the top, it took me maybe 5 minutes to remove the top 230mm fan and screw in my radiator. Not the usual mark everything out, drill holes, and hope there are no clearance issues as you would with standard cases.

The built in wiring management is a nice touch as well, most cases have one or two "cubbyholes" for wiring, this case has 6! It will also handle the latest graphics cards with plenty of room and then some! My ATI 4850 has about 6 inches of clearance to the right, definitely a good thing to have.

I would recommend this case over anything else currently on the market.
Cooler Master nailed this one!

25 of 26 people found the following review helpful:

5.0 out of 5 stars Coolermaster HAF chassis, November 2, 2008

By

Donald P. Bass "Viperamd64" (SoCal) - See all my reviews
(REAL NAME)

Amazon Verified Purchase

This review is from: Cooler Master HAF 932 Advanced Full Tower Case with SuperSpeed USB 3.0 (RC-932-KKN5-GP) (Personal Computers)

This is by far the best pc case I've ever owned. High air flow is an understatement. Massive fans in front, side and top provide all the cooling you'll ever need and best of all you cab barely tell they are even running (very quite). The case is quite large(and the widest I've ever seen) giving you plenty of room for hidden cable management. The top or bottom power supply placement is also a great option, with the bottom placement allowing for airflow from the bottom.
If you looking for a quality case with a lot of features and flexibility, this is it.
