| Price: | $66.05 & FREE Shipping |
Product Details
|

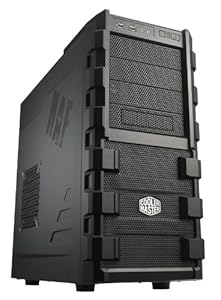

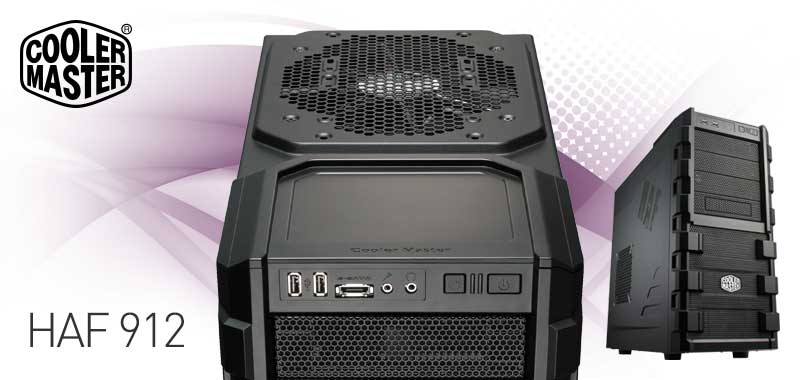

Cooler Master's HAF 912 further enriches the HAF series by adding a compact, yet fully featured, mid-tower solution for enthusiasts and budget conscious gamers alike. Its seemingly small exterior supports a plethora of interior features such as twelve devices, high end GPU cards like the ATI Radeon HD 7990 and NVIDIA GTX 690 / Titan, large CPU coolers, two 200mm fans, and six 120mm fans.
![]() | FEATURE RICH STARTER CASE FOR ALL LEVELS HAF 912 is the most compact solution in the HAF Series that still provides full desktop tower component support. |
| REMOVABLE / ROTATABLE HDD CAGE The HDD cage can be easily removed to accommodate long high-end graphics cards. Rotate the cage 90 degrees to adjust your system airflow and cable management setup as you need. | ![]() |
| This Model | ||||||
![]() | ![]() | ![]() | ![]() | ![]() | ![]() | |
| HAF XB | HAF 912 | HAF 922 | HAF 932 Adv. | HAF XM | HAF X (942) | |
| Features | ||||||
| Size | LAN Box | Mid | Mid | Full | Mid | Full |
| Dimensions | 442 x 330 x 423 mm 17.4 x 13 x 16.7 in | 230 x 480 x 496 mm 9.1 x 18.9 x 19.5 in | 253 x 502 x 563 mm 10 x 19.7 x 22.2 in | 243 x 560 x 564 mm 9.6 x 22 x 22.2 in | 252 x 530.5 x 579 mm 9.9 x 20.9 x 22.8 in | 230 x 550 x 590 mm 9.1 x 21.7 x 23.2 in |
| Expansion Slots | 7 | 7+1 | 7 | 7 | 8+1 | 9 |
| 5.25" Bays (Optical Drives) | 2 | 4 | 5 | 5 | 3 | 6 |
| 3.5" Bays (Hard Drives) | 22 (from X-Dock) | 1 Exposed (converted from one 5.25" bay) 6 hidden | 5 Hidden; 1 Exposed (Converted from one 5.25" drive bay) | 5 Hidden; 1 Exposed (converted from one 5.25" drive bay) | 8 (6 Hidden, X-Dock:2) | 5 Hidden |
| 2.5" Bays (Hard Drives or SSDs) | 6 (2 from X-Dock) | 2+2 (converted from 5.25" bay) 4 hidden | 4 (converted from two 3.5" drive bay) | 9 (6 are converted from 3.5" bays, X-Dock x 2, 1 is behind the M/B tray) | 2 (converted from 5.25" drive bay) | |
| Side Panel Window | Yes, Optional Top Window (Not Included) | No | No | Yes | No | Yes |
| Compatibility | ||||||
| All-In-One (AIO) DIY Watercooling Radiator Support | Single, Dual 120mm | Single, Dual 120mm | Single, Dual 120mm | Single, Dual, Triple 120mm / Single 140mm | Single, Dual 120mm / 140mm | Single, Dual, Triple 120mm / Single 140mm |
| Motherboard Support | M-ITX, mATX, ATX | mATX, ATX | mATX, ATX | mATX, ATX, E-ATX | mATX, ATX, E-ATX | mATX, ATX, E-ATX, XL-ATX |
| Maximum CPU Cooler Height | 180 mm 7.1in w/o Top 200mm fan or 155mm / 6.1in w/top 200mm fan | 175mm 6.9in | 175mm 6.9in | 172mm 6.8in | 196mm 7.7in | 165mm 6.5in |
| Maximum Graphics Card Length | 334mm 13.1in | 270mm 10.6in | 300mm 11.8in | 321mm 12.6in | 354mm / 13.9in w/HDD cage or 463mm / 18.2in w/o HDD cage | 342mm 13.5in |
