D-Link DAP-1522 Extreme 4-Port Gigabit Dual-Band Wireless-N Bridge/Access Point

by D-Link

Product Details

• Product Dimensions: 5.7 x 4.4 x 1.3 inches ; 8 ounces
• Shipping Weight: 2.3 pounds (View shipping rates and policies)
• Shipping: This item is also available for shipping to select countries outside the U.S.
• ASIN: B001769K3O
• Item model number: DAP-1522
• Average Customer Review: 3.6 out of 5 stars  See all reviews (267 customer reviews)
• Amazon Best Sellers Rank:
  • #7 in Electronics > Computers & Add-Ons > Networking Products > Wireless Access Points
• Date first available at Amazon.com: July 7, 2004

Product Description

Amazon.com Product Description

The D-Link DAP-1522 Xtreme N Duo Wireless Bridge/Access Point is designed for users looking to create a wireless network or to connect multiple wired devices to an existing wireless network. Xtreme N Duo is the latest addition to the award-winning Xtreme N product family. Duo means the DAP-1522 works with next generation dual band (2.4 GHz or 5 GHz)* 802.11n wireless devices as well as legacy 802.11g products.

The D-Link DAP-1522 offers dual-band Wireless N connectivity--perfect for HD video streaming (see larger image).

Key Features

• Wireless N connectivity for superior wireless performance, clarity, and coverage



• Wi-Fi Protected Setup (WPS) for secure, simple 1-button setup



• Works best with dual band 802.11n wireless devices, compatible with 802.11n/g devices



• 4 Gigabit Ethernet ports for ultra-fast wired connectivity



• Optimized for HD video streaming
• Add wireless connectivity to Ethernet-enabled devices like game consoles
• Create or extend a wireless network

Connect Multiple Devices

The Wireless Bridge feature of the DAP-1522 allows you to easily connect up to 4 Ethernet-enabled devices in your entertainment center to your wireless network. Connect devices such as Game Consoles, Digital Video Recorders (DVR), and Digital Media Adapters (DMA) to the built-in 4-Port Gigabit Switch.

Create A Wireless Network

Create a new wireless network using the Access Point feature by connecting the DAP-1522 to an existing wired network. Use your new wireless network to stream high-definition (HD) video, play multiplayer games, or make phone calls (VoIP) using the built-in dual band technology.

See a larger schematic image example of a home network setup for optimizing use of the DAP-1522's dual-band capabilities.

5 GHz Technology

The DAP-1522 has selectable 2.4 GHz or 5 GHz bands. 5 GHz is ideal for wirelessly streaming multiple HD videos across your network. The less-crowded 5GHz band is ideal for wirelessly streaming HD videos across your network, helping avoid interference by providing a clearer wireless band for transferring HD signals and other bandwidth intensive network applications. And it helps avoid interference by providing a clearer wireless band for HD signals than existing 2.4 GHz products.

What This Product Does

Wireless Bridge Mode

Use the Xtreme N Duo Wireless Bridge / Access Point (DAP-1522) to connect up to 4 Ethernet-enabled devices such as Game Consoles, Digital Video Recorders (DVR), and Digital Media Adapters (DMA) to your wireless network.

Access Point Mode

Connect the DAP-1522 to an existing wired network and easily enable wireless connectivity in your home. This scenario can place a DAP-1522 as both a 'send' and 'receive' unit, with one connected at the router where the broadband connection comes in and the other at the home entertainment center or wherever there is a need to connect one or more wired devices. Use your new wireless network to stream HD multimedia content, play multiplayer games, or make Internet phone calls (VoIP).

See larger image.

Specifications

• Standards: IEEE 802.11n, Selectable 2.4/5GHz, IEEE 802.11g, IEEE 802.3, IEEE 802.3u

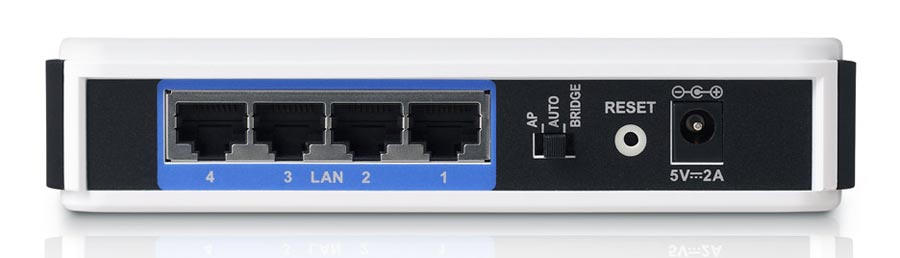

• Interface Type: 4 Gigabit LAN Ports, 1 Gigabit WAN Port, Push Button (for Wi-Fi Protected Setup), Three-way Switch (to select operating mode)
• Antenna Type: Internal
• Security: WPA & WPA2 (Wi-Fi Protected Access)
• Device Management: Internet Explorer v6 or Later; Mozilla Firefox v1.5 or Later; or other Java-enabled Browsers
• Certifications: FCC, Wi-Fi, IC
• Dimensions: 4.4 x 5.7 x 1.3 inches (WxDxH)
• Warranty: 1 Year Limited
• Minimum System Requirements: Computer with Windows 7, Windows Vista, Windows XP SP2 or Mac OS X (v10.4); Internet Explorer v6 or Mozilla Firefox v1.5; CD-ROM Drive; Network Interface Card; and for Internet access a Cable or DSL Modem and Subscription with an Internet Service Provider (ISP)

What's in the Box

D-Link DAP-1522, CAT5 Ethernet cable, power adapter, CD-ROM with operating instructions

* Due to government regulations the 5.25~5.35 GHz and 5.47~5.725 GHz wireless bands are removed.

Product Description

The D-Link Extreme-N Duo Wireless Bridge/Access Point is designed for users looking to create a wireless network or to connect multiple wired devices to an existing wireless network. Extreme-N Duo is the latest addition to the award-winning Extreme-N product family. Duo means the DAP-1522 works with next generation dual band (2.4GHz or 5GHz)2 802.11n wireless devices as well as legacy 802.11g products.

See all Product Description

Customer Reviews

Most Helpful Customer Reviews

102 of 104 people found the following review helpful:

5.0 out of 5 stars Works as expected, June 9, 2008

By

Steve (Bartlett, IL USA) - See all my reviews

This review is from: D-Link DAP-1522 Extreme 4-Port Gigabit Dual-Band Wireless-N Bridge/Access Point (Personal Computers)

I've configured the DAP-1522 as a wireless bridge to a DIR-655 (2.5Ghz). I've got a PS3 and a Satellite DVR connected to two of the four ethernet ports on the DAP-1522. I have configured the 1522 to use WPA2 security as well.

Setup was a little tricky, but it was my fault not the fault of the 1522. If you choose to manually configure the 1522 be sure you follow the directions and connect the 1522 to your computer and with your computer configured to use a static IP address in the 192.168.0/24 subnet. I mistakenly had my computer still trying to use DHCP when connecting to the bridge and it took me a little while to figure out what was wrong. My computer couldn't get an IP address and so Windows kept assigning an address from a different subnet, so I was not able to establish a connection to the DAP-1522's default 192.168.0.50 IP address.

The 1522 works as expected. Performance is very good with a max of 162Mbps through 3 drywall walls (approx 40 ft) to my entertainment center as displayed on the DIR-655 console. I haven't run any local network bandwidth tests to verify the throughput yet, but I can easily stream HD content without blocking between a PS3 and a wired media server. Previously I was using the PS3's internal 802.11g network interface, and HD media was not viewable as it overwhelmed the 11g link.

I did notice that the orientation of the DIR-655 and the DAP-1522 did make a difference in the reported signal strength and data rate as seen from the DIR-655 console. So after you've gotten things to work, don't forget to run some experiments to determine the best position for the devices to get the best performance possible.

118 of 126 people found the following review helpful:

3.0 out of 5 stars Great Access Point, Great Software, Poor Range, November 6, 2008

By

Christopher Hiestand (San Diego, CA United States) - See all my reviews
(REAL NAME)

This review is from: D-Link DAP-1522 Extreme 4-Port Gigabit Dual-Band Wireless-N Bridge/Access Point (Personal Computers)

It might bear noting that I'm technically proficient, and I've used several access points and switches over the years. This was my first D-Link purchase in years only because Linksys's reputation has become pretty terrible. Overall, this piece of equipment is GREAT, with a HUGE caveat that the range SUCKS.

I used this router for about 3 weeks before I replaced it with the D-Link DIR-825 because of the range problem. The 1522's user interface isn't bad. I had no problem configuring this switch to do everything I wanted. I did not experience any dropped connections or dropped packets. Granted 3 weeks isn't a terribly long time - but I never had to power cycle the Access Point. It just worked and did a great job.

I should have known that since the DAP1522 uses an internal antennae the range would not be comparable to my old Linksys WRT54G. I am intentionally trying to share my wireless with my neighbors, and the DAP1522 is unusable, and I'm not exaggerating, 30 feet away. To be fair, there are 3 (non-thick, normal wood) walls between the DAP1522 and the laptop - but still 30 feet? On the other hand, this could be a major selling point. Scared that your neighbors might be stealing your wireless signal? Just buy a DAP1522!

If you have a large house or coverage area, this isn't going to cut it. But if you live in a small apartment, this thing is perfect. For anyone who needs better range, I'd recommend the slightly more expensive DIR-825.

PS For anybody who's confused - this bridge/AP is essentially a switch plus an access point. It lacks the "router" capability and WAN port that similar pieces of equipment have which make them routers. For the typical person, you only need a bridge/AP if you already have a router and want to add a wireless access point to your network.

46 of 51 people found the following review helpful:

3.0 out of 5 stars 5 stars for how well it works, minus 2 for angering me during set-up, January 25, 2009

By

Michael Christofield "michael" (Central Indiana USA) - See all my reviews
(REAL NAME)

Amazon Verified Purchase

This review is from: D-Link DAP-1522 Extreme 4-Port Gigabit Dual-Band Wireless-N Bridge/Access Point (Personal Computers)

I purchased to pair with the DIR-655 router and a DSM-750 media extender, both from Dlink. Depending on how you feel, this product could be anywhere from a 1 - 5 star item. The thing works great, which is the most important aspect to me. However, I would say that the range is less than excellent, thus a half star off for that. Another half star off because the reset button is pretty much useless. I'm taking the other star off for it being a massive pain in the butt to get it working - in bridge mode.

AP mode is easy to set up. All you have to do is set the switch to AP on the back and connect it to your router with an Ethernet cable. You should then be able to access the configuration page by typing in 192.168.0.50 in your web browser. You can then set up the wireless broadcast as you see fit (enter in an SSID in the box (different from your router for a separate broadcast) - use a static IP address, set up the IP address of your router as the gateway address, etc). You can also update the firmware.

Bridge mode is a completely different matter. Theoretically, you should be able to press the WPS button on your router and then press the button on your bridge and it will connect automatically (probably still helps to connect via Ethernet cable first so you can access the config page). Maybe that worked for some people, but it did not work for me. I tried push button connect, tried connecting using pin numbers, tried manually setting everything up, but nothing worked. I was tempted to think I had a defective unit, but it worked fine in AP mode, so I was sure the thing was functioning properly.

Here is how I configured it to make it finally work in bridge mode. First, I reset this and my router to factory defaults. I set the switch on the back to bridge mode. I connected the bridge to the router via Ethernet cable. I turned on the router and then the bridge. I set up the router as before - broadcast in 802.11n only mode, 40MHZ and WPA2 (AES encryption), which enabled me to achieve 300 mbps network speed. I then went to the config page for the bridge. On the wireless set-up, I manually set it up to match the router. I selected the static IP. I left the SSID box blank and used the site survey to select the wireless connection from my router. I then de-selected the clone MAC box. As if by magic, the stupid thing finally connected wirelessly, and i have been pleased with its performance since. I was even able to unplug it and set it up in another location, and it was still able to connect.
