DEWALT DW735 13-Inch, Two Speed Thickness Planer

by DEWALT

Product Description

Amazon.com

Sometimes, half an inch makes all the difference. But that's not the only reason to step up to the 735. Its powerful 10,000 rpm motor will handle anything you feed it--oak, walnut, exotics--with absolute ease. The three-knife cutterhead will make 96 or 179 cuts per inch, depending on which speed setting you choose. Mess is minimized with the fan-assisted chip ejection, which literally vacuums chips off the cutter-head and blows them out the exhaust. The 735's automatic carriage lock will save you from snipe by reducing the movement that causes it--what a great idea. We also love the redesigned thickness scale--it's big and super-visible, even in poor lighting. Those who do repetitive cuts will appreciate the turret depth-stop; set your most-used cuts to it once and you're always assured of accuracy. The home woodworker will be thrilled, and the professional's expectations will be more than met. This is a winner.--Kris Jensen-Van Heste

Amazon.com Product Description

The DEWALT DW735 features a three-knife cutterhead and a powerful 15 amp motor that delivers 10,000 rpm. It offers quick, accurate depth adjustment and the convenience of knives that are both reversible and disposable. This fully featured portable planer makes it easy to create clean custom stock.

DW735 13-Inch Three Knife Two Speed Thickness Planer At a Glance: Powerful 15 amp motor Three-knife cutterhead operates at 10,000 rpm Dual speed allows 96 or 179 cuts per inch for fine finishes Disposable, reversible knives are long lasting and easy to change 1/8-inch maximum cut depth; 6-inch depth capacity; 13-inch width capacity Three-year limited warranty, one-year free service, 90-day money-back guarantee

15 amp motor operates at 10,000 rpm. View larger.

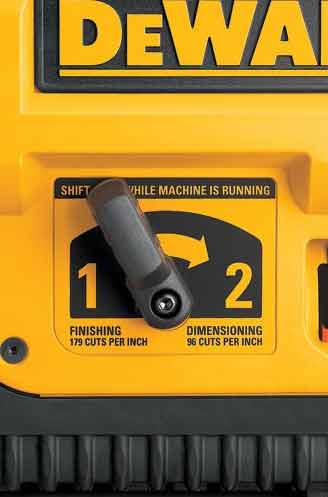

Dual-speed gear box is ideal for dimensioning and finishing work. View larger.

Powerful 15 Amp Motor for Clean Cuts
Benchtop planers are a long-term investment that allow you to save money over time by buying rough stock and dimensioning it yourself. They also make creating custom materials easier, which, in turn, makes getting great results easier.

The DW735 13-Inch Planer's powerful 15 amp motor can handle deep cuts in tough hardwoods. Its three-knife cutterhead and two-speed gearbox deliver 96 or 179 cuts per inch (cpi). Use 96 cpi when dimensioning material and 179 cpi for a finer finish.

Reversible, Disposable Knives for Convenience
The DEWALT DW734 uses razor sharp knives that are reversible and disposable. These knives last 30 percent longer than traditional disposable knives, helping you avoid costly and time-consuming resharpening.

For fast, easy, one-tool knife changes, a set of pins machined on the cutter-head goes through holes machined on the knife. This helps you quickly locate the fresh knife and refasten the knife clamp.

Large Capacity and Easy, Accurate Depth Adjustment
This planer's extra-long infeed and outfeed tables provide 33-1/2 inches of material support. A turret depth stop saves you time when setting the machine at commonly used depths.

In addition, the planer's material-removal gauge and extra-large thickness scale help ensure every pass is accurate. A four-column carriage lock drastically reduces the movement that causes material damage, or snipe, when planning near the end of a board.

This sturdy planer weighs 80 pounds. It offers a maximum cut depth of 1/8 inch, a depth capacity of 6 inches, and a width capacity of 12-1/2 inches.

Fan-Assisted Chip Ejection for Dust Management
The DW735 features a Fan-Assisted Chip Ejection System with a motorized fan that breaks down debris as it leaves the cutterhead and blows it into one of the two dust shrouds (included). One shroud disperses the chips down onto the shop floor while the other provides a connection for a vacuum hose or dust-collector hose.

This sturdy planer weighs 92 pounds. It offers a maximum cut depth of 1/8 inch, a depth capacity of 6 inches, and a width capacity of 13 inches.

The DW735 13-Inch Thickness Two-Speed Planer with Three-Knife Cutterhead also comes with a DEWALT warranty package that includes a three-year limited warranty, a one-year free service contract, and a 90-day money-back guarantee.

What's in the Box
DW735 DEWALT 13-Inch Thickness Two-Speed Planer with Three-Knife Cutterhead, dust-hose adapter, and dust-ejection chute.

The DW735 planer allows for fast, easy, one-tool knife changes.

See all Product Description

Product Details

• Product Dimensions: 24 x 22 x 18.8 inches
• Shipping Weight: 92.4 pounds (View shipping rates and policies)
• Shipping: This item can only be shipped to the 48 contiguous states. We regret it cannot be shipped to APO/FPO, Hawaii, Alaska, or Puerto Rico.
• Shipping Advisory: This item must be shipped separately from other items in your order. Additional shipping charges will not apply.
• ASIN: B0000CCXU8
• California residents: Click here for Proposition 65 warning.
• Item model number: DW735
• Average Customer Review: 3.5 out of 5 stars  See all reviews (178 customer reviews)
• Amazon Best Sellers Rank: #6,545 in Home Improvement (See Top 100 in Home Improvement)
  • #4 in Home Improvement > Power & Hand Tools > Power Tools > Planers

Customer Reviews

Most Helpful Customer Reviews

214 of 225 people found the following review helpful:

5.0 out of 5 stars Great planer, September 15, 2003

By

"mjtripper" (Vicksburg, MI United States) - See all my reviews

This review is from: DEWALT DW735 13-Inch, Two Speed Thickness Planer (Tools & Home Improvement)

This is the first planer I have ever owned or used so I don't have anything for comparison but I like it so far. Out of the box you attach the hand crank and the dust attachment and you are ready to go. There are two dust attachments one to attach a 4" hose and another (diffuser maybe?) for no hose attachment. The directions are pretty well written and easy to follow. All the adjustments and work on the unit can be done with the one included tool that drops into a holder on the top. All the controls work great and are easy to operate.

First let me say again this is the first time I have ever used a planer so a lot (okay, probably all :) of the snipe I got was user error. The more boards I put through the less snipe I got. It took a little playing around with and reading to learn the correct technique for moving stock through so I did get snipe on the first bunch of passes on stock, more frequently on the end of the boards then on the front. Most of what I put through was between 3 and 6 inches wide and 2-5 feet long. I did put a couple wider ones in just to see how it handled it. On a 14in long 11in wide hard maple glue up I took off 1/16th per pass and got no snipe or tearout. Then I put through a 10in wide 4ft long oak board and did get snipe on the end but not the start. I still think it's technique because it didn't do it on every pass and when taking off 1/32 I didn't get it at all. The folding tables aren't out yet, but they will probably help even more. I'm pretty convinced once I get the proper technique down I won't get snipe anymore. I'm getting more and more snipe free boards.

I can't say anything bad about the surfaces. I have had zero tearout and ultra smooth surfaces on everything I have put in no matter what I do. The most I have taken off is an 1/8in while only taking 1/32in on the longer boards. Most of the time I had it set to 1/16in. Probably 50% at 1/16, 30% at 1/8, and 20% at 1/32. I put through a pretty good mix of pine, red oak, hard maple, and ash with most of it being red oak.

The crank turns easily and each turn is 1/16in. The depth stop is easy to set and is for 1/8, 1/4, 1/2, 3/4, 1, and 1 1/4. The removal scale is pretty nice as well, you put the end of the board just under the edge and turn the crank. A little pointer moves on a scale to tell you how much will be taken off. It has a little chart built in showing the max that can taken off based on board width, which is nice for me because I didn't know. The thickness scale is pretty big, easy to read, and easy to set. I only ran it with my dust collector hooked up to the 4" port, but it grabbed everything. After running all the wood through, probably about 4 hours total use, there where 3 little wood chips beside the bed and that's all - the dust collector had the rest. The thing I don't like about it is the dust attachment is right in the center above the outfeed so unless you angle the hose away to the side with an elbow or suspend it somehow it gets in the way of the stock coming out. But so far that is my only gripe. This thing is really loud but I expected that, it's the loudest tool I have. All the scales and settings where dead on right out of the box. I do wish the folding tables came bundled. Overall I'm one happy camper.

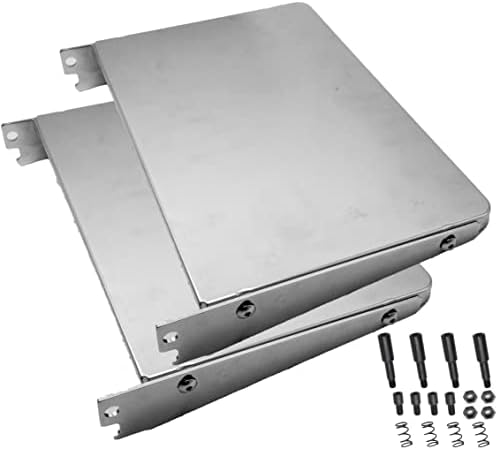

Okay, I finally got the folding tables. They are very easy to assemble and align. Each corner of each table can be adjusted for height. The attachment points are spring loaded so they are also easy to take off and put back on. They do help in supporting the work and seem very solid. The front table folds up out of the way and stays there. The rear table however is another story. Because the main table and the back of the moter/blade assembly are pretty much even and the pin to hold the table is set back the rear table will never fold up and stay. When the depth of cut is set around an inch and the cord is wrapped around the cord holder the rear table won't flip up more then around 20 degrees. In my opinion this is a major design flaw, the main table needs to stick out at the rear by at least an inch or two to allow the table to fold up.

223 of 237 people found the following review helpful:

2.0 out of 5 stars DeWalt, what were you thinking??, February 15, 2005

By

Kevin "turnerkev" (Albuquerque, NM United States) - See all my reviews

This review is from: DEWALT DW735 13-Inch, Two Speed Thickness Planer (Tools & Home Improvement)

Being a part-time tool designer for woodturning, and a former machinist, I appreciate good tools & designs. I've used the 735 with a friend making various woodworking projects. The DeWalt 735 looked like a great design, with innovative vacuum-assist using the planer knives for an impeller-like suction. But shortly into the project, the knives quickly showed wear and the planer made much more noise than it did when the blades were untouched by the softwood we were planing. I've done a lot of planing, and have owned other brands of machines & knew there were serious problems with these blades. When I inspected the blades, I immediately noticed they were very thin with too much backrake in the edge, which probably caused premature breakage due to unsupported steel at the cutting edge. There is the probability of setting up vibrations in the thin metal further causing additional stresses on the steel, and may be a reason the machine is much louder than other brands of planers (try taking a razor blade and hack away at hardwood and see what happens.). Shortly after that, the sproket in the drive system broke. Another closer inspection revealed a very weak, low density casting with poor mechanical design & strength, especially where the keyway was broached into the already weak metal. A second replacement sproket broke in the same place, relative to the first one, further indicating a design flaw, and another set of knives went dull prematurely ( I was hoping that the first set of knives had a metallurgical flaw, were embrittled, or some other fluke). I measured the depth of cut on the 6" wide softwood board, and it was only .050" ---less than 1/16"!! There is no easy way to re-machine the knife holder to accept better knives, say from a Makita or other brand of machine. Maybe DeWalt subbed part of this machine out to a company named "Rejects "R" Us" but this machine is past it's warranty and will be sold "as is" which is an "as is" piece of junk. But if you want a noisy dust collector booster, this machine will work well, just don't plane anything harder than fresh marshmallows on it. It's truly sad that with all the other great features on this machine, and DeWalt's great reputation with the predecessor to the 735, a lack of attention to the two most important functions of the machine (cutting wood, and feeding the wood through the planer) were neglected. The local customer service was poor, at best. Get this planer a better knife design, forged steel sproket, acoustic damping (it's really loud) and this DeWalt will be as good as the Hitachi or Makita.

65 of 65 people found the following review helpful:

3.0 out of 5 stars A good planner with limitations, September 25, 2004

By

Conrad L. Weaver (Waynesboro, Va) - See all my reviews
(REAL NAME)

This review is from: DEWALT DW735 13-Inch, Two Speed Thickness Planer (Tools & Home Improvement)

I have owned my DW735 for about a year now and I am quite disapointed. I moved up from an old 12 inch planner which had awful snipe and did a poor job. The Dewalt is a great improvement over this. It produces almost no snipe, and provides a smooth finish as long as the blades are sharp. I really like the depth stop, which assures perfectly even thickness of each board. The removel gage is also a very helpful feature.

Now for the bad part(s). First, this thing is a screaming demon. It is so noisy that even hearing protection is not enough. I mentioned sharp blades above. They do not stay sharp long, and then start to produce small ridges in the work. I am lucky to get a couple of hundred feet without degradation. Go much further and you start to get tear out. These blades are to expensive to replace every few hundred feet. Now for the worst part. This machine will not feed properly. Forget anything over six inches wide, it simply won't feed. The rollers slip on the work causing black marks, and the cutters burn. I called Dewalt about the problem and was told they had never heard of the problem. They also told me to clean the rollers and polish the table. I did this but it didn't help the problem. By the way, this happens while trying to take off only 1/64 or 1/32. Forget anything more aggressive.

If you have very light work, or only work in softwoods, this machine should be a good choice. However, it does not seem capable of handling any heavy work in hardwoods, and nothing stops the noise.
