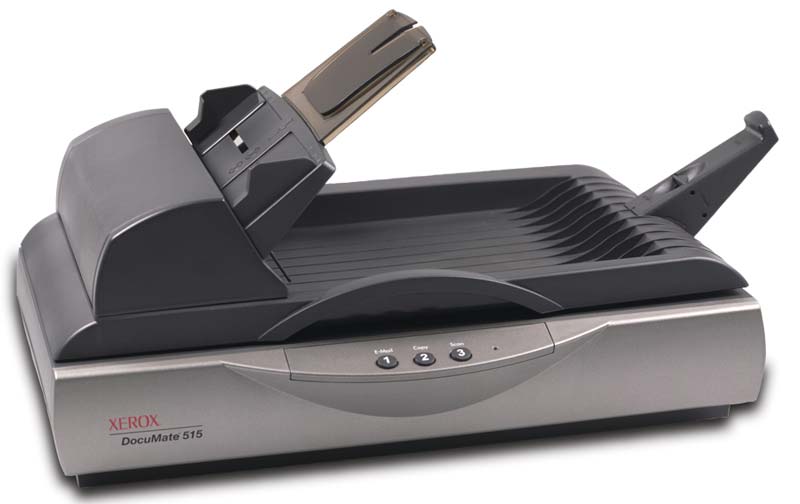

Xerox DocuMate 515 Flatbed Fast Simplex ADF ColorScanner with One Touch PDF and VRS Image Enhancement (XDM5155D-WU)

by Visioneer

Product Details

• Product Dimensions: 13 x 17.5 x 7 inches ; 11.5 pounds
• Shipping Weight: 17 pounds (View shipping rates and policies)
• Shipping: This item is also available for shipping to select countries outside the U.S.
• ASIN: B001AZRCT6
• Item model number: XDM5155D-WU
• Average Customer Review: 3.6 out of 5 stars  See all reviews (15 customer reviews)
• Amazon Best Sellers Rank: #3,495 in Electronics (See Top 100 in Electronics)
• Date first available at Amazon.com: July 7, 2004

Product Description

From the Manufacturer

The Xerox DocuMate 515 scanner is a compact and effective high-speed scanner which is perfect for workgroups and other decentralized scanning needs, enabling businesses to achieve high-levels of productivity by distributing fast, cost-effective scanners throughout the organization.

Featuring a 50 page Automatic Document Feeder that scans at 15 pages per minute. View larger

The DocuMate 515 has a 50 page Automatic Document Feeder (ADF) that scans at 15 pages per minute. It features 600 dpi optical resolution, 24-bit color, hi-speed USB 2.0 interface and scans everything from photos up to A4 documents. The DocuMate 515 includes TWAIN and ISIS drivers plus an impressive software package.

A powerful set of scanner settings to greatly improves the efficiency of your workflow

Use Nuance PaperPort to organize digital files that you can quickly find, use and share

Scanning at the Touch of a Button

Do you want to do more with the paper on your desk? Would you like to copy it, collate it, file it, search it, mail it and make it disappear? Sounds time consuming doesn’t it? How about if you could do it all with just one touch?

Perfect Scans for Imperfect Originals

Visioneer OneTouch with Kofax VRS (VirtualReScan) technology is integrated into the scanner driver so that you get perfect scans from imperfect originals. VRS also eliminates the need to rescan documents through automatic cropping, straightening, brightness control and edge clean-up. All this is integrated into Visioneer OneTouch so your entire scanning requirements are achieved at the touch of a button. Most new users in document imaging are not scanner experts, so simplified, point-and-click solutions that deliver high quality images and integration with business applications are essential.

Visioneer OneTouch

Visioneer OneTouch is an easy to use utility that connects you to a powerful set of scanner settings to greatly improve the efficiency of your workflow--so that with one touch, the document is scanned automatically to email, or Word, or your printer, or simply a file folder. In addition to scanning direct to all popular destinations, Visioneer OneTouch also links you to industry-leading document management software, such as Microsoft SharePoint, Xerox DocuShare, and DocuWare--forming an easy to use workflow from paper to a selected destination. A Software Development Kit (SDK) is also available which provides the ability to develop specific links and integrate them into the Visioneer OneTouch control panel quickly and easily.

VRS is the goldstandard in image improvement technology. View larger

Kofax VRS Technology

This product integrates Kofax VRS image enhancement technology into the OneTouch scanning process. VRS is the gold-standard in image improvement technology. Imperfect originals are automatically turned into perfect scans that are easier to read. OCR results are dramatically improved, file size is decreased and scans look at clear as the originals. Every page is custom corrected automatically so you can batch together clean, laser quality documents with your imperfect originals--the results are amazing.

Nuance OmniPage Pro

You can use the text in virtually any word processing, desktop publishing or web publishing program. It eliminates the need for retyping documents.

Nuance PaperPort

PaperPort is the easiest way to turn volumes of paper into organized digital files that you can quickly find, use and share. Stop wasting time looking for paper documents scattered around your office. Products using PaperPort allow you to scan documents directly to PDF files.

PaperPort supports one-click creation of PDF files from Microsoft Office documents and supports Print-to-PDF using other Microsoft Windows applications. A wide range of image formats can also be converted into PDF--including TIFF, MAX, JPG, BMP and GIF. PaperPort can help you find any document on your PC instantly. Just type in a word or phrase and PaperPort will bring up the correct document immediately. Scan to network drives by adding new destinations to the PaperPort folder list allows scanning direct to the desired location. Scan directly to your My Documents folder or to a network drive.

What's in the Box

Xerox DocuMate 515, power supply, USB cable, paper guide with extension, paper stop, replacement ADF pad, Quick Install Card, Technical Support Card, DVD-ROM including drivers and bundled software.

System Requirements

• Pentium IV or equivalent processor
• Windows 7 / Vista / XP
• 512MB RAM (1GB RAM for Windows 7)
• 350MB available hard disk space
• DVD-ROM Drive
• USB Port

Technical Specifications

• Scan Speed 15 ppm @ 200 dpi (b/w), 15 ppm @ 150 dpi (color)
• Optical Resolution: 600 dpi
• Output Bit Depth: 24-bit color, 8-bit grayscale, 1-bit black & white
• Scan Method: Fast Simplex ADF
• Interface: Hi-Speed USB 2.0 (USB 1.1 compatible)
• Dimensions: 17.5"(w) x 13"(d) x 7"(h) (445 x 330 x 178 mm)
• Weight: 11.5 lbs. (5.2 kg)
• ADF Maximum Document Size: 8.5" x 14" (216 x 356 mm)
• ADF Minimum Document Size: 4.5" x 5.5" (114 x 140 mm)
• ADF Capacity: 50 sheets (20 lb., 75 g/m2 paper)
• Duty Cycle: 2,500 pages/day

Product Description

Xerox DocuMate 515 Sheetfed Scanner XDM5155D-WU Sheetfed Scanners

Customer Reviews

Most Helpful Customer Reviews

35 of 43 people found the following review helpful:

1.0 out of 5 stars Don't Waste Your Money Unless the Scanner can sit on top of the Computer, April 17, 2010

By

Curtis Hall "Phoenix" (Phoenix, AZ.) - See all my reviews
(REAL NAME)

This review is from: Xerox DocuMate 515 Flatbed Fast Simplex ADF ColorScanner with One Touch PDF and VRS Image Enhancement (XDM5155D-WU) (Office Product)

I purchased a Xerox Documate 515 on Feb. 26, 2010 as my old Visoneer 9450 is not compatible with Windows 7 - nor will it be. The Documate 515 was recommended as a compatible replacement. Read all the literature and ordered it. Arrived in quick order. Due to a heavy traveling schedule however, it was not installed until March 26th. I Flatbed scanned a test a page and it scanned just fine. I did not however use the ADF to scan multiple pages. I registered the product this very day - March 26th, 2010. Back to a heavy traveling schedule and the Scanner was not used again to scan even one document after its initial set-up on March 26th, until early April. I noticed that it would frequently "freeze" half way through a page. Had to turn it off and try again. Sometimes it would scan sometimes it would freeze - more often it "Froze".

Multiple page scans would freeze after the very first page. Most frustrating. Called Visioneer who recommended the scanner as a likely Visoneer 9450 replacement. They referreed me to PaperPort - manuafacture of the software used to scan my documents. They referred me to Xerox. Called Xerox on April 8th, 2010. They suggested I try connecting it to a Laptop and see if that corrected the problem. IT consultant was next scheduled for and came April 14th and we did just that, connected the USB cable to a laptop - still freezes with great regularity. Have to pull the page out of the scanner after turning it off and then on again.

Called Xerox tech support on April 14th - how long is the USB cable they asked? 10 feet I said. That is probably the problem they informed - try a 4 foot cable. At four feet the scanner has to damn near sit on top of the computer and if not on top, I have virtually no place to put the scanner anywhere near the computer. This corrected the problem completely - single sheet, multile page scans - no freezing. I informed Xerox Tech Support that my Visoneer was working just fine with a 12 foot USB cable with virtually no problems. USB 2.0 Specifications is 5 METERS I informed and that four feet is just barely over 1 METER. The requirement to use a 4 four cable was NO where in their literature and had I known this I never would have purchased this product. I was then informed that ALL Xerox Scanners require a four foot USB Cable - "might" work with a 6 foot but that's a "might" they informed.

Unacceptable - It is now April 14th and I am "Out of Warranty" for something I was never informed of - a four foot cable requirment. Nothing they could, or "would" do for me. Purchase a Xerox Sanner if you will - personally, I will never purchase another Xerox product of any kind for fear of what they don't tell me in their literature and also for their total lack of customer care.

2 of 2 people found the following review helpful:

4.0 out of 5 stars Decent Scanner, September 7, 2011

By

Gary - See all my reviews

Amazon Verified Purchase

This review is from: Xerox DocuMate 515 Flatbed Fast Simplex ADF ColorScanner with One Touch PDF and VRS Image Enhancement (XDM5155D-WU) (Office Product)

This scanner is a pretty good bang for your buck. On average it scans 12ppm, which is close to the 15ppm it advertises. Like other reviewers have said, it is a better idea to download the driver off the Xerox website than install the outdated driver from the CD. The Paperport and OmniPage software can be a bit confusing at first, but is easily learned. The Omnipage program provides good OCR ability, with about 90% accuracy with common fonts based on my tests, but doesn't always get styles, specifically boldface, correct. Using the flatbed scanner, all pictures and documents seem to be slightly tilted, despite checking and ensuring it lines up with the edge of the glass. That problem can be fixed by a simple rotation of the image, so it's not too bad. Also, the scanner does take up a lot of space, so make sure you have a place for it to sit. Overall, it's a good buy if you don't run into driver issues with it.

1 of 1 people found the following review helpful:

5.0 out of 5 stars Does the job, July 3, 2011

By

Stoke "Stoke" (Dunedin, FL) - See all my reviews

Amazon Verified Purchase

This review is from: Xerox DocuMate 515 Flatbed Fast Simplex ADF ColorScanner with One Touch PDF and VRS Image Enhancement (XDM5155D-WU) (Office Product)

Seems to do what I need to do in a small office. I don't use fancy or advanced features, but I needed something that supports TWAIN. No complaints after over a year of using it.
