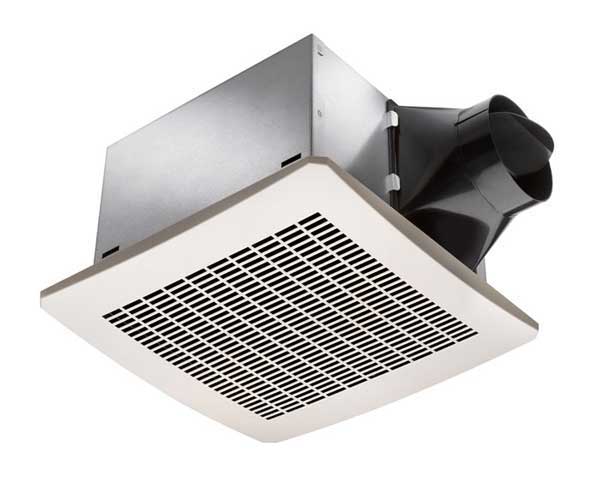

Delta Electronics VFB25AEH Breez 130 CFM Humidity Sensor Exhaust Fan, 1.3 Sones

by Delta Electronics, Inc

Product Description

Amazon.com Product Description

Built to make controlling bathroom humidity effortless, the Delta Electronics VFB25AEH Breez 130 CFM Humidity Sensor Exhaust Fan is quiet, efficient, and rated for continuous use. Its low-noise, ceiling-mount design is unobtrusive, and with its Energy Star-certification, the Breez Humidity Sensor Fan is easy on your energy bill and the environment. This ventilation fan conforms to UL and cUL safety standards.

130 CFM Humidity Sensor Exhaust Fan At a Glance: Ceiling-mount design rated for continuous operation Cycling switch offers full-power and humidity-sensor modes In humidity-sensor mode, automatically switches on when humidity is above 40 percent Energy Star-certified Noise level of less than 1.3 sones DC brushless motor with soft start for long life UL, cUL, and HVI certified Backed by a limited three-year warranty

Galvanized steel construction provides durability. View larger.

DC brushless motor with built-in soft-start function is designed to increase product life. View larger.

Smart Humidity Control Protects Your Home
The Delta Electronics VFB25AEH Breez 130 CFM Humidity Sensor Exhaust Fan can be set to operate in either of two modes--humidity sensor or full speed. A pair of blue and amber LED lights indicate which mode is active. In humidity-sensor mode, the unit's motor automatically adjusts fan speed based on humidity levels--you never have to manually turn the fan on before a shower or remember to turn it off after one. This mode keeps towels and curtains from staying damp, prevents damaging mold, and keeps your home comfortable.

The fan's default settings include a 40 percent humidity threshold. The fan will start when the humidity level reaches 40 percent, and will remain on as long as the humidity remains above the threshold. And it will turn off automatically after the humidity level comes back down to less than 40 percent.

Quiet, Energy Star-Certified Fan for Cost-Effective Ventilation
Ideal for bathroom spaces, the ceiling-mount Breez exhaust fan delivers an air flow rate of 130 CFM for improved indoor air quality--which offers the potential of improved comfort and health for your family in the home. In addition, it operates at a noise level of less than 1.3 sones, so the fan is impressively quiet.

The Breez's smart design is Energy Star-certified, so you are assured it's a good choice for keeping your utility bills manageable and running a green household. Its 19.1-watt power-consumption rating translates to an impressive efficiency rating of approximately 7.07 CFM per watt at 0.1-inch of static pressure.

DC Motor Technology Ensures Consistent Performance
One innovation that allows the Breez to be so efficient is a switching power supply that converts your home's standard AC 110~220-volt power source to DC power, which allows the fan to utilize an efficient DC motor.

This DC, brushless motor is engineered to run continuously and offers a life expectancy of 70,000 hours--about eight years of nonstop ventilation. The Breez's DC motor includes a built-in soft-start function to increase the lifespan of its bearings, and it's designed to automatically power off the fan if the impeller ever locks abnormally. In addition, the motor and blower assembly is equipped with a thermal cutoff fuse for added safety.

Durable, Easy-to-Install Body with a Clean Look
The Breez's body features galvanized steel construction for durability. It also has a detachable 4-inch duct adapter and a built-in back-draft damper.

Also, the face of the fan unit is a sleek, unobtrusive grille that blends in seamlessly with any decor--whether you're installing the exhaust fan to update an existing bath, or placing it in a newly constructed home. And the grille is constructed with sturdy ABS material. It attaches securely and directly to the housing with torsion springs, and the entire unit is built for easy installation.

UL and HVI Certified for Safety and Reliability
Built for use with ducts that measure at least 4 inches in diameter, the Breez has been evaluated by the Underwriter Laboratories and conforms to both UL and cUL safety standards. It is also UL and cUL listed for use in a tub or shower enclosure when used with GFCI branch-circuit wiring. And it's HVI (Home Ventilation Institute) certified.

The Delta Electronics VFB25AEH Breez 130 CFM Humidity Sensor Exhaust Fan is backed by a limited three-year warranty.

What's in the Box
Delta Electronics VFB25AEH Breez 130 CFM Humidity Sensor Exhaust Fan body, grille, installation hardware, and instructions.

VFB25AC Exhaust Fan	VFB25AD Exhaust Fan	VFB25ACH Humidity Sensor Exhaust Fan	VFB25ADH Humidity Sensor Exhaust Fan	VFB25AEH Humidity Sensor Exhaust Fan	VFB25AX Duel-Speed Exhaust Fan
Description
Ceiling mount exhast fan is ideal for bathroom spaces, and is Energy Star-certified.	Ceiling mount exhast fan is ideal for bathroom spaces, and is Energy Star-certified.	Automatically starts when humidity levels reach 40 percent and remains on as long as the humidity remains above the threshold.	Automatically starts when humidity levels reach 40 percent and remains on as long as the humidity remains above the threshold.	Automatically starts when humidity levels reach 40 percent and remains on as long as the humidity remains above the threshold.	Ideal for bathroom spaces, the duel-speed exhaust fan can ramp up the power when needed.
Circulation
80 CFM	110 CFM	80 CFM	110 CFM	130 CFM	80/110 CFM
Noise Level
Less than 0.3 sones	Less than 1.1 sones	Less than 0.3 sones	Less than 1.1 sones	Less than 1.3 sones	Less than 0.5 sones at low speed

From the Manufacturer

Innovative design for long life, low noise and low power consumption, the Delta Breez humidity sensor exhaust fan model VFB25AEH delivers air flow rate of 130 CFM at 1.3 Sones. Power consumption is only 24 Watts with an efficiency rating of 5.4 CFM/Watt. The life expectancy for this fan is 70,000 hrs, which is about 8 years running continuously. This quiet energy efficient bathroom fan combines several design innovations, including a switching power supply that converts AC 110~220V power source to DC power to drive a DC brushless motor. This design provides a quieter solution with energy savings up to 65% compared to traditional AC motor products. Users can cycle switch on/off for humidity sensor mode and full speed mode. This product has a default humidity threshold setting of 40% humidity environment. In humidity sensor mode, fan will kick in when the humidity level reaches 40% and above, and will turn off automatically after the humidity level comes back down to lower than 40%. The motor will adjust the speed according to humidity levels. The American National Standards Institute (ANSI) has recommended a mechanical exhaust system to be installed in your home to provide whole building air ventilation (ASHRAE Standard 62.2-2007) in order to improve indoor air quality. This Delta Breez VFB25AEH humidity sensor exhaust fan is an excellent product to achieve this goal with its superior features of ultra low power consumption, and almost silent operation. Cycle switch on/off in between humidity sensor mode and full speed mode for continuous or smart operation. The energy cost for operating this fan 24/7 for an entire year is less than approximately $22.98. Galvanized steel body housing; Detachable 4” diameter duct adapter; Built in back draft damper; Housing dimensions (LxWxD) = 9.68" x 9.68" x 7.98"; Grille dimensions = 12.36" x 12.36"; UL and cUL listed for tub/shower enclosure when used with GFCI branch circuit wiring; 3 year limited warranty.

Product Details

• Shipping Weight: 9.8 pounds (View shipping rates and policies)
• Shipping: This item is also available for shipping to select countries outside the U.S.
• Shipping Advisory: This item must be shipped separately from other items in your order. Additional shipping charges will not apply.
• ASIN: B003O0MNHG
• Item model number: VFB25AEH
• Average Customer Review: 4.7 out of 5 stars  See all reviews (7 customer reviews)
• Amazon Best Sellers Rank: #16,877 in Home Improvement (See Top 100 in Home Improvement)
  • #86 in Home Improvement > Hardware > Bathroom Hardware > Bathroom Fans

Customer Reviews

Most Helpful Customer Reviews

13 of 13 people found the following review helpful:

5.0 out of 5 stars Quiet and moves a lot of air!, December 15, 2010

By

Sugishop (SoCal) - See all my reviews

Amazon Verified Purchase

This review is from: Delta Electronics VFB25AEH Breez 130 CFM Humidity Sensor Exhaust Fan, 1.3 Sones (Tools & Home Improvement)

I installed this bathroom fan in an afternoon. The instructions were adequate, but I had to figure out for myself that the humidity sensor was not pre-installed and I had to do it myself after noticing there was no light. Also, there is no clamp connector where the wires come out of the unit. If you're installing this yourself you're going to want to use one (3/4" IIRC). This fan has two settings; humidity sensing and full power. We usually leave it on humidity sensing and it does a good job of getting rid of all the moisture (no more steamy bathroom mirrors). At it's lowest RPM the fan is VERY QUIET. As the humidity increases so does the fan speed, but even when it maxes out, it's easy to carry on a normal conversation and the noise the fan makes is not intrusive. The full power mode seems to be faster than the highest "humidity mode". It's louder still but tolerable. We've been using this fan for about a month and have no complaints.

4 of 4 people found the following review helpful:

5.0 out of 5 stars Exceeds what I thought!, October 9, 2011

By

Retired and Lovin' It! "Retired and Lovin' It!" (Heaven) - See all my reviews

Amazon Verified Purchase

This review is from: Delta Electronics VFB25AEH Breez 130 CFM Humidity Sensor Exhaust Fan, 1.3 Sones (Tools & Home Improvement)

I purchased this for our master bathroom that has additional insulation added and is very tight. I placed it between the neo-angle shower and the toilet so it picks up the moisture and any smells that are produced. And it works! With the hot showers that we take (water is at 145 degrees) we don't have moisture problems on the walls or floor. I did put on a time and we turn it on when we get in there even with it being an automatic on/off depending upon the moisture in the air. As we start to shower it is running at a low speed but when the moisture increases, the fan speed increases and keeps the steam from windows, mirrors, etc. After the moisture is lowered, it goes back to a slow speed and finally shuts off before the timer does. I had put the time on just in case this feature didn't work but turned out to be a waste of money. The fan does a great job and I would recommend it to anyone.

3 of 3 people found the following review helpful:

5.0 out of 5 stars great bathroom ceiling fan, July 19, 2011

By

T. Richer "Tim Richer" (Concord, MA) - See all my reviews
(REAL NAME)

Amazon Verified Purchase

This review is from: Delta Electronics VFB25AEH Breez 130 CFM Humidity Sensor Exhaust Fan, 1.3 Sones (Tools & Home Improvement)

Works like a charm. I especially like the toggle between high speed and the speed where it stays on until humidity falls below a certain level. Super easy to install too.
