Amazon.com: Elite Screens R120WH1 ezFrame Fixed Projection Screen (120" 16:9 AR)(CineWhite): Electronics

From the Manufacturer

Infinite applications

Tab-Tensioned

Gather and Enjoy!

Flattened Frame

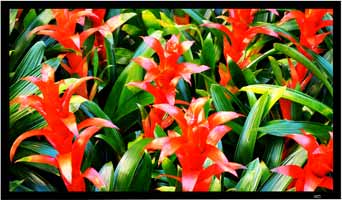

The Elite Screens ezFrame series of fixed-frame projector screen creates a true home theater experience for your dedicated theater or media room. Our low profile fixed-frame screens are mounted flush against the wall like any large picture frame allowing it to occupy a minimal amount of space regardless of its size. This empowers the owner to go for the dedicated home theater atmosphere or use the screen as a backdrop in a room used for multiple media functions.

The framework is made of strong, lightweight metal and is easy to assemble with the convenience of adjustable screen tension included. All of our frames come standard with black velvet frame surfacing which is normally charged extra by other manufacturers. The velvet material eliminates the projector glare which an untreated metal frame reflects during use. The screen material is black-backed to eliminate light penetration for superior picture quality and comes with your choice of matte white or high contrast gray material. The matte white is ideal as the most widely used projection material and is preferred for use with low-output projectors. High contrast gray material provides the best black level reproduction allowing better contrast imaging in dark pictures. Screen types come in 4:3 (TV/Video) and 16:9 (HDTV) ratios. Both types of material have scattered screen projection angles up to 100 degrees. The smallest screens have an 84" diagonal measurement that will dwarf most large screen displays while larger sizes go up to 200" for a truly larger-than-life presentation.

Award winning home theater projection screen with full tension uniformity

Equipped with Elite's 1.1 gain CineWhite tensioned screen material gives wide viewing angles, so no one needs to miss out on the action.

Eliminates unwanted light penetration with Elite's standard black backing.

Surrounded by a 2.36" black velvet surfaced, black anodized aluminum frame. While its stylish design enhances the overall appearance and feel of your home theater, it also functionally serves to absorb light overspray given off by some projectors.

Watch the game on the big screen within minutes. The ezFrame is easy to assemble and a cinch to install.

Do away with uneven or wavy surfaces. The adjustable fix plates provide equal tension throughout the entire projection surface.

Easily mount it right on your first try. Sliding wall mounts allow you to install it first and center it later.

Impress your friends and family with sizes from 84" to 226" in 4:3, 16:9 and 16:10 aspect ratios.

2-year parts and labor premium warranty

3-year parts and labor premium warranty for all Government, Education, Military, and House of Worship purchases

CineWhite

CineWhite (Tension Matte White) has broad light dispersion through diffusion uniformity, black & white contrast and true color rendition making it the most versatile in Elite's tensions screen product lines. This tension PVC surface is the best choice for today's high-contrast ratio projectors in commercial or residential presentations. The CineWhite material equals the performance to our MaxWhite product, but improves the experience with the superior surface flatness. Uniform diffusion surface has black-backing to eliminate light penetration and is easily washable with mild soap and water.

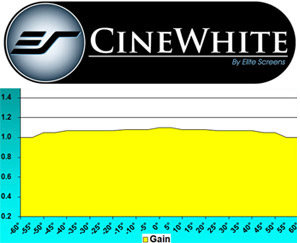

1.1 gain with 160 degree wide viewing angle

Surface can be easily cleaned with mild soap and water

GREENGUARD® Indoor Air Quality and GREENGUARD® Children & Schools Certified

Constructed of a multi-layer weave and textured surface coating

Multi-layered PVC (Polyvinyl Chloride) with textured surface coating

Key Specifications

Product Type:
Manufacturer Part Number:
Manufacturer:
Aspect Ratio:
Diagonal Image Size:
Viewing Size:
Screen Fabric:
Projection Type:
Weight:
Viewing Angle:
Warranty:
What's in the Box:

Fixed Frame Projection Screen
R120WH1
Elite Screens, Inc
16:9
120"
104.7" Height x 58.7" Width
1.1 Gain CineWhite
Front Projection Fixed Frame
30.5 lb
160 Degrees
2 Year
1x ezFrame Fixed Projection Screen
2x Sliding Wall Mounts
1x Set of mounting hardware
1x User Manual

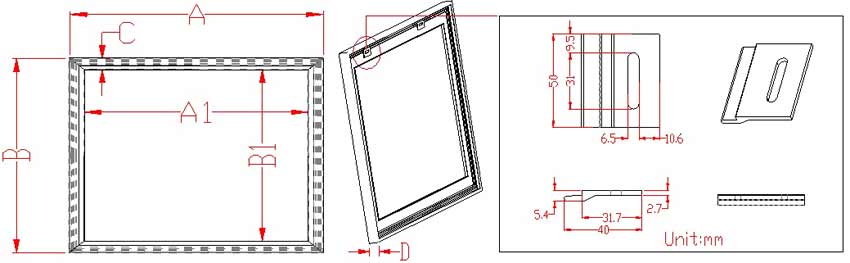

ezFrame Dimension Table

Model	Size / Format	A	A1	B	B1	C	D	lbs
R76WH1	76" / 16:9	70.9"	66.2"	42.0"	37.2"	2.4"	1.6"	22.0
R84WH1	84" / 16:9	78.0"	73.3"	46.1"	41.4"	2.4"	1.6"	22.9
R88WH1	88" / 16:9	81.4"	76.7"	47.9"	43.1"	2.4"	1.6"	25.3
R92WH1	92" / 16:9	84.6"	79.9"	50.0"	45.3"	2.4"	1.6"	23.9
R100WH1	100" / 16:9	91.7"	87.0"	50.0"	45.3"	2.4"	1.6"	25.7
R103WH1	103" / 16:9	99.5"	94.8"	45.0"	40.3"	2.4"	1.6"	27.0
R106WH1	106" / 16:9	96.9"	92.2"	56.7"	52.0"	2.4"	1.6"	27.7
R110WH1	110" / 16:9	100.6"	95.9"	58.7"	53.9"	2.4"	1.6"	26.8
R120WH1	120" / 16:9	109.4"	104.7"	63.4"	58.7"	2.4"	1.6"	30.5
R135WH1	135" / 16:9	122.4"	117.7"	70.9"	66.1"	2.4"	1.6"	36.3
R150WH1	150" / 16:9	135.4"	130.7"	78.3"	73.6"	2.4"	1.6"	40.2
R165WH1	165" / 16:9	148.5"	143.8"	85.6"	80.9"	2.4"	1.6"	43.5
R180WH1	180" / 16:9	161.6"	156.9"	92.9"	88.2"	2.4"	1.6"	46.9
R200WH1	200" / 16:9	177.9"	173.1"	102.8"	98.0"	2.4"	1.6"	49.0
R84WV1	84" / 4:3	71.9"	67.2"	55.1"	50.4"	2.4"	1.6"	23.4
R100WV1	100" / 4:3	84.6"	79.9"	64.6"	59.8"	2.4"	1.6"	27.9
R120WV1	120" / 4:3	100.8"	96.1"	76.8"	72.0"	2.4"	1.6"	33.2
R135WV1	135" / 4:3	112.6"	107.9"	85.8"	81.1"	2.4"	1.6"	31.9
R150WV1	150" / 4:3	124.8"	120.1"	94.9"	90.2"	2.4"	1.6"	45.7
R180WV1	180" / 4:3	148.7"	144.0"	112.7"	108.0"	2.4"	1.6"	49.0
R200WV1	200" / 4:3	164.7"	160.0"	124.7"	120.0"	2.4"	1.6"	50.6
R85WH1-WIDE	85" / 2.35:1	82.9"	78.2"	38.0"	33.3"	2.4"	1.6"	20.0
R96WH1-WIDE	96" / 2.35:1	93.1"	88.3"	42.3"	37.6"	2.4"	1.6"	22.3
R103WH1-WIDE	103" / 2.35:1	99.5"	94.8"	45.0"	40.3"	2.4"	1.6"	23.5
R115WH1-WIDE	115" / 2.35:1	110.6"	105.8"	49.8"	45.0"	2.4"	1.6"	26.3
R125WH1-WIDE	125" / 2.35:1	119.7"	115.0"	53.7"	48.9"	2.4"	1.6"	28.3
R138WH1-WIDE	138" / 2.35:1	131.7"	127.9"	58.7"	54.0"	2.4"	1.6"	31.9
R158WH1-WIDE	158" / 2.35:1	150.1"	145.4"	66.6"	61.9"	2.4"	1.6"	43.6
R166WH1-WIDE	166" / 2.35:1	157.5"	152.8"	69.7"	65.0"	2.4"	1.6"	42.5

Customer Reviews

4.6 out of 5 stars

Write a customer review

Most Helpful Customer Reviews

29 of 29 people found the following review helpful

Great Screen - Great Price! August 16, 2009

By S. Kydd

Size Name:16:9 120-inch CineWhite

The screen arrived quickly and was well packaged with the screen material wrapped around a plastic tube and inserted inside another plastic tube (4" heavy plastic drain pipe). The aluminium frame is quick to put together, it comes in 6 pieces, the sides are one piece and the top and bottom are in two pieces. The top and bottom frame pieces are joined together with small shaped pieces that insert into the extruded frame and are screwed in place through each side of the frame, works well and makes a very neat and strong join between the frame pieces. There are 90 degree corner pieces that insert into the end of each frame and make it very easy to fit the screen together, make sure you measure the diagonals to check everything is square before tightening all the screws. Once the frame is together it is very easy to fit the screen material, there are 6 plastic rods that have to be pushed into a pocket around the edge of the screen material (2 on each on the top and bottom of the screen and 1 on each side)then you stretch the material to fit the rods within a channel in the frame. Plastic clips are then used all round the frame to hold the rod in the frame channel. It produces a nice tight screen with no visible sags or creases.
This was the first frame I have assembled but I had it ready to mount on the wall within 45 minutes and I was taking it slowly! Mounting it on the wall is easy - the supplied brackets work well and it is easy to lift the assembled screen and hook it onto them.

I have the screen mounted in a dedicated media room and am using a Panasonic PT-AE3000U projector, this screen works very well and gives a nice sharp, bright image with good colour reproduction and the felt covered frame is excellent at absorbing any light from the projector that over laps the screen edges. I would highly recommend this screen, far more expensive screens might give you a very slightly better image but you would have to have them side by side to notice!

Ignore the 1 star review above - the dimensions given by Amazon are the screen viewing dimensions and do not include the frame, the dimensions to the the edges of the frame are 109.4" x 63.4" check out the manufacturers website for more information (which would be pretty sensible before purchasing any product, finding it didn't fit then giving it 1 star reviews....)

1 Comment |

Was this review helpful to you?

Yes

10 of 10 people found the following review helpful

Excellent screen for the price September 24, 2009

By LaVar

Size Name:16:9 135-inch CineWhite|Amazon Verified Purchase

The frame was extremely well packaged. Double boxed and everything was wrapped in foam so there we no dings or scratches. The screen was rolled in foam with a layer of paper to protect the screen surface then encased in a hard PVC tube. It is extremely unlikely the screen would arrive in less than pristine condition.
Except for hanging the screen on the wall, it was easily assembled by one person. The frame was a heavy gauge aluminum and very stiff. The corners were extremely sturdy and frame pieces fit together very tight. The assembly instructions are easily understood.
The screen material did not have any noticeable imperfections and was completely wrinkle free when mounted. One complaint, my screen was missing two plastic anchors for mounting the screen to the frame. I will contact the manufacturer tomorrow and ask for a few spares.
The frame was easily mounted to the wall and the brackets allow for easy left to right (horizontal) adjustment. The screen seems to be firmly attached to the wall.
This is my first projector screen. Previously I projected directly on a painted wall. (A painted wall works better than you might expect.) The new screen was worth the money that I spent. I checked several stores and the Elite screen costs significantly less than their competitors. The Elite screen is vastly superior to the painted wall; I wish I would have purchased this screen sooner. The ambient light in the room can be much brighter than was previously possible.
Finally, the movies look much better. Now that I have a screen, I like my projector more. The colors are rich and vibrant and dark scenes are more distinct than they ever were.

Comment |

8 of 8 people found the following review helpful

Excellent Quality. So much for so little. Buy it! December 18, 2010

By Oicto

Size Name:16:9 100-inch CineGrey|Amazon Verified Purchase

Having invested your hard-earned cash in a home cinema projector, you might be thinking twice about whether or not you need a projector screen. Well, don't think about it anymore. You simply cannot realize your projector's full potential without a projector screen. Some people "make do" (using a wall instead). While the result is somewhat passable on a wall (depending on the quality of your projector) the difference between a wall and a projector screen is night and day.

When Best Buy wanted to sell me a "cine grey" screen for $2,500, I wondered if the Elite screen would be sub-standard in some way. I can tell you that it isn't. There's a difference between a wall and a white screen and the difference is worth paying for. The same is true with the difference between a white screen and a high quality cine-grey screen. Once you reach this level of quality, the law of diminishing returns applies. That is, you do not continue to get dollar-for-dollar value the more you spend.

This Elite screen is simply awesome. It is incredibly well made and solid. All interconnecting parts are made of anodized aluminum or steel - no plastic in sight. The surround is almost 3" thick and has a beautiful black velour covering that is 100% light absorbing. The 1.0 gain cine-grey screen is also very high quality and is tensioned across the frame for complete uniformity. The screen took about 30 minutes to assemble and about another 20 minutes to hang it on the wall. All parts needed are included.

I painted my home theater in a high quality "grey brick" color which is also light absorbing (Valspar premium egg-shell). The Elite screen looks awesome on the wall and the image quality is nothing short of amazing. Colors are vibrant, sharp and crystal clear. What's amazing to me is the price. Frankly, knowing no better, I would've paid a lot more for this screen (I paid $468 from Amazon at the time of sale). At the original price of $800, this screen is still worth every cent. As a sub $500 screen it's almost embarrassing to pay so little to get so much.
