Equus 3160 Innova ABS + Professional CanOBD2 Diagnostic Code Scanner for OBDII Vehicles with Back-lit Screen and Enhanced Live Data

by Equus

Product Features

• Reads 'check engine' light warnings on all 1996 and newer cars, light trucks, SUVs and minivans, domestic and import -- including C.A.N. (Controller Area Network)
• Diagnoses ABS codes on most 1996 and newer GM, Ford & Chrysler vehicles.
• Features unique patented back-lit, all-in-one screen display which allows for simultaneous viewing of 25 data points without changing menus in low light conditions.
• Provides SAE enhanced Live Data (view, record and live PCM data plays back streams), displays freeze frame data, automatically refreshes updates data every 30 seconds when connected to the vehicle, and is flash updatable with a standard Windows PC.
• Comes with access to additional online vehicle diagnostics through CanOBD2.com's RepairSolutions program.

Product Details

Features & Functions [PDF]

|

ABS Compatibility List [PDF]

• Product Dimensions: 11 x 7.8 x 3 inches
• Shipping Weight: 1.8 pounds (View shipping rates and policies)
• Shipping: This item is also available for shipping to select countries outside the U.S.
• ASIN: B001QIUGVI
• Item model number: 3160
• Average Customer Review: 4.1 out of 5 stars  See all reviews (150 customer reviews)
• Amazon Best Sellers Rank: #199 in Automotive (See Top 100 in Automotive)
  • #10 in Automotive > Tools & Equipment > Diagnostic & Test Tools > Code Readers & Scan Tools

Product Description

Amazon.com

The Equus 3160 Innova ABS + Professional CanOBD2 Diagnostic Code Scanner is both the professional’s choice for a full-featured ABS and OBD2 scan tool and a great option for the do-it-yourself mechanic. It offers the same features and functions as the Equus 3150 model, but comes with the added bonus of a backlit blue screen and provides S.A.E. Enhanced Live Data, including views, graphs and playback of live PCM data streams. With this feature, the user can prioritize live data values (P.I.D.) for quick review and analysis. Other exciting features and functions offered by the 3160 include bi-directional testing, vehicle I.D. capture and oxygen sensor results.

View larger.

In addition the 3160 also provides Anti-lock Brake System (ABS) diagnostic functionality to troubleshoot problems with ABS solenoids, ABS pump motors, brake switches, control modules, speed sensors and more on most 1996 and newer GM, Ford and Chrysler vehicles. So, if your car has either a check engine or ABS light on, you don't have to reach into your toolbox for two tools, the 3160 will do both jobs. Combine this with the unit's Internet connectivity which makes for easy software updates and you have a powerful, professional grade multi-use diagnostic tool that you can count on for years to come.

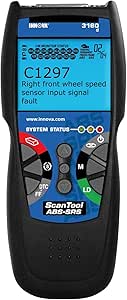

Easy to read, back-lit all-in-one screen.

Emission status LED system and one-push function buttons.

All-in-One Backlit Screen and One-Push Button Functions
Handheld diagnostic tools should put all the information a user needs right in the palm of your hand, but too often other scanning tools bury this data within the device, requiring you to navigate through multiple menus to find what you want. The 3160 is different. Using a combination of its patented all-in-one backlit screen, that allows for viewing 25 pieces of vital information in three languages--English, French or Spanish--all at once, even in low light conditions without having to change screens, and single-button function access to minimize menu scrolling, users are guaranteed quick, efficient access to data they need.

Patented Emission Status LEDs
Over 30 States now use an OBD2 based system to check for emissions readiness, making it more important than ever to be aware of the status of your vehicle and to keep it running in top condition. With this in mind, the Innova 3160 has been designed with the ability to read the exact same emissions information as these state-required tests do to determine your chances of passing the first time around. Built around a simple color-coded system where Green = Pass, Yellow = Potential Problems and Red = Fail, users are able to quickly diagnose potential emission issues with the Innova 3160. Other tool manufacturers charge over $100 for this feature alone and a separate tool has to be purchased, but the 3160 includes this with the price of purchase.

Additional Diagnostic Resources at Canobd2.com
The Equus Innova 3160 also comes with access to RepairSolutions through canobd2.com. RepairSolutions allows users to take control of vehicle diagnostics by providing you with the complete solution as to why your "Check Engine" light is on. A basic report is provided free with your scanner purchase, with a comprehensive analysis available for additional purchase.

Key Product Features:

• Professional OBD2 generic scan tool all 1996 and newer cars, light trucks, and SUVs - domestic, Asian and European Import.
• Diagnoses ABS codes on 1996 and newer GM, Ford and Chrysler vehicles.
• Features unique patented all-in-one backlit screen and LED display for quick state emissions readiness check and drive cycle verification.
• Retrieves OEM enhanced and transmission DTCs.
• Communicates with all OBD2 protocols: C.A.N. (Controller Area Network), ISO 9141, J1850PWM, J1850VPW, KWP 2000 ISO 14230-4.
• Provides SAE enhanced live Data - views, records, and plays back* live PCM data streams.
• Displays freeze frame data.
• Includes Spanish and French interface and definitions (selected by a menu command).
• Retrieves OBD2 DTCs: generic codes (P0, P2, P3, and U0) / manufacturer specific codes (P1, P3, and U1).
• Unit can be flash updated with a standard Windows PC (OBD-PC Link software required / included with tool).
• Memory / battery backup for off-car review and analysis.
• Comes with access to CanOBD2.com RepairSolutions which gives trouble code definitions, a full diagnostic report, probable causes, most likely fix to DTC's, repair costs and more.

What's in the Box
The Innova OBD2 3160 ABS Kit includes the diagnostic tool, an OBD2 16-pin DLC cable, PC software and cable, a copy of Equus' "Understanding OBD2 video," a sturdy nylon tool storage pouch, an instruction manual in English, Spanish and French and access to canobd2.com where you can find repair solutions, tech tips and product support.

Product Warranty

Equus Products, Inc. ("Equus") warrants to the original purchaser that its units are free of defects in materials and workmanship under normal use and maintenance for a period of one (1) year from the date of original purchase.

About Equus Products, Inc.

Equus Products, Inc., is an ISO 9001: 2008 certified company, and a leading manufacturer and distributor of test equipment, gauges and tachometers for the automotive aftermarket. Founded in 1982, the company markets and distributes its gauge line under the Equus brand to major retail and WD accounts throughout the US, Canada and Mexico. In 1990, Innova Electronics Corporation was acquired for research, design and product development. Test and tune-up products developed under this division carry the Innova brand, providing customers with easy-to-use products for servicing the vehicles of today and tomorrow.

---

FEATURES & FUNCTIONS	3020AM	3030	3100	3120	3130	3140	3150	3160
Tool Coverage
1996 to Present (OBD2 Certified) Vehicle Coverage
Protocol: Keyword 2000, ISO 9141, J-1850 (VPW & PWM)
New ISO 15765 / C.A.N. Protocol
Tool Features
Patented All-In-One Display, 20+ Info. On One Screen
All Hot Keys for Intuitive Navigation - Plug-n-Play
Color-Coded LEDs Verify State OBD Emissions Test Readiness
Internet Updateable
Battery Backup for Off-Vehicle Review
On Screen Definitions in English, Spanish & French
Optional Online RepairSolutions at CanOBD2.com
OBD2 Features (1996 to Present)
Retrieves Generic & Manufacturer Specific Codes
Erase Button Turns Off "Check Engine" Light
Store & Display Freeze Frame Data
OEM Enhanced & Transmission Codes
Enhanced SAE Diagnostics (J1979 & J2190)
View and Record Enhanced OBD2 (1996 and above) Live Data
Diagnoses ABS faults on most 1996 and newer GM, Ford and Chrysler vehicles
OBD1 Features (1982 to 1995)
OBD1 Domestic Coverage: Ford (+ Self Tests), GM, Chrysler (82-95)
OBD1 Import Coverage: Toyota / Lexus (89-95)
Color-Coded Cable Heads
Bonus Features
English, Spanish, French Software & Instructions
Custom PC Software to Generate Reports & Update Tool
Mode 6 - 02 Sensor Testing / Mode 9 - VIN Identification
Backlit blue LCD display

Product Description

Equus ABS + Scan Tool is designed to quickly reveal check engine light warnings. It diagnoses ABS codes and retrieves OEM enhanced as well as transmission DTCs. This diagnostic tool features unique patented all in one screen display as well as LED display for quick state emissions readiness check and drive cycle verification. It communicates with all OBD2 protocols and provides enhanced live data. CanOBD2® + ABS Scan Tool • Professional OBD2 Generic Scan Tool all 1996 and newer cars, light trucks, and SUVs – Domestic, Asian and European Import • Diagnoses ABS codes on 1996 and newer GM, Ford and Chrysler vehicles. • Features unique patented all-in-one backlit screen and LED display for quick State Emissions readiness check and drive cycle verification • Retrieves OEM Enhanced and Transmission DTCs • Communicates with all OBD 2 protocols: C.A.N. (Controller Area Network), ISO 9141, J1850PWM, J1850VPW, KWP 2000 ISO 14230-4 • Provides SAE enhanced Live Data - views, records, and plays back* live PCM data streams • Displays Freeze Frame Data • Includes Spanish and French Interface & Definitions (selected by a menu command) • Retrieves OBD2 DTCs: Generic Codes (P0, P2, P3, and U0) / Manufacturer Specific Codes (P1, P3, and U1) • Unit can be flash updated with a standard Windows® PC (OBD-PC Link™ software required / included with tool) • Memory / Battery backup for off-car review and analysis • Comes with access to CanOBD2.com RepairSolutions which gives trouble code definitions, a full diagnostic report, probable causes, most likely fix to DTC’s, repair costs and more.

Customer Reviews

Most Helpful Customer Reviews

178 of 180 people found the following review helpful:

3.0 out of 5 stars Very useful if you have the right vehicles, December 31, 2009

By

M. A. Mitchell (Oklahoma) - See all my reviews
(REAL NAME)

Amazon Verified Purchase

This review is from: Equus 3160 Innova ABS + Professional CanOBD2 Diagnostic Code Scanner for OBDII Vehicles with Back-lit Screen and Enhanced Live Data (Automotive)

The 3160 is a very useful tool if you have the right vehicle. It provides generic codes and more from many makes but on European, Korean or Swedish vehicles dont expect much more than the generic codes.

I did not research tool enough to realize nearly all of the "adavanced DTC" functions are for Chrysler/Jeep, Ford/Mazda,GM/Isuzu, Honda/Acura and Toyota/Lexus vehicles only. The sales verbiage DOES explain the limitations of the ABS testing to certain makes/models but DOES NOT provide the information that the tools enchanced DTC functions share the same vehicle limitations.

The enchanced functions are described in the owners manual as:
"The "enhanced" mode provides the ability to retrieve enhanced DTCs from most Chrysler/Jeep, Ford/Mazda,GM/Isuzu, Honda/Acura and Toyota/Lexus vehicles. The types of enhanced data available depends on the vehicle make."
"You can also retrieve Anti-Lock Brake System (ABS) DTCs. ABS DTCs are available for Chrysler/Jeep, Ford and GM vehicles only."


The included software tool OBD PC Link functions but is clunky at best. I could not locate any documentation on this software's features or operation. The 3160 tool still uses a serial port for communications but most PCs being sold no longer include a serial port only USB. It will require an USB to Serial converter if you do not have a serial port on your PC. The live data capture will display in the OBD PC Link software screen and is useful. The report writing function is generic at best.

I tried to update the 3160 internal software from the OBD PC Link main screen and received a message box telling me to download the latest 3130 software. No instructions on where to get software or how just..... download the latest 3130 software.

Since I own vehicles from Audi, Mercedes, Saab, GM, Chrysler, Lincoln, Suzuki and Hyundai it is still useful and has provided reliable data on the vehicles I have tested it on but it would be a more useful tool if enchanced dtc information was available on all makes.

The 3160 does a good job as a code reader and diagnostic tool for the home mechanic. The DTC codes are specific to vehicle make and so far have been accurate pointing to the problem I introduced to check out the tools operation. BUT I want point out possible issues for other buyers like the lack of enhanced coverage mentioned. If you own a European, Korean or Swedish vehicle this tool does not provide everything listed in the sales verbiage.

Update: 08-17-10

I went to test a Yukon with the 3160 today and the display is garbled and unreadable. Technical support confirms unit is broken. less than 9 months old. Sending in for warranty repair and will update when received back.


Update 09-07-10

I paid to ship unit back to Innova and they paid return shipping. I received it today so it took a some days to get back and it appears it is my unit repaired but since units do not have a serial # sticker I can not be sure. I tested it a bit, it seems ok. Hope it continues to work.

99 of 106 people found the following review helpful:

5.0 out of 5 stars Innova 3160, August 24, 2009

By

David L. W. Thomas "David" (USA) - See all my reviews
(REAL NAME)

This review is from: Equus 3160 Innova ABS + Professional CanOBD2 Diagnostic Code Scanner for OBDII Vehicles with Back-lit Screen and Enhanced Live Data (Automotive)

I was tired of the cheap OBD readers and wanted something much better. I also wanted something I could read the ABS system with. The Innova 3160 does the trick. It is easy to use and understand. I like the way it prompts you in order to get what you are looking for. It has an excellent screen with the exact information you need to make repairs. It is obvious that they consulted with a repair tech when they designed it. I haven't tried to up-date it from the computer as yet, but it has all the necessary items and information with it to do so. On the down side, it doesn't have an explanation for all the manufacturer codes, especially the ABS codes. I found that I am going to their web site quite often to get the expanation. The web-site is very good and helpful though. I really like it. The worst thing is the CHEAP carrying case. The unit won't even fit into it with the cable attached. That means that you are always removing and replacing the cable. I'm sure that isn't good on the connection. Throw the case away and buy something better that you can keep the scanner, instruction book, and other materials in. It's hard to believe a company like this would offer such a fine instrument and provide it in this case. Never-the-less, it's a great scanner and well worth the money-just figure a little extra for another case!

98 of 111 people found the following review helpful:

3.0 out of 5 stars Ok for casual use., November 2, 2009

By

D. McNama (San Diego, CA) - See all my reviews
(REAL NAME)

Amazon Verified Purchase

This review is from: Equus 3160 Innova ABS + Professional CanOBD2 Diagnostic Code Scanner for OBDII Vehicles with Back-lit Screen and Enhanced Live Data (Automotive)

I am a dealer mechanic at a Chrysler Dodge Jeep dealer and I bought this as a backup to the shop provided factory scan tools which I can never find. I was expecting a bit more but for a couple hundred bucks I guess you can't ask for much. The first car I used it on the fault code was a generic number that I could find zero information on how to diagnose and I ended up having to locate the factory scan tool. The vehicle was a Sprinter van so it's a Mercedes based vehicle. Strike one. On the next few vehicles I looked at, I brought both the factory scanner and the Innova and checked the codes with both. For straight Chrysler engine codes it works ok. It only works on a limited range of abs codes depending on the year. So far I'm not impressed. It's good for clearing faults and looking at a basic data stream but it can't replace a real scan tool. If you want something to check codes at your house or clear codes at work this tool is fine. If you want a scan tool you're going to have to spend the money.
