Evertech Cctv Dvr - 8-channel H.264 Real Time Surveillance Security DVR with 3g Mobile/internet Remote Access. Built-in 1TB(1024GB) HDD

by Evertech

Product Details

• Shipping Weight: 15 pounds (View shipping rates and policies)
• ASIN: B004WMGJ5M
• Date first available at Amazon.com: February 6, 2011

Product Description

This is a 8 camera Real-Time H.264 professional DVR. Can record in 120FPS .High resolution VGA output to PC monitor. This DVR (Digital Video Recorder) is designed specially for CCTV system. It adopts high performance video processing chips and embedded Linux system. Meanwhile, it utilizes many most advanced technologies, such as standard H.264 with low bit rate, Dual stream, SATA interface, VGA output mouse supported, IE browser supported with full remote control, mobile view(by phones), etc., which ensure its powerful functions and high stability. Due to these distinctive characteristics, it is widely used in banks, telecommunication, transportation, factories, warehouse, and irrigation and so on.

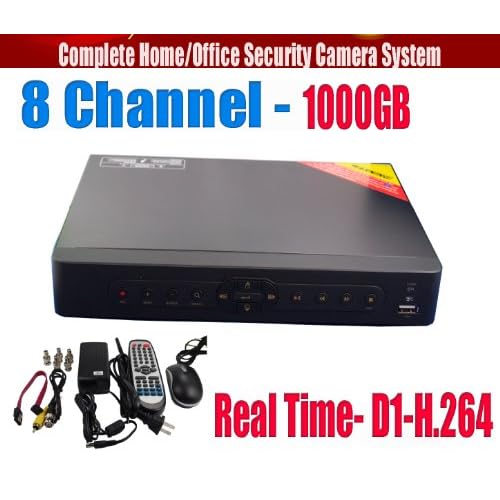

SYSTEM CONTENTS
8 CH Stand Alone DVR
1000GB Hard Disk Driver Built in
IR Remote control + Mouse +Manuel +CD
1 Year Warranty

DVR FEATURES
8 chs video input, 4 chs audio input, D1 preview resolution; SATA HDD supported
Backup supported (USB Disk, USB HDD), remote backup supported
operation and remote control operation supported, VGA output supported. 3G/Network/Lan/IP
Compression format :Standard H.264 Baseline
Video output : Composite?1.0V p-p/75??BNC×2 , VGAX1
Video input : Composite?1.0V p-p/75??BNC×8
VGA Resolution: 1280*1024 /1024*768/ 800*600
Record Resolution: 352*288/704*576 (PAL), 352*240/704*480(NTSC)
Display Frame Rate : 100FPS (PAL), 120FPS (NTSC)
Record Frame Rate : 100FPS (PAL), 120FPS (NTSC)
Audio input: -8dB~ 22k, RCA X4
Audio output : -8Db~92dB, RCA X1
Alarm input : NO or NC 4CH
Alarm output:1CH
Record Mode :Manual / Sensor /Timer / Motion detection
Simplex/Duplex/Triplex : Pentaplex
Network Interface : RJ45 (LAN, INTERNET)
PTZ control : YES
Communication interface:RS485, USB2.0 x 2(one for backup, another for USB mouse)
Disk info: SATA x 1
Remote Control : Yes ,Power supply:12V3A
