Freud 99-571 1/2-Inch Shank 2+2 Ogee Raised Panel Bit with Backcutters

by Freud

Product Description

Amazon.com Product Description

Designed for the serious woodworker, the Freud 99-571 Quadra-Cut - 3-1/2 Inch Dia. Ogee Profile Raised Panel Router Bit with Back Cutter 3/4-Inch Stock Router Bit - 1/2-Inch Shank features a non-stick Perma-Shield coating and Freud's patented Quadra-Cut design for a smoother finish that requires no rework. Quadra-Cut employs four cutting blades, rather than the industry standard of two, allowing you to create smooth raised panels on all composition materials, including plywood, hardwood, and softwood. Thanks to its patented back-cut design, the panels it produces are flush and accurate. And because it's constructed with Freud's exclusive TiCo Hi-Density Carbide MicroGrain material, this durable router bit is designed to last.

Quadra-Cut delivers quick, clean results.View larger.

This back-cutter bit creates smooth, professional paneling.

Different setups let you achieve multiple profiles.View larger.

Quadra-Cut Design for a Consistently Clean Finish

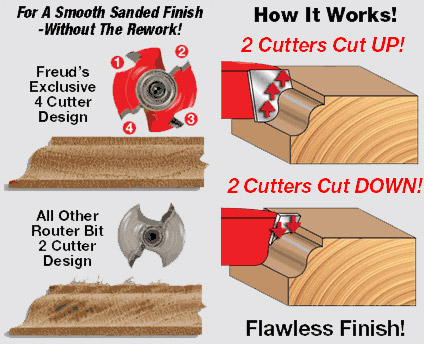

The exclusive Quadra-Cut design uses four cutters for a flawless finish. This innovative cutter design works by utilizing two of the cutters for an upward cutting action, while the other two cutters simultaneously cut downward. The result is an amazingly smooth finish that requires no rework.

Back-Cutting Design for Smooth, Professional Paneling
If architectural accuracy is a priority to you, the 99-571 is your answer. Thanks to its back-cutting design, this router bit can produce panels that are absolutely flush with a doorframe and have a full 1-1/2 inch reveal.

Use the 99-571 Raised Panel Router Bit with Back Cutter on any table-mounted portable router that accepts a 1/2-inch shank for creating professional-quality raised panels on doors and paneling, as well as decorative tops, plaques, and molding. The resulting panels will exhibit a glassy smoothness, even when you're tackling cross-grain applications.

Create a classic double-sided look on your panels with the patented 54-562 radius back cutter--or, if you're looking for a more contemporary appearance, replace it with the optional 54-560 square back cutter. To give you compatibility with most stile and rail cutters, the kit includes shims that allow for tongue thickness adjustments.

The 99-571 features a one-inch carbide height that easily accommodates stock measuring 3/4 inches.

Durable Design with Protective Coating to Resist Heat and Corrosion
Freud equips all of their router bits with their exclusive TiCo Hi-Density MicroGrain carbide for maximum durability and cutting life. In addition, Freud shields their bits from heat, rust, corrosion and wear by coating all of their Quadra-Cut Router Bits with their exclusive non-stick, red Perma-SHIELD coating.

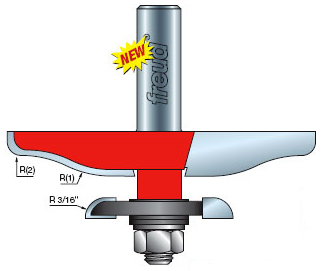

The 99-571 Raised Panel Router Bit with Back Cutter is three inches long with a 1/2-inch shank and an overall diameter of 3-1/2 inches. This bit produces a beautiful two-radius design with a large radius of 1-3/16 inches and a small radius of 5/32 inches for a unique, custom look. Freud cutting tools are backed by the Freud Limited Lifetime Cutting Tool Warranty to ensure customer satisfaction with every purchase.

About Freud: A History of Innovative Manufacturing
An industry leader for more than 50 years, Freud America, Inc. is a manufacturer and marketer of superior carbide cutting tools for the woodworking industry. Freud is the only manufacturer of woodworking tools in the world that produces its own MicroGrain Carbide with Titanium, called TiCo, a high-density combination of Titanium and Cobalt.

By producing their own carbide, Freud has the unique ability to formulate each tool for each specific application, thereby maximizing the cutting life and performance of the tool. Freud's full line of high-quality woodworking tools includes saw blades, router bits, shaper cutters, power tools, and more. For more information, visit www.freudtools.com or contact customer service at phone: [phone].

What's in the Box
Freud 99-571 Quadra-Cut - 3-1/2 Inch Dia. Ogee Profile Raised Panel Router Bit with Back Cutter 3/4-Inch Stock Router Bit - 1/2-Inch Shank

Product Description

Freud's exclusive Quadra-Cut 4 cutter design provides the smoothest cuts possible. You'll get crisp, clean edges every time, even with cross-grain cuts in difficult materials.Ideal for creating raised panels for doors and paneling, as well as decorative tops, plaques and molding. Produces panels from 3/4" stock that are flush with the doorframe for a professional, architecturally correct appearance.For the cleanest finish for routing the edges of hard or soft wood, woodworkers can look to Freud's new Quadra-Cut router bits. These unique, patented bits employ four cutting edges, versus the industry standard of two, for a flawless finish on the most delicate of materials. Two of the carbide cutters have an upshear angle to remove most of the stock. Then the pair of downshear cutters make a final cut to produce an ultra clean edge. Industry standard bits that only have two cutters can leave fuzz and splinters on the top surface, especially in cross grain cuts, but Freud's new Quadra-Cut bits leave a surface that requires no sanding or rework.Specifications:Rockler # 38231Freud # 99-571OverallDia.(D) 3-1/2"CarbideHeight(h) 1"LargeRadiu(R1) 1-3/16"SmallRadius(R2) 5/32"ShankDia.(A) 1/2"OverallLength(H) 3"Caution - Safety Tip:3-1/2" diameter bits are not recommended for use with steel or aluminum router plates with 3-5/8" maximum openings, including the Rockler large aluminum router plates.

See all Product Description

Product Details

• Product Dimensions: 5 x 7 x 4 inches ; 1 pounds
• Shipping Weight: 1.3 pounds (View shipping rates and policies)
• Shipping: Currently, item can be shipped only within the U.S. and to APO/FPO addresses. For APO/FPO shipments, please check with the manufacturer regarding warranty and support issues.
• ASIN: B00075M6LO
• Item model number: 99-571
• Average Customer Review: 4.0 out of 5 stars  See all reviews (2 customer reviews)
• Amazon Best Sellers Rank: #174,310 in Home Improvement (See Top 100 in Home Improvement)

Customer Reviews

Most Helpful Customer Reviews

4.0 out of 5 stars smooth cutting....but, November 13, 2011

By

Garritt J. Fauria "Screenmobile" (Gardnerville NV) - See all my reviews
(REAL NAME)

Amazon Verified Purchase

This review is from: Freud 99-571 1/2-Inch Shank 2+2 Ogee Raised Panel Bit with Backcutters (Tools & Home Improvement)

This is a really smooth cutting bit. Especially considering the overall diameter. But, be aware that it does not have a guide bearing. I have no idea why it wouldn't but it doesn't. It still works just fine it just takes a little more work to set up. Great bit...could've been better.

4.0 out of 5 stars Very nice bit., March 21, 2007

By

T. Smith (Kansas) - See all my reviews
(REAL NAME)

Amazon Verified Purchase

This review is from: Freud 99-571 1/2-Inch Shank 2+2 Ogee Raised Panel Bit with Backcutters (Tools & Home Improvement)

Makes for a very nice raised panel- did leave some burn marks on the red oak I was machining. Probably had more to do with my lack of experience than with the bit. I was also expecting a bearing- not sure how I'll do curved panels without one.
