Furman F1000 Battery Backup

by Furman

Product Details

• Product Dimensions: 13 x 17 x 4 inches ; 36 pounds
• Shipping Weight: 40 pounds (View shipping rates and policies)
• Shipping: This item is also available for shipping to select countries outside the U.S.
• ASIN: B001QXDQCE
• Item model number: F1000
• Date first available at Amazon.com: July 16, 2004

Product Description

From the Manufacturer

From the Manufacturer

Furman F1000 Battery Backup for Critical Load Management

The Furman F1000-UPS is a 1000VA Uninterruptible Power Supply specifically engineered for the needs of today's audio and video equipment. With the large increase of components with critical data (such as media servers, control/automation systems, DVRs, and gaming consoles), as well as equipment that requires to be shut down properly to avoid damage (such as DLP projectors and televisions),

Dual IR Output Controls allow you to program components for shutdown sequencing

a UPS system has become a necessary component of many theater systems. The F1000-UPS maintains temporary power to connected equipment to ride out short black-outs or brown-outs, preventing lengthy restart sequences and avoiding data loss. It also allows safe shut down for extended black-outs, allowing equipment to turn off properly and providing an opportunity to save any critical data prior to shutting down the system.

Specifically Design for Audio and Video Equipment

Unlike most UPS options which are typically designed for office use, the F1000-UPS is designed for A/V applications, and provides much of the same professional-level protection and filtration circuitry as found in Furman's acclaimed power conditioners. Furman's Linear Filtering Technology reduces AC line noise in an even manner across a very wide bandwidth for uncompromised audio/video clarity. Our exclusive Series Multi-Stage Protection surge suppression assures the highest level of AC protection possible, without sacrificing itself when the offending surge is severe -- no damaged equipment, no service calls, no down time. Extreme Voltage Shutdown protects against dangerous voltage conditions commonly caused by wiring faults within a home. Additionally, the F1000-UPS provides Voltage Regulation to keep voltage within nominal operating ranges and prevent equipment lock-ups, overheating, and long-term failure due to unstable voltage.

Voltage Regulation provides a consistent 120V output

Control Features for Custom Installers

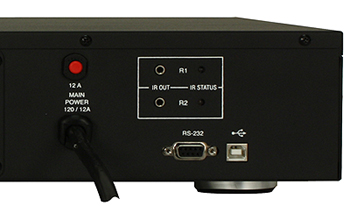

The F1000-UPS's robust control features include an RS-232 interface, providing custom installers with open-source programmability options and allow the unit to interface with automation systems. A unique, patent pending IR blaster can send IR commands to a remotely located component - for example, the F1000-UPS can send shutdown command to a ceiling-mounted DLP projector when there is a power outage so that it can run its fan and cool down the bulb properly. The F1000-UPS also includes a USB interface and Power Control Software for communication with Windows-based PCs. Critical Load Management allows the user to program selected outlets to maintain power longer than others and divert battery power to critical components for a longer runtime in the event of a blackout.

The F1000 UPS has all of the features of a UPS device you will need. The F1000 VA Battery Backup maintains critical data and allows orderly shutdown in the event of a power outage. At the same time, Voltage Regulation provides a consistent 120V (±5V) output for smooth power flow. Series Multi-Stage Protection (SMP) provides virtually maintenance-free AC surge suppression and virtually eliminates powers spikes. Linear Filtering Technology (LiFT) for unequaled audio/video clarity. Extreme Voltage Shutdown (EVS) protects your equipment from sustained overvoltage conditions. Dual IR Output Controls allow you to program components for shutdown sequencing. RS-232 Open Source Code Protocol provides custom programming for components. Easy to use CD ROM software included manages the USB Interface and Critical Load Management. Optional rack ears are included.

---

Technical Specifications

• Voltage: 85 - 137 VAC
• Frequency: 57 - 63 Hz
• Surge Protection: Non-sacrifical SMP (Series Multi-Stage Protection)
• Current Rating: 12 A
• Over-voltage Shutoff, fast rise: 150 ± 5V
• Over-voltage Shutoff, slow rise: 132 ± 5V
• Noise Attenuation: 10 dB @ 10kHz, 40 dB @ 100 kHz, 50 dB @ 500kHz
• Linear Attenuation: From 0.05 - 100 Ohms line impedance
• Automatic Voltage Regulation, Sensitive Mode Capture Range: 99 - 135V
• Automatic Voltage Regulation, Sensitive Mode Output Range: 120V ± 5%
• Automatic Voltage Regulation, Standard Mode Capture Range:: 94 - 142V
• Automatic Voltage Regulation, Standard Mode Output Range: 120V ± 10%
• Voltage Output: 120 ± 5V Simulated Sine Wave
• Frequency Output: 60 Hz ± 1%
• UPS Output Capacity: 1---VA. 600W @ 0.6pf
• UPS Backup Time: 3 minutes at full load
• Transfer Time: Less than 4ms
• Dimensions: 17W x 13D x 4H inches
• Weight: 36 lbs

---

Product Description

The Furman F1000-UPS is a 1000VA Uninterruptible Power Supply specifically engineered for the needs of today’s A/V equipment. With the large increase of components with critical data (such as media servers, control/automation systems, DVRs, and gaming consoles), as well as equipment that requires to be shut down properly to avoid damage (such as DLP projectors and televisions), a UPS system has become a necessary component of many theater systems. The F1000-UPS maintains temporary power to connected equipment to ride out short black-outs or brown-outs, preventing lengthy restart sequences and avoiding data loss. It also allows safe shut down for extended black-outs, allowing equipment to turn off properly and providing an opportunity to save any critical data prior to shutting down the system. Unlike most UPS options which are typically designed for office use, the F1000-UPS is designed for A/V applications, and provides much of the same professional-level protection and filtration circuitry as found in Furman’s acclaimed power conditioners. Furman’s Linear Filtering Technology reduces AC line noise in an even manner across a very wide bandwidth for uncompromised audio/video clarity. Our exclusive Series Multi-Stage Protection surge suppression assures the highest level of AC protection possible, without sacrificing itself when the offending surge is severe – no damaged equipment, no service calls, no down time. Extreme Voltage Shutdown protects against dangerous voltage conditions commonly caused by wiring faults within a home. Additionally, the F1000-UPS provides Voltage Regulation to keep voltage within nominal operating ranges and prevent equipment lock-ups, overheating, and long-term failure due to unstable voltage.
