Garmin Astro DC-30 GPS Dog Tracking System

by Garmin

Product Features

• GPS Receiver:
• Barometric Altimeter And Brand New 3-Axis Electronic Compass
• Scratch Resistant Lens On The 2.6-Inch Color Tft Display With Backlit Display & Keypad
• Resolution: 240 X 160 Pixels
• Weight: 6.4 Ounces Without Batteries

› See more product details

Product Description

Amazon.com

Amazon.com Product Description The Garmin Astro GPS Dog Tracking System lets hunters and sportsmen spend their time looking for game, rather than looking for their dog. This unique dog-tracking system pinpoints your dog's position and shows you exactly where he is, even when you can't see or hear him.

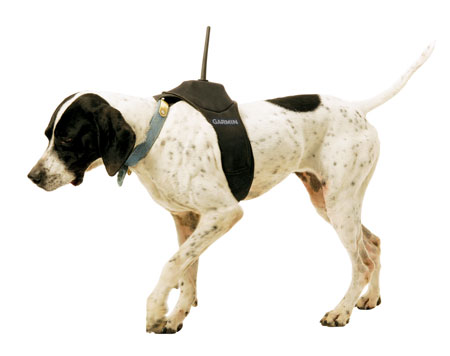

This system includes a bright, color-screen handheld Astro 220 GPS device and a wireless transmitter, called the DC 20. Simple and easy to use, you just take the Astro outdoors and turn on both units to acquire a GPS satellite signal, then attach the DC 20 to your dog, either via the included neoprene harness or by threading it onto an existing 1-inch e-collar, and you're ready to go.

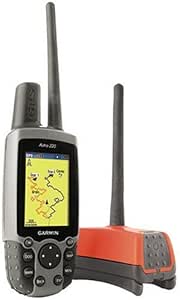

The Astro system features a bright color-screen handheld GPS device and a wireless transmitter. View larger.

View the Astro minisite

Tired of searching for your hunting dog in tall grass or dense cover? The Astro is the answer. View larger.

The DC 20 transmits your dog's position to your handheld every five seconds, showing current location as well as where he's been on the Map page. The Dog Tracker page shows you a compass that points to your dog's location, and lets you see your dog's current status, such as running, sitting, on point or treeing quarry. The Garmin Astro can even sound an alarm to let you know instantly when your dog goes on point.

The Astro 220's high-sensitivity GPS receiver can track your dog's position even in the densest cover, and lets you track up to 10 dogs at one time, up to five miles away in open territory. The Astro features a Covey Counter, which lets you place a special waypoint that tells you the exact location, time of day and elevation where you found your prey, as well as the number of birds flushed and taken from that location. The Astro also lets you save other important waypoints, such as Truck and Lodge, and choose special icons to represent food plots, tree stands and other hunting-related items.

The full-featured Astro handheld has all the same functions as Garmin's top-line handheld outdoor devices, including a barometric altimeter, a microSD card slot for maps, celestial information and an area calculator, as well as optional detailed city street maps, over 6 million points of interest, and exact turn-by-turn directions. This unit has an extremely rugged construction, with an IPX7 waterproof exterior that can withstand full immersion in water up to 1-meter deep for up to 30 minutes, and a revolutionary 3-axis compass that works no matter how the handheld is oriented.

Each dog's collar transmits his exact location to you.

A variety of bright and colorful icons and markers are available.

Check sun and moon cycles for your location.

Special waypoint icons to represent food plots, tree stands, and other hunting-related points.

What's in the Box
Garmin Astro 220 handheld with VHF antenna and DC 20 wireless transmitter with VHF antenna, a neoprene harness, a collar attachment plate, a carrying case, a lithium-ion battery pack for the DC 20 transmitter, a vehicle power adapter and AC adapter for the DC 20 transmitter, a trip and waypoint manager CD, a USB cable, a wrist strap, a belt clip, an owner's manual and a quick reference guide.

Product Description

Gps, astro combo unit

Most Helpful Customer Reviews

41 of 41 people found the following review helpful

4.0 out of 5 stars Well thought out with a few rough edges you should know about October 20, 2007

By HMMWV TOP 500 REVIEWERVINE™ VOICE

Amazon Verified Purchase

Double UPDATE - Garmin has now introduced the DC 30 dog collar + gps transmitter. It fixes many of the bugs in the old design. It uses a metal backplate behind the gps instead of plastic. The gps is black instead of orange. The antenna is longer and more flexible allowing for better range and less breakage. And since the GPS hangs DOWN by default, the new dc-30 puts a tiny GPS antenna into the dog collar itself that faces UP towards the sky. Overall it works better, in the country it adds about 2 miles to your trackign range if you are using the car mounted antenna. Those 2 miles could mean finding your dog. The new kit is sold with the DC 30 and costs about $60 more than the old model (this one) which will most likely be discontinued as my dog has broken one antenna and two plastic mounting plates. Note however that the new collar has no rings for attaching tags or leashes. This means your dog will wear 2 collars when being tracked, but gone are the days of broken parts and tracking down your GPS unit without the dog attached.

Update - I ordered the car mount antenna and found the range boost phenominal. In CITY range went from .7 miles to 1.7 miles, almost the full 2 mile rating. In Country range went over 4 miles. It is the best $25 spent plus amazon's price on the accessory is heavily discounted over garmin's. If you think you may have to use your 4WD to find your dogs, start using the external antenna accessory option from the beginning.

I got my Astro about a month ago and from the start the 2 mile range wasn't there (more like .33 miles maximum). I checked it with a pulse wattmeter from HP/agilent and it was outputting only 0.45 watts for .38 seconds, not the 2W rating (and the battery lasted alot longer than it was supposed to for some reason!). I shipped it to garmin, got it back and it was now putting out 2.2 watts. Range was still disappointing at 0.6 miles (city - granted - but my rino's do far better and they aren't digital!)

Next, I found that there are 5 channels Astro can use of which 2 of them are used by every jobcom radio in construction etc (154.57 and 154.600 are the worst and are in use all over the place) - my unit was on one of those channels which was almost always in use, so using another RF tool (spectrum analyzer) - I found a much better channel and suddenly the in city range went up to 1.5 miles which wasn't bad.

Mounting -

You get 2 mounting options - a screw bracket that will mount the transmitter to the dog collar which works really well, or a velcro pocket to put the transmitter in, strap it around the dog's breast and put a tab under the dog collar to keep it upright. I tried the vest option first and when the dog came back, the whole assembly was swinging around the dog's neck (and velcro fills up with hair if your dog sheds - the gripping effectiveness goes to zero).

The collar I thought would be better because the tags are always at the ground, but now the heavy part is up high. My guess was to put a lightweight fishing sinker in the dogtag strap which would keep it verticale - without that weight the dog comes back with the collar rotated sideways and the antenna horizontal, which hurts your range again.

Once factory adjusted to full power, put on a clean freqency, and mounted with a counterweight it works really well - 1.5 mile range in the city and 2.0 mile range or better in the country are not uncommon. I found my dog had gone on a 5 mile chase one time from the truck.

There is a problem in the few bits that garmin uses for "dog status" like "treed" or "quarry", etc - when the gps has moved a bit they are meaningless so I ignore that and leave it on the doggie detail page which tells you how far away your dog is, where it is, and the battery level/gps coverage in the dog's GPS, along with the radio signal you are getting. I would have preferred "moving" or "stable", which you can get from the map if the signal reaches.

You can get a nice VHF (marine type) antenna if you become car bound and unscrew the garmin antenna and connect the outdoor antenna which more than doubles range or better right away - great for end of the day searches for the dog. Both the dog and user antennas are SMA and removable unlike the rino which by law must have a permanently attached antenna unless you are good at soldering on external jacks yourself, which allows you big outdoor antennas and high power amplifiers on one radio. Dog transmitts at your programmed time interval, the handheld transmitts when only when you need to adjust the dog parameters, making it a 2way link temporarily on the AA batteries.

The GPS(s) in both the dog and handheld use the highly sensitve SIRF chipset (which is dirt cheap because the entire gps is in one chip, but because of the indoor usability of it garmin sees fit to charge almost 2x more e.g. the rino520HCX is also using the sirf chipset for gps, which costs them less!) - it trades sensitivity of getting a signal for accuracy compared to their old 12 channel receiver garmin made (like putting a ford engine in a corvette). Anyways they are very sensitive, the handheld allows you to load 2GB of map data on a micro-SD card like your cellphone uses so there are alot of nice features in the set, plus you can use the handheld without any dogs.) I've put highway and topographic mapping data for the western USA, along with the entire roads CD. I have GPS mapping in my car and garmin really has a poor algorythm on this one - it will insist you drive 5 miles backwards to get on the freeway, to drive 5 miles forwards to the destination 1/4 mile ahead. It's better for 4wd or marine navigation than on-road accidents. ON-Road navigation probably is a feature to avoid.

MY ONLY "STRONG" NEGATIVE is that they use 2-AA batteries in the GPS handheld. Worldwide there is a push away from disposable batteries due to price - countries like Germany and Switzerland charge more than the battery for a disposal fee - if you are caught putting them in the trash look for $500 fines. Most of europe has adopted this, hence the move to li-ion standards. I've been evaluating some 3000-3500 mah prototype AA cells in my lab from a battery company. The combination is really good - better in all cases than alkalines. I'm accustomed to the Li-ion cells on the Rino radios I use which last forever. Garmin could have fit some sort of Li-Ion pack into the battery area making it charge from both the dog charger (which is li-ion) and the dog's car-charger (included in the kit). But alas, we are stuck with kids' toys AA batteries.

The waterproofness will outlast any rainstorm and the worst weather - for both you and the dog. Overall, knowing what direction and how far my dog is is great information. I have not found any geo-fencing yet which would be nice to keep your dog out of problem areas on the map like traintracks or highways.

In summary you are getting 2 really sensitive GPS units (one rechargable and one AA powered) that communicate one way their location. To top off the system, Garmin gives you a nice hard case to seal it all up and keep the wet soggy stuff out of the dry stuff with a clever X strap holder on the outside of the case

Be sure to get it working good in the city before going on a hunt with it - you'll know what buttons shortcut to where, and what limitations are in the unit, and what the beeps decode to.

Happy Hunting!

8 of 8 people found the following review helpful

4.0 out of 5 stars Review of purchase and use of garmin astro GPS dog tracking system January 6, 2008

By D. J. Morgan

Amazon Verified Purchase

The transaction was excellent...good price, quick delivery time. My husband was thrilled with his new "toy", and couldn't wait to try it out. He was very impressed with the details he was able to see when tracking his dogs in the area. However, upon the first real hunt with the unit, the dogs managed to disconnect and lose the antenna (which seems to be pretty wimpy!) and of course, the unit is useless without the antenna! When I placed a call to order a replacement, I was told that parts must come straight from the manufacturer. It was impossible to reach a person at the manufacturer, so I resorted to ordering a replacement antenna online which I did receive in time for the next hunt. We are now waiting on a reply to my husband's email (he also gave up on talking to a real person) to complain about the antenna and ask for the manufacturer to provide a free replacement b/c this is an expensive piece of equipment and if the antenna is that easily lost (which renders the unit useless), I anticipate that this will be an ongoing problem and become the gift "that keeps on giving!".

6 of 6 people found the following review helpful

5.0 out of 5 stars Two thumbs up May 9, 2008

By Jay Cutie

I purchased the astro primarily for hiking with my dog in the wooded dunes of West Michigan. It surpassed my expectations. My dog will be chasing something 200 yards away, well out of sight and hearing range, and it works great. All of the stress and worry of not knowing where the dog is is gone. Because my dog doesn't stray for more than 200-300 yards, I haven't had a chance to test the full range, but within those yards and in very hilly terrain it's tracked flawlessly.
