Generac 5943 GP7500E 9,375 Watt Generator with Electric Start

by Generac

Product Features

• Steel fuel tank with incorporated fuel gauge
• Locking fold-down handles and wheel kit
• Hour meter with maintenance resets
• 9,375 Surge Watts / 7,500 Rated Watts
• Non-CARB Compliant/Not For Sale In California

Product Details

• Product Dimensions: 32.5 x 21 x 29 inches ; 198 pounds
• Shipping Weight: 215 pounds (View shipping rates and policies)
• Shipping: Currently, item can be shipped only within the U.S.
• ASIN: B001ET6WFI
• Item model number: 5943
• Average Customer Review: 3.6 out of 5 stars  See all reviews (21 customer reviews)
• Amazon Best Sellers Rank: #8,128 in Patio, Lawn & Garden (See Top 100 in Patio, Lawn & Garden)

Product Description

Amazon.com Product Description

Featuring a compact, wheeled frame for easy transport, the Generac 7,500-Watt Portable Gas-Powered Generator with Electric Start provides a reliable power supply wherever you need it. A Generac OHV engine delivers performance and power, while a sturdy steel-tube cradle protects the generator's exterior. For safe and comfortable use, the circuit-breaker outlets prevent power overloads, and the low-tone muffler makes for ultra quiet operation.

Circuit breaker protected outlets guard against circuit overload for reliable performance. View larger.

Generac's OHV® engine is designed specifically for generators, and it lasts three to four times longer than competitive engines. View full diagram.

The hardened steel-tube cradle, locking, fold-down handles, and wheel kit ensure durability and portability. View larger.

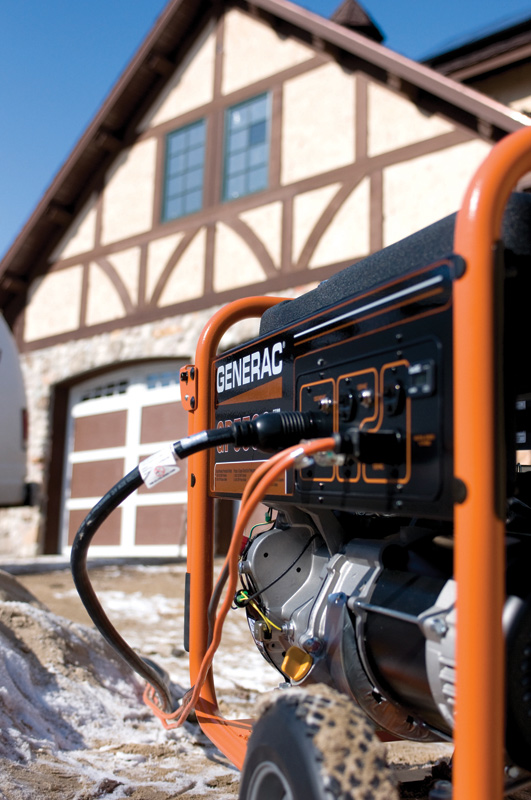

Portable gas-powered generators deliver power when you need it, where you need it--from outdoor parties to construction sites or right at home. View larger.

Determine your requirements for a portable generator: click here to view wattage charts.

(Note for California and Canadian residents: This model is not CARB-compliant (units sold to California must be CARB-compliant) or CSA-certified.)

A Durable Power Supply Wherever You Need It
The Generac 7,500-Watt Generator with Electric Start is an ideal portable generator to have at home, on the job site, or wherever you need power. Its compact frame--33.5 x 26.5 x 27.5 inches (LxWxH)--is fitted with never-flat wheels and locking fold-down handles, so it can easily accompany you wherever you go. And with its hardened steel-tube cradle, this rugged generator holds up well for frequent travel, allowing you to look forward to years of operation. Plus, this model features an electric ignition for fast, easy start-up.

Thanks to its versatile design, this generator adds comfort and possibility to any situation. Use it to keep your family safe and well-equipped through unexpected blackouts, add some fun and luxury to a camping trip, or make construction jobs faster and easier.

A Low-Maintenance, High-Performance OHV Engine
Designed specifically for generators, the Generac 7,500-Watt Generator with Electric Start's heavy-duty 410-cc OHV engine boasts a host of features. An exclusive X-Torq governor maximizes the engine's performance to keep it running without stalls. And so engine components continue moving smoothly, a pressurized lubrication system sends oil directly to critical areas.

Thanks to this full-pressure lubrication system, the engine can employ an automotive-grade, spin-on oil filter that sifts out dirt and other unwanted substances. The oil filter works alongside a dual-element air filter. Together, the two keep engine performance at a maximum and maintenance at a minimum.

Plus, this generator's sturdy, eight-gallon steel tank ensures a full 11 hours of operation at a 50-percent load, letting you relax for hours of use. And with the tank's built-in fuel gauge, you can monitor fuel levels at a glance. Generac even provides you with your first supply of oil.

Plenty of Wattage to Run a Full Range of Appliances
The Generac 7,500-Watt Generator with Electric Start supplies 8,000 output watts and 10,000 maximum watts (for start-up of devices). It has an A/C voltage of 120/240 and a frequency of 60 hertz.

For unexpected blackouts, this is enough wattage to run home appliances such as security systems, computers, and electric stoves, as well as window A/C units and sump pumps. For construction and landscaping applications, it's enough to support large devices such as lawn mowers, belt sanders, and table saws. And for camping and outdoor events, it can run portable stereos, outdoor lights, and electric grills.

(Note: All appliances should be checked for actual wattage ratings.)

Safe, Quiet Operation with Overload-Protected Outlets
If security and quiet operation are important to you in a generator, then the Generac 7,500-Watt Generator with Electric Start is an ideal choice. Its four 120-volt outlets and single 120/240-volt 30 Amp twist lock outlet are circuit-breaker protected, guarding against power overloads and allowing the generator to smoothly send power to your appliances. And the low-tone muffler means the generator runs at a comfortable noise level that easily blends into the background.

This generator is backed by a two-year limited warranty.

What's in the Box
Generac 5681 GP Series GP7500E 7,500-Watt 410-cc OHV Portable Gas-Powered Generator with Electric Start (Non-CARB Compliant), 12VDC 10-Amp-Hour battery, wheel kit, handles, first oil supply, and manual.

Compare the Generac GP Series Portable Generators
Model #	GP1800	GP3250	GP5000	GP5500	GP6500	GP7000	GP7000E	GP8000	GP7500E	GP15000E	GP17500E
Running/starting watts	1800/2050	3250/3750	5000/6250	5500/6875	6500/8000	7000/8750	7000/8750	8000/10000	7500/9375	15000/22500	17500/26250
Fuel tank size (gallons)	4.0	4.0	6.6	6.6	6.6	8.0	8.0	8.0	8.0	16.0	16.0
Approx. run time @ 50% (hours)	14.5	12.5	10	10	10	11	11	11	11	10	10
Electric start (battery included)							Yes		Yes	Yes	Yes
Dimensions (L x W x H - inches)	23.5 x 17 x 17.5	25 x 21 x 19.5	33.5 x 26.5 x 27.5	33.5 x 26.5 x 27.5	33.5 x 26.5 x 27.5	33.5 x 26.5 x 27.5	33.5 x 26.5 x 27.5	33.5 x 26.5 x 27.5	30 x 24 x 26.5	48.5 x 31 x 39.5	48.5 x 31 x 39.5
Shipping weight (pounds)	79	91	167	167	172	177	182	187	193	363	390

Product Description

Generator is easy to use in a variety of applications and offers affordable reliability. Electric and recoil start. U.S.A.

Customer Reviews

Most Helpful Customer Reviews

31 of 33 people found the following review helpful:

2.0 out of 5 stars HOT, HOT , HOT, August 25, 2011

By

Dan W. Mann "Top laid back" - See all my reviews
(REAL NAME)

Amazon Verified Purchase

This review is from: Generac 5943 GP7500E 9,375 Watt Generator with Electric Start (Lawn & Patio)

After our recent tornadoes we decided the ability to have hot showers etc warranted the purchase of a portable generator. Calculated the watts we needed and we needed the top end of the portables.

Looked at several and ordered what I thought was a GP8000 however got a GP7500. Amazon adjusted the price as they will not accept anything that may contain gasoline back even unopened. Amazon now has the right one listed.

Assembly was easy attached wheels handle etc no prpblems with assembly and it fired up and ran smoothly. There is a quirk you should be aware of. The generator does not recharge the starter battery. It takes a seperate plug in charger to keep the generator's battery charged.

Alredy had the house set up to simply flip switchs and have it on generator power but before we plugged it in the house circuit I decided to plug some 110 volt tools into it to test it. My Bosch drill ran and sparked like I had never seen before so I decided to get the volt meter out. Good thing this unit was generating 170 volts. Talking about frying electronics or just about anything else in the house! HOT HOT HOT!

Contacted Generac and was told to take it to the nearest repair station which is a 180 mile round way trip for delivery and picking back up.

Loaded the beast up in the truck with my motorcycle ramp. If you do not have a pick up truck/SUV/trailer plus at least three helpful neighbors or a ramp you may have just bought an exoensive boat anchor. Delivered it to the repair station and the three techs helped unload.

It has now been six weeks waiting for the unit to be repaired and all I am getting is we ordered the parts.

If you have a pick up, tie downs, a ramp, an accesible repair center and a couple of months to wait for warranty repairs then you might want to consider buying a Generac generator. If any of the previous does not apply to you then consider getting a brand that is sold in a brick and motar place so if you have a problem you could swap or get a refund for a defective unit.

One final bit of advice; before buying use a usage list to calculate how much watts you will need. Keep in mind that most transfer switchs only handle 7,500 watts if you need more power to run your basics.

29 of 33 people found the following review helpful:

5.0 out of 5 stars Beautiful Generator, so far so good!, August 25, 2011

By

Dave - See all my reviews

Amazon Verified Purchase

This review is from: Generac 5943 GP7500E 9,375 Watt Generator with Electric Start (Lawn & Patio)

Ordered this after 4 power outages this summer, not to mention the outage last winter that was 3 days in 10-15 degrees F. Overall this unit is impressive for the price per watt. I was hoping that this generator was made in Wisconsin but it is not. Rather it is made in China. That being said there are high quality products that come out of China, you just have to find them. Assembling the unit only took about 20 minutes.

Here are some quick specs:

The engine is a 420cc, 14HP air cooled 4-stroke with overhead valves (OHV) w/electric start (battery included). The surge rating is 9375W with a 7500W running watts rating. The fuel tank holds 8 gallons and is rated 12 hours @ half load for run time.

Here is an easy way to assemble the unit:


1. First was remove it from the box by cutting the box off and leaving the generator on the pallet. This will assist with the next step installing the wheels.

2. Remove the (2) axles from the package with hardware (nuts, bolts, and a (1) litre bottle of SAE30 motor oil). You will also need the two cotter pins, and two flat washers. Here is a trick I found when installing the axles. One axle will not fit so that the cotter pin end is inside the wheel due to a lower motor mount. I can not remember which side it was, but you will see it. So the trick is to put one axle in one direction, and the other axle in the reverse. This means that the motor mount side will have the cotter pin so it is not viewable in the center of the wheel when looking from the side. The other side will have the cotter pin viewable from the side. The other option is to jack up the engine (very carefully) and remove the motor mount so the axle can be installed. Whichever method you choose remember to install a thin film of grease as the wheels are without axle bearings.

3. Next I would suggest adding the motor oil. I have this step as third because the unit needs to be on a flat level surface to confirm that the 1.06 Quart (one litre) bottle of oil is sufficent to fill the oil to the proper full level. Remove the yellow dipstick tube along the bottom of the engine in the front of the unit. Empty the entire bottle slowly. I had to use a funnel as it is awkward to add oil with out spilling it due to the bottle and the angle of attack that must be used to fill the engine oil. After the oil is installed screw in the dipstick and unscrew it to confirm that is to the top on the stick on FULL.

4. Add some fuel (unleaded 85 octane rating or higher)

5. Make sure the fuel valve OFF for now, side to side is OFF and up and down is ON.

6. Either use the electric start (battery should have a charge as mine did) or use the recoil-start to turn the engine over 4-5 times (you don't want it to start yet). The purpose of this step is to properly lubricate the internal engine parts before the engine starts. This is not even mentioned in the manual, but if you want it to last a long time I would highly suggest this step. This is not a pressurized oil system (there is no oil filter to filter the oil and no pump to spray oil in vital areas). This type of air-cooled engine works by slinging oil off from the crankshaft located at the bottom of the engine to lubricate the piston and other moving parts such as bearings. The Amazon description when I bought mine said it was a pressurized system but I knew it was incorrect because I looked up the info on Generac's website.

7. Now you can turn the fuel valve ON (give it a few seconds to fill the carburator bowl) then also move the choke to the left which is the ON position. Make sure the switch is set to RUN if pull starting, and Start if your using your electric start. One interesting thing you may want to know about the battery is that the generator on this model does not charge the battery. The unit does come with a small charger that plugs into the front of the switch panel and into a regular 120 volt outlet. You will need to charge the battery ocassionaly to keep it ready to start the generator. Overall not a big deal.

8. Now step 8 is up to you, but I would suggest reading the manual when you have time. Also make sure to install a ground cable and also get a auto-transfer switch, if you will be hooking this to your meter or fuse box. For us the cheapest option for the transfer switch was to call our electric coop that installs the switch for free, but you need to buy $550 transfer switch. By using the transfer switch you will not need a bunch of extension cords running all over and getting shut under a door. All your normal outlets and appliances, well pumps, washer/dryer all still plug into the house normally through the outlets. Now you wont be able to run all that stuff at once with this unit but there are some generators that can. One cord is then run into the fuse box (consult an electrician) or installed into your meter (call your provider to see if they offer a auto-transfer switch, this saved us at least $2000 versus the electrician/fuse box option. So that's it other than the silly stuff like don't ever use it indoors, or in confined spaces and read the manual!

Hope this help some in making the decision. Overall thanks Amazon.com for an outstanding transaction from price to delivery. Took awhile to get to me but with free shipping I sure didn't mind. Very good quality unit that is made in China. Remember folks they make good quality stuff and bad quality stuff just like any where else, but from my experience this is a very good generator for the price. Remember to change that oil after the first 30 hours, and after that you are safe to go 100 hours between an oil change according to Generac. The hour meter will remind you when its time to do the scheduled maintenence, see the manual on hour to clear it after maintenance if you plan on doing this yourself.

Best of luck and I know you will like it. Quit reading all the reviews and just get it. Wish I would have had mine 5 power outages ago...

11 of 11 people found the following review helpful:

4.0 out of 5 stars Strong Generator with no issues, September 1, 2011

By

Gundy - See all my reviews

This review is from: Generac 5943 GP7500E 9,375 Watt Generator with Electric Start (Lawn & Patio)

Purchased this generator locally here in CT in the aftermath of Hurricane Irene.

No power for 5 days, this genset is running 15 hours per day with no issue whatsoever.

I have it back-fed into my breaker panel, powering well pump, refridgerators, lights, microwave, garage door openers, dsl modem, wifi and complete home network.

I've been getting 14 hours of run time from a single tank of gas, call it 10 gallons. More than I thought possible. Last night, ran a bunch of appliances, trying to max the genset out, and after 5 hours, had used only 2.5 gallons of gas.

The genset is noisy, but I've got behind a pool shed, so it doesn't bother us much at all.

Highly recommended. Make sure to buy the NEMA 30 Amp plug, part number NEMA 14L 30P when you order this so you can plug directly in to the 220v side of the generator.

Update. Today is 11/12/11. Here in CT, we're just coming off of an 8 day power outage as a result of a large snowstorm. This time we really needed power in order to run the heat in our house, as it was 30 degrees for several days. Luckily we had this generator fueled up and ready to go after buying it for Irene.

It ran flawlessly 24 hours / day for 8 days. It consistently ran between 12 and 14 hours on a full fuel tank of 8 gallons. I'm happy to say we had enough extra juice to run a 250' extension cord to our neighbors house for lights and a small heater. I now have 250 hours on the clock.

I run this generator in our small 10'x12' pool shed, and have fabricated an exhaust pipe extension to run the exhaust out of the building.

Highly recommended for cheap (buy noisy) back-up power
