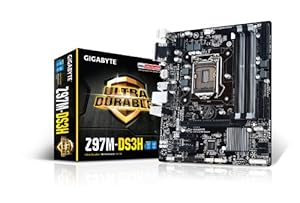

Gigabyte Intel Z97 LGA 1150 Micro ATX Motherboard GA-Z97M-DS3H


Price: $99.99 & FREE Shipping. Details
Only 7 left in stock (more on the way).
Ships from and sold by Amazon.com.
  • CPU: Support for Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1150 package
  • Memory slots: 4 x DDR3 DIMMs ; DDR3 3100(O.C.) / 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666(O.C.) / 2600(O.C.) / 2500(O.C.) / 2400(O.C.) / 2200(O.C.) / 2133(O.C.) / 2000(O.C.) / 1866(O.C.) / 1800(O.C.) / 1600 / 1333 MHz
  • Onboard Graphics: 1 x D-Sub port, supporting a maximum resolution of 1920x1200at60Hz; 1 x DVI-D port, supporting a maximum resolution of 1920x1200at60Hz; 1 x HDMI port, supporting a maximum resolution of 4096x2160at24Hz or 2560x1600at60Hz
  • LAN: 10/100/1000 Mbit
  • Expansion Slots: 1 x PCI Express x16 slot, running at x16; 2 x PCI Express x1 slots
  • Form Factor: Micro ATX
  • Storage Interface:6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10
  • USB:6 x USB 3.0/2.0 ports, 6 x USB 2.0/1.1 ports

Frequently Bought Together

Gigabyte Intel Z97 LGA 1150 Micro ATX Motherboard GA-Z97M-DS3H + Intel Pentium Processor G3258 4 BX80646G3258 + WD Blue 1 TB Desktop Hard Drive: 3.5 Inch, 7200 RPM, SATA 6 Gb/s, 64 MB Cache - WD10EZEX
Price for all three: $224.97

Buy the selected items together


Product Details

  • Product Dimensions: 8.9 x 7.6 x 1.8 inches
  • Shipping Weight: 1 pounds (View shipping rates and policies)
  • Shipping: Currently, item can be shipped only within the U.S.
  • ASIN: B00M3MA2TC
  • Item model number: GA-Z97M-DS3H
  • Average Customer Review: 2.0 out of 5 stars  See all reviews (3 customer reviews)
  • Date first available at Amazon.com: July 25, 2014
  •  Would you like to update product info, give feedback on images, or tell us about a lower price? .


Product Description

Supports 4th and 5th Generation Intel Core processors HD Audio support Highly efficient MOSFET design LAN with high ESD Protection GIGABYTE LAN Optimizer Long lifespan Durable Solid caps APP Center including Easy Tune and Cloud Station utilities GIGABYTE UEFI Dual BIOS

Customer Questions & Answers

Customer Reviews

2.0 out of 5 stars
5 star
0
4 star
1
3 star
0
2 star
0
1 star
2
See all 3 customer reviews
Share your thoughts with other customers

Most Helpful Customer Reviews

2 of 2 people found the following review helpful By KENNITH GERRIOR on August 31, 2014
I love this motherboard!
It's a great choice if you're looking to be a overclockable build like I was. It has all the features you may want and a modest price. Only draw back however is that there are only two fan headers which is really dumb consider in all cases you need at least 3. So plan on getting a fan connector so you can pull air in, push air out and cool your CPU.
Comment Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback. If this review is inappropriate, please let us know.
Sorry, we failed to record your vote. Please try again
I encountered several issues with this board when attempting to install non-UEFI 64-bit Windows 7 to a single solid-state drive...

Firstly, the BIOS will boot devices in UEFI, wherever applicable, by default. When booting from the OS installation disc, the user is actually prompted to "boot from CD" 2 times. the first time is while the Gigabyte BIOS splash screen appears, hitting any key to boot from the CD at this point will boot the CD in UEFI and force 64-bit UEFI Windows to be installed. That causes several complications, such as the boot device needing to be GPT partitioned and not the (still?) more common MBR partition table.

the second prompt to "boot from CD" is right after the BIOS splash. there will be an all black screen, with just the words "press any key to boot from CD.." appearing on the screen; a much more familiar screen to me. by hitting a key to boot from the CD at this point, the CD boots in "normal" non-UEFI mode and will install "normal" non-UEFI Windows (this is what I want).

Secondly, I could not seem to get the OS to install with the SATA controller set to AHCI mode. there were a couple errors I encountered when running through my regular install setup.. I ultimately had to install Windows with the SATA set to IDE mode.

Perhaps the per-installed SATA drivers were not loaded properly, I don't know. but this was certainly the most complicated Windows installation I've done in quite a while. Other than that, the board seems of good quality. The APP Center (software utility) is hanging on update and I will have to see how that works out.

I have not tried re-installing the SATA drivers and switching the BIOS or AHCI yet, but I plan on attempting so shortly. I will update with my results.
