Adding solar panels to your home is one of the easiest and most effective ways to go green and reduce your energy bills. Once the Grape Solar Residential Solar Power System Kit is in place, just sit back as the maintenance-free system generates electricity at no additional cost, month by month. This easy to install kit comes complete with 22 solar panels, an inverter, and rooftop rack system. Its array of 230-watt panels generates between 460 and 924 kWh of electricity per month for use in your home. As a bonus, this system is eligible for federal, state, and county incentives and rebates.
 | Residential Solar Power
System Kit
At a Glance:- Reduce your energy bill with total DC power output of 5,060 watts from solar panels
- Complete integrated system of 22 panels, inverter, and rooftop racking
- Easily installed, and easily expanded by connecting additional kits
- Maintenance-free
- Eligible for federal, state, and county incentives
and rebates
- 10-year warranty on materials and workmanship
|
|  |
|
A rack-mount system makes short work of the installation process. |
This kit comes with everything you need to mount your new solar panels quickly and easily. View larger. |
Good for the Earth, Good for Your WalletSaving energy is both good for the environment and good for your family's budget. With its field-proven technology, the Residential Solar Power System Kit gives you the option of generating some or all of your monthly electricity consumption. Once you take advantage of the many federal, state, and county incentives and rebates available in different areas, the cost of your initial investment is reduced and your payback time becomes shorter.
High Performance Kit Designed for Durability
The solar panel system uses Grape Solar Polycrystalline 230-watt PV solar panels. Faced with high-transmittance, low-iron tempered glass, these panels feature enhanced stiffness and impact resistance. The panels are designed to withstand heavy rainfall and hail, while the rack is designed to withstand high winds.
Each panel contains 60 high-efficiency silicon cells to generate a reliable and stable long-term output of electricity, even under high temperature or low sunlight conditions. Its combined 22-panel array produces 5,060 watts of DC power output, yielding 460 to 924 kWh per month. The system is designed for the United States, Canada, and other countries that use 120/240 V, 60 Hz wiring. Panels are UL, CEC, and FSEC certified.
Easy to Install and Maintenance Free
The Solar Power System comes complete with everything you need to rack-mount the 22 solar panels on your roof. The entire system requires 396 square feet of roof space. Unlike other generators, there are no mechanical moving parts--once the system is installed, it's completely maintenance free. Should you decide to expand the array, connecting additional kits is easy. Combiners, cables, and fuses are not included.
Warranty Information
The Residential Solar Power System Kit is backed by a manfacturer's 10-year warranty on materials and workmanship, including the inverter and the racking system. Grape Solar's 25-year limited warranty on power output includes at least 90 percent power output assurance for 10 years, and at least 80 percent power output assurance for 25 years.
What's in the Box

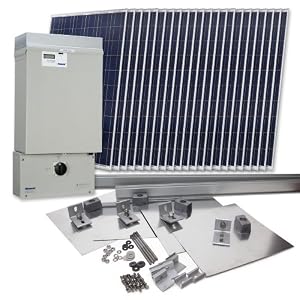

PV module, 22 solar panels, inverter, and rooftop racking system.
Go green and save money with the Solar Power System Kit for electricity. |
This Grape Solar 5,060 Watt Kit generates 462kWh to 924kWh of electricity per month for use in your residence. The kit consists of Grape Solar CS-P-230-DJ 230W Poly-Si modules, a PVP4800 Inverter and a roof-top racking system for mounting the modules. This system is easy to install, and the ideal size for future expansion. You have the option to generate a portion of your electricity consumption or the entire daily/monthly consumption of your household. Unlike other generators, there are no mechanical moving components on this kit; therefore, maintenance virtually non-existent. The kit is eligible for receiving federal/state/local rebates and incentives. A complete high-performance solar PV system designed for USA/Canada/countries that use 120/240 AC, 60HZ. This kit combines Grape Solar's industry-leading solar panels with a top-of-the-line inverters and racking, specially designed for the highest system-level performance and most cost effective solution. Package DC power output: 5,060 Watt. (22) Grape Solar 230W Poly-Si panels. Panels are UL, CEC and FSEC certified. Panel output tolerance: 0-Percent +3-Percent. Panel dimension 64.9-Inch by 39.0-Inch by 1.57-Inch. Total roof space required: 396-squar feet. Impact resistance: hail diameter of 28mm with speed of 86km/h. (1) PVP-4800 inverter from PV Powered. AC/DC system disconnects and 10 year warranty are included. (1) set of Regular Roof Mount racking system wind load up to 80mph. Recommended Electrical Wiring: 2 strings x 11 panels/string with PVP-4800 inverter. Combiners, cables, and fuses are not included. Solar Panels: 25 years power output warranty, 10 year material and workmanship warranty. Inverter: 10 year warranty. Racking: 10 year warranty.
