Hitachi C10FSH 10-Inch Sliding Compound Miter Saw with Laser

by Hitachi

Product Description

Amazon.com Product Description

The Hitachi C10FSH 10-Inch Sliding Dual Compound Miter Saw with Laser Marker provides smooth, accurate miters and crosscuts in a variety of workpieces, including wood, plywood, decorative panels, soft fiberboard, hard board, and aluminum sashes. An ideal tool for trim carpenters, framers, and woodworkers who demand precision and reliability, the C10FSH offers professional-grade performance with its laser marker, dual-bevel cutting action, soft start function, electric brake feature, electronic speed control, and more.

C10FSH Compound Miter Saw Tool Specifications Amps 12 No-Load Speed 3,800 RPM Blade Diameter 10" Arbor Size 5/8" Bevel Angle Range (R & L) 0°-45° Bevel Stops (R & L) 0° and 45° Miter Angle Range Right 0°-57° Left 0°-45° Miter Detent Stops (R & L) 0°, 15°, 22.5°, 31.6° and 45° Tool Height 24-1/4" Weight 43 lbs

The carbon brush and dust-collector bag keep the saw working for the long term.

Make extremely precise cuts with the help of the laser guide. View larger.

Adjust the bevel up to 45 degrees to the left or right. View larger.

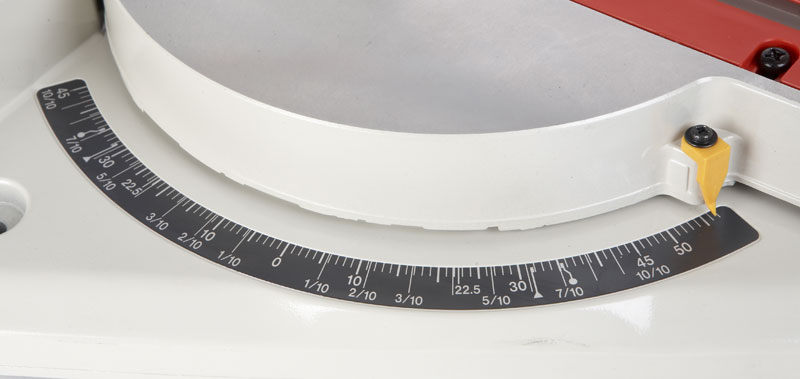

Miter scale and thumb-actuated miter stops facilitate simple adjustments at the most common angles. View larger.

Powerful Motor Provides Smooth, Accurate Cuts
The C10FSH Sliding Dual Compound Miter Saw features a powerful 12-amp motor that generates a no-load speed of up to 3,800 RPM for easily making crosscuts and miters in even the toughest workpieces. The electronic speed control ensures consistent RPM throughout the cut, so you get smooth, precise, controlled cuts each and every time.

Additionally, the C10FSH utilizes a Poly-V-Belt transmission rather than a traditional gear transmission. This soft start technology allows the saw to operate smoothly and quietly and reduces recoils during startup.

Compound Feature for Precise Miters and Bevels
Hitachi designed the C10FSH for versatile, easy use. The thumb-actuated positive miter stops allow for simple miter adjustments at the most common angles: 15.0, 22.5, 31.6, and 45.0 degrees to the right or left. The tool also features a 57-degree miter angle to the right and a 45-degree miter angle to the left for maximum flexibility. Additionally, a white-on-black miter scale provides superior visibility, allowing you to easily adjust the angle of the cutting blade for creating miters in crown molding and other trim pieces.

And with a bevel range of 45 degrees to the left and right, you can quickly and easily flip the saw blade while leaving your material in place. To save you even more time, bevel stops to the right and left are conveniently located at zero and 45 degrees.

The 10-inch TCT saw blade (included) makes easy work of trim and other woodwork, and the linear ball-bearing slide system and adjustable pivot fence allow for accurate cutting of large workpieces over 12 inches deep.

Laser Marker Technology for Perfect Cuts Everytime
Hitachi equipped the C10FSH with its exclusive Laser Marker System, which can be activated before the blade is in motion for exact alignment and predictable blade placement. The laser marker is easily adjustable to suit your preferences, simply line up the laser with your mark on the workpiece, and the saw blade will make an exact cut along the laser guide. As long as your measurements are right, your cuts will be, too!

Chock-Full of User-Friendly Features
The C10FSH contains plenty of features to help you make the perfect cut the first time. To start, a splinter guard behind the fence increases safety and reduces tear-out for clean, finished cuts. A patented, fully adjustable chip deflector also prevents tear out, aligns the cutting line, and provide zero-clearance support.

For further refinement, a large table provides a stable guide and sturdy support, a built-in clamping system holds your workpiece in place, a comfortable vertical handle with a vibration-reducing elastomer grip keeps you in control, and an electric brake feature quickly halts the blade to prevent unintended cuts.

The C10FSH also includes a dust collector that minimizes accumulation of dust and particles in your both your workspace and the saw's interior components, keeping your jobsite clean and prolonging the life of the tool. An added bonus, easily accessible carbon brushes will help your saw perform for the long term.

Durably built, this tool is backed with an industry-leading five-year warranty. It is compatible with Hitachi's UU610 Universal Work Station.

About Hitachi: A Tradition of Innovation
Hitachi Power Tools (Hitachi Koki USA, Ltd.) provides professional-grade power tools for a variety of applications, including woodwork, metalwork, concrete, drilling, cutting, and fastening. Hitachi is a leader in power tool research and development and has achieved many firsts in the power tool industry, including creating the first-ever sliding compound miter saw to combine the capacity of a radial arm saw and the convenience of a miter saw. Today, Hitachi continues the tradition of innovation and engineering with new features in addition to classic quality.

What's in the Box
C10FSH 10-Inch Sliding Compound Miter Saw with Laser Marker, 10-inch TCT saw blade, box wrench, dust bag.

Linear ball-bearing slide system helps you cut large workpieces.

Product Details

Product Manual [2.08mb PDF]

• Item Weight: 43 pounds
• Shipping Weight: 59.4 pounds (View shipping rates and policies)
• Shipping: Currently, item can be shipped only within the U.S. and to APO/FPO addresses. For APO/FPO shipments, please check with the manufacturer regarding warranty and support issues.
• Shipping Advisory: This item must be shipped separately from other items in your order. Additional shipping charges will not apply.
• ASIN: B00007J8CH
• California residents: Click here for Proposition 65 warning.
• Item model number: C10FSH
• Average Customer Review: 4.4 out of 5 stars  See all reviews (124 customer reviews)
• Amazon Best Sellers Rank: #7,915 in Home Improvement (See Top 100 in Home Improvement)
  • #14 in Home Improvement > Power & Hand Tools > Power Tools > Saws > Miter Saws

Customer Reviews

Most Helpful Customer Reviews

124 of 125 people found the following review helpful:

5.0 out of 5 stars Fantastic Saw, June 19, 2003

By

Anthony A. Coscia (Newtown, CT) - See all my reviews

This review is from: Hitachi C10FSH 10-Inch Sliding Compound Miter Saw with Laser (Tools & Home Improvement)

I purchased this saw today after weeks of shopping around. It seems that all of the contractors I spoke with have the 8 inch Hitachi slider and swear by it. I was looking for a bit more capacity but with the same reliability, accuracy and the advantage of a laser guide. This saw is extremely well made and accurate out of the box. While it has a bit more plastic than it's 8" counterpart it is still made like a tank at less weight than the competition(44lbs I believe). The slide, bevel and miter functions are all smooth and the preset angles are easy to set but not to stiff that they don't allow you to set angles close to the presets without accidentally "clicking" into them when tightenned. The fence seems to be improved over previous models and is a bit higher. It will also flip out for longer workpieces. As for the laser guide, I was skeptical of their accuacy but I couldn't be more wrong. It was dead on out of the box and easily adustable depending on you personal preferences. Some people seem to have complained that the laser line disappears as soon as the blade is lowered, but it is so accurate that it doesn't matter. Once you match your laser to your line, there is no need to follow it through the actual cut.

There is not one flimsey piece on this tool. While not overly heavy, it is very solid. The only drawback to this saw that I can see is the relatively small table area. If however weight and portability is important to you, this could be seen as an advantage. The standard blade is acceptable but the 72 tooth blade that comes as a "bonus" is excellent. Some people have complained about the dust collection. I found it to be adequate but not great. In all fairness, I have never had a tool with a system that was much better. I have heard that the rear rubber blade guard (to aid dust collection) has problems when using a powerful vac. for the collector but I have not tried that yet. If you are looking for a slide compound miter saw with a laser, this is the only one as of now. Compared to other quality 10" sliders, the Hitachi C10-FSH is priced towards the high end of the scale at between $499 and $530 but based on my initial impressions, worth every penny.

176 of 185 people found the following review helpful:

5.0 out of 5 stars C10FSH: A cut-above the rest!!!..., June 3, 2003

By

brian (Toronto, Ontario, Canada) - See all my reviews

This review is from: Hitachi C10FSH 10-Inch Sliding Compound Miter Saw with Laser (Tools & Home Improvement)

I recently purchased this saw, and boy am I impressed! I do tool testing for a large Orange Home Improvement company! I have tested dewalt, bosch, makita, and other hitachi mitre saws. This time Hitachi is a cut-above the rest! They made some worth mentioning improvements over the C10FS. Most notably, they have increased the left / right fence's aluminum thickness; the older version has a problem with fence cracking! The dust collection (how much dust actually goes into the dust bag) of this new saw is nearly double (if not more) than the C10FS.

The dust collection is large and can accomidate a wide range of vacuum systems. Worth mentioning, the vacuum mount (where you attach you vacuum hose) is aluminum, not plastic as in the case of most saws! The rubber thinggy behind the blade does its job well. The flip fence is nice and sturdy; while easy to move out of the way if not needed! Mine did not come with the dust sleeve for the rails (as many have wrote in their reviews here as well).

The only downfall is the laser position! It is accurate and it lets the operator know precisely where the blade will cut, the fine adjustment laser knob works great for tweaking the laser if needed! However, I have noticed that as soon as one starts to cut, the black rubber dust guide (right behind the blade) gets in the way of the laser beam! Meaning that one is able to see the line before you start cutting, but once you start, the line disappears behind the black rubber! I have also noticed that the bevel stops were removed! The C10FS had like 5 bevel stops, now it only has three (90, 45 left / right)!

The saw has incredible smoothness and a nice slide action. The recoil has been reduced immensely; thanks in part the poly v-beld driven motor! One other thing worth noting, like the C10fs and other hitachi's, the left and right fence's are independent of each other! This has always been a hitachi marvel! This little detail allows one to recalibrate the fence easier, rather than the half moon piece of aluminum that usually joins both left / right fences! I have heard cases where (makita, dewalt, and bosch) fences have warped due to the fact that they are one piece!

If anyone is in the market for the most accurate and most consistent saw period, look no further than the C10FSH!!!...

53 of 54 people found the following review helpful:

5.0 out of 5 stars Awesome!, March 22, 2005

By

S. Giffin (US, Bay Area) - See all my reviews
(REAL NAME)

This review is from: Hitachi C10FSH 10-Inch Sliding Compound Miter Saw with Laser (Tools & Home Improvement)

After reading reviews here I was concerned about purchasing this saw. I took the plunge today and went and grabbed it from a local store.

My main concern was the accuracy. When adjusted correctly, the saw should cut so that the kerf ends where the laser mark lands. It does exactly that. I used a Starret combo square to mark a 90 cut and lined it up with the laser and sure enough, this thing is dead on. I also used this same sqare the check run out of the laser since some of the reviewers here mentioned it was off 1/64th and the end of the cut. No its not. I set the square on the fence and checked the laser at 2 feet and its less then a 64th at that range.

BTW, I own a DeWalt 708 (12 inch slider). This saw is better in every way with exception to slightly less cutting capacity.
