InSinkErator Evolution Excel 1.0 HP Household Garbage Disposer

by InSinkErator

• 3 grind stages quickly grind virtually any food waste
• Quick lock sink mount allows for easy installation and replacement of any disposer
• At least 60-percent quieter than standard disposers
• Includes jam sensor circuit to break up tough jams
• 1.0 Horsepower Dura-Drive Induction Motor Gives you the most horsepower of any food waste disposer; 7-year in home warranty on parts and labor

Product Description

Amazon.com

Grind corncobs, chicken bones, and other food waste with ease using the Evolution Excel household food waste disposer from InSinkErator. This disposer features a powerful 1 horsepower motor along with a three-stage grind system to liquefy foods. A Jam Sensor circuit detects jams and increases the torque by 500 percent to break through them. Patented sound-reducing technology makes the machine 60 percent quieter than standard disposers. This product is covered by InSinkErator's seven-year in-home service warranty.

Evolution Excel Household Food Waste Disposer At a Glance: Powerful 1 horsepower motor Three-stage grind system to liquefy foods Circuit that increases torque to break through jams Backed by a seven-year warranty

A Quick Lock sink mount enables you to install the disposer with ease (click to enlarge).

Three-Stage Grind Technology to Liquefy Foods
The Evolution Excel food waste disposer also features a MultiGrind Plus system that virtually liquefies food matter before it flows safely to your sewage system. This three-stage grind technology combines a GrindShear ring, a Tri-Action Lug system, and an Undercutter Disk to finely grind foods and prevent clogs and jams. As a result, you can use the Evolution Excel to dispose of a variety of tough-to-grind foods, including celery, corncobs, chicken bones, fruit rinds, coffee grounds, and potato peels.

Powerful Induction Motor for Optimal Performance
Along with MultiGrind Plus technology, the Evolution Excel contains a heavy-duty, 1 horsepower Dura-Drive induction motor for powerful yet quiet performance. An auto-reverse grind mechanism helps prevent jams, while an electronic Jam Sensor circuit detects jams and automatically increases the machine's torque by 500 percent to break through them.

Sound-Reducing Technology for Quiet Operation
Thanks to InSinkErator's SoundSeal Plus system and Quiet Collar sink baffle, the Evolution Excel is at least 60 percent quieter than typical food waste disposers--making it possible to hold a conversation, using normal voices, with the disposer running in the same room. This patented technology includes superior insulation around the motor, an anti-vibration sink mount, and an anti-vibration tailpipe to prevent sound transmission from vibrations. The patented sink baffle also helps prevent sound from escaping the throat of the disposer.

Quick Lock Sink Mount for Easy Installation
Like all InSinkErator food waste disposers, to simplify the installation process, the Evolution Excel sports a three-bolt Quick Lock sink mount made of stainless steel. If you have an existing food waste disposer, you can likely just twist it off and twist on the Evolution Excel. With Quick Lock, replacing one InSinkErator disposer with another is easy.

Economical and Environmentally Friendly
Compared with other installed kitchen appliances, food waste disposers cost little to operate. InSinkErator Evolution disposers use an average of just one gallon of water per person per day, or less than 1 percent of a typical household's total water consumption. They also use an average of three to four kilowatt hours of electricity per year, which typically amounts to less than 50 cents.

In addition, food waste disposers offer an environmentally responsible alternative to simply sticking food waste in the garbage can. For those on a sewage system, grinding the waste with the disposer sends it to the local municipal wastewater treatment plant, where it can often processed into bio-solids for use as fertilizer or recycled to produce methane, a renewable source of energy.

Product Information
This product measures 14 by 11 by 14 inches (H x W x D) and weighs 19.8 pounds. It's designed to be hard-wired and controlled by a wall switch. With a grind chamber capacity of 40 ounces, the disposer can process a greater volume of food waste than standard disposers.

About InSinkErator
InSinkErator offers quality garbage disposals, garbage disposers, water dispensers, hot water dispensers, home water filtration systems, food waste disposers, commercial kitchen appliances, small kitchen appliances, and kitchen renovation products.

What's in the Box
InSinkErator Evolution Excel food waste disposer, Quick Lock sink mount, Quiet Collar sink baffle, Jam-Buster wrench, anti-vibration tailpipe mount, anti-vibration mount, stainless steel sink stopper, spring-type hose clamp, and installation instructions.

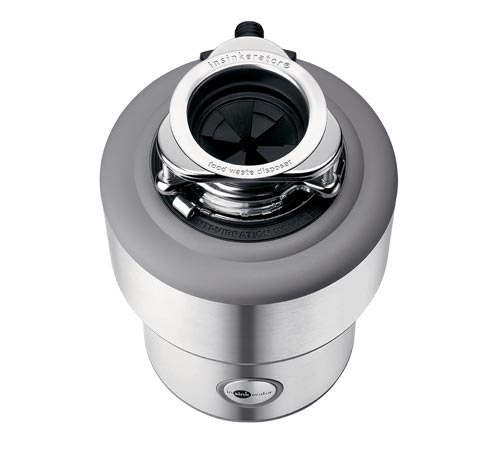

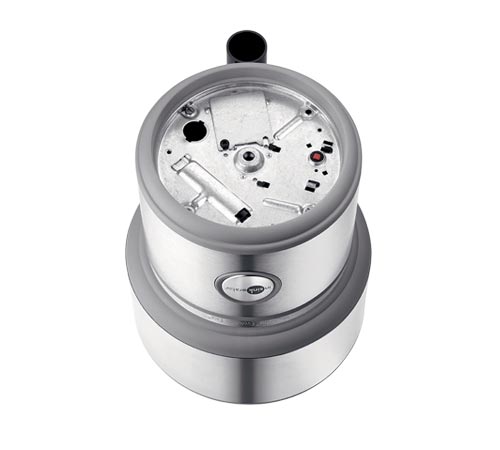

The Evolution Excel sports a rugged steel construction for durability (click each to enlarge).

Product Description

The Evolution Excel with cord Features the Best of InSinkErator's Grinding and SoundSeal Plus Noise-Reduction Technologies, Handling more Volume and more Types of Food Waste while making 60% less noise than Standard Disposers. Insinkerator Powerful Food Waste Disposers are the Right Choice when Replacing an Existing Unit or Designing a Brand-New Kitchen. With an Insinkerator Food Waste Disposer in your Kitchen, Chicken Bones, Fruit Rinds, Coffee Grounds and More can go Right in the Sink -- Where they're Virtually Liquefied to Safely Flow into your Sewage System or Septic Tank. Insinkerator XL Evolution Excel Garbage Disposer Multigrind Plus Three Grind Stages let you Quickly Grind Virtually any Food Waste. Soundseal Plus Makes the Evolution Excel at least 60% Quieter than Standard Disposers. Jam-Sensor Circuit Automatically Increases Torque to Break Through Jams. 40-Ounce Stainless Steel Grind Chamber and Grind Component Handles more Volume than Standard Disposers. 1.0 Horsepower Dura-Drive Induction Motor Gives You The Most Horsepower Of Any Food Waste Disposer. Type of Feed: Continuous: On/Off Control: Wall Switch: Motor: Single Phase HP: 1.0 Volts: 120 Reversing: Auto-Reverse Grind System feature HZ: 60 RPM: 1725 Amp. (Avg. Load): 10.2 Time Rating: Intermittent Lubrication: Permanently Lubricated Upper & Lower Bearings Shipping Weight (Approx.): 25.5 Lbs. Unit Finish: Stainless Steel Light Gray TEN-1706 Overall Height: 13-1/2" SoundSeal Plus Technology: Anti-Vibration Mount Anti-Vibration Tailpipe Mount Quiet Collar Sink Baffle Multi-Layer SoundLimiter Insulation MultiGrind Plus Technology: GrindShear Ring Tri-Action Lug System Undercutter Disk Jam-Sensor Circuit Grind Chamber Capacity: 40 oz. Motor Protection: Manual Reset Overload Average Water Usage: 1/4 Gallon Per Person Per Day Average Electrical Usage: 1/2 KWH Per Month Drain: 1-1/2" Anti-Vibration Connection: (Hose Clamp) Dishwasher Drain Connection: Yes

See all Product Description

Most Helpful Customer Reviews

96 of 96 people found the following review helpful

5.0 out of 5 stars The Claims Are True! October 15, 2010

By K. McCarty

Color Name:Stainless Steel|Amazon Verified Purchase

Length: 2:03 Mins

After some time without a working disposal and years of cheap disposals, I finally treated my parents with A REAL GARBAGE DISPOSAL. I cannot speak on the long term durability of it because I just got it working yesterday but so far I am very impressed. When the electrician installed it, he had to double check that it was on and working because it is so quiet! You will see in the video; pretty much all you can hear is the water running.

I actually did two videos, this one was first and then about 30 min later I did another longer video with LOTS more stuff (smoked sausage w/ skins, grapes, yogurt and rock hard pork chops). I did this video because I had not found any online that show it doing what it claims so here you go! I ground two chicken thighs (bones included) to test their claims. Trust Me; they ARE NOT LYING!!

I will admit that after round II, I was running it while washing my hands and it turned off automatically. I was horrified! Turns out, it is smart enough to shut-off when it has overheated instead of simply burning up. The motor was too hot to touch (for more than 2 seconds) so I put ice-cubes down the sink and ran cold water. It sat for an hour or so and then I simply pushed the reset button and it was back to normal! With the 7 year warranty, I was comfortable testing their claims and I am happy. Well worth my money! The electrician, my mom and dad were all in disbelief when they saw this in action.

This was my first disposal purchase and installation so I wondered if I needed extra parts ... turns out I only needed the plumber's putty and screwdrivers, so I returned the extra parts I bought at Lowe's. Final warning ... the unit is about 23-25 pounds and was a BEAR for me to maneuver under the sink and onto the clips, ALONE! That was the hardest part for me.

Hope that was helpful! Enjoy!!

56 of 60 people found the following review helpful

5.0 out of 5 stars Simply Top End December 4, 2008

By W. Shimet

Color Name:Stainless Steel|Amazon Verified Purchase

The Insinkerator Evolution Excel is simply the best!!!! This year for Thanksgiving, a guest was helping in the kitchen and put a large amount of potato peels down the disposer. I was concerned because not only was the disposer jammed full of potato peels, but there were a bunch of peels in the sink waiting to be stuffed into the disposer. (This has happened with our old disposer and I got the privilege of trying to unclog a clogged sink - not a fun thing to do with a house full of company). I watched her turn on the disposer and to my amazement they were all disposed of without a jam. At this point the Evolution Excel was worth every penny I paid for it. My only complaint about this disposer is that is almost too quiet. When you turn it on, you can barely hear it run. I have to remind myself to insure it has been turned off because you get a quiet hum when it is running, not like the old disposer that was LOUD. This is great if you have a sleeping baby, etc where you don't want to wake up the neighbors when you run the disposer.

37 of 40 people found the following review helpful

4.0 out of 5 stars Good and quiet March 29, 2007

By JJ

Color Name:Stainless Steel

When I got this, I never put one in before. The instruction for installation where easy to use. its much bigger then the old one i had. so a few modifications where needed. When I finished, I had to try it out. Dropped a potato in and it was gone instantly. so quiet too.
