Currently unavailable.
We don't know when or if this item will be back in stock.

Have one to sell? Sell on Amazon

Image Unavailable

Image not available for
Color:
  • Intel Socket 1156/Intel H55/DDR3/A&GbE/ATX Motherboard, Retail BOXDH55HC
  • Sorry, this item is not available in
  • Image not available
  • To view this video download Flash Player

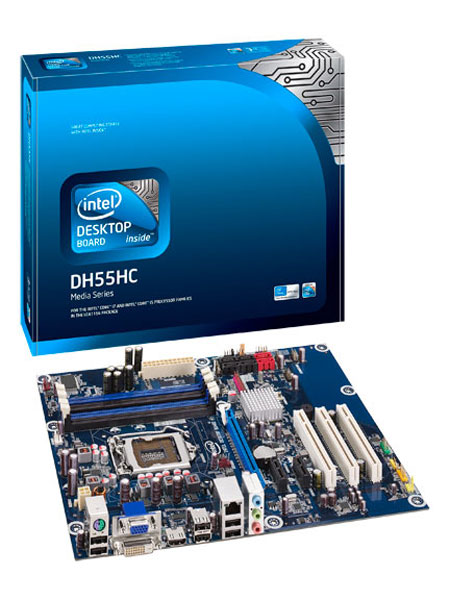

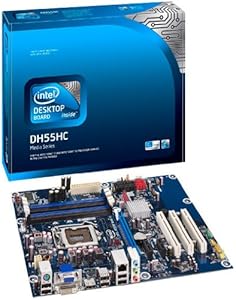

Intel Socket 1156/Intel H55/DDR3/A&GbE/ATX Motherboard, Retail BOXDH55HC

by Intel

Currently unavailable.
We don't know when or if this item will be back in stock.
  • Supports Core i7 i5 i3 and Pentium processors (LGA1156)
  • DVI-D+VGA+HDMI graphic ports support Intel HD graphics
  • Up to 16GB dual-channel DDR3 memory support
  • Intel H55 express chipset
  • ATX form factor

Frequently Bought Together

Intel Socket 1156/Intel H55/DDR3/A&GbE/ATX Motherboard, Retail BOXDH55HC + Arctic Silver 5 Thermal Compound 3.5 Grams
Buy the selected items together

Product Details

  • Product Dimensions: 12 x 9.6 x 3 inches ; 2.4 pounds
  • Shipping Weight: 2.5 pounds
  • Shipping: Currently, item can be shipped only within the U.S.
  • ASIN: B0031M9QWC
  • Item model number: BOXDH55HC
  • Average Customer Review: 4.2 out of 5 stars  See all reviews (13 customer reviews)
  • Date first available at Amazon.com: January 7, 2010
  •  Would you like to update product info, give feedback on images, or tell us about a lower price? .


Product Description

Product Description

Intel BOXDH55HC Socket 1156/Intel H55/DDR3/A&GbE/ATX Motherboard, Retail

Amazon.com

The Intel Desktop Board DH55HC is specially designed to harness Intel Core i7, i5, and i3 Processors in the LGA1156 package. The DH55HC is a full ATX board measuring 12 by 9.6 inches. With DDR3 memory slots and an abundance of ports and connections, the DH55HC perfectly balances legacy and premium features.

Desktop Board DH55HC

Form Factor: ATX

Compatible Processors: Core i7-870, Core i7-860, Core i5-750IS, Core i5-750, Core i5-670, Core i5-661, Core i5-660, Core i5-650, Core i3-540, Core i3-530, Pentium G6950.

Memory: Four 240-pin DDR3 SDRAM DIMM sockets (support for DDR3 1333/1066 MHz DIMMs)

headset

The DH55TC has plenty of expansion capability. View detailed schematic.
headset

Harness the power of Intel's latest technologies in the Core i7, Core i5, and Core i3 Processors. View larger.
Support for Intel Core i7, i5, and i3 Processors
The Intel DH55HC Motherboard features an LGA1156 socket. It is designed to work with Intel's Core i7, i5, and i3 series processors in LGA1156 sockets, as well as with Intel Pentium processors in LGA1156 sockets. The DH55HC supports processors that have Intel HD Graphics, Intel Turbo Boost Technology and Intel Hyper-Threading Technology, which means it lets you take advantage of exceptional performance and scalability.

Memory, PCI, and Ports for Incredible Expansion Capability
With plenty of ports, slots, and connectors, the DH55HC gives you the flexibility you need to build the perfect machine. The Intel DH55HC Motherboard employs the H55 Express Chipset, which displays Intel's dedication to innovation with its new architecture that delivers quality, performance, and industry-leading technologies.

Additionally, the board has four slots that support dual-channel DDR3 1333/1066 MHz memory for up to 16GB of total system memory--an invaluable resource for power users and multitaskers.

The DH55HC also features plenty of ports to connect different accessories and gadgets. There are twelve Hi-Speed USB 2.0 ports (six back-panel ports and six additional ports via three internal headers) for connecting all varieties of peripherals and accessories. There are also six SATA ports, including two onboard eSATA ports for fast storage options. There are also two PCI Express x1 connectors and one PCI connector for adding peripheral cards. And as if that isn't enough, there's also one each of PS/2, serial, and parallel ports for connecting your legacy peripherals.

Support for Intel HD Graphics
To take advantage of Intel HD Graphics built-in to select Intel Core processors the DH55HC comes with VGA, DVI-D, and HDMI display outputs giving you lots of flexibility. With Intel HD Graphics the DH55HC can support multiple monitors at once, premium video such as Blu-ray Disc, mainstream gaming and a full Windows 7 experience. However, when your enthusiast gaming requires a discrete graphics card the DH55HC also features a PCI Express 2.0 x 16 slot for fast and easy upgrades.

Integrated High-Definition Audio and High-Speed Ethernet
Whether you're playing MP3s or immersing yourself in game sound effects (SFX), you can expect crisp audio from the DH55HC. It features an integrated 8-Channel (5.1 + 2 independent multi-streaming) audio subsystem with three analog audio outputs using the Realtek ALC888S audio codec. This means you won't have to spend extra money on a dedicated sound card for top-quality audio playback.

A Gigabit (10/100/1000 Mbps) Ethernet connection is also included for high-speed connection to the Internet.

The Intel Desktop Board DH55HC is backed a by a three-year limited warranty.


END


Customer Questions & Answers

Customer Reviews

No more referencing hard-to-find manuals.
Plasmacartwheel
The rear cover which fits into the case was the flimsiest metal I have ever seen and would not snap cleanly into either the board or the case.
MonkezUncle
This is my HTPC and so far it's really working nicely.
M. Lamboy

Most Helpful Customer Reviews

12 of 12 people found the following review helpful By Oracle of Delphi on August 10, 2010
Verified Purchase
[edit] just stick with pc1333 ram and you'll have no issues, things get hairy with pc1600[edit]

This is a great motherboard when configured correctly.
Remember that the processor you purchase needs to support intel Graphics, otherwise you'll have to buy a separate pcie video card.

here's the link to the intel site for a list of processors that support integrated graphics, NOTE THAT THERE ARE NO i7 PROCESSORS IN THIS LIST:
<edit> since links are disabled try googling: "Which Intel® desktop processors contain integrated graphics" <edit>

the board comes with the voltage for ram set at 1.5V which usually needs to be increased to 1.6 or 1.65, (it's under the performace tab; change the memory profile)

I purchased an 8gb (4x2) from KomputerBay to work with this and found that I had to lower the "multiplier" to 8 to get it to POST.

The integrated DVI slot does not have a '+' style connector so you cannot use an adapter and have dual VGA ports, but you CAN have a DVI and VGA running at the same time without buying a video card.
3 Comments Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback. If this review is inappropriate, please let us know.
Sorry, we failed to record your vote. Please try again
7 of 7 people found the following review helpful By Plasmacartwheel on March 21, 2011
Verified Purchase
Got it for an HDTV application with an HDMI Intel motherboard. I was slightly sceptical due to some surprisingly downbeat reviews of the current wave of Intel motherboards. However, I have been using Intel motherboards for about ten years and they seembulletproof. I have some that were so caked in dirt and dust I was surprised they still worked. Took a chance and built the HTPC - works brilliantly. No hesitation on anything I have done with it 1080P, which, so far, is everything except playing with Blu-Ray.

Addendum for the motherboard: you know what sets Intel apart? They include a lot of nice extras, like a sticker for your case that labels the headers on the motehrboard. No more referencing hard-to-find manuals. Also, they know how to adhere to a standard without screwing around with incompatible parts that end up frying or not playing well with one another. You want to overclock? Maybe you want another manu. You want bulletproof longevity? Buy this.
Comment Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback. If this review is inappropriate, please let us know.
Sorry, we failed to record your vote. Please try again
7 of 8 people found the following review helpful By Bryan G. Moore on March 1, 2010
Verified Purchase
This is a sweet board and it does everything I need it to do. I only installed the drivers for the chipset and NIC off of the cd then downloaded all the most current drivers from intel's site including the new chipset and nic driver. I also then flashed the BIOS to the most recent version. The board works great with no problems. I have an intel core i5 661 processor in here with some patroit sector 5 ram in there.
Comment Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback. If this review is inappropriate, please let us know.
Sorry, we failed to record your vote. Please try again
1 of 1 people found the following review helpful By SquiggyRedLineR on October 3, 2010
Verified Purchase
DH55HC ordered from Amazon, arrived in 4 days, excellent condition. This is the first computer I ever put together so it was an experience. Using it now, no problems at all , not enough experience to tell good or bad, only complaint new computers stink as they 'burn in'. Had Dell B110, Intel Celeron D, ProcessExplorer stayed at 90% plus.
Board & cpu ( i3_530)constant around 40- 55 Cel. ProcessExplr RARELY breaks 25%, Blender 3D , Corel Paint , VLC , 4+ tabs on Firefox , OMG !!! Wha' happened to the wait ..... = ]. Bought a NVidia GeForce 9600 awhile back, working beautifully in here ( AND ALL with ONLY a 2gig stick of memory !, hope to rec. other 2 sticks Mon. total for 6g , exspect even better performance hopefully ... win 7 x86 limited to 4g though ) Seems pretty nice so far.
For all the other reviewers ( I did a lot of reading ... Thanks ! ) Don't WAIT till 'all else fails'... READ the instructions FIRST. Intel did a good job providing updates & user guides ...
Comment Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback. If this review is inappropriate, please let us know.
Sorry, we failed to record your vote. Please try again
1 of 1 people found the following review helpful By SWS on October 20, 2011
Verified Purchase
I had to rebuild my computer because my previous build had a psu that failed. So Instead of just getting a new psu. I decided it was time to upgrade.

I do not overclock so.

put the computer together. and everything boots up with no hiccups.

solid motherboard.
Comment Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback. If this review is inappropriate, please let us know.
Sorry, we failed to record your vote. Please try again
1 of 1 people found the following review helpful By Ron on August 25, 2011
Verified Purchase
I've used about every motherboard brand there is and switched to Intel 6 years ago. Now I would not use anything else. On top of that you get a three year factory warranty.

Also Amazon's shipping and handling was excellent.
Comment Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback. If this review is inappropriate, please let us know.
Sorry, we failed to record your vote. Please try again
1 of 1 people found the following review helpful By M. Lamboy on April 4, 2011
Verified Purchase
The install of this board was smooth and easy. Its been some ten years since I put together a desktop and this was really a pleasure once I researched what was needed: Windows 7 64bit, Intel i3 550, 8gig corsair memory, 1 TB caviar black, 1 locally dragged home Antec 300, Silverstone low profile CPU fan, coolmaster 500 Watt PS, lightON DVD. This is my HTPC and so far it's really working nicely. The minor annoyances have been the USPS delivery of parts which come a week after everything else(Thermal paste, doh!). Now I'm waiting for some extra fans and another 1TB caviar black. If the packing is ratty I'll just send it back sight unseen.
