Intel Core i7-3770K Quad-Core Processor 3.5 GHz 8 MB Cache LGA 1155 - BX80637I73770K

by Intel

• 3.50Ghz Intel Core i7-3770K Processor (4 cores / 8 threads)
• 8 MB L3 shared cache
• LGA1155 socket
• Two memory channels supporting up to 32GB of memory

Product Details

• Product Dimensions: 4.5 x 3.2 x 4 inches ; 7 ounces
• Shipping Weight: 12.8 ounces (View shipping rates and policies)
• Shipping: Currently, item can be shipped only within the U.S.
• ASIN: B007SZ0EOW
• Item model number: BX80637I73770K
• Average Customer Review: 4.8 out of 5 stars  See all reviews (221 customer reviews)
• Amazon Best Sellers Rank:
  • #5 in Electronics > Computers & Add-Ons > Computer Components > CPU Processors
• Date first available at Amazon.com: April 29, 2012

Product Description

Intel BX80637I73770K Core i7-3770K Ivy Bridge 3.5GHz LGA 1155 77W Quad-Core Desktop Processor Intel HD Graphics 4000

Most Helpful Customer Reviews

235 of 249 people found the following review helpful

5.0 out of 5 stars (Former) Top quad core CPU April 29, 2012

By nako

***Update 06/03/2013: The next generation Haswell i7-4770K and i5-4670K have superseded the IvyBridge i7-3770K and i5-3570K. They are between 0-15% faster in most regards, depending on task. See AnandTech's "The Haswell Review" for details.

As of 04/29/2012, this is the current top-end "premium" tier Intel chip - about 5-10% faster than the i7-2700K which it replaces. The current top-end "extreme" tier is and will remain the six core i7-3960X until the second half of 2013, when the Ivy Bridge-E is released.

It overclocks nearly as high as Sandy Bridge and heats up more with voltage. This means 4.4 to 4.7 GHz will be around the limit on air. Note that if you do not plan to overclock and/or intend to run virtual machines, the plain 3770 is the cheaper and better choice as it has Intel SIPP, vPro, VT-d and TXT enabled (the K has these disabled).

At its official retail price, three hundred and thirty two dollars, it is currently one of the best values for a high performance chip in the market. The next steps up are 2-3 times this price.

The GPU performance compared to the 2700K is about 50% faster, which is equivalent to a $40-60 video card.... This is enough to play most games at mediocre quality with a mediocre framerate or run Quick Sync very fast (Intel's custom medium-quality h264 encoder; about 300 frames per second on 1080p video).

If you do not have much use for the GPU, most i5 and i7 owners will have a hard time justifying the Ivy Bridge upgrade. All other slower chips will see a substantial improvement. Another good value is the Ivy i5 3570K which is something like 0-15% slower and 30% cheaper.

The new motherboard lineup consists of the Z77, Z75, H77, Q77, Q75 and B75 chipsets. The major improvements over the Sandy Bridge generation is native USB 3.0 support, PCIe 3.0 (with Ivy chips only) and SSD-HDD hybrid caching. Z/H/X all have CPU overclocking. The 77s have the SSD caching. Most owners of this chip will probably get a Z77 which is feature rich and nearly the same price (about ninety dollars for the cheapest board currently).

[Sources: AnandTech, TomsHardware, overclock.net; see comments for some minor extra detail] Read more ›

99 of 106 people found the following review helpful

5.0 out of 5 stars Awesome CPU!!! Don't be scared of higher OC temps!!! May 1, 2012

By lawpnoy1

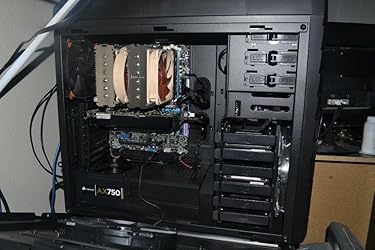

-SETUP-
CPU: Ivy Bridge i7-3770k
HEATSINK: Noctua NH-D14
MB: Asus Maximus V Gene
GPU: EVGA GeForce GTX 680(OC'd to 1286Mhz core clock & 3400Mhz memory clock. AC Twin Turbo II heat sink installed)
MEM: 16GB Mushkin Enhanced Redline 2133Mhz(OC'd to 2400Mhz)
SDD: 2x 240GB Mushkin Chronos Deluxe in RAID0
PS: Seasonic 1000W 80+ Platinum
CASE: Fractal Design Define Mini

-OVERCLOCKING-
As we all know, Ivy Bridge runs pretty hot overclocked when compared to its predecessor Sandy Bridge. Arguments have been made as to the reason of this and it may be due to its newly implemented 3D transistors or because it uses thermal paste as a conduit between the heat shield and the CPU die or maybe its due to a combination of both. Regardless, IF you plan to overclock this sucker YOU WILL NEED A 3RD PARTY COOLER!!! Whether it be water cooled or air cooled or even cooled by ln2, do your research and find a good heat sink!

Most reviewers are reporting that you can reach a decent overclock of 4.6Ghz at around 1.275 - 1.300 volts with temperatures reaching the 85-90C mark during stress tests. This is considered NORMAL because Ivy Bridge is more resilient to high temperatures than Sandy Bridge. To be safe and to lessen CPU degradation, aim for no more than 1.5v and MAX load temps ~90C. For the majority of people out there, this type of overclock should suffice.

-RESULTS-
Currently I am running my CPU at 4.6Ghz at 1.300v for the extra headroom.... Here are the temperature results during stress tests:

NH-D14 in "normal mode"(~1300RPM)
Intel Burn Test: 85-92C
Lynx: 80-85C
AIDA64: 70-75C
Prime95: 75-80C

NH-D14 in "silent mode"(~900RPM)
Intel Burn Test: 90-95C
Lynx: 85-90C
AIDA64: 75-80C
Prime95: 80-85C

The temperatures were about 4-5 degrees cooler in normal mode.

-CONCLUSION-
In the end, this processor proves to be a true successor to Sandy Bridge due to its performance increase and lower power consumption; however, these performance increases are marginal at best. This means that if you're thinking about upgrading coming from a 2600k or 2700k, don't bother. Unless you absolutely need to have the latest hardware or if you want features such as integrated PCI-E 3.0, USB 3.0, higher memory bandwidth, HD 4000 graphics, etc... keep your Sandy Bridge. IMO, you shouldn't upgrade your CPU unless you're at LEAST 2 generations behind. I upgraded coming from a Yorkfield Q9550 and am very happy with the noticeable performance boost. Though temperatures are higher than what we're used to seeing, it doesn't mean that it's a bad thing, it's just different. So don't let high OC temps shy you away from this great piece of hardware. Great product Intel!!! A++

-UPDATES-
04/29/2012
- Bought the product

05/02/2012
- Managed to get it stable at 1.280 volts at same 4.6Ghz. New temps are all 5C cooler!!!

05/17/2012(FINAL)
- Reduced to 1.21 volts at same 4.6Ghz.
- Highest load temp was 85C while fans were in silent mode.
- Reduced memory clock to stock speed(2133 Mhz), and timings(9-11-10-28) to run prime95 for ~16hrs. Overclocked them back to 2400Mhz 10-12-11-32 after stress testing since they run just fine. No BSODS or random crashes. If I do experience any issues with stability, then I know I need to clock the memory back down, otherwise I'll keep the extra speed.
- No updates shall be added unless something drastic occurs.
- Remember, running stress tests on a new PC is done only to test stability. In a realistic environment, you will not be running your machine at 100% load 24/7 unless you're folding proteins or something. On a normal day of playing games, surfing the internet, listening to music, watching moves, etc... my CPU does not go above 70C and averages around ~60C. Read more ›

48 of 57 people found the following review helpful

5.0 out of 5 stars Excellent (with Light Reservations) May 9, 2012

By Tyler S.

Amazon Verified Purchase

The i7-3770k is a fantastic processor! Out of the box (with no overclocking), I got a Windows Experience Index rating of 7.7 (on a 1.0 to 7.9 scale). The CPU installation is quite easy and the 'k' at the end of 3770k means the processor is unlocked for easier overclocking. The HD 4000 graphics are also great! I got a Windows Experience Index of 6.5 in both graphics categories without the need for a discrete GPU (if you don't need serious graphics performance, this processor could save you money on a graphics card!).

This chip laughs at anything I give it. It can transcode a 1 hour 45 minute HD video in just a few minutes without using most of the full force of the processor (my particular trial lasted about 11 minutes and utilized just under 20% of the CPU power including my internet browser).

I do have a few light reservations, however. First, the price is going up (at least on amazon) and will eventually drop off a bit. The recommended retail price (given by Intel) is around 320-330 (similar to what the i7-2700k goes for).

Second, the Intel Core i5 3570K Processor 3.4 4 BX80637I53570K shares a lot of the great features of the i7-3770k for a lot less money (100 dollars or more cheaper). You lose 2MB of L3 cache, 100 MHz in clock speed and turbo speed, and the hyper-threading technology when you move down to the i5-3570k. But you keep the HD 4000 graphics and the unlocked processor for overclocking (the i5-3570k might even be slightly better for overclocking purposes which could make up for its 100 MHz decrease, and even some of the hyper-threading).... In general, if you have software which can fully utilize 8 threads, this processor is probably worth the extra cost.

Third, the ivy bridge lineup does run a bit hotter than sandy bridge, but this is completely expected from a smaller architecture. This shouldn't be much of a problem (very good overclocking with air is still easily possible and extreme cooling allows for some incredible results) but upgrading from an overclocked sandy bridge might not make much sense - unless the HD 4000 graphics are worth it for you.

Overall, this is one of the greatest processors available today (definitely the best performer on its socket type). Any processor which beats this one costs at least several hundred dollars more and doesn't gain nearly that much in extra performance. So, if you can handle the somewhat higher price than the i5-3570k, get this beast of a CPU! Read more ›
