Product Information
Technical Details
| Part Number | 2026WW-31K |
| Item Weight | 4 ounces |
| Product Dimensions | 9.3 x 9.3 x 0.4 inches |
| Origin | Imported (China) |
| Item model number | 2026WW-31K |
| Color | Warm White |
| Material | Plastic |
| Wattage | 24 watts |
| Item Package Quantity | 1 |
Additional Information
| ASIN | B002QQ48TK |
| Best Sellers Rank | #589 in Home Improvement (See top 100) |
| Shipping Weight | 1 pounds (View shipping rates and policies) |
| Date First Available | September 28, 2009 |
Feedback
Would you like to update product info or give feedback on images?
Product Description

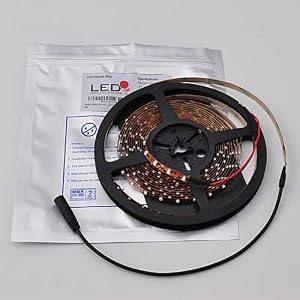

Designed for the average home owner as well as lighting professionals, this lighting can be used for architectural lighting, sign letter lighting, concealed lighting, perimeter lighting amongst many other applications. Our LED Ribbon is the coolest and most efficient way to decorate tables, TV rooms, bedrooms and closets. They can also function as eye catching special effects at stores and expo booths. Specifications LED Type SMD 3528 Number of LEDs 300 View Angle: 120 degrees Lumen: 900-1100 Lumen Watt 24 Watts Input Voltage: 12 Volts DC Current 2 Amps
Important Information
Wattage
24 Watts
24 Watts
Customer Reviews
Most Helpful Customer Reviews
137 of 138 people found the following review helpful
By Eric
Amazon Verified Purchase
In brief use this product is working well. Some technical data you may find helpful:
1. Product is 10 pieces of 0.5m flex, with 30 LEDs each, joined end to end by solder, with continuous adhesive backing.
2. Product can be cut at each 3-LED increment, marked with a silk-screened dash. (Each increment has 3 LEDs and one resistor, in series)
3. Solder pads are present at every 3-LED increment, though soldering to the existing "joins" every 0.5 meters will be easiest because they already have solder blobs.
4. With a regulated 12 volt supply, total load for the 5m chain is about 1 Amp. Voltage drop at the end of 5m is 10%.
1. Product is 10 pieces of 0.5m flex, with 30 LEDs each, joined end to end by solder, with continuous adhesive backing.
2. Product can be cut at each 3-LED increment, marked with a silk-screened dash. (Each increment has 3 LEDs and one resistor, in series)
3. Solder pads are present at every 3-LED increment, though soldering to the existing "joins" every 0.5 meters will be easiest because they already have solder blobs.
4. With a regulated 12 volt supply, total load for the 5m chain is about 1 Amp. Voltage drop at the end of 5m is 10%.
105 of 105 people found the following review helpful
By SnappyPappy
Amazon Verified Purchase
I ordered this 5 Meter reel of 300 LEDs hoping that they would be bright enough to serve as under-cabinet lights to brighten my counter tops. Not only are they bright enough, they can be cut into sections as small as 2" (with 3 LEDs) and put just about anywhere. With simple soldering skills and some light gauge wire, it is possible to place these light strips into just about any configuration.
A single strip of these LEDs are bright enough to make the countertop bright, but my application has given me almost twice the LED ribbon that I need. I plan to double-up on the LEDs by running an additional strip behind the front strip giving me additional light. If this is too much, I can always dim down to an appropriate level.
Along with the LED reel, I also purchased PWM Dimming Controller For LED Lights or Ribbon, 12 Volt 8 Amp, 3301 and 30 Watt LED Power Suppply Driver Transformer 120 to 12 Volt DC Output, 3207. The dimmer works wonderfully and the power supply seems to have enough zip to keep things bright!
A single strip of these LEDs are bright enough to make the countertop bright, but my application has given me almost twice the LED ribbon that I need. I plan to double-up on the LEDs by running an additional strip behind the front strip giving me additional light. If this is too much, I can always dim down to an appropriate level.
Along with the LED reel, I also purchased PWM Dimming Controller For LED Lights or Ribbon, 12 Volt 8 Amp, 3301 and 30 Watt LED Power Suppply Driver Transformer 120 to 12 Volt DC Output, 3207. The dimmer works wonderfully and the power supply seems to have enough zip to keep things bright!
49 of 51 people found the following review helpful
As a professional remodeler, I have install under counter/ under cabinet lighting in various applications. This LED ribbon is superior to any halogen, quartz or fluorescent fixture. Minimal energy usage, great flexibility, extremely easy to install. I cut this to the length I need and then solder the power leads to the transformer. You can see from the pictures I added, the illumination is very even and consistent.
Don't bother buying the halogen or quartz or xenon undercab lights. They get too hot, bulbs frequently burn out and the replacements are expensive.
I even connected the left over 12" to a 12v battery and it worked great. Might utilize in the bed of the truck.
Unfortunately, I bought this from a local lighting supply and paid $140 for 13' of ribbon and transformer. Next time I will buy on Amazon.
Don't bother buying the halogen or quartz or xenon undercab lights. They get too hot, bulbs frequently burn out and the replacements are expensive.
I even connected the left over 12" to a 12v battery and it worked great. Might utilize in the bed of the truck.
Unfortunately, I bought this from a local lighting supply and paid $140 for 13' of ribbon and transformer. Next time I will buy on Amazon.
Most Recent Customer Reviews
5.0 out of 5 stars
Bright as a light bulb!
I expected the usual brightness level of a mood light and was blinded by output that I would expect from an incandescent bulb. Read more
Published 15 hours ago by Richard A. Silva
5.0 out of 5 stars
Works perfectly, and is easy to work with.
I used two of these reels to light a built-in bookcase I built in our hallwall. Cut the strips into 48" long sections, then connected all five strips to a dimmer/power supply. Read more
Published 6 days ago by Pudding
4.0 out of 5 stars
Great for the price
This is a decent product at a great price, especially if you compare the price to what you would pay in a lighting design store. I used these for under-counter lighting. Read more
Published 7 days ago by bcz
5.0 out of 5 stars
Excellent Buy wish I could use more
This was easy to hard-wire in place. Gives off excellent light. Wish I had more places to install. Cuts easily.
Published 13 days ago by Phil Beautrow
5.0 out of 5 stars
Nice Lights
These lights are awesome, very easy to install and look great. The best part is they are low power lights and very easy to install. Nothing can go wrong with these.
Published 13 days ago by Tanveer Nabi Ahmed
5.0 out of 5 stars
awesome
Nice warm light, easy to set up. Adhesive is strong, solder pads are perfect size and easy to solder. They all light up. Read more
Published 17 days ago by clone2601
4.0 out of 5 stars
it is nice and good product
I install it on top of the kitchen cabinet and at night it look really nice, I would buy more of this light
Published 18 days ago by Tuan M. Leu
5.0 out of 5 stars
Product works great
I was looking for some kind of lighting that I could place inside the cupboards in my fifth wheel trailer. Read more
Published 19 days ago by Just another consumer
5.0 out of 5 stars
Suited my needs perfectly!
These are the perfect lights for my bookcases. They are simple to install and highlight all my art objects exceptionally well. So glad my son found this product for me!
Published 20 days ago by Marty Evans
5.0 out of 5 stars
good led
Good leds for the price just make sure when you order these its what you want as these are not water proof so they dont come with the ruber on the out side wish its ok for me as im... Read more
Published 21 days ago by juan
