Product Specifications
Part Number 01-LTB30-1LZ
Size5/10/15/30 Minute Timer
ColorIvory/Light Almond
Item Package Quantity1
Product Features
|
Product Description
Amazon.com Product Description

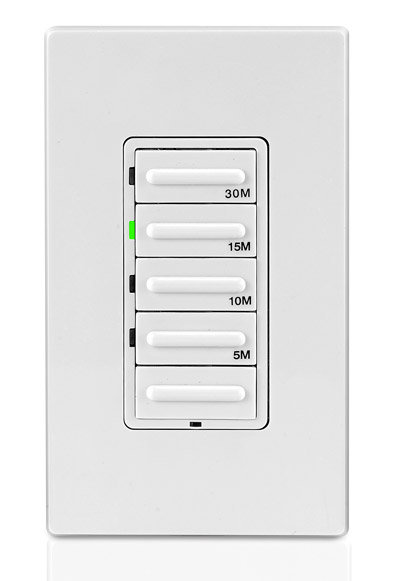

Featuring a streamlined, contemporary design, the Leviton LTB30 Decora Preset 30-Minute Countdown Timer offers advanced features and superior accuracy. It provides convenient timed control of lighting and motor loads in homes, offices, schools, libraries, and more. It's ideal for automating heat lamps, hot tubs, attic fans, and bathroom exhaust fans.
Automatic Control of Lighting and Motor Loads
With four preset buttons and one OFF button, the Leviton LTB30 Timer is easy to use. Simply press the button for the amount of time you want a light or motor load to remain on--the device will automatically turn off when the time period has expired. Press and hold the top button to initiate override or press and hold two buttons to convert the preset 30-minute timer into another time interval.
|
 Easy operation with four presets (5, 10, 15, and 30 minutes) and off button. View larger. |
With four preset buttons and one OFF button, the Leviton LTB30 Timer is easy to use. Simply press the button for the amount of time you want a light or motor load to remain on--the device will automatically turn off when the time period has expired. Press and hold the top button to initiate override or press and hold two buttons to convert the preset 30-minute timer into another time interval.
Complete with green LED locator lights, this timer offers single-pole or three-way capability with a VP0SR Vizia + Switch Remote (sold separately). The LTB30 Timer also includes three colors options in the box--white, ivory, and light almond--to coordinate with any decor.
Lowers Energy Bill and Helps the EnvironmentEven with the best of intentions, it's often easy to forget to turn off a light or fan before leaving a room, which wastes energy and increases utility costs. By replacing a standard light switch (where a neutral wire is present) with the LTB30 Timer, you can reduce overall power usage, lower energy bills, and help improve the environment.
Easy Installation and Operation
The LTB30 Timer meets UL, CSA, and FCC requirements, and it can replace a standard wall switch where a neutral wire is present and is gangable with other devices. For added convenience, the LTB30 can be used in a single-pole installation or in a three-way installation with a VP0SR Vizia + Switch Remote (sold separately).
The Leviton LTB30 Decora Preset 30-Minute Countdown Timer is backed by a five-year limited warranty.
What's in the Box
Leviton LTB30 Decora Preset 30-Minute Countdown Timer with 5-, 10-, 15-, and 30-minute time intervals and off button, three faceplates (white, ivory, and light almond), and instruction sheet.
Product Description
Leviton 01-LTB30-1LZ 1000 Watt Decora Plus 5, 10, 15 & 30 Minute Electronic Timer SwitchLeviton 01-LTB30-1LZ 1000 Watt Decora Plus 5, 10, 15 & 30 Minute Electronic Timer Switch Features:; Timer switch; Four preset on and off buttons permit timed control of lights and appliances for 5, 10, 15 or 30 minutes; Ideal for heat lamps, foyer and outdoor lights, hot tubs, spas, attic and exhaust fans; LED's indicate elapsed time and flash "Two Minutes Unit OFF" warning; Installs easily in a single gang wall box in place of a standard switch; Single pole; 1000 watt; 20 amp; 120 volts; 3 wire
Product Details
Would you like to update product info or give feedback on images?
|
Related Items
- Most Popular
- Wall Plates
- Bathroom Hardware
- Electrical Timers
Customer Reviews
Most Helpful Customer Reviews
49 of 49 people found the following review helpful
Size Name:10/20/30/60 Minute Timer|Amazon Verified Purchase
The best home automation upgrade you can make is to install these on your bathroom fans. The timer never forgets to turn off the fan. The real energy savings is that you do not needlessly blow a bunch of heated or cooled air out of your house.
After 11 years, the buttons on my most heavily used unit started to fall off. This is because each button is held on by four extremely thin and brittle fingers. I'm a bit miffed that I have to replace the entire unit just for this. Leviton has yet to correct this weakness in the design.
Here are my recommendations for these units:
* In new construction, install deep junction boxes everywhere so that if you decide to install bulky controls like this timer, they'll fit
* Install only units that can handle "inductive load", like the LTB models. This means they can control motors and fluorescent lighting. Lighting options are changing these days, so don't limit yourself to "incandescent only".
* Install 30 minute LTB30-1LZ or 15 minute LTB15-1LZ timers for half bathrooms. That's plenty of time to evacuate a small room of noxious odors.
* Install 60 minute LTB60-1LZ timers for full baths. The extra time is needed to clear out all the moisture, and you can always choose less time.
* In the garage I use a 2 hour LTB02-1LZ timer for the lights over the cars and laundry
* For the lights over my workbench where I am engaged for longer periods of time, I use a 12 hour LTB12-1LZ timer
After 11 years, the buttons on my most heavily used unit started to fall off. This is because each button is held on by four extremely thin and brittle fingers. I'm a bit miffed that I have to replace the entire unit just for this. Leviton has yet to correct this weakness in the design.
Here are my recommendations for these units:
* In new construction, install deep junction boxes everywhere so that if you decide to install bulky controls like this timer, they'll fit
* Install only units that can handle "inductive load", like the LTB models. This means they can control motors and fluorescent lighting. Lighting options are changing these days, so don't limit yourself to "incandescent only".
* Install 30 minute LTB30-1LZ or 15 minute LTB15-1LZ timers for half bathrooms. That's plenty of time to evacuate a small room of noxious odors.
* Install 60 minute LTB60-1LZ timers for full baths. The extra time is needed to clear out all the moisture, and you can always choose less time.
* In the garage I use a 2 hour LTB02-1LZ timer for the lights over the cars and laundry
* For the lights over my workbench where I am engaged for longer periods of time, I use a 12 hour LTB12-1LZ timer
16 of 16 people found the following review helpful
Size Name:5/10/15/30 Minute Timer|Amazon Verified Purchase
I love these switches for my bathroom vent fans and heater fans so I don't forget to switch them off. I like the way they look, and they are extremely simple to use.
This is a replacement for the older model 6230. The differences are:
- The LED's are green (6230 was red).
- 3 different color button covers are included.
- Neutral connection is mandatory (the 6230 didn't need the neutral for low current applications, this one does)
- Support for 3-way operation.
- Smaller heatsink, no need to break off tabs for side-by-side switches.
These switches are very deep - if you are installing a new box, get the deep kind like this one so you'll have plenty of space for the wiring:
Thomas & Betts #BH234R 2G OldWork SuperBLU Box
This is a replacement for the older model 6230. The differences are:
- The LED's are green (6230 was red).
- 3 different color button covers are included.
- Neutral connection is mandatory (the 6230 didn't need the neutral for low current applications, this one does)
- Support for 3-way operation.
- Smaller heatsink, no need to break off tabs for side-by-side switches.
These switches are very deep - if you are installing a new box, get the deep kind like this one so you'll have plenty of space for the wiring:
Thomas & Betts #BH234R 2G OldWork SuperBLU Box
9 of 9 people found the following review helpful
Size Name:10/20/30/60 Minute Timer|Amazon Verified Purchase
We bought super quiet fans for the bathroom which was great. The downside was that they were quiet enough to be left on. The controllers by Leviton in Home Depot only control lights, they are not strong enough for fans. After installing these ones from Amazon, its great. They work with the vent fans and turn themselves off. With 4 kids in the house, its perfect! They come with different color button controllers to match your environment. Feels like a quality product and acts like one.
Most Recent Customer Reviews
Install-Operation-Aesthetic Review
INSTALLATION: First off, if you are going to use this for a fan, you want the unit to say for INDUCTIVE *and* requires the neutral wire. Read more
Published 13 days ago by bobb
easy to install, works like a charm!
After reading reviews about how large this unit is, I was a bit nervous. However, the wiring harness makes it very easy to integrate it into an existing box. Read more
Published 13 days ago by John Feaver
I will not buy them
I am an electrical contractor and I installed quite a few of these timers, including in my own home. Read more
Published 16 days ago by Nick Rosioru
Buzzing Relay issue - defective
Love the design. This worked as advertised for a year and a half; now, when powering on, the internal relay makes a loud buzz/hum much of the time for about the first 30 seconds of... Read more
Published 1 month ago by Andy M.
Surprises - product description incomplete.
I love my other Leviton Timer switch, and wanted to put the same on 4 other bathroom fans in houses that I own, but couldn't not find the same model # on Amazon, so I bought this... Read more
Published 1 month ago by DMC
Works great
This timer worked perfectly for a bathroom ceiling fan. No more leaving the fan on for hours and hours. I was able to install myself and I have little experience with wiring.
Published 1 month ago by Jason
Leviton LTB02-1LZ DECORA (R) Brand (R) 1800W Incandescent/20A...
Leviton offers many products that will help lower electrical costs and add convenience to everyday living. Read more
Published 1 month ago by J. Sayson
Awesome timer
The best feature on this is the individual buttons that allow you to select 12 hour, off, etc. No need to cycle. Simple and straight forward. Read more
Published 1 month ago by JLDET5
Comes in all 3 colors listed in one package
The description makes this unclear, but this timer has all 3 colored plates in the package... that is why you do not get to select what color yours comes in. Read more
Published 2 months ago by K. Ricker
Awesome.
Carefully selected this item for style vs functionality vs price from all other options for upstairs bathroom fan. Easy installation. Works great. Time will tell. Read more
Published 2 months ago by Jesse Guardiani
