- High resolution 1/3" CCD Image Sensor with 3.6mm F2.0 fixed lens yielding 79 degree field of view
- 35 IR LED's produce 80ft. Night Vision range
- IP66 Weatherproof Rating
- BNC Termination, with BNC to RCA coupler in carton box
- Includes 60ft. BNC/Power Extension Cable, BNC to RCA adaptor and 12V Power Adaptor
Technical Details
Product Details
Would you like to update product info or give feedback on images?
|
Product Description

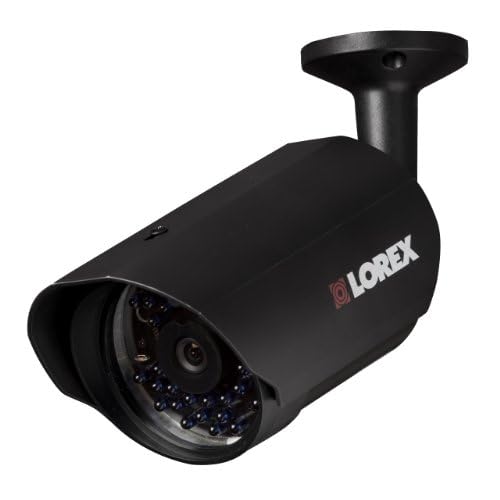

The Lorex CVC6985U Ultra High Resolution Security Camera features a CCD image sensor with 540 TV lines delivering sharp and clear video. The advanced day/night mode automatically switches images to B&W for maximum image clarity. IP66 Weatherproof rating for indoor or outdoor use with 80ft Night Vision range.
Customer Reviews
Most Helpful Customer Reviews
16 of 16 people found the following review helpful
I purchased a different model lorex 150 foot night vision camera and was amazed at the quality. That camera has beat 60mph winds, snow, and rain without a problem while still producing a clear picture since day one. For that reason I purchased the model LOREX CVC6985U and had nothing but good thoughts on my way outside to install this thing.
Thinking ahead I decided to test the camera out before climbing +15 feet in the air and mounting it. That's when the feel good story came to an end. This camera while producing a very nice picture does not recognize black and grey clothing, so it displays those colors as green. I could not believe it so I changed to another black shirt and it once again showed green. I then panned to a black garbage container and it was black, then I panned to a black grill set and it was black. However, I panned back to my black shirt and it showed green. I then went inside and randomly recorded black images around the house all of which looked fine, however, the conclusion was that once my black clothing was recorded they were green which puzzles me. I then unplugged the cable off a surveillance monitor and ran the cable to a hd tv and same deal. Green Green Green shirts and pants. I can only imagine someone installing this camera and not testing it out and end up giving the police the description of a burglar with a green shirt,green hat, and green pants. Maybe I just have a defective model. If that is the case, This review will change to reflect that once a replacement unit is had. Until then ***TEST*** this camera before you climb up the ladder.
**Update**
Replacement unit was received and the same problem mentioned above occurs. It was told to me that this model Lorex CVC6985U, was not produced with what's called an IR-Cut off filter mechanism. That means the colors will not be accurate and true to life. I wish they would state that on the box as I have and have seen plenty of other Lorex cameras and none of them have this issue. This camera is marketed as Day/night just like the rest and on the box it shows a garden, people in a store, and other outside activities. Nothing however, expresses the fact that black, grey, and other dark colors will display as loud green because the company decided to not include a filter on the lens' of the camera. I have $20 cameras that have this filter. If your a professional and know how to install this filter on the lens(You might void the warranty) this might be a good camera. However, if your one of the many D-I-Y'ers keep looking and if your buying a Lorex make sure the camera has a filter installed stock from the factory.
Thinking ahead I decided to test the camera out before climbing +15 feet in the air and mounting it. That's when the feel good story came to an end. This camera while producing a very nice picture does not recognize black and grey clothing, so it displays those colors as green. I could not believe it so I changed to another black shirt and it once again showed green. I then panned to a black garbage container and it was black, then I panned to a black grill set and it was black. However, I panned back to my black shirt and it showed green. I then went inside and randomly recorded black images around the house all of which looked fine, however, the conclusion was that once my black clothing was recorded they were green which puzzles me. I then unplugged the cable off a surveillance monitor and ran the cable to a hd tv and same deal. Green Green Green shirts and pants. I can only imagine someone installing this camera and not testing it out and end up giving the police the description of a burglar with a green shirt,green hat, and green pants. Maybe I just have a defective model. If that is the case, This review will change to reflect that once a replacement unit is had. Until then ***TEST*** this camera before you climb up the ladder.
**Update**
Replacement unit was received and the same problem mentioned above occurs. It was told to me that this model Lorex CVC6985U, was not produced with what's called an IR-Cut off filter mechanism. That means the colors will not be accurate and true to life. I wish they would state that on the box as I have and have seen plenty of other Lorex cameras and none of them have this issue. This camera is marketed as Day/night just like the rest and on the box it shows a garden, people in a store, and other outside activities. Nothing however, expresses the fact that black, grey, and other dark colors will display as loud green because the company decided to not include a filter on the lens' of the camera. I have $20 cameras that have this filter. If your a professional and know how to install this filter on the lens(You might void the warranty) this might be a good camera. However, if your one of the many D-I-Y'ers keep looking and if your buying a Lorex make sure the camera has a filter installed stock from the factory.
4 of 4 people found the following review helpful
Amazon Verified Purchase
I can confirm previous reviewer's observation in regards to colors. Some black, blue or violet closing appear as various levels of green. The picture is good othervise.
Night vision is good when objects are close and are at the same distance. One of my cameras is mounted over the entrance and is about 8 feet high. The field of view is pretty level. Night vision is perfect. The other one is mounted about 10 feet high over my driveway. It gets retaining wall in its view, at about 6 feet away. The wall looks very bright but the rest of the driveway is very dark. I suspect it is focusing too much on the wall so the rest just fades out.
Night vision is good when objects are close and are at the same distance. One of my cameras is mounted over the entrance and is about 8 feet high. The field of view is pretty level. Night vision is perfect. The other one is mounted about 10 feet high over my driveway. It gets retaining wall in its view, at about 6 feet away. The wall looks very bright but the rest of the driveway is very dark. I suspect it is focusing too much on the wall so the rest just fades out.
1 of 1 people found the following review helpful
Amazon Verified Purchase
I install surveillance systems for various clients some residential and some commercial. This camera installs really nice wide view with a good quality picture and infrared. I have bought good bit of these camera and only two of them have gave me any trouble. One got moisture in the inside of the camera, I opened it enough for it to evaporate so I haven't had any trouble. Now the most recent one I order the infrared is going out. Now the customer can't see at night. I hope they can fix it or send me a new one.
Most Recent Customer Reviews
Lorex has quality control issues
We have a Lorex Edge+ security system with 8 cameras. One of the cameras for the system was bad, out of the box. Read more
Published 22 days ago by Zoe
Problem after 6 months
Installed camera. I actually don't mind the colors but it failed after working 6 months. Picture started to look blurred and it got worse until it was unusable. Read more
Published 4 months ago by A. Singh
Awesome Camera
This camera is perfect just make sure to use Lorex's high performance cable for better video quality. Read more
Published 6 months ago by 912range
Lorex-CVC6985U-Professional-Outdoor-Security
This is a great camera. The picture is crisp and the night vision is good. This is by far my favorite of the four cameras I've tested. Read more
Published 8 months ago by H. E. Perez
Exellent camera
I am the security camera installer.
I think this is the best camera for it price.
It has high resolution picture and the excellent colored night vision about 80 fit or... Read more
I think this is the best camera for it price.
It has high resolution picture and the excellent colored night vision about 80 fit or... Read more
Published 9 months ago by Rezonans
A great camera
This little camera gives a beautiful view of our rear driveway area. Although I have it plugged into an RCA input (using the included BNC to RCA adapter), you'd swear the picture... Read more
Published 12 months ago by smt
Lorex Wide Angle Camera
I've found this camera to be perfect for my outside application. The kit cameras that came with my Lorex system were 50 degree field of view. This one is 79 degrees. Read more
Published 13 months ago by James L. Rucker
