Plug & Play Wireless Video Security
Bring wireless video security to your home, cottage, or small business with the Lorex LIVE LW2110 Wireless Digital Security Camera. Keep an eye on your property, pets, or loved ones any time of the day or night with this easy to setup, easy to use wireless surveillance solution.
Connects to any TV. DVR, VCR, or monitor!

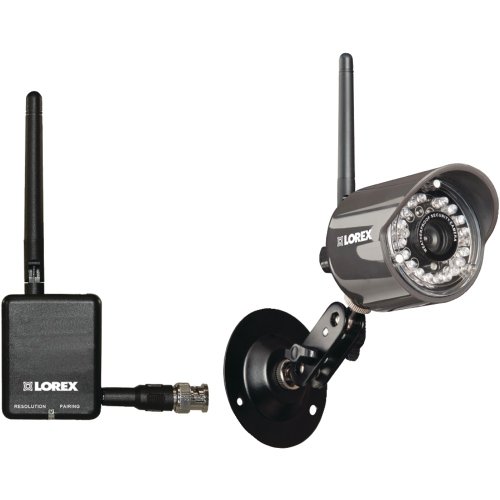

The LW2110 Wireless Digital Security Camera is easy to install right out of the box. The wireless micro-receiver connects directly to a TV, monitor, or surveillance recorder (DVR). The camera can be mounted to most flat surfaces and positioned easily thanks to the 3D Flex stand. Single-channel viewing in full-screen VGA resolution (640x480) or in real-time CIF resolution of 320x240 at 25fps.
The LW2110 is an all-weather wireless camera that can used for both indoor and outdoor installations. Equipped an infrared cut-filter and automatic night vision, the LW2110 Wireless Digital Security Camera delivers clear, sharp images day or night. The camera's high-gain wireless antenna can be angled between 90~180-degrees for easy installation beneath ceilings and eaves troughs and provides an outdoor wireless range of up to 450ft and an indoor range of up to 150ft (with clear line of sight).
- IR Cut-Filter for accurate color reproduction in all lighting conditions
- Up to 60ft/18m of infrared night vision
- High-gain antenna compatible with SMA range extenders
(model: WL2110KIT on lorextechnology.com)
- IP66 weatherproof rating - always shelter the camera from direct
exposure to rain and snow. Not intended for submersion under water
Accurate color reproduction in all lighting conditions
The camera includes a 3ft BNC extension cable to assist in connecting the wireless micro-receiver to your TV, monitor, or DVR. Use the cable if the connector ports are hard to reach or do not allow room for the receiver. When connecting multiple cameras, we highly recommended connecting all micro-receivers using the 3ft BNC extension cable. It is not recommended to install more than 4 digital wireless security cameras in the same environment to maintain optimal video frame rate performance.
The digital wireless transmission uses FHSS technology (Frequency Hopping Spread Spectrum) operating on the 2.4GHz digital frequency band. FHSS allows the signal to hop quickly between channels within the frequency range to avoid conflicts from other devices. Video and audio are sharp and clear, and the signal cannot be picked up by nosey neighbors or other third-parties.
Move the camera and receiver within 10 feet of each other to determine that signal strength is causing the issue. If you can view the camera, then you will need to relocate the camera/receiver or remove any obstructions that may be impacting signal strength. Check the following:
- How far apart are the camera and receiver? A typical wireless camera has a range between 250 to 500 feet in an open field (with line of sight). In a closed environment—such as an interior of a house—the wireless camera range is between 100 to 165 feet or less depending if there are walls or obstructions between the camera and receiver. Move the camera and receiver closer together.
- Are there brick, concrete, or metal walls between the camera and receiver? These materials significantly affect signal strength. Avoid installing the camera and receiver where the signal will need to travel through these materials. If possible, place the receiver where it can get line of sight to the camera through a window (you may need extension BNC or RCA video cables to move it further away from your DVR or TV). If is it not possible to avoid these obstructions, you may need to consider purchasing wired cameras instead.
- Are there obstructions between the camera and receiver? You should maintain line-of-sight between the camera and the receiver if possible or limit the amount of obstructions (e.g. walls or tree branches) between the camera and the receiver.
What's in the Box
- 1 x Color Outdoor Night Vision Camera
- 1 x Wireless micro-receiver
- 2 x Power adapters
- 1 x BNC female / RCA male adapter
- 1 x 3ft BNC extension cable
- 1 x Quick Start Guide
- 1 x Instruction Manual
- 1 x Mounting Kit
- 1-Year Warranty
- Toll-free technical support (with product registration)
