MK-370EXP 1-1/4 HP 7-Inch Wet Cutting Tile Saw

by MK Diamond

Product Description

Amazon.com Product Description

Providing professional quality at an affordable price, the MK Diamond MK-370EXP 1-1/4-Horsepower 7-Inch Wet-Cutting Tile Saw with Stand has a lightweight yet powerful design ideal for both professionals and weekend warriors. Designed for wet cutting of tile and marble, this saw comes with submersible water pump, adjustable rip guide, and convenient folding stand.

MK-370EXP Wet-Cutting Tile Saw with Stand At a Glance: 7-inch portable wet-cutting tile saw with 18-inch rip, 13-inch diagonal, and 2-inch depth of cut 1-1/4-horsepower engine for high torque (6,000 RPM) and power Durable design--thermoplastic water reservoir; zinc-plated steel frame Includes 7-inch wet-cutting diamond blade, water pump, rip guide, and folding stand Backed by a one-year limited warranty

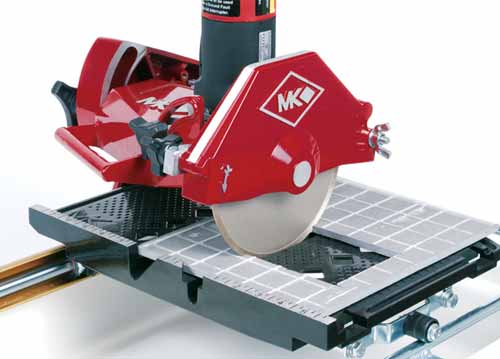

The variable-height cutting head allows for plunge cutting. View larger.

The head tilts to allow for precise, 45-degree miter cuts. View larger.

1-1/4-Horsepower Motor and 7-Inch Blade for Powerful Performance
Weighing in at just 33 pounds, the MK Diamond MK-370EXP Wet-Cutting Tile Saw is a compact powerhouse with a robust, 1-1/4-horsepower, 120-volt electric motor that turns the 7-inch blade at 6,000 RPM. It offers an 18-inch length of cut, 2-inch depth of cut, and diagonally cuts 13 inches, so you can take on different tile sizes and types. The conveyor cart gives precise, chip-free cuts on tile and marble, while the tilting head allows for precise 45-degree miter cuts.

Precise Tracking and Alignment for Professional Results
For optimum accuracy, the CSA-approved MK-370EXP comes equipped with a chrome guide-bar and linear bearing assembly for proper tracking and alignment. A folding stand gives you great stability and project flexibility, while a maintenance-free, self-lubricating pinion and gear-box assembly combine with an adjustable rip guide for precise alignment of materials.

Sliding aluminum die-cast cutting table rips 18-inch tile. View larger.

Thermoplastic Water Reservoir and Thermal Water Pump
To minimize downtime and increase its working life, the MK-370EXP features a 3-gallon thermoplastic water reservoir and a thermal water pump that delivers 95 gallons an hour. For added convenience, the reservoir won't rust or peel and removes easily for cleaning.

Safe and Durable Design
Durable and safe, the MK-370EXP has a single-piece, zinc-plated steel frame for rigidity and strength, as well as a hinged blade guard for accident protection and quick blade changes. There's also an MK-Safeswitch that prevents the saw from being operated when the locking key is removed.

Dimensions and Warranty Information
The MK-370EXP measures 33 by 19 by 20 inches (L x W x H), weighs 33 pounds, and is backed by a one-year limited warranty.

About MK Diamond
Founded in San Francisco in 1868 by Joseph Musto, a fifth-generation Italian stone-cutter and tile-setter, MK Diamond is a family business and world leader in precision power cutting tools and diamond blades. The company takes pride in its work, and is committed to making its products benchmarks by which the rest of the industry measures itself.

What's in the Box
MK-370EXP tile saw, 7-inch wet-cutting diamond blade, water pump, rip guide, and foldable stand (160131-MK).

Product Description

Tile Saw with Stand features 7-inch portable wet-cutting tile saw with 18-inch rip, 13-inch diagonal, and 2-inch depth of cut1-1/4-horsepower engine for high torque (6,000 RPM) and power. Durable design--thermoplastic water reservoir; zinc-plated steel frame.

See all Product Description

Product Details

Product Manual [2.47mb PDF]

• Product Dimensions: 26.7 x 18.9 x 13.2 inches ; 49 pounds
• Shipping Weight: 50 pounds (View shipping rates and policies)
• ASIN: B00004XOFF
• California residents: Click here for Proposition 65 warning.
• Average Customer Review: 3.5 out of 5 stars  See all reviews (24 customer reviews)
• Amazon Best Sellers Rank: #27,048 in Home Improvement (See Top 100 in Home Improvement)
  • #18 in Home Improvement > Power & Hand Tools > Power Tools > Saws > Tile & Masonry Saws

Customer Reviews

Most Helpful Customer Reviews

97 of 99 people found the following review helpful:

4.0 out of 5 stars MK-370K 7" 1/2 HP Tile Saw, December 16, 2002

By A Customer

This review is from: MK-370EXP 1-1/4 HP 7-Inch Wet Cutting Tile Saw (Misc.)

The MK-370K is an excellent value and has been the perfect workhorse for smaller tile jobs of around 300 square feet. The stand included is an added bonus that really adds convenience.
This saw is very loud in addition to having all the normal puddle producing water splash of bigger saws. Because of this, you really can't operate in finished indoor areas or without the recommended hearing protection.
I've used this saw for several months almost exclusively to cut 1/2"X 12" porcelain floor tiles with excellent results. The maximum depth of cut is rated at 1-3/4 inches.
The 7-inch MK Premium Series blade that comes with the saw is a good blade for cutting ceramic tile, but is not intended for continuous cutting of porcelain tile, even though it did a good job with it for quite a while before replacement was necessary. You'll need to upgrade to the better MK Supreme Series or similar blade for this type of work.
The saw has a sturdy plastic water tray that is easy to clean with the aid of a flexible mixing spatula. It doesn't come with a drain plug but you can get the small rubber push-in type from MK or a local Plumbing Supply and install it yourself.
The water pump is a good quality unit made by Little Giant and has an adjustable output. It is easy to disassemble for cleaning and plugs into a receptacle on top of the motor that is controlled by the motor switch. It runs only when you're actually using the machine. I avoid the natural tendency to place the pump filter side down in the tray and instead place it filter side up to keep out tiny tile chips or slurry sediment then occasionally add water to the tray as needed during use to keep the pump intake submerged. Even with the heaviest saw use, it goes all day long without a clog or any reduction of water output.
I have also begun putting a thin coating of Sil-Glyde silicone grease on the table slide rod and rollers once a day to help keep tile grit from binding them during use. This holds up to water splash better and lasts much longer than oil or spray lubes.
Overall, I have been very pleased with this saw. Considering its capabilities and modest cost, I have no problem recommending it to anyone.

77 of 78 people found the following review helpful:

4.0 out of 5 stars The MK 370 is a convenient, capable saw, October 24, 2000

By

TEXAS12 "TEXAS12" (Eastern Shore) - See all my reviews

This review is from: MK-370EXP 1-1/4 HP 7-Inch Wet Cutting Tile Saw (Misc.)

The MK 370 saw cuts tile and marble with ease. It is small in size allowing for use in tight spaces or confined areas. If you have ever used a larger more powerful saw, you will notice a difference, but I believe it to be a good saw for smaller tile jobs where a lot of continuous fast cutting is not needed. The saw is a bit loud compared to larger saws with bigger motors. I would recommend this product to either do-it-yourselfers or tile setters looking for a portable reliable saw for smaller residential jobs.

50 of 51 people found the following review helpful:

4.0 out of 5 stars Excellent choice for the do-it-yourselfer, October 3, 2001

By

Dale Lampson (Sunnyvale, CA USA) - See all my reviews
(REAL NAME)

Amazon Verified Purchase

This review is from: MK-370EXP 1-1/4 HP 7-Inch Wet Cutting Tile Saw (Misc.)

I purchased this saw after my wife created a tile design for a new bathroom that required just about every tile be cut--effectively eliminating the local tool rental shop from consideration. Since then, it's also aided in several room floor tile projects. I've owned many power tools, and I've found the MK 370 to be one of the better ones overall. The motor is sized for the job and delivers consistent, smooth power without excessive vibration at the cutting edge (but do use ear protection-the gearbox is a noisy one). The saw cuts glazed tiles without major chipping so long as a steady and moderate feed rate is maintained. I've had no trouble making precise and accurate cuts. Although the table rollers were misalign out of the box, 2 minutes and 1 wrench fixed this. A small amount of oil applied to the polished glide rod also goes a long way towards ensuring a day of smooth table operation. Working with tiles up to 10 x 10 inches is no problem--despite what the product description says, you can even make many cuts on 13 x 13 inch tiles if you don't mind working with a couple of inches overhang at the blade edge. The only major weakness is the water pump--even though I use a clean water supply, the pump fades with continuous usage and the blade is not always well lubricated. The only way I've found to avoid this problem is to keep the pump at the same level as the saw. If MK would fix this-I'd rate the saw a straight 5 stars for the home user. The stand kit is an excellent companion purchase, as is the variable angle rip guide (the saw comes with only a fixed 90-degree guide).
