MK Diamond 151991 1-1/2-Horsepower 10-Inch Wet Tile Saw

by MK Diamond

Product Description

Amazon.com Product Description

Widely acknowledged as one of the most reliable and durable professional tile saws on the market, the MK Diamond MK-101 1-1/2-Horsepower 10-Inch Wet-Cutting Tile Saw features an industrial-grade Baldor electric motor and one-piece steel frame construction for durability and safety. Whether you're a professional or do-it-yourselfer, the MK-101's fast, clean cuts through ceramic tile and other hard materials will keep your projects going smoothly.

MK-101 Wet-Cutting Tile Saw At a Glance: Reliable, durable wet saw with cutting capacity of 20 inches (14 inches diagonal) Powered by industrial, 1-1/2-horsepower, fan-cooled, Baldor electric motor Multi-position motor post and cutting head accommodates various tile sizes Made in the USA with one-piece steel frame Backed by a one-year limited warranty

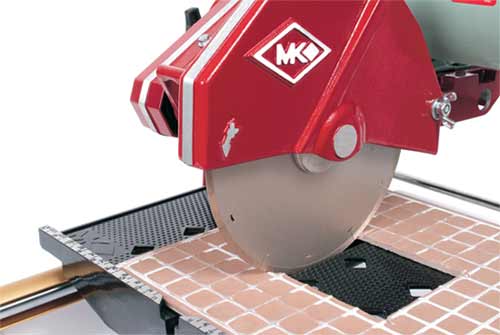

The variable-height cutting head allows for plunge cuts and use of blades smaller than 10 inches in diameter. View larger.

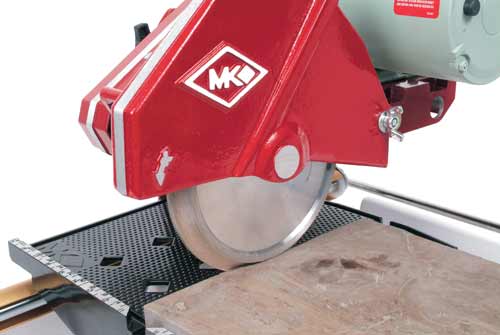

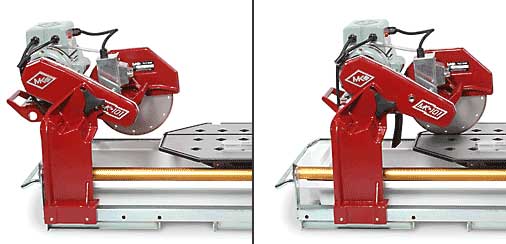

Two-position motor post and head for convenient cutting of various tile sizes. View larger.

Fan-Cooled Baldor Motor for Fast Speeds and High Capacity
A frequent choice of rental dealers because of its trouble-free, long-lasting operation, the MK Diamond MK-101 is made in the USA and loaded with top-quality, reliable features. Its fully enclosed, high-torque, fan-cooled, 1-1/2-horsepower, 120-volt Baldor electric motor rotates at a speed of 3,450 RPM and provides a 20-inch length of cut (14 inches diagonally) as well as a full 3-inch depth of cut.

The Baldor motor also features permanently lubricated, dual-sealed, heavy-duty blade-shaft bearings, and a chrome-plated guide bar for reliable, precise performance tile after tile.

Accommodates 6-inch and 8-inch profile wheels. View larger.

Built-In Water Distribution System for Smooth Cuts
The MK-101 features a built-in water distribution system which supplies water on both sides of the blade for smooth, precise cuts. For project flexibility, the multi-position, motor post and cutting head are adjustable for tile sizes up to 20 inches, while the variable-height, cutting head allows for plunge cuts. This head also permits the use of diamond blades less than 10 inches in diameter and accommodates 6-inch and 8-inch profile wheels.

Finally, the micro V-belt drive ensures powerful service, and the blade shaft locks for easy blade removal.

Cast-Aluminum and Zinc-Plated Steel Frame Construction for Durability
Durable and safe, the MK-101 offers rugged and tough construction for professional-quality results. A cast-aluminum blade guard and motor post join with a one-piece, reinforced, zinc-plated steel frame for stability and performance.

The MK-101 measures 36 by 22 by 23 inches (L x W x H), weighs 92 pounds, and is backed by a one-year limited warranty.

About MK Diamond
Founded in San Francisco in 1868 by Joseph Musto, a fifth-generation Italian stone-cutter and tile-setter, MK Diamond is a family business and world leader in precision power cutting tools and diamond blades. The company takes pride in its work, and is committed to making its products benchmarks by which the rest of the industry measures itself.

What's in the Box
MK Diamond MK-101 wet-cutting tile saw, 10-inch wet-cutting diamond blade, water pump, rip guide, and 45-degree miter.

Product Description

151991 Features: -Wet Cutting Tile Saw MK-101. -Fully enclosed high torque, fan-cooled motor. -Permanently lubricated, dual-sealed, heavy-duty blade shaft bearings. -Has two-position motor post and two-position cutting head for convenient cutting of various tile sizes. -Built-in water distribution system supplies water to both sides of blade. -Variable height cutting head allows for plunge cuts and use of blades smaller than 10'' in diameter. -Accommodates 6'' and 8'' profile wheels. -Micro V-belt drive. -Blade shaft lock for easy blade removal. -Linear-bearing and chrome plated guide-bar assembly ensure precise cutting. -Cast aluminum blade guard and motor post. -One-piece reinforced zinc-plated steel frame. -CSA Approved. -Motor available in other electrical configurations. -Included 10'' wet cutting diamond blade. -Water pump. -Rip guide. -45 Miter. Specifications: -Item # 151991. -Motor: Electric (Baldor). -Power: 1-1/2 HP, 120V. -Blade RPM: 3450. -Blade Capacity: 10''. -Arbor Size: 5/8''. -Depth of Cut: 3-3/4''. -Length of Cut: 20''. -Diagonally Cuts: 14'' Tile. -Dimensions: 36'' L x 22'' W x 23'' H. -Shipping Method: UPS / Fed-Ex. -One year limited warranty. -Weight: 124 lbs.

See all Product Description

Product Details

Product Manual [5.19mb PDF]

• Product Dimensions: 36 x 22 x 23 inches ; 105 pounds
• Shipping Weight: 120 pounds (View shipping rates and policies)
• Shipping: This item is also available for shipping to select countries outside the U.S.
• Shipping Advisory: This item must be shipped separately from other items in your order. Additional shipping charges will not apply.
• ASIN: B000022544
• California residents: Click here for Proposition 65 warning.
• Item model number: 151991
• Average Customer Review: 4.1 out of 5 stars  See all reviews (7 customer reviews)
• Amazon Best Sellers Rank: #316,088 in Home Improvement (See Top 100 in Home Improvement)

Customer Reviews

Most Helpful Customer Reviews

14 of 16 people found the following review helpful:

3.0 out of 5 stars Great cut, pray it holds together!, February 13, 2004

By A Customer

This review is from: MK Diamond 151991 1-1/2-Horsepower 10-Inch Wet Tile Saw (Tools & Home Improvement)

I bought an MK101 and 2 blades. Cuts granite tiles nicely. I was very pleased! For a few hours... After making several cuts to get acquainted, I tried changing blades. Blade changes are not easy and they are even tougher when the blade lock pin jams, breaks, and then pops out. The blade lock mechanism is cheaply made. I found the customer service terrible and helpless. I cannot find a service center in San Diego county. The company itself has given be several numbers, and everyone I call replys that they do not service MK Diamond. I am sorry I bought this saw and will not buy another MK Diamond product. This is terrible quality and service for an $800 saw.

12 of 16 people found the following review helpful:

5.0 out of 5 stars A tile setter's opinion!, August 27, 2000

By A Customer

This review is from: MK Diamond 151991 1-1/2-Horsepower 10-Inch Wet Tile Saw (Tools & Home Improvement)

Well,where do i start.I have been in the tile installation busines for about 14teen years.I have had a lot of experiance with power tools and saws.and in my opinon MK I A SPECTACULAR peice of eqipment verry durrible made verry percise!!!!.AND THE BEST WET TILE SAW OUT THERE!!!!!!!!!!!!!!!

2 of 2 people found the following review helpful:

5.0 out of 5 stars Great saw, great customer service, June 1, 2009

By

W. Thompson "wct3" (Belen, NM USA) - See all my reviews
(REAL NAME)

This review is from: MK Diamond 151991 1-1/2-Horsepower 10-Inch Wet Tile Saw (Tools & Home Improvement)

I recently bought a used MK101... It's a fantastic saw. I've been cutting limestone, ceramic tile, even a brick or two just to see how it handles it, and everything comes out great. I bought a bullnose roundover blade and have just finished installing 65 feet of limestone bullnose I cut and then shaped on the saw.
When I first got the saw I had some alignment problems, clearly the former owner hadn't touched it for years. I went to their website and used the chat feature to send a message (the chat isn't manned on weekends.. but I figured I would get an answer on Monday.) Much to my surprise I got an email an hour later from a vice president at MK Diamond who must have been replying from his Blackberry. We sorted out the problems in a sequence of emails.
