MK Diamond 160267 MK-770EXP 1-1/2-Horsepower 7-Inch Wet Tile Saw

by MK Diamond

Product Description

Amazon.com Product Description

A new and improved version of MK Diamond's 770 Tile Saw, the 160267 MK-770EXP 1-1/4-Horsepower 7-Inch Wet-Cutting Tile Saw offers twice the horsepower for easier cutting, as well as a larger cutting capacity to improve efficiency. Ideal for professionals and weekend warriors, the MK-770EXP combines professional-grade features with a user-friendly design, and it includes a water pump, rip guide, and 7-inch MK-200 cutting continuous-rim blade.

MK-770EXP Wet-Cutting Tile Saw At a Glance: 1-1/4-horsepower motor provides 6,000 RPM of cutting power Built-in, fully adjustable miter system for precise 45-degree angle cuts Single adjustment point for precision orientation of blade in seconds Includes 7-inch MK-200 diamond blade, water pump, and rip guide Backed by a one-year limited warranty

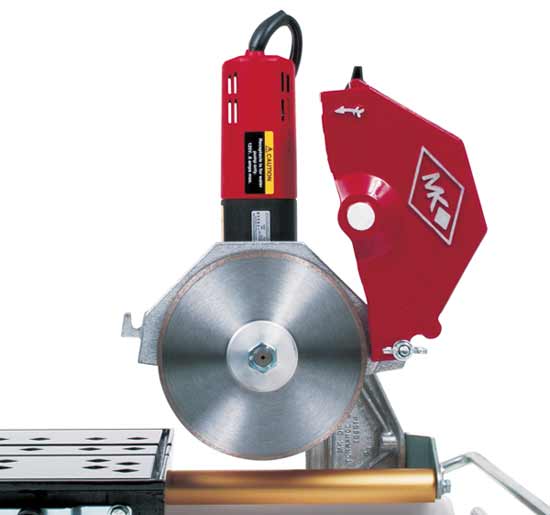

The hinged guard makes blade changes easy. View larger.

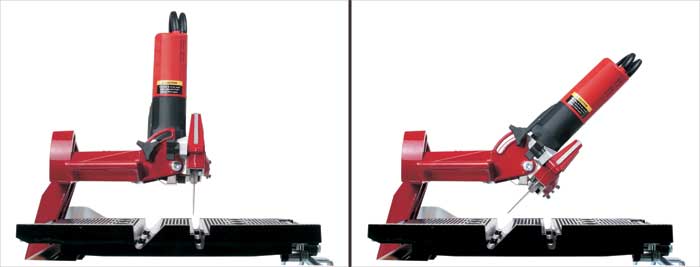

The head tilts to allow for precise, 45-degree miter cuts. View larger.

1-1/4-Horsepower Motor for Powerful Performance
Powered by a 1-1/4-horsepower, 120-volt electric motor that rotates at 6,000 RPM, the MK Diamond MK-770EXP has a 2-inch depth of cut (1-1/8 inches at 45 degrees), 20-inch length of cut, and it easily makes diagonal cuts through tile pieces measuring up to 14 inches.

Tilting Head and Single Adjustment Point for Precise Miter Cuts
Ready to tackle a range of materials, the MK-770EXP makes clean, fast cuts in both tile and marble, making it an ideal choice for renovation and construction projects. A tilting head allows for quick, precise miter cuts, while a single-adjustment point quickly positions the blade at an exact 45-degree angle.

Variable-height cutting head allows for plunge cutting and use of blades smaller than 7 inches in diameter.

Zinc-Plated Steel and Cast-Aluminum Construction
The MK-770EXP is durable and precise. With a solid support system consisting of a heavy-duty, zinc-plated steel frame and cast-aluminum components, you can accurately cut tile all day. And no matter what you're cutting, a guide-bar and linear-bearing assembly ensure proper alignment.

Dimensions and Warranty Information
The MK-770EXP measures 37 by 22 by 23 inches (L x W x H), weighs 57 pounds, and is backed by a one-year limited warranty.

About MK Diamond
Founded in San Francisco in 1868 by Joseph Musto, a fifth-generation Italian stone-cutter and tile-setter, MK Diamond is a family business and world leader in precision power cutting tools and diamond blades. The company takes pride in its work, and is committed to making its products benchmarks by which the rest of the industry measures itself.

What's in the Box
MK Diamond 160267 MK-770EXP wet-cutting tile saw, 7-inch MK-200 wet-cutting diamond blade, water pump, and rip guide.

From the Manufacturer

A new and improved version of MK's 770 tile saw; the 770 EXP features twice the horsepower for easier cutting and a larger cutting capacity. Simple enough for the do-it-yourselfer, the 770 EXP is preferred by professional craftsman for its pro-grade design features. A 7-inch blade cuts tile up to 20 inches straight on, and easily makes diagonal cuts through tile pieces up to 14 inches in size. An innovative cutting head assembly makes precision 45-degree miter cuts with ease. A single adjustment point positions the blade at an exact 45-degree angle in seconds. This beefy workhorse cuts tile and marble like butter, and its heavy-duty, zinc-plated steel frame and cast aluminum components offer solid support for optimal precision. A high torque, 1-1/2 horsepower universal motor is tough enough to cut tile all day. A tilting head means quick and easy miter cuts. Your purchase includes a 7-inch MK-225 Hot Dog Blade, water pump, and rip guide.

FEATURES

• Includes 7-inch diamond blade, water pump and rip guide for quick setup and versatility
• Built-in fully adjustable miter system for precise 45-degree angle cuts
• A single adjustment point for precision orientation of the blade in seconds
• Variable height cutting head for plunge cutting with blades 7 inches and smaller
• Chrome guide-bar and linear-bearing assembly for precise alignment and precision cutting

What's in the Box

• 1-1/2 Tile Saw
• 7-inch diamond blade
• Water pump
• Rip guide

SPECIFICATIONS

• 115V motor
• 4100 RPM
• 1 1/2 HP
• 7" Blade Capacity
• 2" Depth Cut at 90 degrees - at 45 degrees - 1 1/8" Depth Cut
• Rips 20" tile and diagonally cuts a 14" tile Cut Length
• 5/8" Arbor
• Net Weight 57 lbs
• Dimensions 37"L x 22"W x 23 1/2"H

Product Details

• Product Dimensions: 37 x 22 x 23.5 inches ; 60 pounds
• Shipping Weight: 75 pounds (View shipping rates and policies)
• Shipping: Currently, item can be shipped only within the U.S. and to APO/FPO addresses. For APO/FPO shipments, please check with the manufacturer regarding warranty and support issues.
• Shipping Advisory: This item must be shipped separately from other items in your order. Additional shipping charges will not apply.
• ASIN: B000659190
• California residents: Click here for Proposition 65 warning.
• Item model number: 160267
• Average Customer Review: 4.2 out of 5 stars  See all reviews (8 customer reviews)
• Amazon Best Sellers Rank: #41,667 in Home Improvement (See Top 100 in Home Improvement)
  • #21 in Home Improvement > Power & Hand Tools > Power Tools > Saws > Tile & Masonry Saws

Customer Reviews

Most Helpful Customer Reviews

41 of 42 people found the following review helpful:

5.0 out of 5 stars MK Diamond 770exp, March 7, 2005

By

D. Parr (Boise, Idaho) - See all my reviews

This review is from: MK Diamond 160267 MK-770EXP 1-1/2-Horsepower 7-Inch Wet Tile Saw (Tools & Home Improvement)

This is the saw that home improvement centers should carry. I do 10-15 tile jobs per year for friends and friends of friends plus myself and family. I do not need a $900 10" saw. However this saw rips and diagonals the same size tile. It has the same adjustments and capabilities as the more expensive saw. It may not have last as long as the saw doing 50-75 jobs per year, but neither will I. This saw will give the average DYI the opportunity to make their job professional. A great saw at a fair price that will last a lifetime, versatile, easy to use, and accurate. [...]

6 of 6 people found the following review helpful:

5.0 out of 5 stars An excelent saw, February 23, 2008

By

Roger A. Nesteby "R.A.Nesteby, G.C." (Clinton, Il., U.S.A.) - See all my reviews
(REAL NAME)

This review is from: MK Diamond 160267 MK-770EXP 1-1/2-Horsepower 7-Inch Wet Tile Saw (Tools & Home Improvement)

This saw is an upgrade for me from the MK 770, and I could not be happier with my purchase, or the manner and short time in which it was delivered to my business.
All the spec's, details, photos and prices I needed were there before me on screen, to do all the comparisons I needed between saws and prices.
I have used various MK products through my life and always relied on them for their dependability and accuracy.
This is the first online purchase I have ever made with Amazon.com, and will by no means be the last!

19 of 24 people found the following review helpful:

3.0 out of 5 stars oops, August 20, 2005

By

H. Cross - See all my reviews
(REAL NAME)

Amazon Verified Purchase

This review is from: MK Diamond 160267 MK-770EXP 1-1/2-Horsepower 7-Inch Wet Tile Saw (Tools & Home Improvement)

The MK770EXP is light weight. Its "DC" motor has a lot of toqure for its size but it is a right angle "gearmotor". These gears have a lot of backlash (about .200" at the circumferece of the wheel). The brushes "will" need to be changed out and they of course rub on the commutator which resonates through the gear head to the wheel. This vibration tends to chip my tile entering the corners and on exit. Out in the middle of the tile with constant pressure its fine. Consider the MK100 with its "AC" motor and belt drive(it should have a much smoother cut). Loosing those noisy brushes, that need changed, for belts that also will wear out, but I think worth the trade. Gaining the 10" wheel would also have obvious benifits.
