  • MSI LGA1155/Intel P67 B3/DDR3/SATA3&USB3.0/A&GbE/ATX Motherboard P67A-G43 (B3)
  • Sorry, this item is not available in
  • Image not available
  • To view this video download Flash Player

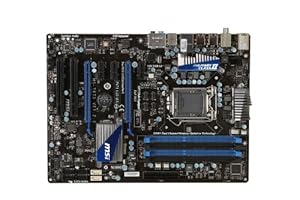

MSI LGA1155/Intel P67 B3/DDR3/SATA3&USB3.0/A&GbE/ATX Motherboard P67A-G43 (B3)

by MSI

Sign up to be notified when this item becomes available.
  • CPU: Socket 1155 Support Intel Sandy Bridge Processor
  • Chipset: Intel P67 (B3); Memory: 4x 240pin DDR3-2133(OC)/1866/1600/1333/1066 DIMMs, Dual Channel, Max Capacity Upto 32GB
  • Slots: 2x PCI-Express 2.0 x16 Slots(one run at x8); 3x PCI-Express 2.0 x1 Slots; 2x 32-bit 3.3V/5V PCI slots;
  • Audio: Realtek ALC892 8-channel HD Audio Codec w/jack sensing; LAN: Realtek 8111E PCI-Express Gigabit Ethernet Controller
  • Ports: 12x USB 2.0 Ports (8 rear, 4 by header); 2x USB 3.0 Ports; 1x PS/2 Port; 1x Coaxial SPDIF Out; 1x Optical SPDIF Out; 1x RJ45 LAN port;
  • Power Connector: 1x 24pin main power connector, 1x 8pin CPU power connector; Audio I/O jacks;
  • SATA: 4x SATA2 Ports, Support RAID 0/1/5/10; 2x SATA3 Ports, Support RAID 0/1


Product Details

  • Product Dimensions: 13.8 x 10.5 x 2.5 inches ; 4 pounds
  • Shipping Weight: 2.7 pounds
  • Shipping: Currently, item can be shipped only within the U.S.
  • ASIN: B004QOAIA8
  • Item model number: P67A-G43 (B3)
  • Batteries 1 CR2 batteries required.
  • Average Customer Review: 3.6 out of 5 stars  See all reviews (10 customer reviews)
  • Date first available at Amazon.com: March 4, 2011
  •  Would you like to update product info, give feedback on images, or tell us about a lower price? .


Product Description

MSI P67A-G43 (B3) LGA1155/Intel P67 B3/DDR3/SATA3&USB3.0/A&GbE/ATX Motherboard

Customer Questions & Answers

Customer Reviews

Worked perfectly right out of the gate.
JediL1C1OUS
I don't know if I just got used to the noise and can't hear it over the fans anymore, or the BIOS update fixed it, but it is not a problem for me anymore.
SamIAm
MSI acts like they want you to be their customer.
Edward Terry

Most Helpful Customer Reviews

6 of 6 people found the following review helpful By JediL1C1OUS on April 13, 2011
Verified Purchase
Worked perfectly right out of the gate. Bios GUI is weird to get used to, but all of the motherboard manufacturers are going this route. Had no problem overclocking my new 2500k either - straight to 4.5Ghz with no issue. RAM installed is 2133 and while it initially detected it as 1600, I just modified the DRAM speed and it stuck without a hitch. Runs perfect and one of the cheapest ATX P67 mainboards available. One of the biggest reasons I bought this board is because for crossfire/SLI, the pci express slots run at 16x/8x together. Outstanding for the price paid.
Comment Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback. If this review is inappropriate, please let us know.
Sorry, we failed to record your vote. Please try again
4 of 4 people found the following review helpful By D. Snow on July 1, 2011
Verified Purchase
Before installing the board, remember to peel-off the protective plastic film on the two motherboard heatsinks,
otherwise the film might melt.

I've read other reviews on Amazon and N**egg talk about a high-pitched noise coming from this motherboard,
and the board I received also had this problem. After messing around with bios settings the noise was still
there, so I updated the bios.

My board came with bios version 1.09, which I updated to the latest 1.11. This helped a lot, the noise is
almost gone now, barely noticeable.

Windows 7 64-bit installed without a hitch, and after several days the board has been running fast and stable.
I'm using an i5-2400, MSI Radeon HD 6870, 80gb Intel X25-M SSD, and 8gb of Kingston 1333 MHz DDR3.
My Windows Experience values are:

7.4
7.6
7.8
7.8
7.8

This board has some nice features, and a few problems.

PROS:

2 high-speed SATA 6Gb/s ports. Great for the latest SATA-3 SSD drives.

10 USB ports on the back panel, 2 of them are SuperSpeed USB 3.0.

2 PCI-E x16 slots that are configured as x16/x8, with ATI CrossFire support.
Many other boards are setup as x16/x4.

Military-grade solid capacitors with a 10-year lifespan (supposedly)

CONS:

The high-pitched noise problem. If the bios update didn't fix this, I would have returned
this motherboard.

The onboard SATA ports are straight-up, not the right-angle type. So if you install
a 2nd video card that is long, at least 2 SATA ports will be blocked, and maybe 4.

The motherboard manual is seriously lacking, and some bios menus like "Green Power" are
barely mentioned at all.
2 Comments Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback. If this review is inappropriate, please let us know.
Sorry, we failed to record your vote. Please try again
2 of 2 people found the following review helpful By aquielisunari on August 8, 2011
Verified Purchase
I am not a technical person who has tried every option in the bios or an overclocker who can bring this board to the apex of its' performance curve. What I needed was a board that could support my socket 1155 i5 2500K and allow me to overclock should I ever learn how to. I have dabbled in mild overclocking of other boards in the past but never on my own. I've always had a friend that would be carrying me through the dense array of options found in the BIOS. I wanted the board to support SATA III as well as USB 3.00 and allow me to go SLI. While the board does not say it supports SLI I have seen many a form where this board is being used successfully to do just that so i am not too concerned about that and will of course return in a few months when I have gotten to that point. I will return within a week or so to comment on my crossfire configuration. I have the 2500K which is, right now, the best gaming processor on the market that doesn't necessitate a 2nd and 3rd mortgage on your house. The 2500K even blows away the AMD HEX core 1100T in respect to gaming. I went into this build intending on going SLI with 2 x GTX 570SC. That will take some time so I purchased a second 3870. I already had 1 and I saw one at a store with a tiger so I purchased it for $57. I shopped for quite some time before I finally settled on this board. I chose to pair this board with this RAM G.SKILL Ripjaws Series 8GB (2 x 4GB) 240-Pin DDR3 SDRAM DDR3 1333 (PC3 10666) Desktop Memory Model F3-10666CL9D-8GBRL . I received this board and the 2500K on the same day and already had all my other parts so I proceeded to assemble it. Well long story short it worked perfectly. Booted up, set date, time and all that, left the timings at 999 25. I entered my OS which is XP right now and then ran all my driver installs.Read more ›
1 Comment Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback. If this review is inappropriate, please let us know.
Sorry, we failed to record your vote. Please try again
1 of 1 people found the following review helpful By Edward Terry on December 22, 2012
Verified Purchase
Same beeping issue as others. I just unplugged the speaker lead from the motherboard and reattached it a couple of weeks later, and it was significantly better. The board does everything I need it to do, including providing the capability for a trusted platform module, which I obtained directly from MSI. Using Windows Bitlocker, I am able to encrypt sensitive data to FIPS 140-2 hardware encryption level, something very few boards offer.

I'm extremely impressed with the service I have received from MSI. It's nice when something goes wrong, that I can expect speedy, no-hassle service. MSI acts like they want you to be their customer.
Comment Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback. If this review is inappropriate, please let us know.
Sorry, we failed to record your vote. Please try again
1 of 1 people found the following review helpful By Amazon Customer on September 21, 2012
Verified Purchase
It's an awesome board I installed it on a Cooler Master CM II chassis flawlessly. I have used both PCIe connectors to boost my video performance and works perfectly. I also installed an Intel Core i5 2500 K and installed a Corsair A 50 CPU cooler since I'm not planning on overclocking (Intel's turbo boost is good enough). I love the built of the mobo, the UEFI support and friendly BIOS. Top quality and awesome MSI product.
