Makita TD020DSEW 7.2-Volt Lithium-Ion Cordless Impact Driver Kit

by Makita

Product Description

Amazon.com Review

The most powerful in-line screwdriver to date! Why? Well, two reasons: it sports the extended run time, high energy output Lithium-Ion batteries, and it's also an impact driver. It may seem unbelievable to have an impact driver so small, but it’s true. An impact driver hammers the chuck laterally to give increased torque to drilling and driving operations, as opposed to just relying on the motor to spin the chuck. This powerhouse provides 12-volt power, with Lithium-Ion and impact energy, in only 7.2 volts. This sweet little tool offers twice the torque of other 7.2 volt in-line screw drivers and any other in its class. Most in-line screw drivers are only 3.6 volts. This new Makita tool offers twice the voltage, twice the power and twice the run time of standard models.

Other great features include a comfortable rubber grip, an easy to reach thumb on/off switch and the easiest to use, all-metal, quick-change, hex, Insty bit chuck. The chuck only accepts drill bits and driver bits that have a hex shank at the opposite end of, for example, a no. 2 Phillips driver bit. This really speeds up bit changes. Hex Insty bits have really become the standard and are offered in every drill bit kit available. There is an accessory Makita chuck that converts the quick-change hex bit chuck into the older style 3-jaw chuck that will accept round shank drill bits, so you can use your existing bits.

What I like most about this tool is it bends nearly 90 degrees for controlled driving. Driving in-line is great for fast, light-duty driving. For example, electricians use these tools for installing wall plates over outlets and switches. Driving at a right angle is used for driving longer screws and driving/drilling where more controlled accuracy is needed. This tool also has an LED light under the chuck that illuminates the work area, which is great for working in dark cabinets and under shelves. -- Gabriel Shantara Ford

What's in the Box
Battery, charger, one drill bit, two driver bits, a tool holster with belt loop (not a clip-on), padded carrying case.

Amazon.com Product Description

Makita's 7.2V Lithium-Ion Cordless Impact Driver delivers convenience and compact power to the jobsite. The TD020DSEW combines the ultra-compact design of a cordless screwdriver with the function of an impact driver for a range of driving and fastening tasks.

View larger

View larger

TD020DSEW Features POWER - Ultra-compact impact mechanism yields 177 in.lbs. of Max Torque COMFORT - Only 1.1 lbs. with contoured grip SPEED - Delivers 3,000 rotational impacts/min. and 2,300 RPM (non-variable speed) CONVENIENCE - Operates in straight or pistol grip positions INCLUDES - Two 7.2V Li-Ion batteries, charger and case

Tool Specifications Hex shank 1/4" No load speed 2,300 RPM Impacts per minute 3,000 IPM Maximum torque 177 in.lbs. Battery 7.2V Lithium-Ion Overall length Pistol (8-3/8"), In-Line (10-7/8") Net weight 1.1 lbs. (w/battery)

Makita-Built Motor Engineered for Versatile Power
The TD020DSEW is powered by a Makita-built motor with dual steel ball bearings, and delivers 177 in.lbs. of Max Torque with 2,300 RPM and 3,000 impacts-per-minute in an ultra-compact design. The TD020DSEW will operate in straight or pistol grip positions. Makita's proprietary hammer and anvil impact mechanism are manufactured using the best raw materials with the highest quality steel and unique heat hardening process for maximum fastening and driving power.

Ergonomic Design in a Compact Size
The TD020DSEW weighs just 1.1 pounds with a more compact design at only 10-7/8 inches long (extended) and 8-3/8 inches long (pistol), with an ergonomic shape that fits like a glove for reduced operator fatigue. The TD020DSEW is also equipped with a built-in L.E.D. work light operated by a separate switch on the opposite side of the rocker, and provides illumination for more accurate work. The switch drive lock prevents active discharge in the case when not in use, and allows the tool to be a screwdriver in lock position.

Versatile Design for a Range of Applications

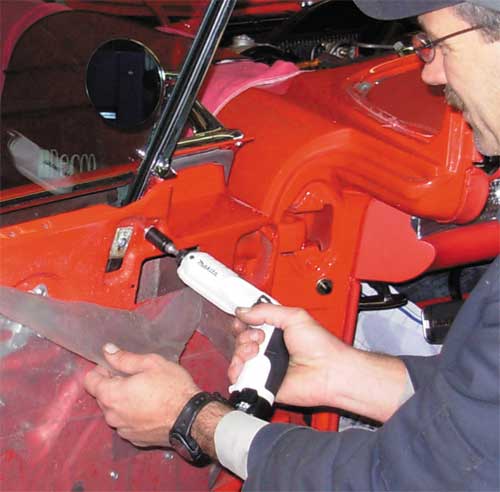

The TD020DSEW can drive deck screws into up to 16 gauge sheet metal, drill a 3/8-inch hole into hardwood, and drive a 1/4-inch screw with a nut setter bit. The tool's versatile power, combined with the compact design, dual position handle, and powerful Makita impact mechanism makes this tool perfect for automotive, installation, repair, and fabrication trades, or for any pro contractor requiring a best-in-class engineered cordless impact screw driver. The TD020DSEW is just another example of Makita's commitment to innovative technology and best-in-class engineering.

About Makita's Lithium-Ion Cordless Tool Series
As one of the pioneers driving the cordless tool revolution, Makita changed the game with its breakthrough 18V LXT Lithium-Ion Cordless Series. Three years after its debut, Makita's LXT Series has grown from seven to over 35 tools, providing a wide range of cordless solutions for professional tradesmen. Makita also added 18V Compact Lithium-Ion for cordless power in a more compact size. Makita now offers 10.8V Ultra-Compact Lithium-Ion and 7.2V Lithium-Ion cordless power tools. These cordless tools deliver pro power and pro speed in an ultra-compact size. The battery charging system for the 10.8V and 7.2V Lithium-Ion batteries is ENERGY STAR rated for its efficient charging process. Makita's growing line of ultra-compact cordless tool solutions includes driver-drills and impact drivers, as well as rechargeable flashlights and several different combo kits.

About Makita
Makita is a worldwide manufacturer of industrial quality power tools and offers a wide range of industrial accessories. Makita applies leading-edge innovation to engineer power tools that are more compact and energy efficient, yet deliver industrial strength power and results. Makita U.S.A., Inc. is located in La Mirada, California, and operates an extensive distribution network located throughout the U.S. For more information, please call 800/4-MAKITA (800/462-5482) or visit makitatools.com. Makita is Best in Class Engineering.

Warranty
Every Makita Lithium-Ion tool is backed by Makita's 3-Year Warranty that covers repair due to defects in materials or workmanship up to three years from the date of original purchase. Makita Lithium-Ion batteries and chargers have a limited 1-year warranty. Please see makitatools.com for complete details.

What's in the Box
Makita TD020DSEW 7.2-Volt Lithium-Ion Cordless Impact Driver Kit, two 7.2V Lithium-Ion batteries, 30 Minute Charger, two Phillips/one slotted fastening bits, and tool case.

Product Details

• Product Dimensions: 12.1 x 9.7 x 3.9 inches ; 4 pounds
• Shipping Weight: 4.4 pounds (View shipping rates and policies)
• Shipping: This item is also available for shipping to select countries outside the U.S.
• ASIN: B000MPP558
• Item model number: TD020DSEW
• Average Customer Review: 4.1 out of 5 stars  See all reviews (81 customer reviews)
• Amazon Best Sellers Rank: #3,611 in Home Improvement (See Top 100 in Home Improvement)
  • #7 in Home Improvement > Power & Hand Tools > Power Tools > Impact Drivers

Customer Reviews

Most Helpful Customer Reviews

44 of 44 people found the following review helpful:

5.0 out of 5 stars A very useful little tool, May 14, 2007

By

J. Horwitz (Hendersonville, NC) - See all my reviews
(REAL NAME)

This review is from: Makita TD020DSEW 7.2-Volt Lithium-Ion Cordless Impact Driver Kit (Tools & Home Improvement)

I was in the market for a new cordless drill and I walked into Louis Williams Hardware (makitadirect.com) and was tempted by the owner to take a peek at the new Makita. I was amazed at the power of the tiny device but was not sure how it would fit into my needs. I left, but went back and bought one and set to work installing 4 new replacement windows in my basement. Here is what I learned:

1. This is a single speed, impact tool. The impact feature allows the driver to turn long and stubborn screws in hard material using a smaller motor and light weight battery, while also being very easy on your wrist. It does ALL the work.

2. As I said, it IS single speed, giving you somewhat less control for delicate work; it takes some getting used to.

3. As a trade off for its ability to drive stubborn screws, it does make slower, and slower progress as screws get more stubborn. You can screw in screws faster with a standard driver. But, like the Energizer Bunny, this thing keeps going, and going, until it gets there.

4. You are much less likely to strip the head with this tool.

5. Battery life is incredible and recharging is fast with the Lithium Ion system.

6. If you are going to be drilling, you will want to get special drills with a built in impact fitting. It does drill nicely, BUT, there is only one speed making starting a hole tricky in hard materials.

7. It has a nice LED work light.

8. The forward/reverse switches have a definite handedness to them. A lefty might not like it.

9. It is inexpensive. At $99, it is a great, reliable tool.

10. I enjoyed installing the windows, and used the tool for all aspects except drilling into the masonary. For that, I used a corded drill.

11. It comes with a nice little holster.

12. Consider buying the Makita impact accesory kit. It is a bargain way to get the drills and quick change bit holder.

13. In summary, a nice accessory with a thousand uses, but it will not replace your cordless drill.

30 of 32 people found the following review helpful:

4.0 out of 5 stars Makita takes the lead !!!!, March 3, 2007

By

Thomas Whitmore (Rochester New York) - See all my reviews
(REAL NAME)

This review is from: Makita TD020DSEW 7.2-Volt Lithium-Ion Cordless Impact Driver Kit (Tools & Home Improvement)

I recently went to a woodworkers show at one of our local retailers, (Jackson Saw and Knife, Rochester NY...little plug for a local business). My intentions were to look at, and possibly buy, a new table saw, and dovetail jig to assist in building new kitchen cabinets for my own house remodel, since things have slowed up some. Having just bought a new Delta mortiser on Amazon(another plug for our host site guys) along with a Grizzly tenon jig I needed to finish out my shopping list. As I made my way down the gaunlet isles past many of the vendors hawking their wares I happened to glance at the Makita table and saw the rep driving a 3" deck screw into a piece of pressure treated wood with ease with this cordless white screwdriver that looked like an overgrown hotdog. Actually it is very much like the other companies red cordless screwdriver whose company also starts with an M but thats where the similarities end. My partner has the red one and it has been fine so far...until today. Step aside let the BIG DOG eat. This tool is amazing. Let me first start by saying that it IS NOT just a screwdriver...it is a screwdriver impact driver. Less effort and strain on the battery to do the job and more torque. Can anybody say BIG BLOCK motor vs small block? One outstanding feature is the built in led lite up front that allows you to light up the area where you are screwing. In total darkness you can use it as a flashlight to get to your area if need be. The light has a lockout switch to prevent depressing button while in your tool pouch/bag killing battery. The rep had to further convince a couple of guys by showing them that if in a dire strait need to drill a hole thru a 2x with a spade bit to run a 14-2 or 12-2 wire this tool could do it. He chucked in 1 7/16 spade bit and bored thru. It took longer than with a corded drill or 18V cordless, understandably so, IT'S 7.2 VOLT. The fact that it is a impact driver screwdriver is what gives it it's balls...sorry ladies. The unit I bought (there is only one model) came in a very nice deluxe zipper case with: charger, belt holster, TWO batteries, the screw gun, and three drive bits, and a hexdrive 1/8" drill bit. There is additional room in the zipper case for other items. Overall I think Makita has raised the bar so to speak coming out with this tool. I see this tool particularly attractive to electricians and cabinet makers/installers. I only gave it four stars as I have not used all the ones on the market and so it would not be fair to the rest of the field, plus since mine is so new I don't have enough run time on it. Will give an update later.

Bottom line: one of the best/handiest tools for $99 that I have in my repertoire. Thanks for your time I hope that I helped you...Whit

15 of 15 people found the following review helpful:

4.0 out of 5 stars Almost perfect, January 30, 2008

By

T. Moore (Santa Rosa, CA USA) - See all my reviews
(REAL NAME)

Amazon Verified Purchase

This review is from: Makita TD020DSEW 7.2-Volt Lithium-Ion Cordless Impact Driver Kit (Tools & Home Improvement)

As has been mentioned, this a powerful tool for the size and works well as an impact driver. It is a snap to use and comes with everything you need to get started including driver bits, charger and a nice storage case. The bits are nice enough that I use them with my more powerful LXT drill as well. I actually bought this tool for my wife to use because she wanted a smaller and lighter driver to use in the house.

The biggest drawback is that it doesn't have variable speed. So its either full speed or nothing. That can be a pain if you want a little more control in certain situations, like starting a screw in a tight space. The other small drawback that my wife didn't like is that it looks dingy quickly because of the white exterior. But that doesn't have any effect on the quality of the drill, so its a minor quibble. Overall powerful drill for the size.
