Technical Details
- Horizontal column feature allows the tripod to reach extremely low positions.
- Eye-catching new design improves ergonomics of the leg angle levers and the horizontal column block.
- Leg angle presets increase the tripod's stability in bad weather conditions or on uneven terrain.
- Quick action leg locks with new improved design.

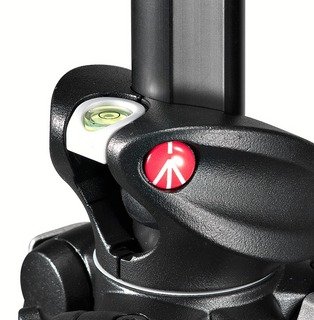

- Built-in bubble spirit level makes camera alig nment quick and easy

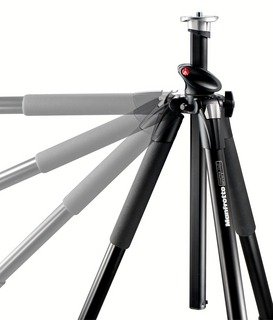

- Centre column can be quickly and easily swung from vertical to horizontal without any disassembly.
- Horizontal column feature allows the tripod to reach extremely low positions
- Eye-catching new design improves ergonomics of the leg angle levers and the horizontal column block
Product Details
Would you like to update product info or give feedback on images?
|
Product Description
Amazon.com Product Description
The Manfrotto 190XPROB three-section tripod is ultra stable, flexible, and easy to use, making it a great choice for professional photographers everywhere. The tripod is distinguished by its Manfrotto-patented horizontal center column, which has been completely redesigned to create a more user-friendly feel. By extending the column to its highest vertical position, users can now swing the tripod round to horizontal without removing the head or disassembling the column itself. This makes switching between framing and positioning setups more convenient than ever. In addition, Manfrotto improved the ergonomics of the leg angle release mechanism and the quick-action leg locks, making it a breeze to open, position, and close the tripod in just a few seconds. The tension of the locking mechanism is even user-adjustable, so you can find the right tension for your comfort level.
The tripod's unique design allows the photographer to use the center column horizontally as an extending arm or vertically (both right-way-up and upside-down). When used horizontally, the center column can be turned 360 degrees around the tripod, making it useful for macro work, low-angle shooting, extreme balance points, and off-center work. This also makes the tripod a helpful accessory for chair-bound photographers, who can sit beside the tripod instead of behind it, putting them much closer to the camera viewfinder.
Should you need to balance the tripod on an uneven surface, you can set each of the legs to a different spread angle over the tripod's center of gravity--a must for nature shots on outdoor terrain. This also allows you to adjust the tripod to several different heights, with four preset independent leg angles and a spring-loaded step mechanism for extra stability.
Specifications
- Color: Black
- Includes tripod head: No
- Closed length: 22.4 inches
- Minimum height: 3.3 inches
- Maximum height: 57.5 inches
- Maximum height with center column down: 48 inches
- Load capacity: 11 pounds
- Material: Aluminum
- Leg cross section: Round
- Column cross section: 3-faceted
- Leg sections: 3
- Bubble spirit level: 1
- Leg angles: 25, 46, 66, and 88 degrees
- Center column: Rapid
- Section center column: 1
- Column tube diameter: 25mm
- Attachment: 3/8-inch screw
- Leg tube diameter: 25, 20, and 16 mm
- Suggested dolly: 127, 127VS
- Weight: 4 pounds
- Warranty: 2 years
Product Description
Redesigned, the 190XPROB makes the famous Manfrotto-patented horizontal centre column feature even easier to use. Now, by extending the column to its highest vertical position, it can be swung round to horizontal without removing the head or disassembling the column itself, so switching between framing and positioning setups is more convenient than ever. The ergonomics of the leg angle release mechanism and the quick action leg locks themselves have also been greatly improved.
FEATURES:
- Flip lever leg locks make opening, positioning and closing fast and easy. The tension of the locking mechanism is user-adjustable, and all parts can be easily serviced or replaced.
- Each of the legs can be set to a different angle of spread for more flexible, versatile positioning and to help keep camera equipment well-balanced over the tripod's center of gravity.
- The patented PRO model has a unique design which allows the center column to be used horizontally as an extending arm, or vertically (both right-way-up and upside-down). When used horizontally, it can be turned through 360 degree around the tripod, and is useful for macro work, low angle shooting, extreme balance points and off-centre work. This also makes the tripod a helpful accessory for chair-bound photographers, who can sit beside instead of behind the tripod, therefore much closer to the camera viewfinder.
- Four pre-set independent leg angles give the tripod great positioning flexibility and versatility, and allow all intermediate heights from the stated minimum to maximum levels to be reached. Stability is assured at all 4 angles by the spring-loaded step mechanism.
Customer Reviews
Most Helpful Customer Reviews
112 of 113 people found the following review helpful
the manfrotto 190xprob may be the best prosumer tripod legs on the market. that is to say, if you need more tripod than this, you're either a wildlife pro or a serious amateur with some long prime lenses.
the 190xprob replaced a cheap VidPro with a plastic head that was very creaky and required overt carefulness. the difference is really astounding, and when you factor in the durability -- i expect this to last for many years-- the added expense over the cheapies is well-justified.
at first glance the 190xprob has that mercedes/bmw look: smooth, clean, symmetrical, steely, with style for days. seriously, this is a good looking pair of legs.
the design is top-notch. manfrotto didnt cut any corners in terms of ergonomics or materials. the fliplock leg extenders clamp solidly yet open fluidly. the piece de resistance is the center column, which easily slides up and extends horizontally for macro or close up work at low angles. a press of a button and the legs hyperextend for extreme low angles, and easily snap back into place.
the whole thing looks and feels solid. but it only weighs four pounds -- light enough for a hike but probably not the best choice for a long vacation (although it will fit diagonally into a 22" carry-on if you're that determined).
manfrotto has seemingly thought of everything -- there's a bubble spirit level right where you need it, foam leg warmers on 2 of the sections, and even a hook for a sandbag or similar weight for use in windy conditions. you can get all sorts of accessories too, like spiked feet, an m-bag, etc.
i tested the horizontal column with a nikon d300 w/ grip and a sigma 50-150 -- probably about a good 5-6 pounds. the key to horizontal extention i soon learned was putting the extended arm directly over the front leg to ensure balance. i wouldnt recommend this for non-level ground, though. in horizontal mode, the arm can be swung around, shortened, or tightened instantly. it feels pretty solid vertically, although you wouldn't want to raise it up all the way with a heavy camera + lens combo.
the maximum height is 57 inches or so, and the thing folds to 22". when folded it makes for a compact package that's ergonomically easy to carry, even in one hand. it also fits into the webbing of the canon deluxe photo backpack that's available on this site too.
if you need a lighter, smaller tripod for travel or hiking, check out the velbon luxi which is 12" folded and weighs 1.6 lbs, or the gorillapod slr. if you need a slightly bigger tripod, the next step up, the 055xpro, goes to 72" and can hold 15 lbs., but weighs 5.3 lbs, and has otherwise the same features.
of course you still have to buy a head, and here you have a choice between ballheads, panheads, and action grips. manfrotto makes solid heads -- i have the 488RC4 ballhead and the 3232 swivelhead -- which you can use on other tripods or monopods as well.
the 190xprob gets: one star for design, one star for features, one star for ergonomics, one star for combination of weight and load capacity (11 lbs total w/out head), and one star for price -- it's not cheap but a value compared to more expensive tripods. that's five stars, folks.
bottom line: manfrotto has done it again with an innovative, stylish, and functional unit. at 4lbs., the 190xprob is right in the middle of the support "sweet spot" -- sturdy enough to shoulder a load with confidence, yet light enough and reasonably compact for field work. the price is about right for a quality aluminum 'pod -- the cheaper ones are less well-made and/or can't hold as much, and the carbon fiber ones cost 3-5x as much, and shave only a pound/pound and a half or so off of weight. that would make a difference on a multi-day excursion or a serious hike, but for "serious casual use" this manfrotto is great. it has a 'pro' look and pro features, and for the price it's hard to beat.
recommended for a d300 and up to a 70-200 or 80-400 lens. anything bigger and you're probably looking at carbon fiber territory.
the 190xprob replaced a cheap VidPro with a plastic head that was very creaky and required overt carefulness. the difference is really astounding, and when you factor in the durability -- i expect this to last for many years-- the added expense over the cheapies is well-justified.
at first glance the 190xprob has that mercedes/bmw look: smooth, clean, symmetrical, steely, with style for days. seriously, this is a good looking pair of legs.
the design is top-notch. manfrotto didnt cut any corners in terms of ergonomics or materials. the fliplock leg extenders clamp solidly yet open fluidly. the piece de resistance is the center column, which easily slides up and extends horizontally for macro or close up work at low angles. a press of a button and the legs hyperextend for extreme low angles, and easily snap back into place.
the whole thing looks and feels solid. but it only weighs four pounds -- light enough for a hike but probably not the best choice for a long vacation (although it will fit diagonally into a 22" carry-on if you're that determined).
manfrotto has seemingly thought of everything -- there's a bubble spirit level right where you need it, foam leg warmers on 2 of the sections, and even a hook for a sandbag or similar weight for use in windy conditions. you can get all sorts of accessories too, like spiked feet, an m-bag, etc.
i tested the horizontal column with a nikon d300 w/ grip and a sigma 50-150 -- probably about a good 5-6 pounds. the key to horizontal extention i soon learned was putting the extended arm directly over the front leg to ensure balance. i wouldnt recommend this for non-level ground, though. in horizontal mode, the arm can be swung around, shortened, or tightened instantly. it feels pretty solid vertically, although you wouldn't want to raise it up all the way with a heavy camera + lens combo.
the maximum height is 57 inches or so, and the thing folds to 22". when folded it makes for a compact package that's ergonomically easy to carry, even in one hand. it also fits into the webbing of the canon deluxe photo backpack that's available on this site too.
if you need a lighter, smaller tripod for travel or hiking, check out the velbon luxi which is 12" folded and weighs 1.6 lbs, or the gorillapod slr. if you need a slightly bigger tripod, the next step up, the 055xpro, goes to 72" and can hold 15 lbs., but weighs 5.3 lbs, and has otherwise the same features.
of course you still have to buy a head, and here you have a choice between ballheads, panheads, and action grips. manfrotto makes solid heads -- i have the 488RC4 ballhead and the 3232 swivelhead -- which you can use on other tripods or monopods as well.
the 190xprob gets: one star for design, one star for features, one star for ergonomics, one star for combination of weight and load capacity (11 lbs total w/out head), and one star for price -- it's not cheap but a value compared to more expensive tripods. that's five stars, folks.
bottom line: manfrotto has done it again with an innovative, stylish, and functional unit. at 4lbs., the 190xprob is right in the middle of the support "sweet spot" -- sturdy enough to shoulder a load with confidence, yet light enough and reasonably compact for field work. the price is about right for a quality aluminum 'pod -- the cheaper ones are less well-made and/or can't hold as much, and the carbon fiber ones cost 3-5x as much, and shave only a pound/pound and a half or so off of weight. that would make a difference on a multi-day excursion or a serious hike, but for "serious casual use" this manfrotto is great. it has a 'pro' look and pro features, and for the price it's hard to beat.
recommended for a d300 and up to a 70-200 or 80-400 lens. anything bigger and you're probably looking at carbon fiber territory.
58 of 58 people found the following review helpful
I had been looking for a lighter weight, shorter and more versatile tripod for some time. The 190XPROB does the job very well. It provides the versatility I was looking for. As a wildlife photographer I needed a tripod I could set up and adjust the leg height quickly and with the quick action leg locks it works perfectly. It is very stable with my Canon EOS 30D and EF 100-400mm lens. The Bogen Menfrotto 190XPROB is my prime tripod now.
66 of 68 people found the following review helpful
Having tried both the 055XPROB and the 190XPROB, I chose the 190. I liked the lighter weight and shorter height of the 190 and it was sturdy enough for my camera and long lenses (I have a Canon 40D). Here are the differences with the 190 listed first:
Weight: 4 lbs vs 6.4 lbs
Height w/out extension: 48" vs 60"
Max height: 57.5" vs 70"
Max load: 11 lbs vs 15.5 lbs
Everything else is pretty much the same. FWIW, I am 6 ft tall and the 190's max height (center column extended) put the eyepiece just at my eye level. The unextended height of the 055 is just a bit higher; I would have to stand on a brick to use its extended height. The 055 is just too tall for me. Alternatively, it you are taller than 6 ft, you might not be able to use the 190; go for the 055.
So, the 055 is heavier, taller and can carry more weight (camera and lens).
Two negatives with both: First, the center column can go horizontal which is handy in many situations. However it is hard to set in an exactly horizontal axis (it sags). You must have a ball mount to adjust your view to a true horizontal. Secondly, they are not ruggedized. If you use it inside, all's well. But if you go into the woods or the rocks, they will get scratched pretty easily. There also is a lot of plastic that will probably break and the legs have rubber feet (not that useful when you are trying to use it on rocks, cement, etc.)
Definitely go with a ball mount (I have the Manfrotto 488RC2). Unless you shoot in a studio you will be shooting from some very unlevel places. The ball allows you to get a horizontal view in your shot regardless of the configuration of the tripod. The head I use also has a pan lever which allows me to lock the ball into place and then pan along the horizontal axis.
Weight: 4 lbs vs 6.4 lbs
Height w/out extension: 48" vs 60"
Max height: 57.5" vs 70"
Max load: 11 lbs vs 15.5 lbs
Everything else is pretty much the same. FWIW, I am 6 ft tall and the 190's max height (center column extended) put the eyepiece just at my eye level. The unextended height of the 055 is just a bit higher; I would have to stand on a brick to use its extended height. The 055 is just too tall for me. Alternatively, it you are taller than 6 ft, you might not be able to use the 190; go for the 055.
So, the 055 is heavier, taller and can carry more weight (camera and lens).
Two negatives with both: First, the center column can go horizontal which is handy in many situations. However it is hard to set in an exactly horizontal axis (it sags). You must have a ball mount to adjust your view to a true horizontal. Secondly, they are not ruggedized. If you use it inside, all's well. But if you go into the woods or the rocks, they will get scratched pretty easily. There also is a lot of plastic that will probably break and the legs have rubber feet (not that useful when you are trying to use it on rocks, cement, etc.)
Definitely go with a ball mount (I have the Manfrotto 488RC2). Unless you shoot in a studio you will be shooting from some very unlevel places. The ball allows you to get a horizontal view in your shot regardless of the configuration of the tripod. The head I use also has a pan lever which allows me to lock the ball into place and then pan along the horizontal axis.
Most Recent Customer Reviews
Bogen Manfrotto 190XPROB
A usable unit except that the stem clamping arrangement is poorly designed. The thumbscrew knob will, after some use, strip its threads rendering the whole tripod useless as the... Read more
Published 7 days ago by Gerry Adams
Manfrotto Aluminum Tripod
Very sturdy, well built..with the added Manfrotto joystick it is just perfect. A little heavy, but all sturdy tripods are. Used it with my 400 zoom..held everything steady. Read more
Published 22 days ago by JK in LA
Good product,but bad item sent with poor packaging!
I'm giving this product 3 stars since the functionality of this tripod is really good but the item given by amazon is not. Read more
Published 1 month ago by josquared
Excellent tripod
I initially bought this tripod for travel and maybe for macro if I ever was interested. It turned into my main tripod because it is so small and so versatile. Read more
Published 2 months ago by Darwin Sayo
Great set of legs
I chose this tripod to go with my 498rc2 ball head. Most reccomend the 55 series tripods with that head, but I travel a lot and the slightly smaller 190xprob is better for my... Read more
Published 2 months ago by NormNorth
For those that aren't sure why to buy one of these instead of a cheap...
I, like many, bought a couple of cheap tripods before finally investing in a quality one. I invested in this Manfrotto because I had a specific use where my camera needed to sit... Read more
Published 2 months ago by Ryan
Versatile and strong
This tripod is exactly what my wife needed for her 60d. The cool thing is the extending head. She can get up higher, and she can shoot straight down if she needs to. Read more
Published 5 months ago by Dub32
Versatilel tripod
I have recently purchased this tripod and I am very happy with it. When I first open it and felt how light it was and how thin the legs were, I became concerned that perhaps I made... Read more
Published 5 months ago by Richard J. Sundmacker
Shipped without a box.
great quality product, you get what you paid for. not the best, not the lightest but great for the $150 price range. Read more
Published 6 months ago by Wang Yuxin
Love this tripod
I debated ordering this version or the slightly more expensive heavier version, I am happy that I got this version as it is plenty heavy. Read more
Published 8 months ago by dwarf
