Product Specifications
| Brand Name: | Martin |
| Color Name: | White |
| Item Display Height: | 15.7 inches |
| Depth: | 4.69 inches |
| Driver Configuration: | 1x 1 inch tweeter, 2x 4 inch woofers |
| Frequency Response Curve: | 75 Hz - 20 kHz |
| Audio Sensitivity: | 88 dB |
| Impdedance: | 8 ohm |
| Crossover Description: | 2.9 kHz |
| Speaker Driver Material Type: | Aluminum |
| Maximum Speaker Depth (inches): | 4.69 inches |
Technical Details
- A compact, uniquely elegant, and affordable in-wall loudspeaker
- Equipped with 1-inch tweeter with high-intensity neodymium magnet
- Frequency response: 75-20,000 Hz
- Equipped with dual-resolution 4-inch aluminum cone woofers
- Paintable endcaps and a variety of cloth grill color options or a paintable grill option
Product Details
Would you like to update product info or give feedback on images?
|
Product Description
From the Manufacturer
 |
MartinLogan - The Great American Speaker Company
Since 1983 MartinLogan, the great American speaker company, has hand-crafted high performance electrostatic speakers. Their award-winning designs, advanced technologies, and outstanding customer service have long made MartinLogan's amazingly detailed speakers a must have for home theater and music lovers around the world.
 Quick and versatile installation makes the Ticket perfect |
A very compact, uniquely elegant and affordable in-wall loudspeaker, Ticket is an excellent performer. It delivers the sound quality you would expect to hear from a pair of MartinLogan floor-standing speakers.
With Ticket, it's all in the engineering. Dual 4" high-resolution aluminum-cone woofers for accurate bass, an integrated dome tweeter with a high-intensity neodymium magnet, an advanced-technology Vojtko crossover and a rigid aluminum chassis and front baffle. The result is a full, wonderfully smooth and engaging sound with a clean, tight bass foundation.
But Ticket is more than just great sound; its appearance is graceful and elegant as well. Something completely missing from the in-wall loudspeaker market. Using the available white, black or silver cloth grill, MartinLogan in-wall loudspeakers look nothing like the industrial grating seen from other companies. Their appearance stylishly integrates into any home environment. Want to dye the cloth grill to match your interior decor? Purchase Ticket in white cloth. Would you rather paint the grill for a more standard in-wall loudspeaker appearance? Purchase Ticket with a white metal grill and paint away!
 Eliminate distortion with the patented Vojtko crossover |
 High-rigidity woofers mean clean, tight bass |

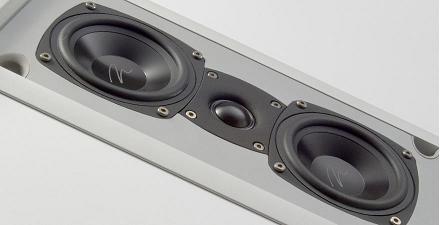

Low-Distortion Aluminum-Cone Woofers
By eliminating cone flexure, aluminum diaphragms help our advanced-technology woofers achieve the very low distortion necessary for proper blending with MartinLogan electrostatic panels, quality subwoofers.

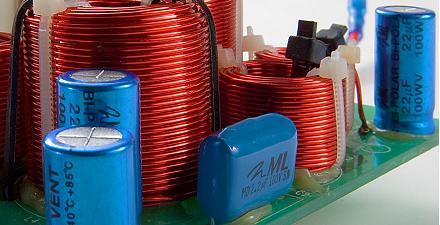

Vojtko Crossover
Carefully hand-built using only the finest polypropylene capacitors and air-core coils, the crossover employ's MartinLogan's proprietary Vojtko topology for vanishingly low distortion and seamless driver integration. This precision-tuned network preserves even the most microscopic sonic nuances while handling the full dynamics of any source.
Rigid Extruded-Aluminum Chassis and MDF Baffle
Extruded and milled, Ticket's aluminum chassis and 1-inch-thick MDF (medium-density fiberboard) front baffle are so rigid that they actually stiffen the wall in which the speaker is installed, minimizing acoustically destructive vibrations. The benefit is very apparent in Ticket's taut, solid low-frequency reproduction.
 A locking extruded metal chassis minimizes wall vibration |
Quick, Trouble-Free Installation
A robust mounting-lock system allows quick, trouble-free installation. When not in use, the constant-control, die-cast mounting locks are held securely within a self-contained housing. When moved into place during installation, they couple the speaker's rigid aluminum chassis firmly to the wall. And if the speaker is ever removed, the locks retract and latch themselves back in their housings.
Each Ticket speaker comes with a rigid, full-size installation template that features a handle, quick-reference instructions, and die-cut guides for marking the cutout hole.

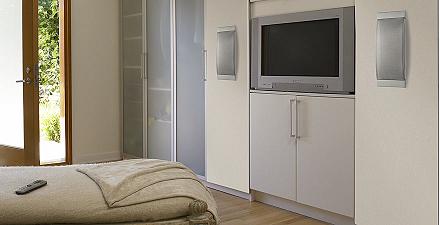

Application and Aesthetic Versatility
Ticket can be mounted horizontally or vertically and is suitable for any application in any audio system, whether stereo or multi-channel. Paintable end caps and a selection of grill color options endow Ticket with the flexibility to complement any decor. Grille colors include white, black, and silver cloth and paintable perforated metal. Optional color kits can be purchased later if your decor needs ever change.
The Final Breakdown: Technical Specifications
| Frequency Response: | 75-20,000 Hz ± 3dB | |
| Sensitivity: | 88 dB/2.83 volts/meter | |
| Impedance: | 8 ohms | |
| Crossover Frequency: | 2900 Hz | |
| Components: | Air core coils | |
| High Frequency Driver: | 1" Neodymium Tweeter | |
| Woofer Type: | Two 4" (16.5 cm) high rigidity aluminum cones with extended throw drive assembly | |
| Power Handling: | 150 watts | |
| Weight: | 5 lbs./channel (2.3 kg) | |
| Overall Size (HxWxD): | 15.67" x 7.5" x 4.69" (39.8 x 18.4 x 11.9 cm) | |
| Required Wall Opening Including Tolerance (HxW): | 14.25" x 5.875" (36.2 x 14.9 cm) | |
| Projection From Wall Surface: | 1.125" (2.9 cm) | |
| Depth Required Behind Wall Surface: | 3.56" (9cm) |
Other MartinLogan Custom Install Solutions (sold separately)
 | Voyage In-Wall Speaker - The MartinLogan Voyage in-wall speaker system is a ultimate-performance speaker for your home theater entertainment room.. It is the world's most sophisticated and elegant architectural loudspeaker, The Voyage in-wall speaker sounds so clean and dynamic, you'd think it were a superb standalone design. Not surprising, since it borrows so much from our own, including Advanced Thin Film drivers and high-resolution woofers. A rigid aluminum chassis and die-cast mounting locks enhance performance and ease installation, while an adjustable tweeter-alignment sphere, paintable end caps, and a selection of grille colors provide incredible adaptability. |
 | Passage In-Wall Speaker - A uniquely elegant and extremely accurate in-wall speaker, Passage is a remarkable performer delivering the sound quality you would expect to hear from one of MartinLogan's floorstanding loudspeakers. With twin high-resolution aluminum-cone woofers, a world class ATF (Advanced Thin Film) tweeter, an advanced-technology Vojtko crossover and a rigid aluminum chassis and 1" front baffle, Passage is quite simply an in-wall loudspeaker marvel. The result is a full, wonderfully smooth and engaging sound with clean and surprisingly deep bass foundation. |
 | Helos 100 In-Ceiling Speaker - Helos 100 is ideal for any room requiring ultimate in-ceiling audio performance such as a 2-channel system in a large living room or a multi-channel system in a discrete home theater. Helos 100's aimable assembly allows a large audience to experience the full potential of the Helos 100. Featuring a 1-inch neodymium soft dome tweeter, high-rigidity aluminum cone woofer, and proprietary Vojtko crossover topology, Helos 100 effortlessly provides solid imaging with extreme sonic accuracy. An acoustic contour switch tailors dispersion assuring a top-notch performance in any installation. |
 | Helos 20 In-Ceiling Speaker - A direct descendant from the Helos100, the Helos 20 continues with the MartinLogan tradition of exceptional sound. The Helos 20 has the ability compliment any decor with it's paintable grill and frame. Sonically, the Helos 20 boasts a dual voice coil system with two 0.75 inch soft dome tweeters with a pivoting stem and a single 6.5 inch woofer, creating crisp accurate sound. Frequency response ranges from 47-20,000 Hz. |
 | Helos 10 In-Ceiling Speaker - The Helos 10 delivers legendary MartinLogan quality and performance in a compact, high-resolution in-ceiling loudspeaker. Featuring a 1-inch neodymium soft dome tweeter mounted in an aimable stem, high-rigidity aluminum cone woofer, and proprietary Vojtko crossover topology, Helos 10 effortlessly provides extreme sonic accuracy. |
Complete Your Home Theater with A MartinLogan Subwoofer (sold separately)
 | Depth i Subwoofer - Depth i deploys the full array of MartinLogan's advanced subwoofer technologies to achieve deep, rich, satisfying bass while preserving electrostatic-like accuracy and detail. Its TriLinear BalancedForce alignment, advanced low-distortion switching amplifier, and sophisticated triple-servo control systems extract the very best possible performance from Depth i's high-resolution 8-inch aluminum-cone drivers. TriLinear BalancedForce places the subwoofer's three drivers precisely 120 degrees apart from each other in the cabinet. Their reaction force vectors meet at the center and exactly cancel, virtually eliminating cabinet resonance and vibration. Gone with them are the cabinet-radiation coloration and bass blur that afflict even the best conventional subwoofers. The triple-servo system, meanwhile, ensures that the output from the drivers themselves - the output we want - is always an absolutely faithful replica of the audio input signal. |
 | Grotto i Subwoofer - Grotto i deploys the full array of MartinLogan's advanced subwoofer technologies to achieve deep, rich, satisfying bass while preserving electrostatic-like accuracy and detail. Its advanced low-distortion switching amplifier and sophisticated servo control system extract the very best possible performance from Grotto i's high-resolution 10-inch aluminum-cone driver. A powerful 300 watt (900 watt peak) low-distortion, high-reliability amplifier gives Grotto i extremely articulate bass without need of exaggerated amplifier power ratings or transient-blurring ported or passive radiator enclosures common to many modern subwoofers. A proprietary servo system further ensures that output from Grotto i's 10-inch high-resolution aluminum cone woofer is dramatically free of distortion and provides a faithful replica of the audio input signal. |
 | Dynamo 500 Subwoofer - No other subwoofer offers Dynamo 500's bass extension, power, and detail at such an affordable price. Perfect for either home theater or stereo applications, the Dynamo 500 is solidly built with high-density materials to minimize cabinet resonance and provide a foundation for the high-output 10-inch woofer and high-current 120-watt RMS, 360-watt peak amplifier. Additionally, dual rear-mounted low-turbulence ports maximize bass output while minimizing port induced distortions. |
Product Description
The MartinLogan Ticket in-wall speaker is a compact, affordable in-wall speaker for every room in your home. While significantly smaller than Passage, the elegant, affordable Ticket in-wall speaker is nonetheless a very strong performer. Its dual long-throw, high-resolution woofers, integrated dome tweeter, and advanced Vojtko™ crossover deliver rich, clear sound and superb stereo imaging. Ticket also features paintable end caps and a selection of grille colors for perfect matching with any décor. Its quick and easy, yet very secure, installation system is the same used in Voyage and Passage speakers from MartinLogan.
