| Brand Name: | Martin |
| Color Name: | Black/Silver |
| Item Display Height: | 7.2 inches |
| Depth: | 5.26 inches |
| Driver Configuration: | 1x 1.5x2.25 inch ATF tweeter, 2x 4 inch midrange/woofers |
| Frequency Response Curve: | 78 Hz - 20 kHz |
| Audio Sensitivity: | 89 dB |
| Impdedance: | 6 ohm |
| Crossover Description: | 2.2 kHz |
| Speaker Driver Material Type: | Ribbon |
| Maximum Speaker Depth (inches): | 5.26 inches |
Product Specifications
Technical Details
- Precision technology allows for compact design while retaining amazing levels of detail
- Dual high-resolution 4-inch aluminum-cone woofers provide surprising levels of low frequency response
- Precision-built, advanced-topology Vojtko crossover
- Includes low-profile, single-pivot aluminum wall bracket for horizontal or vertical mounting around a plasma or LCD panel
- Optional Table or Floor stands allow for increased placement flexibility
Product Details
Would you like to update product info or give feedback on images?
|
Product Description
From the Manufacturer
From the Manufacturer
Vignette: Ultra-Compact Design that Doesn't Sacrifice Sound
Under the Hood: Advanced Thin-Film Drivers
 |
MartinLogan - The Great American Speaker Company
Since 1983 MartinLogan, the great American speaker company, has hand-crafted high performance electrostatic speakers. Their award-winning designs, advanced technologies, and outstanding customer service have long made MartinLogan's amazingly detailed speakers a must have for home theater and music lovers around the world.

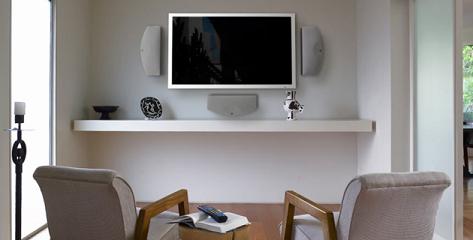

 Vignette's graceful styling integrates great sound with any home decor |
An engineering and sound masterpiece, the extra compact Vignette is a direct descendant of the revolutionary Fresco i. Vignette blends innovative design, advanced materials and the latest audio technology to produce signature MartinLogan sound from an even smaller and more affordable package. A unique thin film high-frequency driver, our own precision ultra high quality crossover and a pair of fast moving, accurate woofers combine to supply astonishing performance in any stereo or multi-channel audio-video system. Don't let all this technical jargon frighten you, we promise there won't be a test.
Vignette's flexibility allows it to be used as a center channel, left, right or surround speaker. From top to bottom, it delivers precision and detail with firm agile bass and impressive dynamics. Put simply, Vignette will reproduce your favorite music and movies with better sound than you ever thought possible from such a small loudspeaker, with one of the most elegant designs of any speaker in its class.
Vignette's paintable and rigid (yet light weight) cabinet is just 6 inches deep, thereby blending perfectly with your wall-mounted flat-panel television. Each Vignette comes standard with a low-profile, single-pivot wall bracket that allows easy vertical or horizontal mounting next to a plasma or LCD display or in any other location your environment may require. Each Vignette comes standard with both black and silver grilles and a low-profile, single-pivot wall bracket that allows vertical or horizontal mounting next to a plasma or LCD display or in any other location. Optionally available are a matching table stand and floor stand. As you can see, "versatility" should be Vignette's middle name.
If you're looking for the best-sounding, best-looking, and most versatile small speaker to complement your plasma or LCD HDTV, look no further. If you're still wondering how such a tiny speaker can deliver the quality sound of MartinLogan, don't worry--the Vignette's light weight doesn't mean it's a lightweight.
 Advanced thin-film drivers mirror |
 A single-pivot wall bracket allows |
 The patented Vojtko crossover |
The key element in this miraculous transducer is a micro-thin, low-mass diaphragm that is etched with an ultra-light, conductive aluminum. This film is suspended between two opposite-polarity, high-field-strength neodymium magnet arrays and housed in special steel perforated outer plates. When the audio signal from an amplifier passes through the diaphragm's surface, it creates an alternating electromagnetic field that interacts with the fields of the fixed magnet arrays, moving it back and forth with incredible fidelity to the original signal.
The Vignette shares several important performance enhancing features with the world class MartinLogan electrostatic loudspeakers. This ensures precise, accurate reproduction with vanishingly low distortion. As mentioned above, the ATF diaphragm (based on Radia® planar technology) is sandwiched between and simultaneously driven by extra powerful magnet arrays of opposing polarity to create an inherently linear push-pull effect similar to that of an electrostatic loudspeaker. This is why Vignette is such a highly regarded on-wall loudspeaker and matches so well with other ML speakers.
Another similarity to a MartinLogan electrostatic loudspeaker is that the diaphragm is driven uniformly over its entire surface, rather than at just a small contact area as in a conventional cone or dome driver. This allows Vignette to reproduce music and movies at levels of detail never expected from such a small package.
In simple terms: Like all MartinLogan products, Vignette does an amazing job at delivering sound exactly the way it was recorded- a pleasure rarely experienced from speakers at twice the size or price.
Installation and Application Versatility
Vignette is suitable for use in any stereo or multi-channel audio system, mounted either on- or off-wall. It works well on its own but blends well with all other MartinLogan speakers in both sound and appearance, which allows mixing and matching to meet specific installation requirements.
Each Vignette comes standard with both black and silver grilles and a low-profile, single-pivot wall bracket that allows vertical or horizontal mounting next to a plasma or LCD display or in any other location. Optionally available are a matching table stand and floor stand.
Low-Distortion Aluminum-Cone Woofers
By eliminating cone flexure, aluminum diaphragms help our advanced-technology mid/bass drivers achieve the very low distortion necessary for proper blending with MartinLogan electrostatic panels.

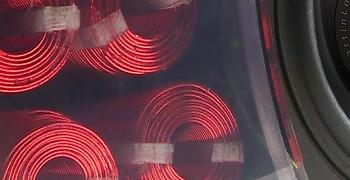

Vojtko™ Crossover
Carefully hand-built using only the finest polypropylene capacitors and air-core coils, the crossover employ's MartinLogan's proprietary Vojtko topology for vanishingly low distortion and seamless driver integration. This precision-tuned network preserves even the most subtle sonic nuances while handling the full dynamics of any source.
The Final Breakdown: Technical Specifications
| Frequency Response: | 78-20,000 Hz ± 3dB | |
| Sensitivity: | 89 dB/2.83 volts/meter | |
| Impedance: | 6 ohms nominal | |
| Crossover Frequency: | 2200 Hz | |
| Components: | Air core coils, metal film and low dissipation electrolytic capacitors | |
| High Frequency Driver: | 1.5" x 2.25" (3.8 x 5.7 cm) ATF™ Transducer | |
| Woofer Type: | Two 4" (10.2cm) magnetically shielded high rigidity aluminum cones with extended throw drive assembly, non-resonance asymmetrical chamber format; bass reflex | |
| Power Handling: | 125 watts per channel | |
| Weight: | 14 lbs./channel (6.4 kg) | |
| Dimensions Without Wall Bracket (HxWxD): | 7.1875" x 19.5" x 4.5" (18.3 x 49.5 x 12.54 cm) | |
| Dimensions With Wall Bracket Flat Against Speaker (HxWxD): | 7.1875" x 19.5" x 5.26" (18.3 x 49.5 x 14.45 cm) |
Stand Up and Take Your Speaker Off-The-Wall (sold separately)
 | Floor Stand - Shown here with the Vignette speaker, this stand is designed specifically for the versatile Fresco i, Fresco and Vignette loudspeakers. By using this black stand your speakers will be elevated 24 inches off the floor (with a total height of 48 inches with the Fresco installed and slightly shorter with the Vignette). Table Stand - Shown here with the Fresco i speaker, this black stand is designed specifically for the versatile Fresco i, Fresco, and Vigentte loudspeakers and features 5 height settings. |  |
Complete Your Home Theater with MartinLogan Front Channels (sold separately)
 | Vantage Speaker - Based on the state-of-the-art Summit loudspeaker, Vantage offers unprecedented performance for its size and price. Key to this achievement is our PoweredForce active woofer technology, which generates deep, articulate, dynamic bass from an astonishingly compact cabinet. An XStat electrostatic panel handles the midrange up, delivering the smooth, pristinely detailed, and richly ambient sound that is the hallmark of MartinLogan speakers. No ordinary speaker comes close. |
 | Vista Speaker - Vista is MartinLogan's most affordable XStat equipped floorstanding speaker. Incorporating ultra-high-resolution XStat and AirFrame technologies originally developed for the cost-no-object Summit; Vista is capable of an exceptionally dynamic and realistic performance. A single aluminum cone woofer, compact cabinet, and bi-wire capable toolless binding posts further reinforce Vista's high-end pedigree. The result? A stellar performer at an exceptional price. |
 | Fully Powered Purity Speaker - Purity is an internally powered hybrid design descended from Martinlogan's legendary, ultra performing enthusiast models. Purity represents a remarkable achievement in performance and 21st century connectivity at a really amazing price. Executing an exciting new direction, Purity is an elegant compact floor standing beauty that does it all. Combining the latest, friendliest version of MartinLogan's unique see-through electrostatic panel (world's most accurate method of sound reproduction) with 2 deep bass woofer cones in a clean lined cabinet, Purity mates ideally with any electronics for any audio use. Purity is at its best when directly connected with an RCA cable from any device with a volume control. Your computer, TV, i-pod, pre-amp, and A/V receiver will all love the marriage. Of course you may hook-up using conventional speaker wire if your system so requires. |
 | Source Speaker - Source is an elegant, compact floor standing beauty that does it all. Combining the latest version of MartinLogan's unique "see-through" electrostatic panel (the world's most accurate method of sound reproduction) with a deep bass woofer cone in a clean lined cabinet, Source mates ideally with nearly any of your electronics, for any use. Beyond delivering stunning, accurate play back of all types of stereo music, or incorporated as the star in your 5.1 or 7.1 home theater playing film soundtracks, Source will look great in your entertainment space and provide years of performance and pride because of its renowned MartinLogan design and construction. Best of all is the low cost - the Source allows you to get the superior build quality and truly exceptional sound of more expensive electrostats for a very affordable price. |
 | Preface Speaker - Compact and decor-friendly, the Preface is a perfect reflection of the passion and pride of MartinLogan products. Equipped with 3 6.5 inch woofers and an ATF high frequency driver, the Preface delivers a sound with unparalleled purity, precision and clarity. Frequency response ranges from 35-20,000 Hz. |
Complete Your Home Theater with A MartinLogan Subwoofer (sold separately)
 | Depth i Subwoofer - Depth i deploys the full array of MartinLogan's advanced subwoofer technologies to achieve deep, rich, satisfying bass while preserving electrostatic-like accuracy and detail. Its TriLinear BalancedForce alignment, advanced low-distortion switching amplifier, and sophisticated triple-servo control systems extract the very best possible performance from Depth i's high-resolution 8-inch aluminum-cone drivers. TriLinear BalancedForce places the subwoofer's three drivers precisely 120 degrees apart from each other in the cabinet. Their reaction force vectors meet at the center and exactly cancel, virtually eliminating cabinet resonance and vibration. Gone with them are the cabinet-radiation coloration and bass blur that afflict even the best conventional subwoofers. The triple-servo system, meanwhile, ensures that the output from the drivers themselves - the output we want - is always an absolutely faithful replica of the audio input signal. |
 | Grotto i Subwoofer - Grotto i deploys the full array of MartinLogan's advanced subwoofer technologies to achieve deep, rich, satisfying bass while preserving electrostatic-like accuracy and detail. Its advanced low-distortion switching amplifier and sophisticated servo control system extract the very best possible performance from Grotto i's high-resolution 10-inch aluminum-cone driver. A powerful 300 watt (900 watt peak) low-distortion, high-reliability amplifier gives Grotto i extremely articulate bass without need of exaggerated amplifier power ratings or transient-blurring ported or passive radiator enclosures common to many modern subwoofers. A proprietary servo system further ensures that output from Grotto i's 10-inch high-resolution aluminum cone woofer is dramatically free of distortion and provides a faithful replica of the audio input signal. |
 | Dynamo 500 Subwoofer - No other subwoofer offers Dynamo 500's bass extension, power, and detail at such an affordable price. Perfect for either home theater or stereo applications, the Dynamo 500 is solidly built with high-density materials to minimize cabinet resonance and provide a foundation for the high-output 10-inch woofer and high-current 120-watt RMS, 360-watt peak amplifier. Additionally, dual rear-mounted low-turbulence ports maximize bass output while minimizing port induced distortions. |
Other MartinLogan Custom Install Solutions (sold separately)
 | Voyage In-Wall Speaker - The MartinLogan Voyage in-wall speaker system is a ultimate-performance speaker for your home theater entertainment room.. It is the world's most sophisticated and elegant architectural loudspeaker, The Voyage in-wall speaker sounds so clean and dynamic, you'd think it were a superb standalone design. Not surprising, since it borrows so much from our own, including Advanced Thin Film drivers and high-resolution woofers. A rigid aluminum chassis and die-cast mounting locks enhance performance and ease installation, while an adjustable tweeter-alignment sphere, paintable end caps, and a selection of grille colors provide incredible adaptability. |
 | Passage In-Wall Speaker - A uniquely elegant and extremely accurate in-wall speaker, Passage is a remarkable performer delivering the sound quality you would expect to hear from one of MartinLogan's floorstanding loudspeakers. With twin high-resolution aluminum-cone woofers, a world class ATF (Advanced Thin Film) tweeter, an advanced-technology Vojtko crossover and a rigid aluminum chassis and 1" front baffle, Passage is quite simply an in-wall loudspeaker marvel. The result is a full, wonderfully smooth and engaging sound with clean and surprisingly deep bass foundation. |
 | Ticket In-Wall Speaker - The MartinLogan Ticket in-wall speaker is a compact, affordable in-wall speaker for every room in your home. While significantly smaller than Passage, the elegant, affordable Ticket in-wall speaker is nonetheless a very strong performer. Its dual long-throw, high-resolution woofers, integrated dome tweeter, and advanced Vojtko¿ crossover deliver rich, clear sound and superb stereo imaging. Ticket also features paintable end caps and a selection of grille colors for perfect matching with any decor. Its quick and easy, yet very secure, installation system is the same used in Voyage and Passage speakers from MartinLogan. |
 | Helos 100 In-Ceiling Speaker - Helos 100 is ideal for any room requiring ultimate in-ceiling audio performance such as a 2-channel system in a large living room or a multi-channel system in a discrete home theater. Helos 100's aimable assembly allows a large audience to experience the full potential of the Helos 100. Featuring a 1-inch neodymium soft dome tweeter, high-rigidity aluminum cone woofer, and proprietary Vojtko crossover topology, Helos 100 effortlessly provides solid imaging with extreme sonic accuracy. An acoustic contour switch tailors dispersion assuring a top-notch performance in any installation. |
 | Helos 20 In-Ceiling Speaker - A direct descendant from the Helos100, the Helos 20 continues with the MartinLogan tradition of exceptional sound. The Helos 20 has the ability compliment any decor with it's paintable grill and frame. Sonically, the Helos 20 boasts a dual voice coil system with two 0.75 inch soft dome tweeters with a pivoting stem and a single 6.5 inch woofer, creating crisp accurate sound. Frequency response ranges from 47-20,000 Hz. |
 | Helos 10 In-Ceiling Speaker - The Helos 10 delivers legendary MartinLogan quality and performance in a compact, high-resolution in-ceiling loudspeaker. Featuring a 1-inch neodymium soft dome tweeter mounted in an aimable stem, high-rigidity aluminum cone woofer, and proprietary Vojtko crossover topology, Helos 10 effortlessly provides extreme sonic accuracy. |
Product Description
The Vignette is an on-wall or off-wall speaker that can be used as either center, front or surround channels. The Vignette comes standard with both black and silver grill covers and a low-profile, single-pivot wall brack that allows verticle or horizontal mounting. Table and floor stands are optional. The Vignette has two 4 " woofers as well as a high frequency driver and plays from 78 to 20,000 Hz.
