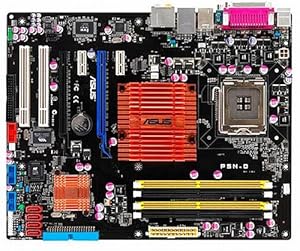

ASUS P5N-D LGA775 Nvidia 750i DDR2-800 ATX Motherboard

by Asus
| 4 answered questions

Currently unavailable.
We don't know when or if this item will be back in stock.
  • ASUS P5N-D NVIDIA nForce 750i SLI Socket 775 ATX Motherboard General Features: ATX form factor
  • NVIDIA nForce 750i SLI chipset Socket 775 architecture Supports 1333/1066/800 MHz FSB speeds
  • Supports up to 8 GB DDR2 800/667/533 MHz memory Supports 2-way NVIDIA SLI
  • Integrated Realtek ALC883 8-channel high definition audio One (1) IDE controller
  • One (1) Floppy controller

Frequently Bought Together

ASUS P5N-D LGA775 Nvidia 750i DDR2-800 ATX Motherboard + Arctic Silver 5 Thermal Compound 3.5 Grams
Buy the selected items together


Technical Details

  • Form Factor: atx
  • RAM Memory Technology: ddr2

Product Details

  • Product Dimensions: 13.2 x 10.4 x 2.7 inches ; 3.5 pounds
  • Shipping Weight: 4 pounds
  • Shipping: Currently, item can be shipped only within the U.S.
  • ASIN: B0012PT2OW
  • Item model number: P5N-D
  • Average Customer Review: 4.2 out of 5 stars  See all reviews (31 customer reviews)
  • Date first available at Amazon.com: September 14, 2004
  •  Would you like to update product info, give feedback on images, or tell us about a lower price? .


Product Description

CPU - Intel Socket 775 Core¿2 Quad/Core¿2 Extreme/Core¿2 Duo/Pentium® Extreme/Pentium® D/Pentium® 4 Processors - Front Side Bus: 1333/1066/800 MHz Chipset - NVIDIA nForce 750i SLI Memory - 4 x DIMM, Max. 8 GB, DDR2 800/667/533 Non-ECC,Un-buffered Memory - Dual Channel memory architecture Expansion Slots - 2 x PCIe 2.0 x16: Single VGA mode: x16; SLI mode: Hardware ready for x16, x16 - 2 x PCIe x1, 2 x PCI 2.2 Storage - 1 xUltraDMA 133/100/66/33 - 4 xSATA 3 Gb/s ports NVIDIA MediaShield¿ RAID: Support RAID 0,1,0+1,5,JBOD span cross Serial ATA drives LAN - NVIDIA nForce® 750i SLI built-in Gigabit MAC with external PHY Audio - Realtek ALC883 8 -Channel High Definition Audio CODEC - Coaxial / Optical S/PDIF out ports - Support Jack-Sensing, Enumeration, Multi-streaming Back Panel I/O Ports - 1 x PS/2 Keyboard, 1 x PS/2 Mouse, 1 x IEEE 1394a - 1 x LAN(RJ45) port, 4 x USB 2.0/1.1, 8 -Channel Audio I/O, 1 x Parallel Internal I/O Connectors - 2 x USB connectors support additional 4 USB ports, 1 x IEEE 1394a connector - 1 x Floppy disk drive connector, 1 x IDE connector, 4 x SATA connectors - 1 x CPU Fan connector, 1 x Chassis Fan connector, 1 x Power Fan connector - 1 x S/PDIF Out connector, Front panel audio connector, Chassis Intrusion connector, CD/AUX audio in - 1 x 4-pin ATX 12V Power connector, 1 x 24 -pin ATX Power connector, System Panel Connector BIOS - 8 Mb Flash ROM - PnP, DMI 2.0, WfM 2.0, SM BIOS 2.4 - Award BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 2 Form Factor - ATX Form Factor - 12 inch x 9.6 inch ( 30.5 cm x 24.5 cm ) Special Features - Multi-language BIOS - ASUS MyLogo 2

Customer Questions & Answers

Customer Reviews

This board is simply great.
protoc
Sorry, I just had to brag on ASUS, I am happy beyond words with the customer servive.
Patterson
I purchased this item to replace a like item.
Ron Russell

Most Helpful Customer Reviews

17 of 18 people found the following review helpful By Michael Francisco on April 9, 2008
Excellent motherboard, price is a bargain for sli-motherboard, it is compatible with the new 45nm processors (which I use now: q9450), I was going to buy the Asus striker extreme, but the motherboard heatsinks are all over the place, and I can't place a bigger cpu heatsink/cooler. It is a decent motherboard overall, great bios and easy overclocking and not to mention stable as well. With this motherboard, I am able to place a zalman cnps9700, and also a 2 slot 8800gts. If want to buy a motherboard that has 3 or even 4 way sli, this is not for you, I recommend anyone not to buy that redundancy, because I was able to achieve 17000 3d marks with just one.
2 Comments Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback. If this review is inappropriate, please let us know.
Sorry, we failed to record your vote. Please try again
10 of 10 people found the following review helpful By protoc on January 29, 2009
Verified Purchase
This board is simply great. It's very stable and handles everything on my system quite well. The SLI is fast and this board is probably the cheapest you can go for SLI and still get a great product. The onboard CPU management is really helpful. It doesn't overuse wattage or waste CPU processes by automatically adjusting your voltages. All my drivers work great after the bios update.

I have no complaints about the board. It's simply great for the price. I bought this thing to replace a blown board. It uses solid state so it's much more stable hardware. I also didn't want to pay for a good SLI board since I plan on a new board when USB 3 comes out. So if you just need something to get by, this is it. I run two 9500GT cards on it and play most games at full res 60fps or more.
Comment Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback. If this review is inappropriate, please let us know.
Sorry, we failed to record your vote. Please try again
3 of 3 people found the following review helpful By Patterson on September 28, 2009
Verified Purchase
I bought this board to replace my ECS 945PL-A. Never get ECS. Anyway, I bought this board used, from a private individial, off a 3rd party site. When I got it, neither PCIe slot worked (had to bug the people at the computer store te let me borrow a PCI card to confirm the issue). After that I called ASUS, told the the aforementioned string of the aqusiotion, and the operator said "OK, give me your email adress, and we'll send you the RMA procedure."

Never asked how old the board was, never checked anything with warrenty with me (although they did have the serial number), never give me a moments hassle in replacing the board. It was actually easyer getting an RMA than getting the guy at the post office to put a strip of tape on the package.

Also, and I'm not sure about this, but the board arrive in a FEDEX box that hab been turned inside out by the seller. ASUS ships FEDEX, so I have reason to suspect this board had been RMAd before. Sorry, I just had to brag on ASUS, I am happy beyond words with the customer servive. Even if FEDEX was a week late.

On to the review, if the processors name has a P,D,E,or Q in it, this board will run it fine. My last board said Pentium D 950 supported, but only the C1 stepping, I ordered a B1 in ignorange of that specification. Lost some money. ASUS just wrote a new BIOS (1101) 6 months ago when the new Core 2 revisions came out. Also, this thing is fast. Most people don't realize the impact of the board on speed, but it was like the 950 was unlocked. Add to that the ability to overclock everthing but the PSU, and you have a major contender for a Crysis rig for less than $700.
Read more ›
Comment Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback. If this review is inappropriate, please let us know.
Sorry, we failed to record your vote. Please try again
3 of 3 people found the following review helpful By HIHC on September 14, 2008
Verified Purchase
Very good board. Lots of BIOS options. Also lots of helpful options for overcloking. I have code 2 quad 2.4 Mhz (Q6600), 4 GB, nVidia 880 GT and Windows Vista. It is quite fast. Haven't overclocked it but planning to do it. So far temperature is quite OK 38/40 in CPU and 40/42 in board. I added a Masscool 8WA741 for the CPU though, since my plans are to overclock. Ah! don't forget you need a 64 bits OS if you want to use more than 3 GB.
Comment Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback. If this review is inappropriate, please let us know.
Sorry, we failed to record your vote. Please try again
1 of 1 people found the following review helpful By Steven J. Mcdaniel on June 6, 2010
Verified Purchase
I have used Asus Motherboards forever. On my last build update I decided to try a Gigabyte board because of it's good reviews.

That was a mistake. The board worked ok but had small annoying problems with Windows 7. My biggest gripe was it would not wake up after being asleep for a couple of hours. I tried a couple of solutions I found in some forums but it still would not wake up in the morning.

I switched back to Asus and the problem went away.

I will only use Asus boards from now on.

Asus P5N-D
LGA 775
GTX 280

Started gameing with the original Doom, hooked on Fallout 3 and Boarderlands.

Asus is the Bee's knee's
Comment Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback. If this review is inappropriate, please let us know.
Sorry, we failed to record your vote. Please try again
1 of 1 people found the following review helpful By Nathan Kimball Smith on December 15, 2010
Verified Purchase
Great specs on this p5n-d motherboard & great price on amazon! Very compatible, but at the end of the day it's still an ASUS. I have 5 ASUS boards & every single one has problems @ 1 time or another. I buy them based on spec & rma them when the fail... Always happens! So if ur looking for mobo stability, look somewhere else because ASUS can not provide. This is my last ASUS purchase
Comment Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback. If this review is inappropriate, please let us know.
Sorry, we failed to record your vote. Please try again
1 of 1 people found the following review helpful By J. Tsai on October 13, 2010
Verified Purchase
I purchased this to replace a mobo whose RAM slots went bad. Great replacement, but please note that this only has one IDE slot. If you're trying to replace in kind for a replacement motherboard, and you have two IDE cables you need to plug in, this won't do. I had to purchase a SATA HDD and plugged my two optical drives into the IDE port. Otherwise, works great and is cheap!
Comment Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback. If this review is inappropriate, please let us know.
Sorry, we failed to record your vote. Please try again
