Product Specifications
Height (inches)3.29 inches
Width (inches)5 inches
Weight2 Pounds
Technical Details
- CMOS Water Proof 1.25'' Flush Mount Housing - Resolution: 380 TV Lines - Video Output:1.0V pp-75 Ohm
- 17 Foot Male to Male RCA Video Cable - Night Vision Low Lighting Capable - Power Supply: DC 12V 200 mA
- Drill Cutout Tool Included - 10 IR LED Lights - Dimensions: 1,25''(W) x 1.25''(H) x 1.77''(L)
- Image Snesor: OV7910 Color CMOS - Min Illumination:0.5 LUX
- Total Pixels: 510 x 492 - Auto Image Adjustment
Product Details
Would you like to update product info or give feedback on images?
|
Product Description
From the Manufacturer

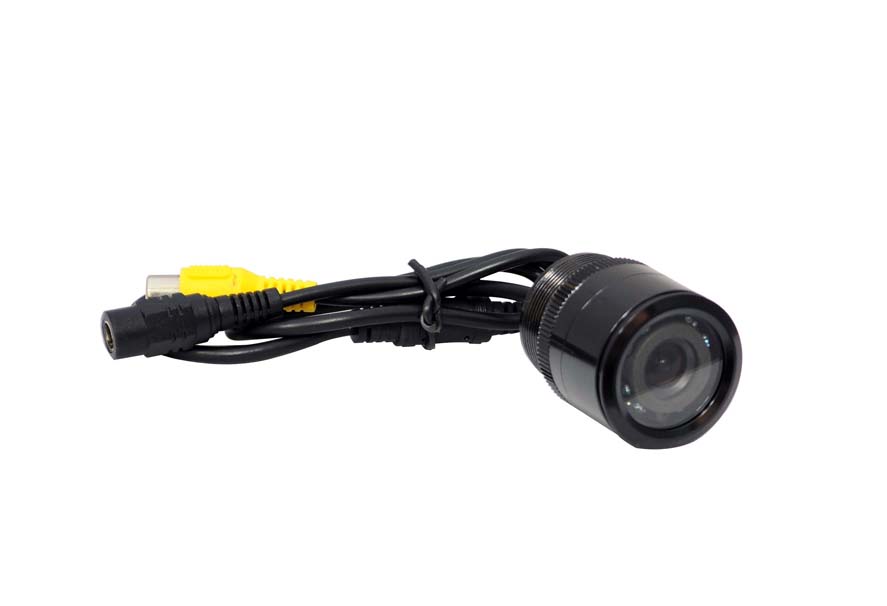

The PLCM22IR fits easily on your license plate and features the latest in safety technology
Click here for a larger image
Comes with dual RCA video input cable, car power adapter
Works great with the Pyle PLHR79 - it's the perfect combination for an affordable backup camera system
Click here for the PLHR79 Amazon Page Backup Camera That Fits Easily above Your License Plate
This rear view camera with 0-lux night vision outputs crystal clear video over an RCA jack. It comes with a drill cutout tool so you can mount this camera to the back of your car. Connect to a monitor in your car, and you’ll be able to see everything behind you on the screen!
Perfect for backing into tight spots or moving in reverse when visibility is limited – the PLCM22IR is like an extra eye. And this model comes with nightvision infrared LEDs, which illuminate the area behind you at night using a light that only the camera can pick up. This small and durable unit will keep you safe and secure because you’ll always know what’s going on around you.
See Where You’re Going – Even in the Dark
The PLCM22IR features IR night vision and low-light illumination, so you can see behind you clearly day or night.
Fits Perfectly on Your License Plate
The PLCM22IR can be installed easily on your existing license plate mounting locations, and is suitable for both top as well as bottom mount on the license plate. It also comes with a drill cutout tool to make your installation job easier.
RCA Output
This camera also features RCA video output for connecting to other source inputs. Use your camera with a review mirror monitor, an existing in-dash TV, a DVR, or any other RCA-compatible video input.
Product Description
This rear view camera with 0-lux night vision outputs crystal clear video over an RCA jack. It comes with a drill cutout tool so you can mount this camera to the back of your car. Connect to a monitor in your car, and you’ll be able to see everything behind you on the screen! Perfect for backing into tight spots or moving in reverse when visibility is limited – the PLCM22IRis like an extra eye. And this model comes with nightvision infrared LEDs, which illuminate the area behind you at night using a light that only the camera can pick up. This small and durable unit will keep you safe and secure because you’ll always know what’s going on around you
Customer Reviews
Most Helpful Customer Reviews
46 of 46 people found the following review helpful
Amazon Verified Purchase
Item arrived with all specified parts and in working order (including the drill bit)
Installation is a little time consuming, so don't take this on if it's your first try at car audio / video. Unfortunately there were no instructions, and wires on the harness from the camera were unlabeled but luckily they were easy to figure out.
The video out line is easy to spot as its the industry standard yellow RCA cable (17' extension included)
The positive voltage that powers the camera is the wire that has the fuse in it (this line connects to the white back-up light in your tail lights and powers the camera)
The remaining line is the ground and can be attached to almost any bare metal on vehicle, I usually choose a screw somewhere close.
The cables included are long, but you may need to an extension for the power wire (to tell the receiver when to turn on the rear view monitor). I chose to extend the wire from the tail light so the video camera and the receiver got the same signal.
The top of the camera is not noted, so you'll have to adjust it after installation.
The camera automatically adjusts between regular and IR mode and the LED's around the lens will not light up. You'll know when it's in IR mode as the picture will change from color to B&W.
The field of view is a little constricted compared to many cameras, but its enough for me (I can't see the corners of the vehicle, but can see behind me).
Installation is a little time consuming, so don't take this on if it's your first try at car audio / video. Unfortunately there were no instructions, and wires on the harness from the camera were unlabeled but luckily they were easy to figure out.
The video out line is easy to spot as its the industry standard yellow RCA cable (17' extension included)
The positive voltage that powers the camera is the wire that has the fuse in it (this line connects to the white back-up light in your tail lights and powers the camera)
The remaining line is the ground and can be attached to almost any bare metal on vehicle, I usually choose a screw somewhere close.
The cables included are long, but you may need to an extension for the power wire (to tell the receiver when to turn on the rear view monitor). I chose to extend the wire from the tail light so the video camera and the receiver got the same signal.
The top of the camera is not noted, so you'll have to adjust it after installation.
The camera automatically adjusts between regular and IR mode and the LED's around the lens will not light up. You'll know when it's in IR mode as the picture will change from color to B&W.
The field of view is a little constricted compared to many cameras, but its enough for me (I can't see the corners of the vehicle, but can see behind me).
46 of 49 people found the following review helpful
I'd installed the camera in my Jeep Grand Cherokee with Pioneer 5600 DVD. The Installation was not simple, since I had to add extra video cable (the power cable is longer). As I noticed in other review, the hole saw that was supposed to come included in the kit was missing so I had to buy another one to be able to make the proper hole. The camera is water and dust resistant, and has a clear night vision, but since it has no angular lens (peep hole type) it doesn't cover both ends of the bumper and right there you miss the whole point of having a rear view camera. Just because of that, I would suggest further research of other similar products.
20 of 21 people found the following review helpful
Amazon Verified Purchase
Overall this seems like a very good camera. The quality seems good and so far has not had any issues due to weather like previous cameras. I didn't want to drill a hole in the body of my truck to accommodate this camera so I installed it into a plastic housing under the bumper. It gets a good view, but surprisingly it can't actually see to the corners of the vehicle. The viewing angle of the camera almost makes it, but objects have to be 3-4 feet away (behind) the corners in order for the camera to pick them up. In the worst case, if something were right at the bumper on either side but just out of view of the side mirrors, you wouldn't be able to see it and could hit it. Other than this, if you're starting out somewhere that you know to be clear, then you're OK and can use your mirrors and camera to make it all work. The image quality is quite good, and at night can see well too.
Most Recent Customer Reviews
Rear View Camera
I purchased this Pyle PLCM22IR Flush Mount Rear View Camera for an add on to my audio/video setup. I had it installed as an after market add on to my JVC receiver. Read more
Published 19 days ago by Paul E. Hines
Works great except for the automatic feed function on my dash
I bought this camera with the Pyle PLTS77DU 7-Inch Touchscreen Monitor. I also reviewed that, which has a lot of the same info as this.. Read more
Published 2 months ago by Blake Gonska
Rear View camera
Not and HD camera but sure has a resolution that can make things look like you are looking right out your window. Has a sturdy construction and connectors have a snug fit. Read more
Published 2 months ago by Miguel
Very clear video
What a difference from my previous camera. This was inexpensive yet provided a clear picture in most lighting conditions. I will buy another one of these if I need more.
Published 2 months ago by David Raiman
good product
First I am satisfied with the delivery time, all in the box, in perfect condition, the product now, I am impressed by the price did not think to get as much quality. Read more
Published 3 months ago by KENNETH
Not bad so far
I just mounted this camera and do not yet know about its durability over time, but will update this post if anything changes. Read more
Published 3 months ago by EricB
Works As Advertised
Installed it on the bumper of my 2002 GMC Envoy; No drilling on my truck. It worked perfectly when I finally connected the power source (red wire), grounded it (black wire), and... Read more
Published 3 months ago by wjmyles
good value, nice camera
Installed replacing an universal camera with this same dimensions in my car. This camera have a 'good' but not the best image on my screen, average image at night. Read more
Published 3 months ago by Idelson de la Cruz
PYLE PLCM22IR Flush Mount Rear View Camera with 0.5 Lux Night Vision
The PYLE PLCM22IR Flush Mount Rear View Camera with 0.5 Lux Night Vision for the price this camera is OK. Read more
Published 5 months ago by Miguel SR
versatile mounting
I bought a stereo that had option for a reverse camera. This little unit is hooked up to it and wworks nicely. Read more
Published 5 months ago by Gordon B
