PORTER-CABLE 560 QUIKJIG Pocket-Hole Joinery System

by PORTER-CABLE

• Automatic depth control system allows for easy set-up for different material thicknesses
• Variable-spaced bushings allow a variety of positions for the pocket holes
• Self-adjusting clamp adjusts automatically to material thickness
• Repeatable clamp makes multiple pieces quick and easy
• Screw-length gauge recommends the appropriate screw length for material thickness

Product Description

Amazon.com

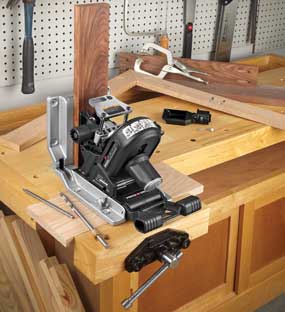

Porter-Cable's 560 QUIKJIG pocket-hole joinery system features automatic gauges that adjust for material thickness, making woodworking jobs more efficient and accurate (view larger).

View larger.

Porter-Cable’s 560 QUIKJIG pocket-hole joinery system is a sturdy and durable bench-top tool solution that makes woodworking jobs more efficient and accurate. Often more advantageous than plate jointers or biscuits, pocket-hole jointers allow for more flexibility for projects like edge joining, picture framing, or cabinet face framing because pocket-hole joints do not require glue and are capable of being disassembled. The QUIKJIG’s automatic adjusting depth and thickness gauge assists in setting the drill angle when material is inserted, and a screw-length gauge suggests appropriately sized fasteners for the material thickness at hand. Whether you’re working on wainscoting or building furniture, the QUIKJIG’s user-friendly design and easy setup for precise and repeatable results makes it ideal for any number of woodworking jobs.

Accurate and Repeatable Results with the QUIKJIG

As pocket holes have become an increasingly popular joinery method because of their strength, lack of glue required, and capability of being disassembled, Porter-Cable has developed an intuitive bench-top pocket-hole joinery system in the QUIKJIG. With an exclusive auto-adjusting depth and thickness gauge that eliminates the need to make manual adjustments based on material thickness, the QUIKJIG is efficient and accurate every time. The drilling angle is set when material is placed in the tool; all you need to do is set a width stop, insert and clamp the material, and drill the hole. An integrated screw-length gauge even suggests the appropriate length of screw to be used to avoid breakthrough of the piece.

Porter-Cable has designed the QUIKJIG to be easily installed and instantly used. Outfitted with a pre-drilled base, the QUIKJIG can be easily mounted on your workbench or quickly clamped to practically any tabletop. Its all-metal construction reduces deflection during use and maximizes the tool’s durability. The particularly tall casting improves material support for various types and sizes of wood. A 1-1/2-inch-thick base casting is the same height as a 2-inch-by-4-inch board, providing outrigger support for longer material. The QUIKJIG’s repeatable clamp handle facilitates fast and consistent clamping, even for wood with varying thickness. A rear dust collection port that’s compatible with a Porter-Cable dust extractor (sold separately) or a standard vacuum allows for easy cleanup.

The 560 QUIKJIG pocket-hole joinery system comes with multiple accessories, including square drives, a drill bit, a drill-bit depth collar—all of which can be conveniently stored onboard the QUIKJIG—as well as a clamp, a hex key, and 100 screws.

About Porter-Cable

With more than 100 years of experience producing quality and performance-driven tools, Porter-Cable is a leading manufacturer and marketer of professional-grade cordless and corded power tools, equipment, and accessories. Known for industry-changing innovation, Porter-Cable introduced the world’s first helical drive circular saw, portable band saw, and portable belt sander.

What's in the Box

One Porter-Cable 560 QUIKJIG pocket-hole joinery system, including one QUICKJIG, one 6-inch square drive, one 3-inch square drive, one 3/8-inch drill bit, one drill bit collar, one hex key, 20 1-inch screws, 40 1-1/4-inch screws, 40 1-1/2-inch screws, one clamp, and one instructional manual.

Highlights

• Pocket-hole joinery system ideal for a variety of woodworking applications
• Variable-spaced bushings allow for a variety of pocket-hole positions
• Automatic depth-control system provides accuracy when working with different material thicknesses
• Integrated drill-bit collar setup dot not require changes for different material thicknesses
• Removable dust port is compatible with Porter-Cable dust extractor (sold separately) or standard vacuum
• Backed by a 90-day money-back guarantee, a one-year free service contract, and a three-year limited warranty

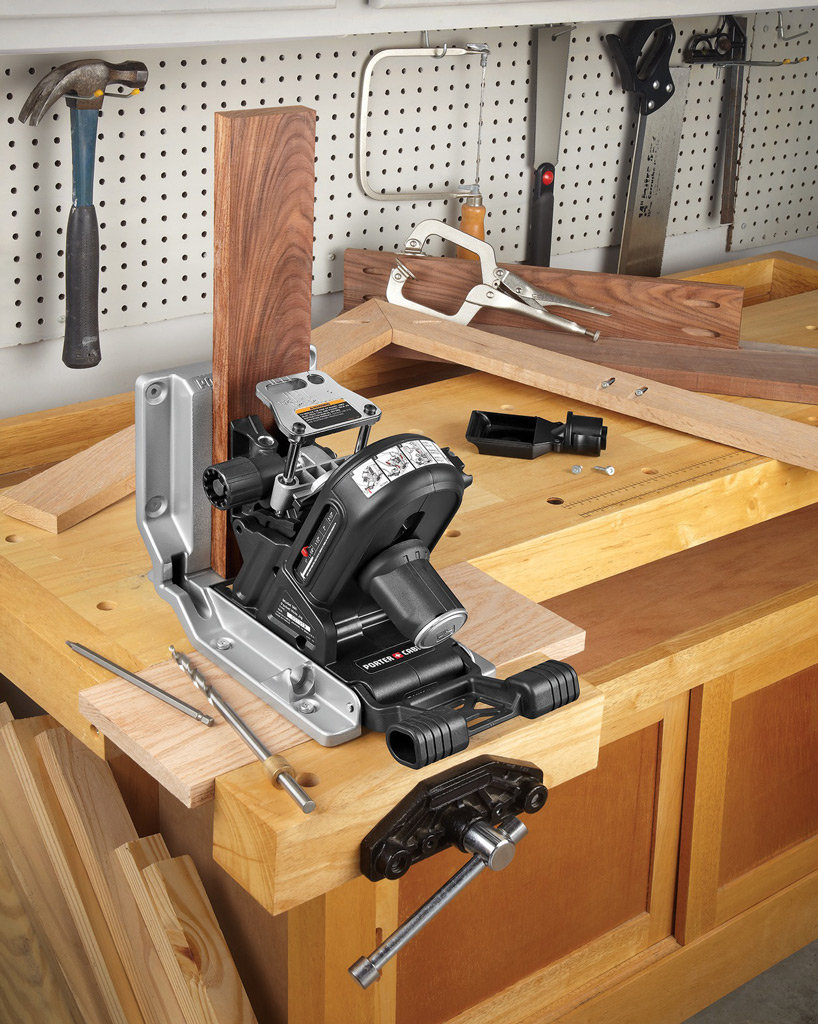

Porter-Cable's 560 QUIKJIG pocket-hole joinery system has a pre-drilled base for easy mounting on the workbench in your shop (view larger).

Product Description

Includes Quik Jig Pocket Hole Joinery System - 560, 6-in Square Drive, 3-in Square Drive, 3/8-in Drill Bit, Drill Bit Collar, Hex Key, (20) 1-in Screws, (40) 1-1/4-in Screws, (40) 1-1/2-in Screws, Clamp, Instruction Manual

Most Helpful Customer Reviews

30 of 32 people found the following review helpful

5.0 out of 5 stars no thinking involved January 5, 2011

By doug1408

i was going to buy another pocket hole system until i saw a demo on this....wow...talk about easy.....slide wood in, press down clamp, and drill....perfect everytime.........no measurements need to be taken on wood size or drill size....drill stops automatically, no matter what size wood...this tool is really well thought out...one side of unit shows the size of screws you will need as soon as the board is clamped...also has bit rest and automatic collar calibration, both included....on the other side holds two (also included) different size square bits for screwing....hook up your shop vacuum and there is a place for the hose to connect and suck out debris...also, when using a long piece of wood that requires holding due to the weight or balance, the unit has been built so that a scrap 2x4 is all that is required to hold a long board level with the unit...it is also built to work at 90 degrees for odd size jobs...has holes in base for mounting in either position...this is worth every cent....i bought mine on sale locally and paid $189....

6 of 6 people found the following review helpful

5.0 out of 5 stars Excellent Tool January 1, 2012

By shopper1

I purchased this tool based on the reviews and video and finally got a chance to use it last week. It is excellent. It is very easy to use. There is no guessing on how long the screws you will need. The drill bit only has to be set one time. The horizontal distance between the holes to be drilled is fully adjustable by simply rotating the knob on the top of the unit. The tool itself is larger than the other models I looked at, but this worked out better because I was able to use it without having to clamp it down to a table. The flat part of the jigg that supports the wood to be drilled is knurled and helps keep the wood securely in place.
I also have the plastic Kreg pocket jigg for getting into a tight spot, but the Porter Cable jigg is the one I prefer for daily use.

6 of 6 people found the following review helpful

5.0 out of 5 stars Great product December 26, 2011

By WakkyWabbit

Amazon Verified Purchase

I have this and the Kreg4. This thing is far superior to the Kreg. It weighs a lot. It works great. The small Kreg is still best for some items (such as mending a broken board/table/chair). If you are debating on which one to buy, the PC jig is far superior. It is faster, easier and better made.

It is not easy to use in small, tight spaces. If you attach it to a board, then make it a quick release type attachment.

::: 6 months update :::

I have used this jig a lot over the last 6 months and no problems so far. I keep a small blower on hand to keep the dust and shavings cleaned out. Clean it frequently. It makes cabinet building much faster than a Kreg jig. I have used this on multiple projects from cabinets, to countertops, even custom built-ins. You have to get creative to find ways to hide the holes. Plugs and fillers are not always the best way. Overall, I am very happy with this item. I have dropped it, spilled stuff on it and it is still going strong. Just don't drop it on your foot. It is very heavy.
