Panamax MIW-POWER-PRO-PFP Power Outlet Faceplate - Silver

by Panamax

Product Details

• Product Dimensions: 4.5 x 2 x 4.5 inches ; 2 pounds
• Shipping Weight: 2 pounds (View shipping rates and policies)
• Shipping: This item is also available for shipping to select countries outside the U.S.
• ASIN: B00180GWIU
• Item model number: MIW-POWER-PRO-PFP
• Average Customer Review: 5.0 out of 5 stars  See all reviews (8 customer reviews)
• Amazon Best Sellers Rank:
  • #13 in Electronics > Accessories & Supplies > Batteries, Chargers & Accessories > Line Conditioners
• Date first available at Amazon.com: July 7, 2004

Product Description

From the Manufacturer

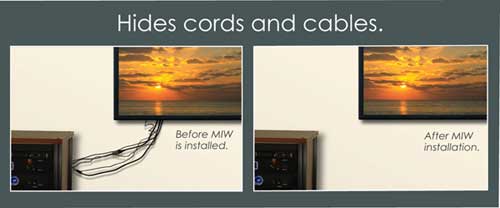

The PF Power MIW-POWER-PRO-PFP from Panamax delivers safe, protected AC power to flat panel displays, ceiling mounted video projectors and powered sub-woofers. It discreetly hides behind electronic equipment for a neat, clean, code compliant and professional installation.

All the features you need to keep your system running clean and safe

Discreet In-Wall Protection for Your Home Theater Investment

When it's not practical to run an AC line from your home theater rack to a remote display location, the MIW-POWER-PRO-PFP can utilize any branch circuit to deliver safe power to the remote display in a safety-agency-approved, code-compliant manner.

The 15 Amp MIW-POWER-PRO-PFP offers 2 AC outlets with Level 1 EMI/RFI noise filtration for clear, detailed images and crisp sound, while Thermal Fusing, Overvoltage Protection, and Catastrophic Surge circuitry protect sensitive home theater components from damaging power surges and voltage transients. Two recessed AC receptacles deliver power to remotely located devices. The enlarged faceplate (4.5" x 4.5") accommodates oversized wall cutouts.

A power on LED indicates power is being supplied to the MIW-POWER-PRO-PFP outlets. A line fault LED indicates an overvoltage condition with the power to the MIW-POWER-PRO-PFP. Voltage monitoring circuit protects equipment against prolonged over-voltages by disconnecting the power and reconnecting it when safe power returns.

This wall-plate may be used in conjunction with MIW-DUAL-SIGNAL-BAY-PFP and signal line modules (sold separately) for whole-house expandability.

Setup in Five Easy Steps

If you have any experience with basic home wiring installs, installing the POWER-PRO is a simple process. (Note: Only for use with 15 Amp circuits utilizing a minimum of 14 AWG. Make sure the circuit is not live before installation. If you are unsure how to perform this task, please contact an electrician.)

Find out more about the MIW-POWER-PRO-PFP

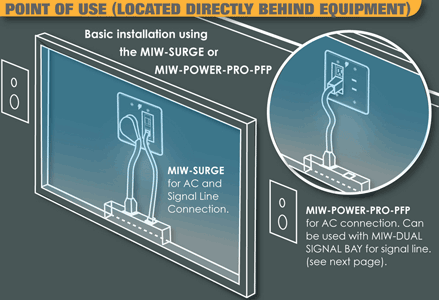

STEP 1: Select a location close to the equipment. In the case of a flat panel display, the recommended location is one that is behind the device and hidden from view once the Plasma TV is mounted. Cut a 4" wide by 3 3/4" high hole in the wall for the outlet box.

STEP 2: Run the building wire (e.g. Romex) through a rear opening in the outlet box (not included). No more than 1" of wire sheath should extend into the outlet box. 3" of wire should be able to extend beyond the opening of the outlet box. Install the outlet box in the hole.

STEP 3: Strip building wire. Using the included wire nuts, first connect the ground wires - green insulated on the MlW-Power-Pro-PFP and bare copper on the building wire. Then connect the neutral wires (white), then the hot wires (black).

STEP 4: Neatly fold the AC wires as you install the MIW-Power-Pro-PFP in the outlet box and secure with the included screws.

STEP 5: Turn the power on to the circuit. The blue Power indicator should light up, indicating the outlet is ready for use.

---

Technical Specifications

AC Circuit AC Outlets: 2 Line Voltage: 120V, 60Hz Total Current Capacity: 15A UL 1449 Suppresion Rating: 330V Protection Modes: L-N, L-G, N-G Energy Dissipation: 546 Joules Peak Impulse Current: 32,500 Amps Catastrophic Surge Circuit: Yes Thermal Fusing: Yes Voltage Monitoring Circuit Over-voltage Shutoff: 142 VAC ± 5 VAC Power Outlet Faceplate Over-voltage Shutoff: 142 VAC ± 5 VAC Noise Filtration Level: 1 Signal Line Protection: Not Included/Modules Sold Separately

---

Product Benefits

• Mount flat panel displays and projectors closer to the wall with two recessed AC receptacles.
• Protect your investment from damaging electrical surges with patented Panamax overvoltage protection
• Improve picture and sound quality with EMI/RFI noise filtration
• Extend the life of your A/V equipment by providing it with the clean power it needs
• 3 Year Product Warranty

Configurable for a variety of installation applications!

Ultra-thin profile can allow equipment to hang less than one inch from the wall!

The Panamax Family of In-Wall Solutions for Home Theater Applications

	Product Name	Patented Surge Protection Circuit	Overvoltage Protection	Outlets	Accommodates Signal Line Cables (coaxial, HDMI, Component Video, etc.)	EMI/ RFI Noise Filtration	Metal Box Compatible
	PF Power MIW-SURGE	Yes	Yes* *not auto-resetting	1 flush outlet with flat plug adapter	Yes	No	Yes
	PF Power MIW-POWER-PRO-PFP	Yes	Yes* *with auto-reset	2 recessed outlets	No	Yes	No
	PF Power MIW-XT	Yes, when used with a Panamax power management product.	Yes, when used with a Panamax power management product.	1 flush outlet with flat plug adapter	Yes	Yes	Yes
	MIW POWERKIT PRO	Yes, when used with a Panamax power management product.	Yes, when used with a Panamax power management product.	2 recessed outlets	Yes	Yes	No

Note that Connected Equipment Policy is only valid for products bought from Panamax Authorized Internet Dealers. Contact Panamax for a list of Authorized Internet Dealers.

What's in the Box

(1) MIW-POWER-PRO-PFP power outlet enclosure

(4) Mounting Screws

(3) Wire Nuts

Product Description

Panamax Miw-Power-Pro-Pfp Max In-Wall Power Pro2 Recessed Ac Outlets Deliver Power To Remotely Located Devices; Surge Suppression Rating Of 330v; 546 Joules; Power On Indicator Led & Line Fault Indicator Led; Over-Voltage Protection; Includes Protect Or Disconnect Automatic Voltage Monitoring Circuitry & Noise Filtration Circuitry; Brushed Steel; $5 Million, 3-Year Connected Equipment Protection Policy

Customer Reviews

Most Helpful Customer Reviews

9 of 9 people found the following review helpful:

5.0 out of 5 stars Perfect Solution for Wall Mounted HDTV's, January 27, 2009

By

JRB Cincinnati "JRB" (Cincinnati, Ohio) - See all my reviews

Amazon Verified Purchase

This review is from: Panamax MIW-POWER-PRO-PFP Power Outlet Faceplate - Silver (Electronics)

This is the perfect solution for wall-mounted HDTV's, offering superior surge protection as well as two recessed plugs for additional room behind your new set. The new LCD and Plasma TV's are very sensitive to voltage surges; however, if you're mounting the tv on the wall, space is at a premium and the last thing needed is another device between the set and the wall. As a result, many people decide not to try to fit a surge protection device behind the set. You're asking for trouble if you do this. I highly recommend this device as your solution.
Compare the specification on this device with most protectors in your local store: you'll find it has superior technical specs, with the added, and welcome bonus, of eliminating wires, and offering the recessed plugs, for even more room to plug in the TV and another device (like a DVD player). It has indicator lights to confirm the voltage to your set is normal and another light to tell you if you have a problem.
Installation is not difficult, even for a novice. Just make sure you turn off your breaker switch to your outlet before you start! Follow the directions in the package, and you're ready to go. It's more expensive than some other in-wall solutions, but the added features are worth the price. Highly recommended.

3 of 3 people found the following review helpful:

5.0 out of 5 stars Easy to install, Looks and works great., April 3, 2009

By

A. Posey (Seacoast, New Hampshire) - See all my reviews
(REAL NAME)

Amazon Verified Purchase

This review is from: Panamax MIW-POWER-PRO-PFP Power Outlet Faceplate - Silver (Electronics)

The package comes with everything you need to install this in a double-outlet box. The recessed outlets are a great feature. This works great behind a flat screen TV. Do not try to install in a shallow box.

2 of 2 people found the following review helpful:

5.0 out of 5 stars Perfect power management, May 16, 2011

By

Goldgecko - See all my reviews

Amazon Verified Purchase

This review is from: Panamax MIW-POWER-PRO-PFP Power Outlet Faceplate - Silver (Electronics)

The MIW-POWER-PRO-PFP offers surge protection and clean power management in an elegant package. I chose this for a DIY install of an LED-LCD flat panel in my home after evaluating a number of other popular in-wall power management options including Monster Cable's In-Wall PowerCenter and Power Bridge kits. Low profile was a key attribute for my flat panel and mount selections, and the recessed plugs of this Panamax unit ensure that the A/C plug will not push the panel out farther from the wall. Took my time selecting a location for the plastic work box (not included) and planning a route for a new home run back to a sub panel in my basement. Disconnected power to the sub panel, and then ran new 14/2 Type NM-B Romex cable to a dedicated 15 amp breaker. Once the planning was done, install was smooth and simple. I separately routed all low-voltage signal cables (HDMI, coax and ethernet) through the wall, keeping them separate from the A/C supply (with separate power surge protection as well). Now the flat panel magically floats on the wall and is protected from lightning and other electrical surges. This is a great power management option and the install looks completely professional.
