Panamax MIW-SURGE In-Wall Surge Protection System - Silver/Black

by Panamax

Product Details

• Product Dimensions: 5 x 3.4 x 5.5 inches ; 2 pounds
• Shipping Weight: 2 pounds (View shipping rates and policies)
• Shipping: This item is also available for shipping to select countries outside the U.S.
• ASIN: B001DJY0LW
• Item model number: MIW-SURGE
• Average Customer Review: 4.0 out of 5 stars  See all reviews (6 customer reviews)
• Amazon Best Sellers Rank:
  • #4 in Electronics > Accessories & Supplies > Batteries, Chargers & Accessories > Line Conditioners
  • #93 in Electronics > Accessories & Supplies > Power Protection > Surge Protectors
• Date first available at Amazon.com: November 1, 2008

Product Description

From the Manufacturer

The PF Power MIW-SURGE from Panamax delivers safe, protected AC power to flat panel displays, ceiling mounted video projectors and powered sub-woofers. It discreetly hides behind electronic equipment for a neat, clean, code compliant and professional installation.

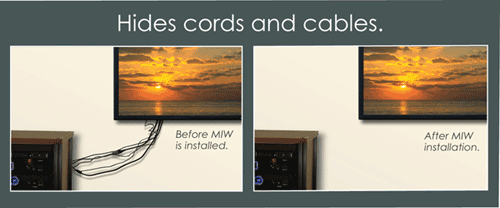

Product Benefits Mount flat panel displays and projectors closer to the wall with flush-mount outlet and flat plug adapter cord (included). Hide cables and cords inside the wall. Protect your investment from damaging electrical surges with patented Panamax overvoltage protection Improve picture and sound quality with EMI/RFI noise filtration Extend the life of your A/V equipment by providing it with the clean power it needs 3 Year Product Warranty

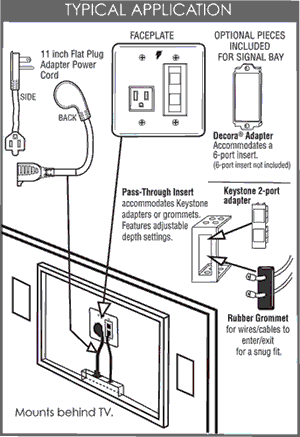

Configurable for a variety of installation applications!

Ultra-thin profile can allow equipment to hang less than one inch from the wall!

The Panamax Family of In-Wall Solutions for Home Theater Applications

	Product Name	Patented Surge Protection Circuit	Overvoltage Protection	Outlets	Accommodates Signal Line Cables (coaxial, HDMI, Component Video, etc.)	EMI/ RFI Noise Filtration	Metal Box Compatible
	PF Power MIW-SURGE	Yes	Yes* *not auto-resetting	1 flush outlet with flat plug adapter	Yes	No	Yes
	PF Power MIW-POWER-PRO-PFP	Yes	Yes* *with auto-reset	2 recessed outlets	No	Yes	No
	PF Power MIW-XT	Yes, when used with a Panamax power management product.	Yes, when used with a Panamax power management product.	1 flush outlet with flat plug adapter	Yes	Yes	Yes
	MIW POWERKIT PRO	Yes, when used with a Panamax power management product.	Yes, when used with a Panamax power management product.	2 recessed outlets	Yes	Yes	No

* Note that Connected Equipment Policy is only valid for products bought from Panamax Authorized Internet Dealers. Contact Panamax for a list of Authorized Internet Dealers.

What You'll Need:

Installation requires use of an outlet box or boxes that are NOT provided with the product. Product has been tested thoroughly to be compatible with the following outlet boxes:

	New Construction	Remodel
Plastic:	Carlon SC200DV	Carlon B114R
Metal:	Raco 8355	Raco 508 (hardware removed)

What's in the Box

(1) MIW-SURGE power outlet enclosure	(4) #6-32 8mm Flat Head Philips Faceplate Screws
(1) 11 inch flat plug adapter power cord	(4) #6-32T Pan Head Philips Mounting Screws
(1) MIW Pass-Through Insert	(1) Mounting Bracket
(1) Decora trim plate adapter	(2) Mounting Bracket Ears
(1) Keystone module insert	(2) #2.6-28 screws for Mounting Post
(3) Wire Nuts, 14/14 and 12/14 AWG solid wire compatible	(2) #6-20 screws for Mounting Bracket Ears
(1) Mounting Template

Product Description

MIW-SURGE delivers safe, protected AC power to flat panel displays, ceiling mounted video projectors and powered sub-woofers. Discreetly hides behind electronic equipment for a neat, clean, code compliant and professional installation.

Customer Reviews

Most Helpful Customer Reviews

7 of 7 people found the following review helpful:

5.0 out of 5 stars Panamax install considerations, February 8, 2009

By

C. Gilbert "Water Boy" (U.S.) - See all my reviews
(REAL NAME)

Amazon Verified Purchase

This review is from: Panamax MIW-SURGE In-Wall Surge Protection System - Silver/Black (Electronics)

The product arrived on time and in a package consistent with the advertisement. Note: there is a disclaimer on the box that states the warranty is only "recognized" if the product was purchased through an authorized Panamax dealer. Not sure if Amazon is just that, but if you are going to purchase this Panamax PF then you will need to research that if you are concerned about this issue. It would have been good to know this up front prior to purchase. Probably would not have changed my mind, but at least know it up front. Install was easy, great template for the cut out required. Also, you will require a UL rated "typically blue or metal for outdoors power connection box" for the back side of the outlet portion. Remember to get this box if you plan on installing right away. Overall, great product, price is right, and it installs easily. Mounted behind a 50" plasma. Mounted flush and comes with an all import right angle plug to reduce the space requirement behind the TV.

5 of 5 people found the following review helpful:

4.0 out of 5 stars Good value for a surge protected wall plate, just need to be prepared for install, October 26, 2009

By

Alex B (Canada) - See all my reviews

Amazon Verified Purchase

This review is from: Panamax MIW-SURGE In-Wall Surge Protection System - Silver/Black (Electronics)

I got this to insall behind my Plasma and also run HDMI and Coax cable through it. It's a GREAT product, and very good value. However, you MUST BE PREPARED for installing this as this is definitely not plug&play. Specially you need to make sure to get the right Carlon BOX to put this in a drywall. I didn't order that and I thought it fits to regular power boxes but it does NOT! Make sure you get Carlon SC200DV otherwise it's a bitch to install. Also, I wish Panamax made HDMI connectors for it, but they don't.

Overall, GREAT fit and finish, very professional look after install, and great value. Just make sure you do your homework before order/install.

4.0 out of 5 stars love the idea, but could be better, December 2, 2011

By

friede "über geek" - See all my reviews

Amazon Verified Purchase

This review is from: Panamax MIW-SURGE In-Wall Surge Protection System - Silver/Black (Electronics)

i had really high hopes for this in-wall unit, and don't get me wrong, it's worth the purchase, but the setup and the way it mounts in the wall/ceiling isn't too great! keep in mind that i'm a professional a/v tech/dj/tech geek and have been for 25+ yrs. i bought this to install in my ceiling - right behind my projector - which i did, and it installs just like any other reconstruction box does, but i had to modify it a bit to make it stay in the ceiling properly. having to place a double gang reconstruction box behind it, then this on top presents some issues. i also have issues with the fact that the keystone plugs don't stay in, which is a pain when it pops back into the box while you're trying to adjust it. it's also very tight with all the wiring inside the box as well. it's still worth the purchase, but could be better perfected by simply coming with its own reconstruction box attached to, or able to connect to the front frame. the only other issue i have with it is that it doesn't come in white or black - and only the color you see - a sort of bronzy color [doesn't match modern decor well] - but the plate could always be spray painted to match your ceiling or decor.
