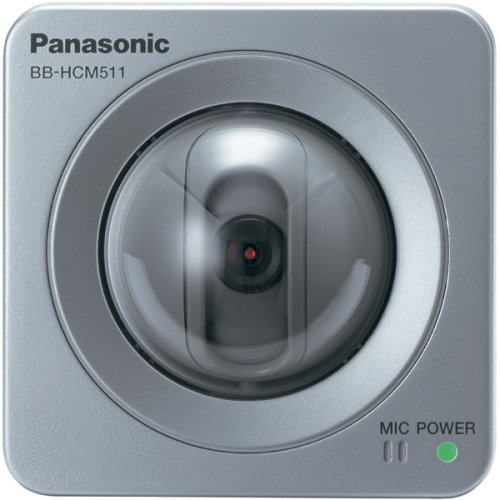

Panasonic BB-HCM511A Network Camera with Two-Way Audio

by Panasonic

Product Details

• Product Dimensions: 8.7 x 9.9 x 7.4 inches ; 11.7 ounces
• Shipping Weight: 1 pounds (View shipping rates and policies)
• Shipping: Currently, item can be shipped only within the U.S.
• ASIN: B000NVPTZC
• Item model number: BB-HCM511A
• Average Customer Review: 3.9 out of 5 stars  See all reviews (20 customer reviews)
• Amazon Best Sellers Rank: #643 in Camera & Photo (See Top 100 in Camera & Photo)
  • #31 in Camera & Photo > Surveillance Cameras > Hidden Cameras
• Date first available at Amazon.com: July 7, 2004

Product Description

From the Manufacturer

See There When You Can't Be There
Place this plug-and-play camera in your home, office, vacation home or almost anywhere else you'd like to keep an eye on things, with no PC required at the location. The camera can be viewed and controlled from a standard Web browser, video display, or even a compatible cell phone or PDA and requires no additional software for the PC that you're viewing it on. All of the other required software, including control software (TCP/UDP) and e-mail software (SMTP), is already inside the camera.

Any Image Bright and Clear
This camera features a CCD (Charged Couple Device) for sharp, enhanced image expression. The image refreshing speed (maximum) has been increased to 30 images per second for smoother displays of moving images.

Two-Way Voice Communication
Use of the built-in microphone and a separately purchased amp-equipped speaker enables two-way voice communication (transceiver system) between the network camera and a PC used to monitor the camera image. In addition to conventional monitoring of images and sound, voice messages can be transmitted from the PC to the network camera. Voice transmission and reception can be switched easily from the PC used to monitor the image.

Record Directly onto SD Cards
The camera features an SD Memory Card slot for recording images captured by the network camera directly onto an SD Memory Card (sold separately).

Power up without a PC
Power over Ethernet (PoE) means you can use your camera without connecting to a PC. Just plug your camera into a wall outlet, and both the power and the data are transmitted over the same CAT5 wire. Plus, each camera has a built-in Web server with IP address. To view the camera's images on a PC, simply open a graphics-capable Web browser and type in the cameras specified Internet address (password optional).

Control the Camera Remotely
Using a standard Web browser, video display, or even a compatible cell phone or PDA, you can control the movement of the camera. There is Pan (left & right) movement and Tilt (up & down) movement available. You can also assign a "Home Position" that allows you to return the camera to a pre-designated shooting position. Up to eight shooting positions can be registered in advance, so you can aim the camera exactly where you want it. You can also click on the part of the image you want to see, and automatically bring that part to the center of the screen.

Sensor Recording and Image Alerts
With the built-in heat sensor, the camera can be set to record and/or notify you when someone enters the room. It can even automatically move to a preset location when triggered, just in case someone was viewing a different part of the room.

Record Only What You Want to Record
The camera can be set to automatically record video at certain times and certain speeds. In addition, with optional, external sensors attached to the camera, it is possible for the camera to email or record when triggered by motion, sound, light, timer, or even a push button. These convenient functions eliminate your need to constantly check the image.

Create Your Own Free Web Address
The free viewnetcam service allows you to create a personal Web address (e.g., http://bob.viewnetcam.com) at which your camera's live image can be found on the Internet. Access your Panasonic Network Camera live from virtually any Internet connection point around the world! Your Web browser is the only software you'll need. Here's how the camera and service works: special software embedded within your Panasonic Network Camera gives your camera the ability to locate your unique Internet address. No matter what kind of Internet connection you have or which Internet provider you use, the viewnetcam.com service will keep your camera's Internet address permanent.

Features

• Pan/Tilt/Digital Zoom with Presets
• PoE (802.3af-compliant)
• Progressive Scan
• Analog Video Output
• Simultaneous MPEG-4 and JPEG
• SD Card Recording with Audio
• 0.09 Lux Color Night View Mode
• Up to 30 Frames per Second CCD
• Full Screen Monitoring
• Remote Monitoring from Cell Phone
• Full Screen 4-up and 12-up Multi-camera Pages
• Up to 30 Video Users
• Built-in Web Server/IP Address (IPv4/v6)
• Audio Capability (2-way)
• Built-in Microphone
• Dual Sensor Input to Trigger Movement
• Image Transfer by Motion Detection, Sensor Alert, Timer
• Password Protection
• Plug-and-play Installation
• Free Web Address like http://bob.viewnetcam.com
• Multi-language Interface
• Image Date and Time Stamp
• 1 Year Warranty

Product Description

Network Camera with 2-Way Audio. Use of the built-in microphone and a separately purchased amp-equipped speaker enables two-way voice communication2 (transceiver system) between the network camera and a PC used to monitor the camera image. In addition to conventional monitoring of images and sound, voice messages can be transmitted from the PC to the network camera. Voice transmission and reception can be switched easily from the PC used to monitor the image.

Customer Reviews

Most Helpful Customer Reviews

41 of 44 people found the following review helpful:

5.0 out of 5 stars Best mix of image quality, features, and price, February 22, 2009

By

FlyingPolarBear (Fullerton, CA USA) - See all my reviews
(TOP 500 REVIEWER)    (VINE VOICE)

Amazon Verified Purchase

This review is from: Panasonic BB-HCM511A Network Camera with Two-Way Audio (Electronics)

For a while the Panasonic BL-C111a and BL-C131a were my favorite of the Panasonic lineup for monitoring the pets and vacation house. Now I discovered the BB-HCM511A and this amazing little cam is THE BEST! It has a 1/4" CCD detector instead of a 1/6" CMOS in many of the other models. I can get a night time view of the ranch because the CMOS goes down to 0.2 lux instead of 3 lux. That's about the limit of human night vision, or a moonlit night. I couldn't do that before with the BL-C111a cam that this replaced. Also the CMOS sensor has much better dynamic range, which simply means more colors. So whereas with the BL-C111a the shades of green on the plants look flat, the BB-HCM5111a gives the scene much more definition with all different shades: slightly bluish green, slightly reddish green etc. and this has the visual effect as if it had greater resolution. I love the PoE feature because I can just run a network cable without running a separate power cable. To take advantage of this you need a cheap PoE injector or a fancier switch that supports PoE. I use the SMC GS8P-Smart switch for PoE, which is a newer model router with good reviews. I also use the CoconutView Vista sidebar gadget so I can always see all of my Panasonic cams on my desktop. To download this gadget go to the Microsoft Windows Live Gallery on the web and search for CoconutView or Panasonic. There's also an outdoor model, the BB-HCM531a but it's almost twice as expensive and from the installation manual it appears that the BB-HCM531a just has a cover on the back that you screw on and tape over the cables to protect the connectors from moisture. So I think this one is a better value for placing under eaves and protected outdoor sites, unless your plan to install it where it will be directly exposed to pouring rain. Ok just buy it, you will be happy with this cam.

24 of 24 people found the following review helpful:

3.0 out of 5 stars No support for audio without InternetExplorer, February 25, 2010

By

Phillip R. Hamilton (Dallas, Texas) - See all my reviews
(REAL NAME)

Amazon Verified Purchase

This review is from: Panasonic BB-HCM511A Network Camera with Two-Way Audio (Electronics)

Overall it is a nice product. My complaints so far are poor documentation for multiple camera configuration and the requirement of ActiveX for audio support.

If you have multiple cameras, the documentation for configuring this is poor. What you need to know is that each camera needs to be assigned a different IP address AND a different TCP port number. If you have 2 cameras, one can be 192.168.1.252:50252 and the other 192.168.1.253:50253 (for example). You can use the local address when accessing at home. When not at home, you will use your external fixed IP address plus each port to identify the cameras individually. Single camera setup is easy and the supplied software does it for you. But to have multiple cameras it is better to assign static addresses and port numbers as described above.

My second complaint is more serious than poor documentation. The audio feature requires ActiveX and thus will only work on Microsoft Windows OS with Internet Explorer. If you have Linux, Mac or even use Mozilla as your browser on MS Windows, you won't have any audio.

16 of 16 people found the following review helpful:

5.0 out of 5 stars Great private security camera, July 20, 2009

By

Bob T. (Alexandria, Virginia) - See all my reviews

Amazon Verified Purchase

This review is from: Panasonic BB-HCM511A Network Camera with Two-Way Audio (Electronics)

I've tried four different Panasonic webcams as well as some from other vendors, and this one is the best and well worth the price. I put a 16GB SDHC Trancender memory card in it, and can buffer 3964 20-sec 320x240 video clips or 2615 10-sec 640x480 clips. I have three motion triggers set up: the first buffers local video clips; the second sends me an email with a 320x240 image with a 10-minute time-out between emails; and the third buffers 640x480 still images. The last one has already buffered 111,321 640x480 images in addition to the stored video.

The night color vision option is fantastic. It automatically switches to a more sensitive mode when the light level drops. I can place small nite lights around the house rather than leaving the main lights on all night.

I also have a log of all camera activity from each camera emailed to me every day at midnight. A problem with the logs is that only the last 50 events are stored and included in the email. A single pet-sitter visit can easily generate more than 50 triggered events. Since you can only have one copy of the logs emailed to you each day per camera, the number of events in the log should be enough to cover the entire day. I called Panasonic about it and they told me that the alarm logs were limited to 50, and that I could change my trigger settings or have each trigger email me. I explained to them why both of those options would not work for me. This is a serious design problem with this camera.

I recently took a trip and found out that my pet-sitter was not doing the job I hired her to do. Since I will be traveling world-wide quite a bit in the next year, I am going to expand my system to the full 16 cameras to monitor my entire house while I am gone. I have 8 cameras now, and have not experienced any problems with bandwidth.

I also have a Brinks/Broadview system with entry and motion detection, but it's really nice to be able to look at any part of my house and know what is or has gone on there from anywhere, anytime.

I do wish this camera was a little less conspicuous, but otherwise it is a great security camera! My biggest fear is that someone will break in and steal my cameras, along with their internal memory; however, I am working on a way to send the buffered videos to an offsite location, in addition to the current emailed images.
