  • Parker A-Lok 8MSEL8N-316 316 Stainless Steel Compression Tube Fitting, 90 Degree Elbow, 1/2" Tube OD x 1/2" NPT Male
  • Sorry, this item is not available in
  • Image not available
  • To view this video download Flash Player

by Parker

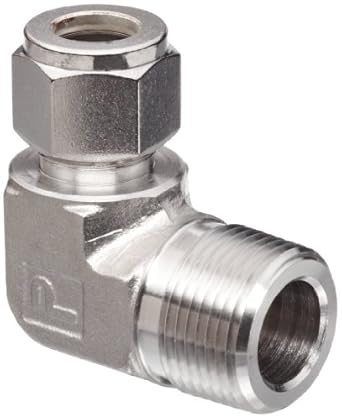

Parker A-Lok 8MSEL8N-316 316 Stainless Steel Compression Tube Fitting, 90 Degree Elbow, 1/2" Tube OD x 1/2" NPT Male

See all sizes in this Product Family


Price: $35.03 & FREE Shipping. Details
Only 15 left in stock (more on the way).
Ships from and sold by Amazon.com. Gift-wrap available.
2 new from $35.03

Product Specifications
Part Number 8MSEL8N-316
Pkg Qty 1
Pipe Size 1/2" x 1/2" NPT Male
Maximum Pressure 58  PSI
LowerTemperature Range -425  Degrees Fahrenheit
Upper Temperature Range 1200  Degrees Fahrenheit
UPC 094703770919
EAN 0094703770919
Thread Style 1/2" NPT Male
Specification for this product family (See all  products)
Brand Name Parker
Material Type Stainless Steel
System of Measurement Inch
Grade 316
Item Shape 90 Degree Elbow
Manufacturer Series Number MSEL-316 Series
Style Name Compression
UNSPSC Code 40183100

Product Features

  • 90-degree elbow for connecting tubing to threaded pipe at an angle
  • Fitting connects to tubing on one end and has an NPT male connector on the other
  • Chemically hardened type 316 stainless steel for higher strength and greater corrosion resistance than untreated stainless steel
  • Twin ferrule compression fitting for a leak-resistant seal in high-pressure applications
  • For use with stainless steel pipe and tubing


Product Details

  • Shipping Weight: 5 ounces (View shipping rates and policies)
  • Shipping: This item is also available for shipping to select countries outside the U.S.
  • ASIN: B000FMWDOO
  • Item model number: 8MSEL8N-316
  • Amazon Best Sellers Rank: #177,816 in Industrial & Scientific (See Top 100 in Industrial & Scientific)
  •  Would you like to give feedback on images or tell us about a lower price? .


Frequently Bought Together

Parker A-Lok 8MSEL8N-316 316 Stainless Steel Compression Tube Fitting, 90 Degree Elbow, 1/2" Tube OD x 1/2" NPT Male + Brennan N2404-08-08-SS Stainless Steel Compression Tube Fitting, Straight Adapter, 1/2" Tube OD x NPT Male
Price for both: $50.87

Buy the selected items together

Product Description

The Parker A-Lok MSEL-316 series compression tube fitting is made of type 316 stainless steel, and connects tubing to threaded pipe conforming to the National Pipe Thread (NPT) standard in a 90-degree elbow. This coupling is for a fixed connection between tubing and pipe made of stainless steel. A twin ferrule compression fitting connects to tubing on one end for a leak-resistant seal in high-pressure, high-vacuum, and high-vibration applications, and a male NPT connector on the other end connects to threaded pipe. This fitting is made of chemically hardened type 316 stainless steel that provides higher strength and greater corrosion resistance than untreated stainless steel. It is commonly used in chemical, petroleum, power generation, laboratory, and medical device plants.

Pipe and tube fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. Compression fittings do not require tools or sealants, and are useful in installations where a heat source, such as a soldering torch, is prohibited. When purchasing fittings, consider the application, as this will affect material type, shape, size, and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

Parker Hannifin manufactures electromechanical, hydraulic, and pneumatic motion technologies and systems for fluid handling, filtration, sealing and shielding, climate control, process control, and aerospace applications. The company, founded in 1918, is headquartered in Cleveland, OH.
