Pioneer TS-A1072R 4”-Inch 3-Way 150-Watt Speakers (Pair)

by Pioneer

Product Details

• Product Dimensions: 5 x 9.4 x 2.7 inches ; 2.2 pounds
• Shipping Weight: 3 pounds (View shipping rates and policies)
• Shipping: This item is also available for shipping to select countries outside the U.S.
• ASIN: B000LYABHW
• Item model number: TS-A1072R
• Average Customer Review: 4.0 out of 5 stars  See all reviews (10 customer reviews)
• Amazon Best Sellers Rank: #7,140 in Electronics (See Top 100 in Electronics)

Product Description

Amazon.com Product Description

Pioneer's TS-A1072R four-inch three-ways deliver power handling of 150 watts max. (20 watts nominal). Pioneer continues to set an example with next-generation technology for improved sound: the tweeter, magnets, surrounds, the voice coil wire, the basket and more are all high-performance components that make up a great speaker.

Pioneer's A-Series Speakers Pioneer A-series speakers outperform factory speakers on nearly every level. Packing a powerful punch, A-Series speakers are equipped with up to three independent tweeters with reinforced woofers, so every beat is heard and felt. Featuring a bigger, better cone than most OEM speakers, the A-series boasts serious output and booming bass. Extra-sensitive tweeters play at higher frequencies and are capable of handling stronger audio signals, resulting in vocals that are crisp and clear, even when you crank the volume.

---

TS-A1072R Features Composite IMPP Cone with Interlaced Aramid Fiber With long aramid fibers interlacing together inside, this IMPP cone design provides the strength and rigidity that powerful bass sound requires. High-density compressed internal architecture is resilient, stacks up against high power well and transfers sound quickly. The result is full-bodied, rich sound character with midrange depth that conventional IMPP cones cannot match. Midrange/Tweeter The mid-range is a 15/16" Light Weight Balanced Dome with Magnetic Fluid and includes its own Neodymium Magnet, for high-performance reproduction with low distortion, and the 3/8" Dome Tweeter delivers smooth, accurate highs. Custom-Fit Basket A custom-fit basket will fit both 4- & 2-Hole Mounting applications, making installation easy. Power Handling The TS-A1072R handles 150 watts max. power (20 watts nominal). Along with enhanced power handling, you still get the same high performance that all the TS-A's deliver.

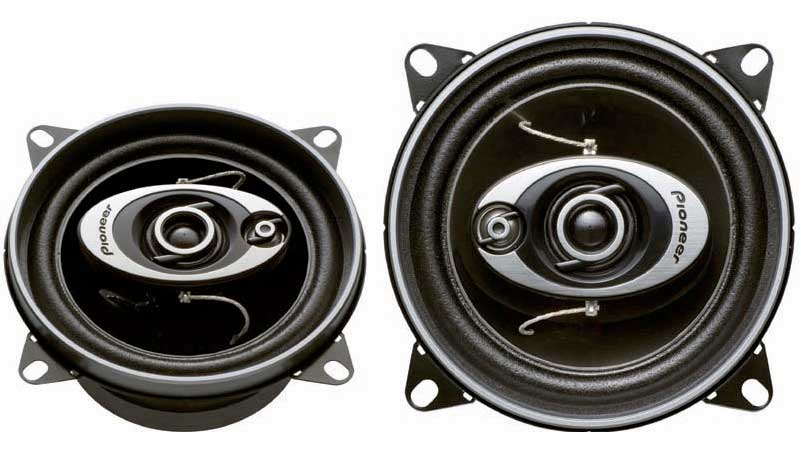

A four-inch, three-way speaker with 150 watts power handling. Click to enlarge or view dimensions diagram.

---

TS-A1072R Specs

Woofer Cone Material:	Composite IMPP Cone with Interlaced Dual Aramid Fiber
Surround:	Foam Rubber Coated Cloth
Voice Coil Bobbin:	Glass-Imide
Damper:	Aramid Fiber
Midrange:	15/16"Lightweight Balanced Soft Dome Midrange with Neodymium Magnet and Magnetic Fluid
Tweeter:	3/8" Soft Dome
Speaker Grille:	Not Included
Watts MAX. Music Power:	150 Watts
Watts Nominal Power Handling:	20 watts
Frequency Response:	45 Hz to 30 kHz
Sensitivity (1W/1m):	90 dB
Ohm Rating:	4
Mounting Depth:	1-11/16" (43 mm)
Cut-out Dimensions:	3-1/2" (90 mm)



---

Pioneer Car Audio Systems

Pioneer's Mobile Business Group is known for offering the kind of in-car products that make driving more enjoyable by offering high quality audio and video, seamless connectivity and ease-of-use. Its focus is on the development of new digital technologies including audio video, navigation and satellite radio, while maintaining its strong heritage in products for car audio enthusiasts and sound competitors.

---

What's in the Box

Pioneer TS-A1072R Three-Way Speaker (Pair), Mounting Hardware, Installation Guide

Product Description

Pioneer Ts-A1072R 2-Way, 4-Inch 150-Watt Speaker

Customer Reviews

Most Helpful Customer Reviews

2 of 2 people found the following review helpful:

5.0 out of 5 stars Just as advertised, February 1, 2010

By

Frank A. Edgar Jr. (Hampton, VA USA) - See all my reviews
(REAL NAME)

Amazon Verified Purchase

This review is from: Pioneer TS-A1072R 4”-Inch 3-Way 150-Watt Speakers (Pair) (Electronics)

I was very pleased with these speakers, especially the price! Great for the money!

2 of 2 people found the following review helpful:

5.0 out of 5 stars Pioneer, June 9, 2009

By

Joseph Haun - See all my reviews
(REAL NAME)

Amazon Verified Purchase

This review is from: Pioneer TS-A1072R 4”-Inch 3-Way 150-Watt Speakers (Pair) (Electronics)

they sound great, can go a lot louder than the company installed speakers. can actually here the bass in music now along with better treble.

2 of 2 people found the following review helpful:

5.0 out of 5 stars As advertised, January 31, 2009

By

Marty "world traveler" (USA) - See all my reviews

Amazon Verified Purchase

This review is from: Pioneer TS-A1072R 4”-Inch 3-Way 150-Watt Speakers (Pair) (Electronics)

This small loudspeaker was exactly as advertised, no low bass but a smooth mid and high range. It was fairly priced and delivered on time. It suited my need for a very small space.
