Pioneer TS-A1673R 6.5-Inch, 220-Watt 3-Way Speakers

by Pioneer

Product Details

• Product Dimensions: 7.2 x 14.4 x 3.6 inches ; 4.2 pounds
• Shipping Weight: 5 pounds (View shipping rates and policies)
• Shipping: This item is also available for shipping to select countries outside the U.S.
• ASIN: B001NFFYY8
• Item model number: TS-A1673R
• Average Customer Review: 4.3 out of 5 stars  See all reviews (23 customer reviews)
• Amazon Best Sellers Rank: #5,846 in Electronics (See Top 100 in Electronics)

Product Description

Amazon.com Product Description

Pioneer's TS-A1673R 6-1/2-inch three-ways now feature upgraded power handling of 220 watts max. (35 watts nominal). This year, they also feature something they've inherited from the D-Series speakers--a basalt cone. Pioneer continues to set an example with next-generation technology for improved sound: the tweeter, magnets, surrounds, the voice coil wire, the basket and more are all high-performance components that make up a great speaker.

Pioneer's A-Series Speakers Pioneer A-series speakers outperform factory speakers on nearly every level. Packing a powerful punch, A-Series speakers are equipped with up to three independent tweeters with reinforced woofers, so every beat is heard and felt. Featuring a bigger, better cone than most OEM speakers, the A-series boasts serious output and booming bass. Extra-sensitive tweeters play at higher frequencies and are capable of handling stronger audio signals, resulting in vocals that are crisp and clear, even when you crank the volume.

---

TS-A1673R Features Carbon Graphite IMPP Interlaced Aramid/Basalt Fiber Cone One of Pioneer's major speaker breakthroughs was IMPP (Injection-Molded Polypropylene), which allowed cones to be lighter and more rigid. Pioneer then added long stands of Aramid fibers into the mix, for extra strength. Now, they've gone even further with the TS-A1673Rs, adding basalt and carbon graphite interlaced with long aramid fibers to provide strength and rigidity that powerful bass sound requires. High-density compressed internal architecture is resilient, stacks up against high power well and transfers sound quickly. The result is full-bodied, rich sound with midrange depth that conventional IMPP cones cannot match, and the durability to stand up to the high volume levels, humidity, and temperature extremes that thrash other speakers. Large Diaphragm Tweeter The newly developed tweeter disperses sound more widely with superior control, providing listeners with the best sound under all conditions, regardless of listening position or car. And the 1" mounting depth achieves more flexible installation. Heat Resistant Polyester-Imide Resin Voice Coil Wire Creating mechanical energy is hot work, especially at high volume levels. And as we all know, heat can cause distortion. That's why the TS-A1673R uses a heat-resistant polyester-imide resin voice coil wire. It allows the voice coil to handle more heat, improving input power handling as well as reliability. So go ahead. Turn it up. Power Handling The TS-A1673R now handles a full 220 watts max. power (35 watts nominal). Along with enhanced power handling, you still get the same high performance that all the TS-A's deliver.

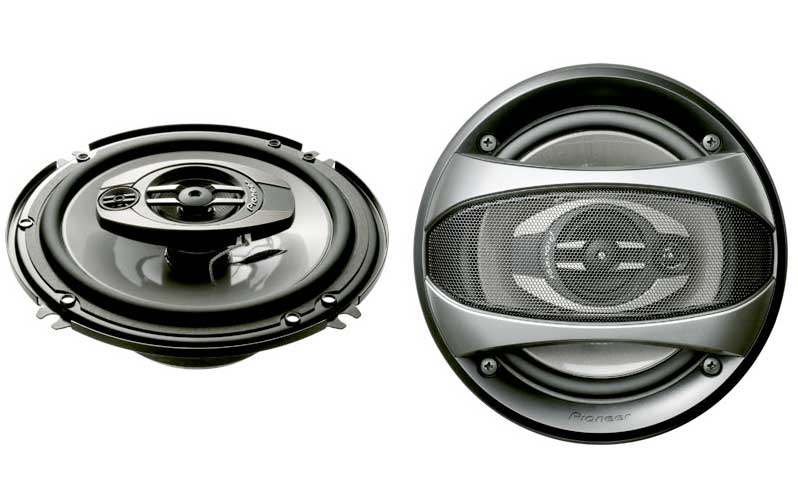

A 6-1/2-inch three-way speaker with 220 watts power handling. Click to enlarge.

---

TS-A1673R Specs

Woofer Cone Material:	Carbon Graphite IMPP Interlaced Aramid/Basalt Fiber
Surround:	Light Weight Elastic Polymer
Voice Coil Bobbin:	Glass-Imide
Voice Coil Wire:	Copper
Damper:	Aramid
Midrange:	1-5/8" Paper Cone
Tweeter:	3/8" PET Film Dome
Custom-Fit Basket:	GM-Fit Basket for Improved Fit on GM Oversized 6-1/2" Applications
Basket Design:	Shallow Basket for Wider Installation Coverage
Speaker Grille:	Included
Watts MAX. Music Power:	220 Watts
Watts Nominal Power Handling:	35 watts
Frequency Response:	37 Hz to 25 kHz
Sensitivity (1W/1m):	91 dB
Ohm Rating:	4
Mounting Depth:	1-3/4" (44mm)
Cut-out Dimensions:	5" (128mm)

---

Pioneer Car Audio Systems

Pioneer's Mobile Business Group is known for offering the kind of in-car products that make driving more enjoyable by offering high quality audio and video, seamless connectivity and ease-of-use. Its focus is on the development of new digital technologies including audio video, navigation and satellite radio, while maintaining its strong heritage in products for car audio enthusiasts and sound competitors.

---

What's in the Box

Pioneer TS-A1673R Three-Way Speaker (Pair), Mounting Hardware, Installation Guide

Product Description

Pioneer Ts-A1673R 6.5-Inch, 220-Watt 3-Way Speakers

Customer Reviews

Most Helpful Customer Reviews

17 of 17 people found the following review helpful:

5.0 out of 5 stars An AV technicians opinion, February 26, 2010

By

Michael Byrne "TallandFrothy" (Manassas, VA) - See all my reviews
(REAL NAME)

This review is from: Pioneer TS-A1673R 6.5-Inch, 220-Watt 3-Way Speakers (Electronics)

I am an AV technician (audio video) for concerts and shows. i am trained to tune the best of sounds out of the highest quality speakers.

I purchased these speakers expecting the least and was very surprised when i installed them.

These speakers sound beautiful. They are comparable to Bose or Alpine. I would most definitely recommend these to a friend.

Many people say that there isn't enough bass in these speakers. A little hint for ya... you cant just turn the bass up in your car and expect chest thumping goodness. You must adjust the mids and the lows and the power going to each hertz setting. These speakers have bass... they have tons of it. you just need to know how to pull it out of them.

So... if you want Bose quality at a low price... i totally recommend to anyone.

5 of 5 people found the following review helpful:

5.0 out of 5 stars Speakers work great in my Colorado pickup, April 16, 2009

By

Jason Sharp "Jason" (MO) - See all my reviews

Amazon Verified Purchase

This review is from: Pioneer TS-A1673R 6.5-Inch, 220-Watt 3-Way Speakers (Electronics)

These speakers were recomended for my Colorado pickup and they fit perfect and sound much better than the stock speakers.

4 of 4 people found the following review helpful:

5.0 out of 5 stars Good lows, highs, and mids, April 15, 2010

By

Stuck (Rhode Island) - See all my reviews

Amazon Verified Purchase

This review is from: Pioneer TS-A1673R 6.5-Inch, 220-Watt 3-Way Speakers (Electronics)

This set of speakers is perfect, good highs lows and mids and they fit in my car easily enough. I would definitely recommend these to anyone. I also purchased some Pyle speakers and to be honest the Pyles sound just as good as these, other than the Pyles have very cheap speaker wire. So if you REALLY need to save 20 bucks go check those out. If not I would stick with these because I am sure durability is a lot higher.
