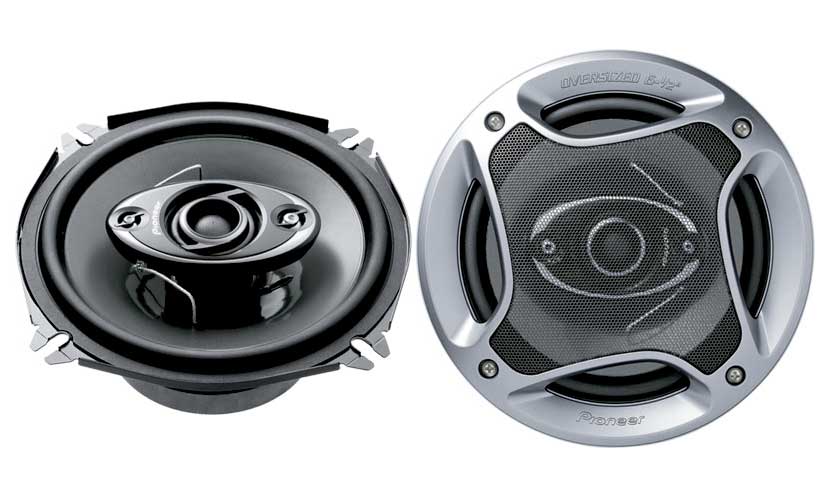

Pioneer TS-A1782R 6.75-Inch 4-Way 280-Watt Speaker

by Pioneer

Product Details

• Product Dimensions: 14 x 8 x 6 inches ; 1 pounds
• Shipping Weight: 6 pounds
• Shipping: Currently, item can be shipped only within the U.S.
• ASIN: B0012H4SS0
• Item model number: TS-A1782R
• Average Customer Review: 5.0 out of 5 stars  See all reviews (6 customer reviews)
• Amazon Best Sellers Rank: #43,674 in Electronics (See Top 100 in Electronics)

Product Description

Amazon.com Product Description

Pioneer's TS-A1782R 6-3/4-inch (oversized 6-1/2-inch) four-ways deliver power handling of 280 watts max. (50 watts nominal). Pioneer continues to set an example with next-generation technology for improved sound: the tweeter, magnets, surrounds, the voice coil wire, the basket and more are all high-performance components that make up a great speaker.

Pioneer's A-Series Speakers Pioneer A-series speakers outperform factory speakers on nearly every level. Packing a powerful punch, A-Series speakers are equipped with up to three independent tweeters with reinforced woofers, so every beat is heard and felt. Featuring a bigger, better cone than most OEM speakers, the A-series boasts serious output and booming bass. Extra-sensitive tweeters play at higher frequencies and are capable of handling stronger audio signals, resulting in vocals that are crisp and clear, even when you crank the volume.

---

TS-A1782R Features Composite IMPP Cone with Interlaced Aramid Fiber With long aramid fibers interlacing together inside, this IMPP cone design provides the strength and rigidity that powerful bass sound requires. High-density compressed internal architecture is resilient, stacks up against high power well and transfers sound quickly. The result is full-bodied, rich sound character with midrange depth that conventional IMPP cones cannot match. Butyl Rubber Surrounds Durable butyl rubber speaker surrounds won't fall apart under the stress of extreme temperatures, sunlight or time, and help Pioneer's woofers deliver serious bass. Power Handling The TS-A1782R now handles a full 280 watts max. power (50 watts nominal). Along with enhanced power handling, you still get the same high performance that all the TS-A's deliver.

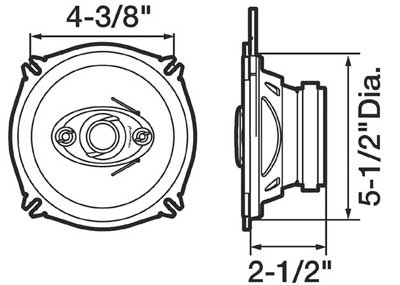

A 6-3/4-inch four-way speaker with 280 watts power handling. Click to enlarge or view dimensions diagram.

---

TS-A1782R Specs

Woofer Cone Material:	Composite IMPP Cone with Interlaced Dual Aramid Fiber
Surround:	Butyl Rubber for Smoother Respons
Voice Coil Bobbin:	Glass-Imide
Damper:	Aramid
Midrange:	1-1/2" Lightweight Balanced Soft Dome Midrange with Neodymium Magnet and Magnetic Fluid
Tweeter:	5/8" Dome Tweeter
Supertweeter:	3/8" Dome
Custom-Fit Basket:	Custom Fit for GM/Chrysler 6-3/4" (Oversized 6-1/2") Applications (Chrysler 3-Hole Adapter Include)
Basket Design:	Full Depth Basket for Rich bass Response
Watts MAX. Music Power:	280 Watts
Watts Nominal Power Handling:	50 watts
Frequency Response:	35 Hz to 28 kHz
Sensitivity (1W/1m):	91 dB
Ohm Rating:	4
Mounting Depth:	2-1/2" (62.5 mm)
Cut-out Dimensions:	5-1/2" (139 mm)

---

Pioneer Car Audio Systems

Pioneer's Mobile Business Group is known for offering the kind of in-car products that make driving more enjoyable by offering high quality audio and video, seamless connectivity and ease-of-use. Its focus is on the development of new digital technologies including audio video, navigation and satellite radio, while maintaining its strong heritage in products for car audio enthusiasts and sound competitors.

---

What's in the Box

Pioneer TS-A1782R Four-Way Speaker (Pair), Mounting Hardware, Installation Guide

Product Description

Pioneer Ts-A1782R 6.75-Inch 4-Way 280-Watt Speaker

Customer Reviews

Most Helpful Customer Reviews

2 of 2 people found the following review helpful:

5.0 out of 5 stars Great Sound!, April 27, 2009

By

I. Malave - See all my reviews
(REAL NAME)

This review is from: Pioneer TS-A1782R 6.75-Inch 4-Way 280-Watt Speaker (Electronics)

As an upgrade from stock, these speakers are amazing: notes in the song come alive, some of which I have never heard before. I still have these running off the factory stereo so I can't comment on bass or power...I have two 12s so bass isn't much of an issue. However, for clear crisp sound these are wonderful. Looking at the stats of the new Premiers (which recently replaced these) they are basically the same speaker. For the price, these would be hard to beat.

1 of 1 people found the following review helpful:

5.0 out of 5 stars Great Sound !!, April 9, 2009

By

E. Tirado (Hammond, IN USA) - See all my reviews
(REAL NAME)

This review is from: Pioneer TS-A1782R 6.75-Inch 4-Way 280-Watt Speaker (Electronics)

These pioneer speakers are better than most for the price they sound great theyre loud and hit hard.They also have an extra tweeter unlike most speakers these are 4 way speakers where others are only 3 way.

1 of 1 people found the following review helpful:

5.0 out of 5 stars Sounds Great, March 14, 2009

By

M. Martinez - See all my reviews
(REAL NAME)

This review is from: Pioneer TS-A1782R 6.75-Inch 4-Way 280-Watt Speaker (Electronics)

Theses pair of Pioneeer speakers sound great & fit just right in my 2002 GMC truck just right for being oversized speakers.
