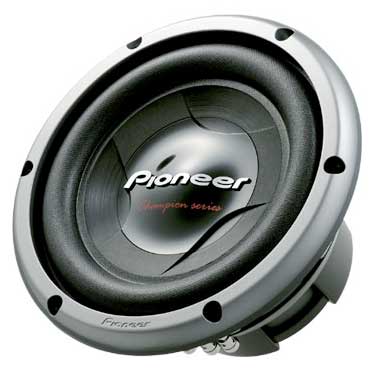

Pioneer TS-W258D2 10-Inch D2 Regular Core Subwoofer

by Pioneer

Product Details

• Product Dimensions: 12 x 15.6 x 6 inches ; 13.4 pounds
• Shipping Weight: 16.8 pounds (View shipping rates and policies)
• Shipping: Currently, item can be shipped only within the U.S.
• ASIN: B001NFA2H2
• Item model number: TS-W258D2
• Average Customer Review: 4.7 out of 5 stars  See all reviews (3 customer reviews)

Product Description

Amazon.com Product Description

~Pioneer's new Champion Series Subwoofers feature an all-new design and look. The TS-W258D2 is a 10-inch, dual-voice-coil, 2-ohm sub with a maximum power output of 1200 watts. For extraordinary performance, the cones are made of Pioneer's IMPP with Aramid Fiber, and feature a dual mass magnet assembly for higher magnetic force--and more power. The wire terminals are spring-loaded and can take up to 8-gauge wire.

Pioneer's Champion Series Subs Superior Sound and Savings Pioneer Champion Series subwoofers give you more bass for your budget. Delivering up to 1500 watts of exceptionally powerful thumping bass, this subwoofer enables you to build a great system at an affordable price. Powerful Performance Champion Series subwoofers boast Pioneer's legendary design and reliability. Constructed with the highest-quality materials, including a rugged IMPP cone that handles loud volume and high temperatures, the Champion Series is built to last. Installation Flexibility To allow for greater flexibility and easy installation, all Champion Series speaker terminals have been placed on one side of the subwoofer rather than both sides like conventional subwoofers.

---

TS-W258D2 Features Interlaced Basalt/Carbon Fiber Reinforced IMPP Cone To ensure that you get more natural bass, we've incorporated out new Basalt fiber technology into our shallow subwoofers. The volcanic-rock fibers create a cone that is lightweight, rigid, well damped, stable in temperature extremes, and more . In short, this bass really rocks. 3-Layer Radial Surround A sub's surround plays a key role in its overall performance. In order for bass response to be clear and tight, the surround has to respond evenly around its entire circumference without flexing or puckering, even at high volume levels. That's why Pioneer created a surround consisting of two layers of urethane, with a layer of interwoven fiber between them. It's strong, stable, and it reduces distortion. Dual Mass Magnet with Magnet Cover It's simple, really. Follow us here: to accurately drive and control its voice coil, a speaker needs a magnet and a pole yoke, to create magnetic force. The bigger or denser the magnet, the greater the magnetic force. The greater the magnetic force, the greater the power and control that's exerted over the voice coil. To make this happen in a big way, we use a Dual Mass Magnet assembly (weighing in at 83oz.) to significantly increase the magnetic force. SO, you get bigger and more accurate music. And yes, we even included a magnet cover. Spring-Compression Binding Posts Why do we use Spring-Compression Binding Posts, instead of standard speaker wire terminals? So your speaker wire NEVER shakes loose due to vibration (either from the road or from your music). When you insert the wire, the connector keeps a constant pressure on it. And it won't let go. These binding posts will accept wire as large as 8-gauge. Dual Voice Coil TS-W258D2/4 provides two voice coils, each either at dual 2 or dual 4 ohms. So you can use a low-impedance amp to produce much bigger, much more powerful bass. More options, more power: that's what DVC is all about. Add Newly Designed Spoke Grilles We also recommend covering up your subwoofer with the UD-G308. This stylish spoke grille is a must add-on when building a system and gives the look of pure professionalism.

Click images above to enlarge.

---

TS-W258D2 Specs

Size:	10-Inch
Woofer Cone Material:	Interlaced Basalt/Carbon Fiber Reinforced IMPP Cone
Surround:	Wide Roll, Three-Layer Fiber Woven Radial
Voice Coil:	4-Layer, Long Voice Coil
Voice Coil Wire:	Copper
Voice Coil Bobbin:	Phenol Resin Coated Glass Cloth
Magnet Construction:	Double Mass High-Power (74oz)
Basket Design:	Stamped Basket with Magnet Cover
Gasket:	ABS
Wire Terminals:	Integrated Single-Sided Silver Compression Terminals
Watts MAX. Music Power:	1200 Watts
Watts Nominal Power Handling:	350 Watts
Frequency Response:	20 ~~ 450Hz
Sensitivity:	90dB
Ohm Rating:	1 or 4 ohm
Recommended Enclosure:	0.65 ~~ 1.25 Cubic Feet
Dimensions:	277 mm x 162 mm
Mounting Depth:	143mm
Accessory Grill:	UD-G258

---

Pioneer Car Audio Systems

Pioneer's Mobile Business Group is known for offering the kind of in-car products that make driving more enjoyable by offering high quality audio and video, seamless connectivity and ease-of-use. Its focus is on the development of new digital technologies including audio video, navigation and satellite radio, while maintaining its strong heritage in products for car audio enthusiasts and sound competitors.

---

What's in the Box

Pioneer TS-W258D2 Subwoofer, Mounting Screws/Washers, Installation Guide~

Product Description

10-Inch D2 Regular Core

Customer Reviews

Most Helpful Customer Reviews

2 of 2 people found the following review helpful:

4.0 out of 5 stars Add some quality bass, May 16, 2010

By

S. Obeius "Prodigal Son" (Saint Lucia) - See all my reviews
(REAL NAME)

Amazon Verified Purchase

This review is from: Pioneer TS-W258D2 10-Inch D2 Regular Core Subwoofer (Electronics)

Pioneer has always made quality and affordable sub woofers and this one is no exception. 10" is the way to go for nice deep sounding bass particularly for the lower frequencies and i got just what i was looking for with this sub. I paired it with a pioneer amplifier so pioneer all the way. The dual 2 Ohm makes it more efficient (less resistance) and adds to versatility in connection options. The specs come with the speaker and that helped tremendously in designing the right enclosure for it- vented all the way for louder deeper lower bass. Love it.

1 of 1 people found the following review helpful:

5.0 out of 5 stars its Pioneer at its best !, October 13, 2010

By

ganji - See all my reviews

Amazon Verified Purchase

This review is from: Pioneer TS-W258D2 10-Inch D2 Regular Core Subwoofer (Electronics)

Amazon deal had me purchase this sub and I am very surprised at how it performs. This is one well made sub and for the money, you can't find a better sub than this. I've owned many subs
and this one is right up there for performance/value. Very nice looking too !

5.0 out of 5 stars absolutely incredible, September 6, 2011

By

awesome deal! - See all my reviews

Amazon Verified Purchase

This review is from: Pioneer TS-W258D2 10-Inch D2 Regular Core Subwoofer (Electronics)

i ordered a pair of these speakers a year ago lol and they have held up great. i mounted them in a super bass pro box and they really hit. anyone who gets in my car swears i have a pair of 15's. For anybody else like me who is really into car audio: i drive a 2002 ford escape, im running a 2000 watt icon legacy amp to my subs and a 1200 watt autotek amp to 4 6x8 3way 280 watt door speakers all of which off are running on a 2 farad power acoustik capacitor. oh yea and used a zero gauge wiring kit
